Linespex A1BTWCFA80FDCIP Series Mode d’emploi

Network Camera

Full HD Network Camera

A1BTWCFA80FDCIP

Series

Installation / User’s Manual

(EN REV 1.19)

Full –HD Network Camera

Install & User’s Manual

Thank you for purchasing a Network Camera.

Before installation or operation, please become familiar with the user manual and other referenced manuals

mentioned in the booklet.

User manual, software and hardware described here are protected by copyright by law. With the exception

of copying for general use within fair use, copying and reprinting of the user manual, either partially or in

entirety, or translating it into any another language without the consent of our Corporate office is strictly

prohibited.

Product Warranty and Limited Responsibility

The manufacturer does not assume any responsibility concerning the sale of this product and does not

delegate any right to any third party to take any responsibility on its behalf. The product warranty does not

cover cases of accidents, negligence, alteration, misuse or abuse. No warranty is offered for any attachments

or parts not supplied by the manufacturer.

The manufacturer does not assume any responsibility for followings

Malfunctions due to negligence by user

Deliberate disassembly and replacement by user

Connection of power source other than a properly rated power source

Malfunctions caused by natural disasters (fire, flood, tidal wave, etc)

The product is not for exclusive use of crime prevention but for assistance in cases as fire or theft. We

take no responsibility for damage from any incident.

Introduction

Warning

Do not install in area where installation space is not enough.

Do not touch power plug with wet hand.

Do not install nearby power line.

Do not drop and avoid strong impact, vibration.

Please contact professional dealers for construction as there could be risk such as fire or

electric shock.

Do not install under flickering light.

Stop using in case there are smoke or abnormal heat coming from device.

Do not dismantle or put foreign material into device.

A-rated device(Broadcasting Communication Equipment for business use only)

Users/Sellers should under this is A-rated device for business use only and it must not be used outside of

family.

Caution

Please avoid continuous use in high temperature and humid environment. It will affect product life to

short through the deterioration

Please be aware of direct touch of heat apparatus, radiant heat in installed site

If there is strong impact on the cover, it may cause of camera damage or waterlogging in case of rain

Please be aware that strong light do not direct to the camera. When strong lights as the spot lights

incident on screen, blooming or Smear may occur. And through the color filter deterioration of sensor, it

may affect discoloration. Also, by internal reflection of the cover

the abnormal signal may be occurred

Please avoid to drop the product, strong impact and vibration.

It will be direct cause of malfunction.

In case that product is closed to power line, please separate

its distance over 1m or install device after plumbing construction

with separated metal pipe (Please be sure to ground the metal pipe)

If device is installed on floor or slope, it may not work properly or product life will be shortened

Please avoid to install or use in following Places

Places where rapid temperature changes occur. Such as around the air-conditioned

Places where have steam, greasy or flammable materials. Such as kitchen

Places where occur Radiation, X-rays, strong radio waves or magnetism

Places where occur lots of dust in atmosphere or exhaust gas of a motor vehicle

Place where occur corrosive gas. Such as coast and avoid humid place

In case that cover inside/outside is contaminated by foreign substance, it may affect image and its quality.

Therefore, please clean devices regularly

Contents

Introduction......................................................................................................................................... 2

Warning.......................................................................................................................................................................................................................2

Products Introduction ....................................................................................................................... 4

Major Features .........................................................................................................................................................................................................4

Common Features of Products....................................................................................................................................................................4

Cable Description ...................................................................................................................................................................................................4

Installation ........................................................................................................................................... 5

Default IP and ID ....................................................................................................................................................................................................5

IP changing & FW upgrade...............................................................................................................................................................................5

Configuration ...................................................................................................................................... 8

Webviewer..................................................................................................................................................................................................................8

LIVE (H264 View).....................................................................................................................................................................................................9

MAIN ......................................................................................................................................................................................................................... 10

SYSTEM SETUP ................................................................................................................................................................................................. 10

ISP SETUP............................................................................................................................................................................................................ 13

VIDEO SETUP..................................................................................................................................................................................................... 24

Control Center Connection ............................................................................................................................................................................. 27

Appendix ............................................................................................................................................ 28

Troubleshooting [FAQ]....................................................................................................................................................................................... 28

Products Introduction

Major Features

Common Features of Products

◈1/2.8“, 2.1M Sony Image Sensor

◈Supports 2 H.264 streams including 1920x1080 30fps and 1 JPEG stream

◈Max 6 streams connection simultaneously (3 users based on NVR)

◈3DNR (Noise reduction)

◈Digital Image Stabilizer (DIS)

◈True Day&Night (ICR)

◈Support De-Fog function

◈One-push Auto focus, zoom/focus control

◈Supports Onvif / PoE (LPR camera does not support PoE.)

◈Supports IPv4

Cable Description

Description

Network connector port

Reset button

Extern Alarm

(Thermal or Flame detection Camera)

DC Power input port

Network connector port, reset button and power input port are not water-proof. Please be careful not to expose

to water.

Installation

This camera is high quality security device having important circuits. Before installation please read carefully

below recommendations as high internal temperature of the product can lead to damages and shorten product

life cycle.

Default IP and ID

IP : 192.168.0.2

DHCP : Off

ID : admin

Password : 12345

1. Default user name and password is unprotected to security. It is highly recommended that user should change

the default user name and password. In addition, user should change the password periodically. Please note

that the responsibility of the security problems caused by using the default account is to the user.

2. Please install the anti-virus program on your PC or smart phone to prevent the virus and malware, and please

keep the latest version of the anti-virus program by using update.

IP changing & FW upgrade

User can easily change the IP address, restart camera, initialize settings, connect to camera’s web page

(Webviewer), monitor live video, save camera’s list, upgrade FW, and simultaneously change the many camera’s

IP address at once by using IPTOOL. Run “IPtool.exe” included in CD.

Search camera

A1BTWCFA80FDCIP series cameras on

network are discovered and shown in the

list.

Change IP

Select a camera to change IP address and

click “Change IP” button. Pop-up window

comes to change IP address.

Type IP address, gateway, netmask, DNS,

Admin ID and password. Changed settings

are applied by clicking “OK”.

Restart camera

Select a camera to restart and click

“Restart camera”. Type Admin ID and

password, and click “OK”. The camera will

be restarted.

Reset settings

Select a camera to reset settings and click

“Reset settings”. Type Admin ID and

password, and click “OK”. All settings of

camera will be initialized.

Go to settings

Select a camera and click “Go to settings”. Then internet browser is executed. After log in, Webviewer of the

camera will be shown.

Live

Select a camera to see the live video and click “Live”. Type Admin ID and password, and click “OK”. VLC media

player is executed and live video will be shown. Note that VLC media player must be installed. Please download

VLC media player from http://www.videolan.org. 32-bit VLC media player is recommended even though the PC

is 64-bit system.

Save camera list

All camera list shown in IPTOOL is saved as csv file including IP address, port number, model name, MAC

address, serial number and firmware version.

FW update

1. Click “FW update”.

2. Click “Select upload image”.

3. Select firmware file (*x.x.x.img) to

upgrade and click “Open”.

4. Cameras related to the firmware file are

automatically discovered and shown in

the list.

5. Select cameras to upgrade firmware.

6. Type ID and password.

7. Click “Start uploading” to upgrade.

Please be sure that power of camera must

keep ON during upgrade.

Change Setting Batch

IPTOOL support “Change IP Batch” function

to change multiple camera’s IP address at

once. “Change IP Batch” is very useful if

there is no DHCP server on network. It can

simultaneously assign multiple camera’s IP

address without overlapping.

1. Select cameras which you want to change

IP settings, and click “Change IP Batch”.

2. Set IP address, Gateway, Netmask and

DNS. Note that the IP address is start

address.

3. Enter Admin’s ID and password.

4. Click OK. IP address of each selected

camera has IP address incremented by 1

from the starting IP address in sorted order.

Ex) If 10 cameras are selected and the “start IP address” is xxx.yyy.zzz.002, IP addresses of 10 camera will be

changed to xxx.yyy.zzz.002 ~ xxx.yyy.zzz.011.

1. Note that IP address, Gateway, Netmask and DNS should be input to use “Change IP Batch” function.

2. IP address of each selected camera has IP address incremented by 1 from the starting IP address.

3. It is recommended that the number of cameras for “Change IP Batch” function should not exceed 100.

Change settings Batch

Stream

FPS and bitrate of multiple cameras can be

changed simultaneously

1. Select cameras to change.

2. Click “Change settings Batch” and select

‘Stream’ tab.

3. Set FPS and Bitrate of main stream and

2nd stream.

4. Enter Admin ID, Password and click OK.

Time

Time of multiple cameras can be changed

simultaneously

1. Select cameras to change.

2. Click “Change settings Batch” and select’

Time’ tab.

3. Set time to apply for all selected

cameras.

4. Enter Admin ID, Password and click OK.

Configuration

It is possible to change settings of IP camera using Webviewer.

Video of IP camera can be shown in NVR or internet browser of PC or Control Center Monitor software included

in the CD.

Webviewer

If user connect to the IP camera’s homepage using internet browser, Webviewer will be shown. All functions and

settings of IP camera including live video monitoring and system setting can be done using Webviewer.

Enter IP address of camera in internet browser to access

Webviewer.

Enter user’s ID and password to log in.

(Default ID: admin / default password: 12345)

System Information

After log in, system information is shown.

Device Name / Model / Serial Number / FW Version / IP

Address / Mac Address

Device name, model name, serial number firmware

version, IP address, MAC address of IP camera is displayed.

Device name is for specific SW and can be changed.

RTSP URL

RTSP URL is used to see IP camera’s video through RTSP.

Enter the RTSP URL in VLC media player to see IP camera’s

video using VLC media player. Please download VLC media

player from http://www.videolan.org.

<Note>

32-bit VLC media player is recommended.

RTSP Connection

Devices (PC, NVR, etc.) information which are connected

to IP camera is shown.

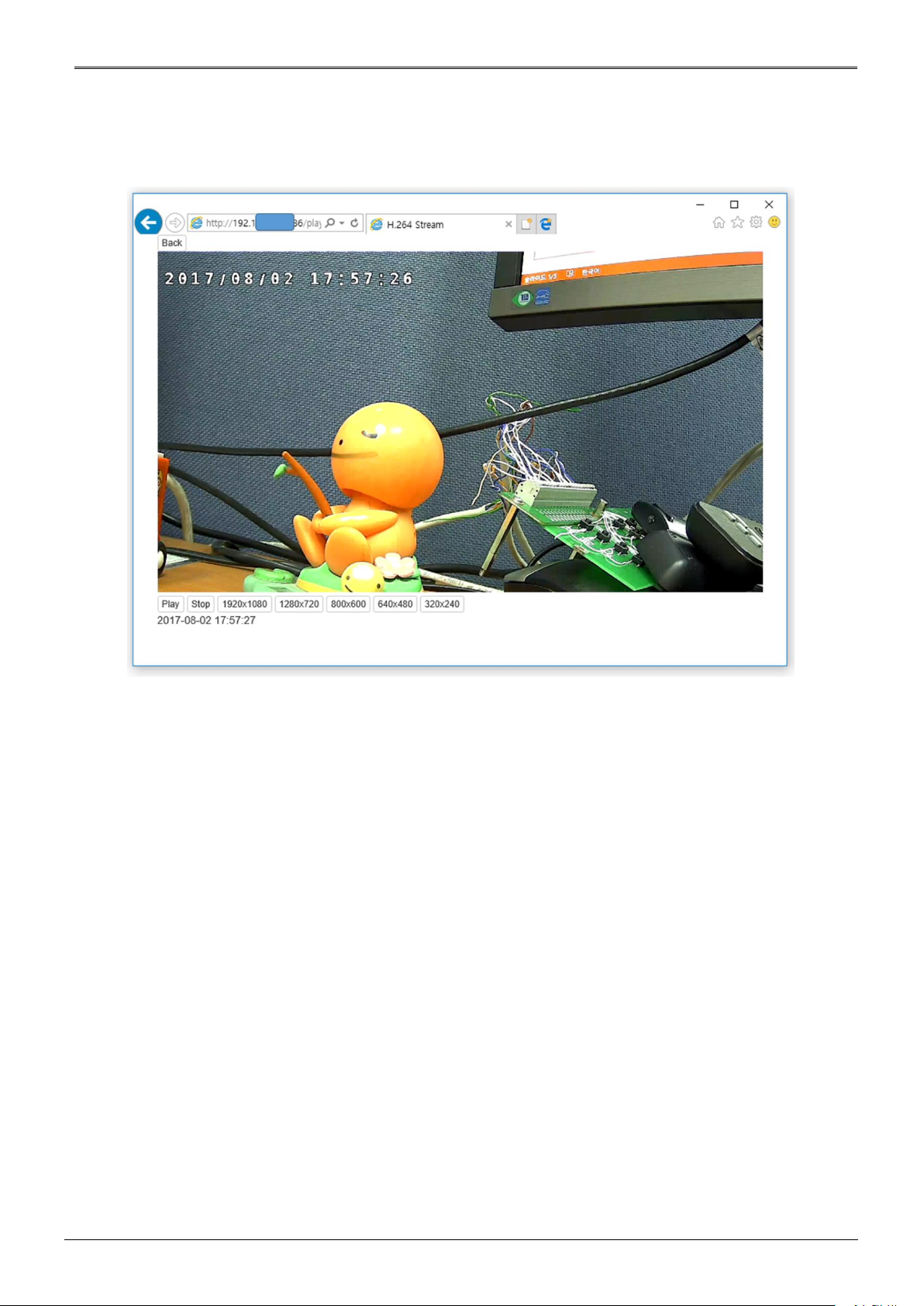

LIVE (H264 View)

Live video of IP camera will be shown by selecting Webviewer > VIDEO SETUP > H264 View.

<Note>

1. VLC media player should be installed on PC to show the live video of IP camera. Please download VLC

media player from http://www.videolan.org.

A. 32-bit VLC media player is recommended even though the PC is 64-bit system.

2. H264 View and JPEG View is spossible by using Internet Explorer.

3. Only JPEG View is possible if internet browser is Chrome or Firefox.

4. Please use the latest version of internet browser.

Table des matières

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
