DEMO MANUAL DC2221A

Description

LTC3807EFE

Low Quiescent Current,

High Voltage Step-Down Converter

Demonstration circuit 2221A is a low quiescent current,

synchronous buck converter featuring the LT C

3807EFE.

This demo board converts a 16V to 38V input voltage to

a 12V at 15A output.

The main features of this board include an internal LDO

for gate drive power from VIN or EXTVCC, RUN and

PGOOD pins, a mode selector that allows the converter

to run in constant current mode (CCM), pulse-skipping

or Burst Mode

operation, and selectable current limit.

The DC2221A supports an adjustable output voltage,

soft-start and tracking. The wide input voltage range of

16V to 38V is suitable for automotive and distributed DC

power systems where low quiescent current is important.

The LTC3807 data sheet gives a complete description of

this part, operation and application information. The data

sheet must be read in conjunction with this quick start

guide for demo circuit 2221A.

L, LT, LTC, LTM, Burst Mode, Linear Technology and the Linear logo are registered trademarks

of Linear Technology Corporation. All other trademarks are the property of their respective

owners.

performance summary

The 40V rated MOSFETs, which are used on DC2221A, can

be operated at their rated voltage. MOSFETs with higher

voltage rating can be used for more safety margin.

The DC2221A supports the LFPAK, PowerPAK SO-8 and

Power 56 MOSFET packages. The following logic level

(SV gate) MOSFETs can be used with DC2221A.

RJK0451DPB Renesas

BSC093N04LS G Infineon

Si4124DY Vishay

FDS8447 Fairchild

For synchronization to an external clock, remove jumper

JP2 and apply sync signal on terminal SYNC.

Design files for this circuit board are available at

http://www.linear.com

Specifications are at TA= 25°C

PARAMETER CONDITIONS VALUE UNITS

Minimum Input Supply Voltage 16 V

Maximum Input Supply Voltage 38 V

Output Voltage Range VIN = 16V to 38V, IOUT = 0A to 15A 12 ± 2% V

Typical Switching Frequency 120 kHz

Typical Output Ripple (VOUT, 12V) VIN = 24V; ILOAD = 15A 80 mV

Efficiency Typical (VOUT, 12V) VIN = 24V; ILOAD = 15A 97 %

Supply Quiescent Current VIN = 24V; VOUT = 12V, IO= 0A, Burst Mode 110 μA

Supply Shutdown Current VIN = 24V 38 μA

dc2221af

DEMO MANUAL DC2221A

Quick start proceDure

Demonstration circuit DC2221A is easy to set up to evalu-

ate the performance of the LTC3807EFE. Refer to Figure 1

for proper measurement equipment setup and follow the

procedure below:

NOTE. When measuring the input or output voltage ripple,

care must be taken to avoid a long ground lead on the

oscilloscope probe. Measure the input or output voltage

ripple by touching the probe tip directly across the VIN

or VOUT and GND terminals or directly across relevant

capacitor. See Figure 2 for proper scope probe technique.

1. Place jumper JP1 in the ON position.

2. With power off, connect the input power supply to VIN

and GND.

3. Turn on the power at the input. Check for the proper

output voltage:

VOUT = 11.9V to 12.4V

NOTE. If there is no output, temporarily disconnect the

load to make sure that the load is not set too high.

4. Once the proper output voltages are established, adjust

the load within the operating range and observe the

output voltage regulation, ripple voltage, efficiency and

other parameters.

Figure 1. Proper Measurement Equipment Setup

Figure 2. Measuring Input or Output Ripple Across Terminals or Directly Across Bulk Capacitor

LOAD

–

IOUT

VIN SUPPLY

–

IIN

+ –

VOUT GND

COUT

GND

VIN

dc2221af

DEMO MANUAL DC2221A

Quick start proceDure

Figure 3. 12V Output, Efficiency vs Load, Burst Mode Operation, VIN 16V, 24V, 36V

0.1 1 10 100

Efﬁciency (%)

Load Current (A)

VIN = 36V

VIN = 24V

VIN = 18V

dc2221af

DEMO MANUAL DC2221A

parts List

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 1 Q4 N Channel, MOSFET INFINEON., BSC093N04LS

2 1 Q2 N Channel, MOSFET INFINEON., BSC035N04LS

3 1 RS1 RES, 0.003Ω, 1W, 1%, 2512 PANASONIC ERJM1WSF3M0U

4 1 R1 RES., 2.2Ω, 1%, 0603 VISHAY, CRCW06032R20FNEA

5 3 R2, R8, R10 RES., 0Ω, 1%, 0603 VISHAY, CRCW06030000Z0EA

6 2 R4, R20 RES., 100k, 1%, 0603 VISHAY, CRCW0603100KFKEA

7 1 R5 RES., 511k, 1%, 0805 VISHAY, CRCW0805511KFKEA

8 1 R6 RES., 27.4k, 1%, 0603 VISHAY, CRCW060327K4FKEA

9 1 R7 RES., 35.7k, 1%, 0603 VISHAY, CRCW060335K7FKEA

10 1 R13 RES., 10Ω, 1%, 0603 VISHAY, CRCW060310R0FKEA

11 1 R15 RES., 2Ω, 1%, 0603 VISHAY, CRCW06032R00FNEA

12 1 R17 RES., 15.4k, 1%, 10603 VISHAY, CRCW060315K4FKEA

13 1 R18 RES., 1k, 1%, 0603 VISHAY, CRCW06031K00FKEA

14 1 C12 CAP., X7R, 4.7nF, 50V, 10%, 0603 YAGEO CC0603KRX7R9BB472

15 1 C14 CAP., NPO, 47pF, 50V, 5%, 0603 NIC, NMC0603NPO470J50TRPF

16 2 C25, C30 CAP., X7R, 2.2µF, 50V, 10%, 0805 TDK, C2012X7R1H225K125AC

17 1 D1 DIODE, SCHOTTKY, SOD-323 CENTRAL SEMI., CMDSH-4ETR

22 1 L1 IND., 8.6µH, Pulse., PG1083.103NL

23 1 C16 CAP., Sanyo, 150µF, 16V, 20% SANYO, 16SVPC150M

24 2 C2, C23 CAP., X7R, 10µF, 50V, 10%, 1210 AVX, 12105C106KAT2A

25 1 C15 CAP., X7R, 10µF, 16V, 10%, 1206 MURATA, GCM31CR71C106KA64L

26 1 C3 CAP., Sanyo, 82µF, 50V, 20% SANYO, 50HVH82M

27 3 C4, C9, C13 CAP., X7R, 0.1µF, 100V, 10%, 0603 MURATA, GRM188R72A104KA35D

28 1 C5 CAP., COG, 10pF, 50V, 5%, 0603 AVX., 06035A100JAT2A

29 1 C6 CAP., X5R, 4.7µF, 16V, 10%, 0805 MURATA, GRM219R61C475KE15D

30 2 C7, C17 CAP., X7R, 1µF, 16V, 10%, 0603 TDK, C1608X7R1C105K

31 1 C8 CAP., X7R, 1000pF, 10V, 5%, 0603 AVX, 0603ZC102JAT2A

32 1 U1 I.C., LTC3807EFE#PBF, LINEAR TECH., LTC3807EFE#PBF

Additional Demo Board Circuit Components

33 0 R3, R9, R11, R12, R19, R21 RES., OPTIONAL

34 R22, R23, R24, R25 (OPT) OPTIONAL

35 0 C11, C18, C19, C20, C21, C22, OPTIONAL

36 C24, C26, C27, C28, C29, C31-C34 (OPT) OPTIONAL

37 1 R14 RES., 1M, 1% 0805 VISHAY, CRCW08051M00FKEA

38 1 R16 RES., 57.6k, 1% , 0603 VISHAY, CRCW060357K6FKEA

39 0 Q3, D3, Q1 (OPT) OPTIONAL

Hardware: For Demo Board Only

40 1 FAB, PRINTED CIRCUIT BOARD DEMO CIRCUIT 2221A

41 10 E1-E10 TESTPOINT, TURRET, .094" MILL-MAX, 2501-2-00-80-00-00-07-0

42 2 JP1, JP2 JMP, 3-PIN, 1 ROW, 0.079" SULLINS, NRPN031PAEN-RC

43 2 XJP1, XJP2 SHUNT, .079" CENTER SAMTEC, 2SN-BK-G

44 4 J1, J2, J3, J4 CONN, BANANA JACK, KEYSTONE-575-4 KEYSTONE, 575-4

45 4 MTGS at 4 Corners STANDOFF, NYLON .5 1/2" KEYSTONE, 8833 (SNAP-ON)

dc2221af

DEMO MANUAL DC2221A

Information furnished by Linear Technology Corporation is believed to be accurate and reliable.

However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-

tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.

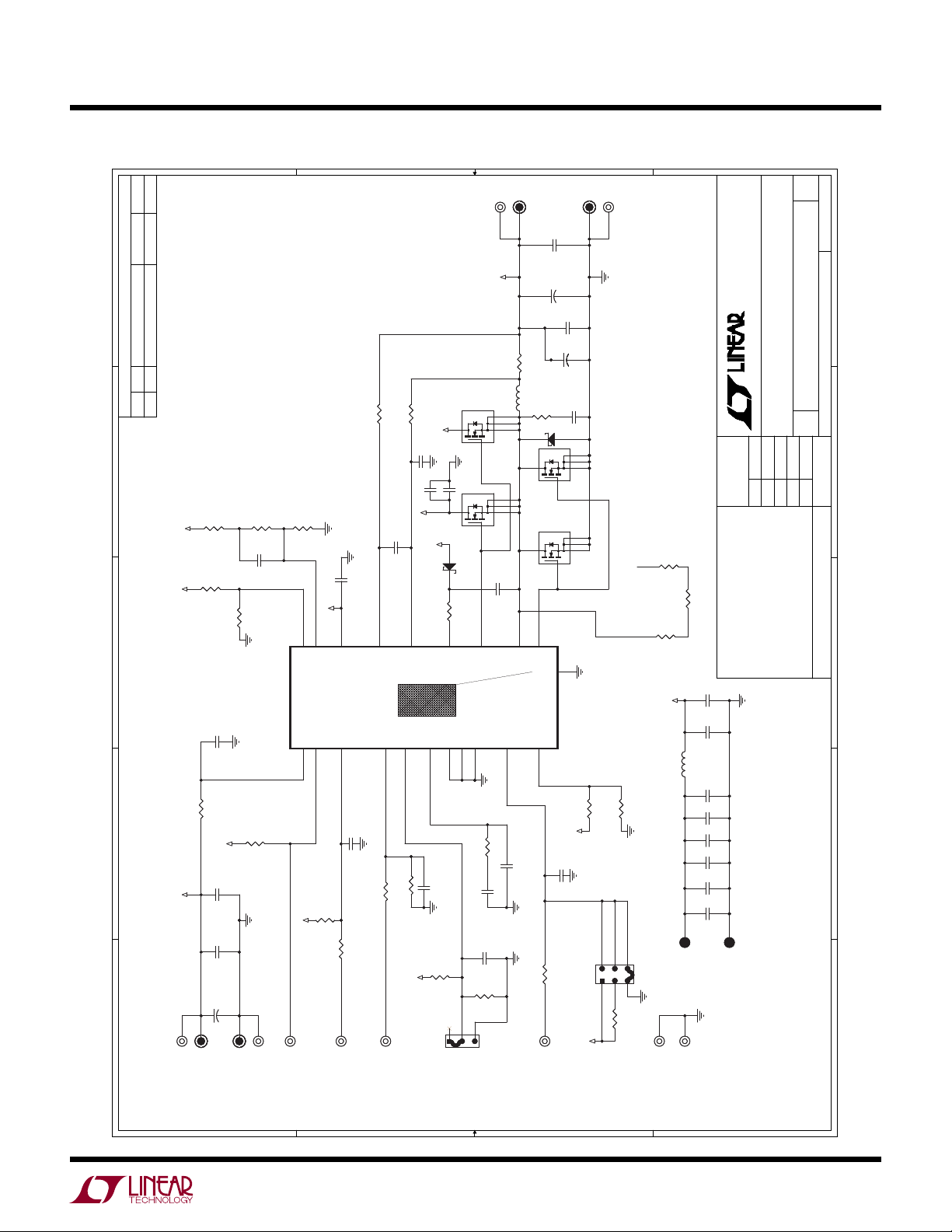

schematic Diagram
