Lindy 32702 Manuel utilisateur
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (November 2015)
HDMI WLAN Projector Server
Quick Installation Guide English
Quick Installation Guide Deutsch
Guide d'installation rapide Français
Guida rapida all‘installazione Italiano
No. 32702
www.lindy.com
Tested to Comply with
FCC Standards
For Home and Office Use!
Quick Installation Guide English
1.Package Contents
WPS Box
WPS USB Token
Power Adapter (DC +5V, 2.6A)
WiFi Antenna x 2
Wall-mount kit
CD (Quick Installation Guide)
This User Manual and Driver
2.USB Token Contents
Windows Installer (WPS Windows Installer)
Mac Installer (WPS Mac Installer)
VAC Driver (For Windows XP Audio Projection)
VDD Driver (For Windows XP/Vista Virtual Extended Screen)
USBoIP Driver (For IWB feature)
User Manual
WPS Execution File
SVS Driver (For Mac Virtual Extended Screen)
Utility
PtG Converter (For MobiShow PtG function)
SNMP Manager (For SNMP Management)
Quick Installation Guide English
3.Physical Details
Front Panel
Rear Panel
Power LED
Power Jack
VGA Connector
RJ-45
Antenna
AAudio Jack
HDMI
Antenna
USB Port
USB Port
Quick Installation Guide English
Bottom Side
Reset Button
Screw hole
(Optional kit for Wall Mount)
Quick Installation Guide English
4.What You Might Need
Projector/Display with VGA/HDMI interface
Windows or Mac PC/Laptop
Apple iPhone, iPad or iPod-touch device
Android Phone or Tablet device
Speaker (Optional, for audio projection feature)
USB Mouse and Keyboard (Optional, for remote desktop feature)
USB HID Touch Screen/IWB Device (Optional, for USB over IP feature)

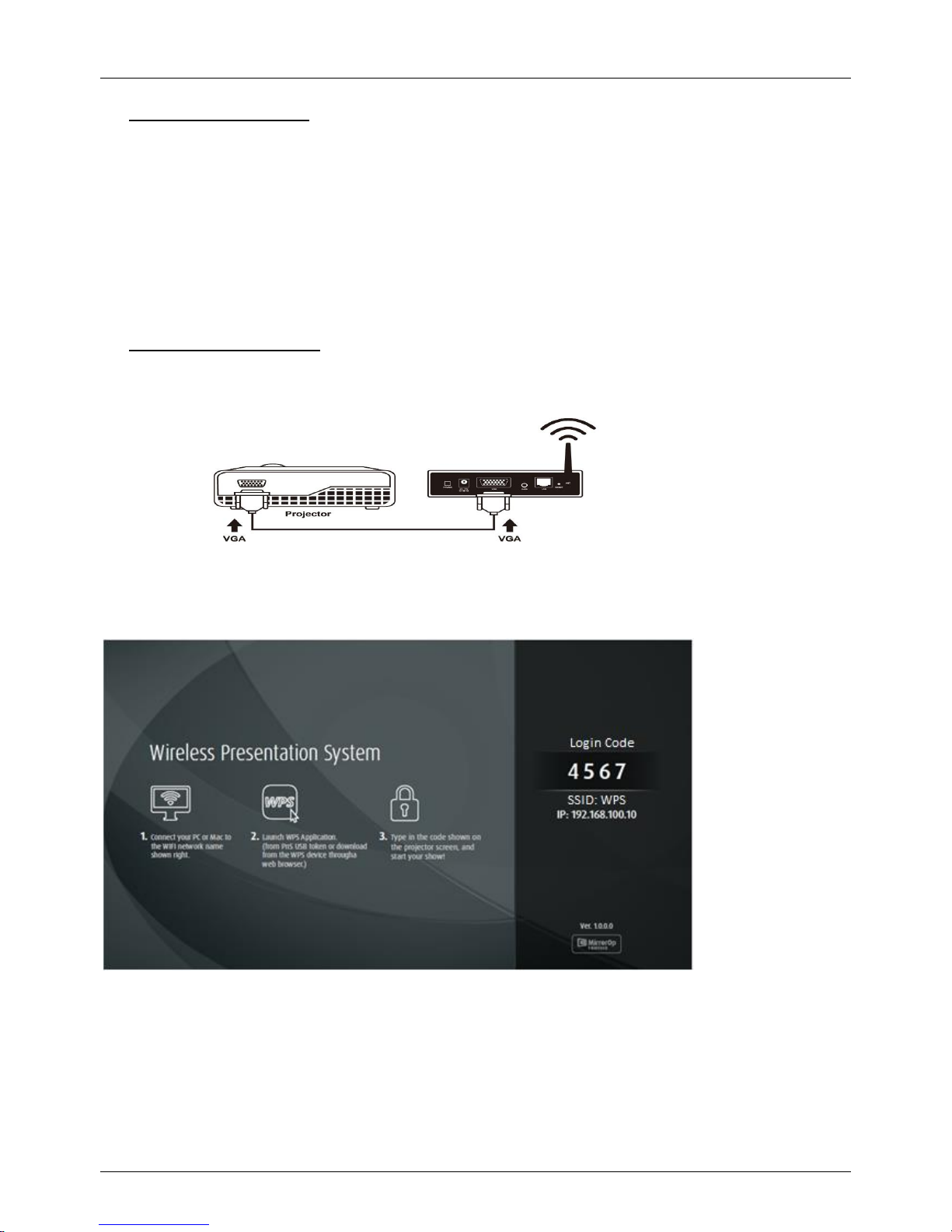

5.WPS Quick Installation
1) Connect WPS device to Projector/Display through VGA/HDMI port and turn on Projector/Display power.
2) Connect the power adaptor to WPS device and press the power button to turn on WPS device. System will be
ready when the LED light turns to green.
It will show the default standby screen as below when system is ready.
Quick Installation Guide English
6.DoWiFi for Windows
1) Make sure your PC WiFi is enabled already, and connect your PC to WPS box through WiFi.
2) Open your browser and enter the Device Host Name (SSID) or IP address in the browser.
You can find the IP address and Host Name (SSID) on the projector screen. (Default Host
Name (SSID) is WPS, Default IP is 192.168.100.10)
3) Download the client software for “XP/Vista/Windows 7 / 8” and install on your PC. (You can
also launch the application from PnS token directly.)
Quick Installation Guide English
4) Launch WPS client and connect to WPS receiver.
(Make sure your personal firewall allows WPS software to pass through.)
5) Enter the CODE and you can see the Code on the projector standby screen.
6) Click the button to start full screen projection, or choose one of the numbers (1 to 4) to
project to the split screen.
7) Connect the USB input devices to WPS to select and control the PC/Mac remotely.
Quick Installation Guide English
7.DoWiFi for Mac
1) Enable your WiFi and connect to WPS WiFi network.
2) Open your browser and enter the Device Host Name (SSID) or IP address on browser. You
can find the IP address and Host Name (SSID) on the projector screen. (Default Host Name
(SSID) is WPS, Default IP is 192.168.100.10)
3) Download the client software and run the installer.
Quick Installation Guide English
4) Launch WPS software, connect the WPS device and enter the Code.
5) Click the button to start full screen projection, or choose one of the numbers (1 to 4) to
project to the split screen.
6) Connect the USB input devices to WPS to select and control the PC/Mac remotely.
