1.7.-1 General

General maintenance schedules must be observed, otherwise, our warranty for

your shredder will cease to apply.

The first maintenance and any necessary repairs may only be executed by our

service staff. Please refrain from executing any maintenance repair work

yourself or assigning any third parties with such works, since otherwise our

warranty will cease to apply.

All maintenance work may only be executed by trained and instructed

personnel. Before carrying out any maintenance work, carefully read the

instructions contained in the "Safety instructions" section.

The following must be done before entering the machine and before taking up

and maintenance or repair work:

set the key switch (Start) to the centre position and remove the ignition key,

set the key switch (Manual-0-Automatic) to "0 " and remove the key,

turn battery disconnecting switch out,

keep keys and the battery disconnecting switch in a safe place.

The shredder must always be secured against accidental or unauthorised

restarting.

It is strictly forbidden to climb into or onto the machine during operation,

particularly onto the shredding tools and the tilting hopper!

For servicing the drive engine, it is essential to follow the manufacturer’s

operating and maintenance manual!

Dispose of replaced filling liquids according to the manufacturer's instructions in

order to avoid endangering people or the environment.

URRACO 75 D 





ERVICE GUIDELINES

Managing director

LINDNER

Mobile Shredder GmbH

Industriestrasse 1A

D-99820 Hörselberg / Eisenach

Service hotline:

+49 (0) 36920 - 7269 - 600

[email protected]

Manuel Lindner

Gerhard Buhl

Walter Geiger

Page - 4 - of - 38 -

The maintenance schedule contains recommended maintenance intervals for the main

components. However, please note that this maintenance schedule may have to be adapted

to the actual conditions in your plant.

If you are working under particularly difficult conditions, it may be necessary to shorten the

recommended intervals. The following maintenance schedule should therefore be used as a

basis for preparing your own schedule, which should take into account your individual

operating conditions.

Thanks to their special training, the staff of LINDNER

GmbH are able to provide first class

technical assistance as well as all maintenance services and spare parts which you require.

If you require spare parts or are encountering any problems, please do not hesitate to

Phone: + 49 (0) 36920 - 7269 - 600

The contact details of our

Service Department are: Fax: + 49 (0) 36920 - 7269 - 99

URRACO 75 D 





ERVICE GUIDELINES

Managing director

LINDNER

Mobile Shredder GmbH

Industriestrasse 1A

D-99820 Hörselberg / Eisenach

Service hotline:

+49 (0) 36920 - 7269 - 600

[email protected]

Manuel Lindner

Gerhard Buhl

Walter Geiger

Page - 5 - of - 38 -

1.7.-2 Important Advice for Welding Work

Before any welding work is carried out, the earth switch must be set to "off" and

all electronic parts and components (remote control system, engine electronics)

must be disconnected from the power supply). Turning out the battery

disconnecting switch does not provide sufficient safety. Considerable damage

to the electronics is possible in the case of nonobservance.

All material residues must be removed from the shredder before each welding

procedure. Risk of fire!

For performing welding work, prepare the shredder as follows:

1. Switch off the drive engine.

2. Turn out battery disconnecting switch and secure it against being switched (lock it).

3. Disconnect the two plugs from the electronic engine control (ECM; Put the cable away

such that the contact pins of the plugs cannot make any contact.

4. Connect the earth cable of the welding apparatus directly to the part to be welded

(connect the earth cable of the welding apparatus as closely as possible to the welding

point).

Before you start welding, the cable and other combustible parts must be covered so that they

cannot be damaged by weld spatters.

URRACO 75 D 





ERVICE GUIDELINES

Managing director

LINDNER

Mobile Shredder GmbH

Industriestrasse 1A

D-99820 Hörselberg / Eisenach

Service hotline:

+49 (0) 36920 - 7269 - 600

[email protected]

Manuel Lindner

Gerhard Buhl

Walter Geiger

Page - 6 - of - 38 -

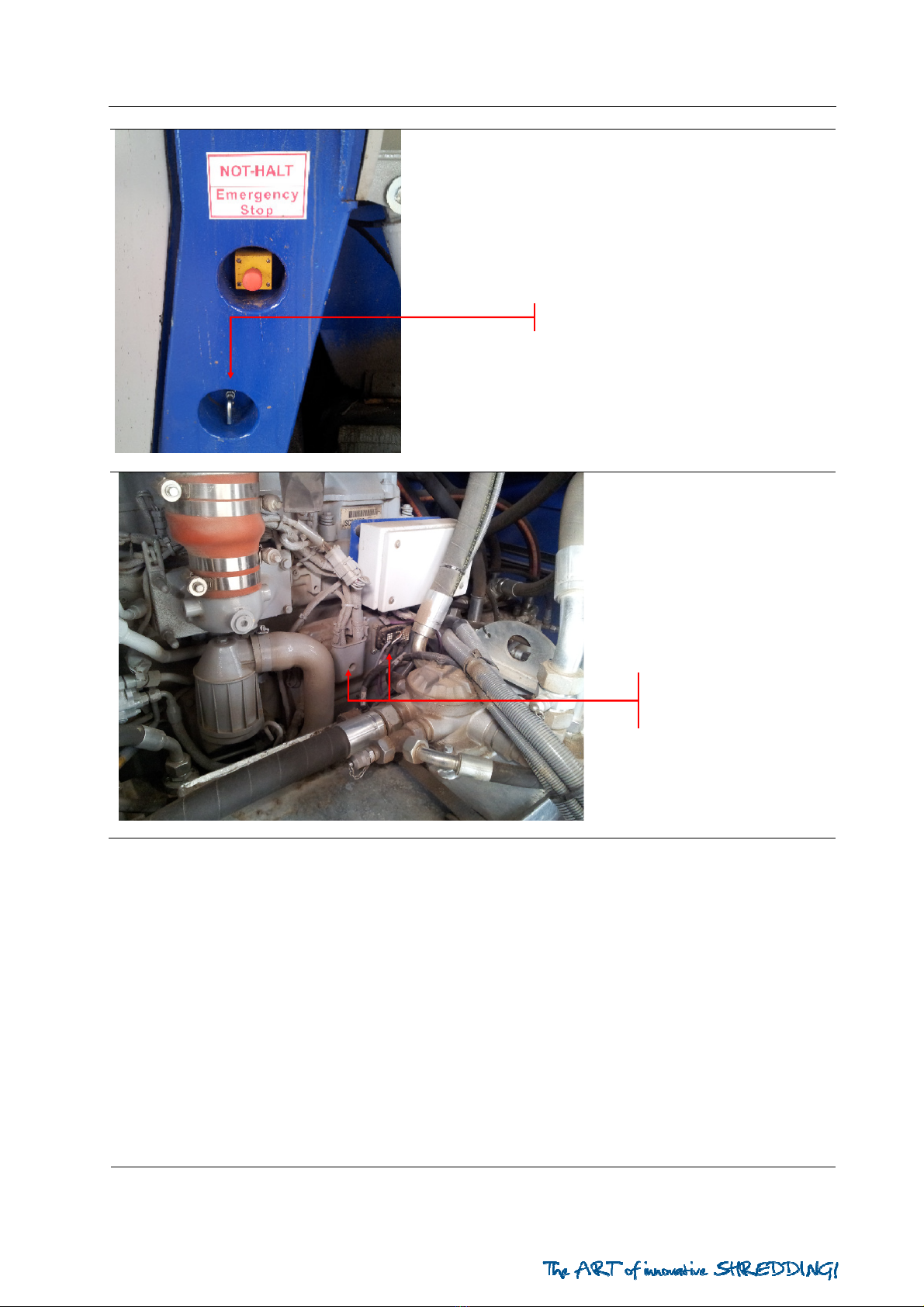

Battery disconnecting switch

Plug of the electronic

engine control (ECM)

URRACO 75 D 





ERVICE GUIDELINES

Managing director

LINDNER

Mobile Shredder GmbH

Industriestrasse 1A

D-99820 Hörselberg / Eisenach

Service hotline:

+49 (0) 36920 - 7269 - 600

[email protected]

Manuel Lindner

Gerhard Buhl

Walter Geiger

Page - 7 - of - 38 -

1.7.-3 Filling Liquids

Total filling capacity including filters as required Changing interval

Fuel

approx. 450 litres Diesel oil according to DIN 51601 as required

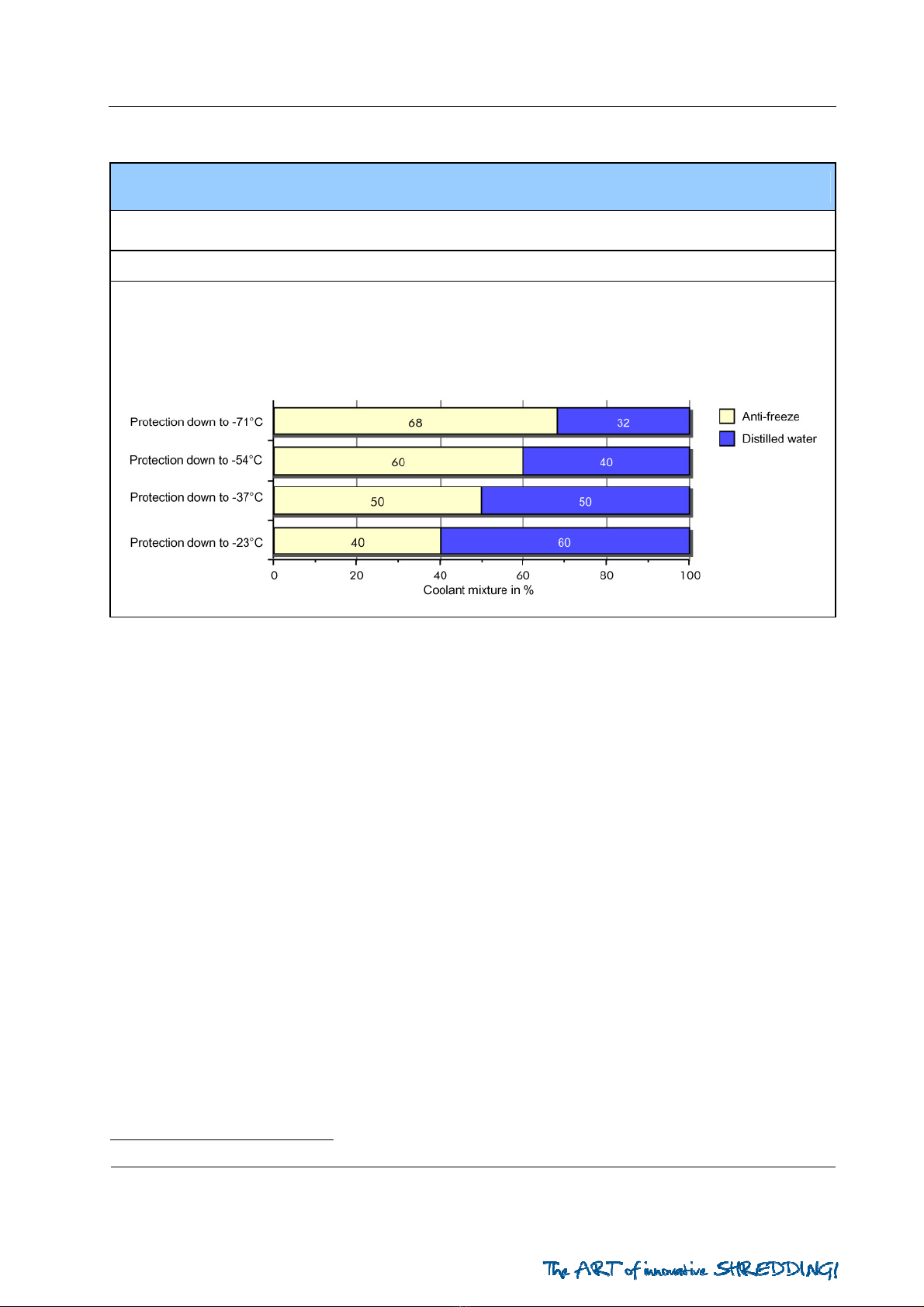

Coolant1

approx. 55 litres coolant mix of distilled water and

antifreeze according to

ASTM D4985-89

(ethylene glycol basis)

every 3000 hours

or annually

Refer to the drive engine operating and maintenance manual

URRACO 75 D 





ERVICE GUIDELINES

Managing director

LINDNER

Mobile Shredder GmbH

Industriestrasse 1A

D-99820 Hörselberg / Eisenach

Service hotline:

+49 (0) 36920 - 7269 - 600

[email protected]

Manuel Lindner

Gerhard Buhl

Walter Geiger

Page - 8 - of - 38 -

Engine oil

32 litres Select the lubricant viscosity according to the

ambient temperature:

Required oil viscosity

Ambient temperatureDiesel engine

multigrade oil

EMA LRG-1 API

CH-4 APICG-4

and APICF-4

Degree of

viscosity

min. maximum

SAE 0W / 20 -40 °C (-40 °F) 10 °C (50 °F)

SAE 0W / 30 -40 °C (-40 °F) 30 °C (86 °F)

SAE 0W / 40 -40 °C (-40 °F) 40 °C (104 °F)

SAE 5W / 30 -30 °C (-22 °F) 30 °C (86 °F)

SAE 5W / 40 -30 °C (-22 °F) 40 °C (104 °F)

SAE 10W / 30 -20 °C (-4 °F) 40 °C (104 °F)

SAE 15W / 40 -15 °C (5 °F) 50 °C (122 °F)

Factory-filled: SAE 10W / 40

every 250 hours or

every 6 months

ATTENTION:

Mandatory!

After 100 – 200

operating hours, the

customer must order

an inspection to be

performed by

LINDNER.

After 100-200

operating hours, the

engine inspection has

to be performed by the

responsible, authorised

dealer or OEM dealer

to ensure the warranty

for the engine. The

customer must order

this inspection

independently.

Gearbox

oil

60 litres (depending on sight glass level)

Types of oil: Oils with characteristics as per API GL-5

Ambient temperature: -10°C to +30°C SAE 80W/90

+20°C to +45°C SAE 85W/140

Factory-filled: CLP 220

after first

100 hours,

then every 500

hours

or twic

e yearly

Greases Standard multipurpose grease for antifriction and plain

bearings (e.g. MARSON L2),

Operating temperature range from -30 to + 120 °C

see lubrication

chart in the manual

Refer to the drive engine operating and maintenance manual

URRACO 75 D 





ERVICE GUIDELINES

Managing director

LINDNER

Mobile Shredder GmbH

Industriestrasse 1A

D-99820 Hörselberg / Eisenach

Service hotline:

+49 (0) 36920 - 7269 - 600

[email protected]

Manuel Lindner

Gerhard Buhl

Walter Geiger

Page - 9 - of - 38 -

Hydraulic

oil

approx. 120 litres Hydraulic oil according to DIN 51524

part 2, select the viscosity class from the

diagram according to the climatic

conditions

Purity class 18/13 according to ISO 4406 or better.

Factory-filled: HLP 46

every 500 to 1000

hours

or twice yearly

(depending on

contamination level)

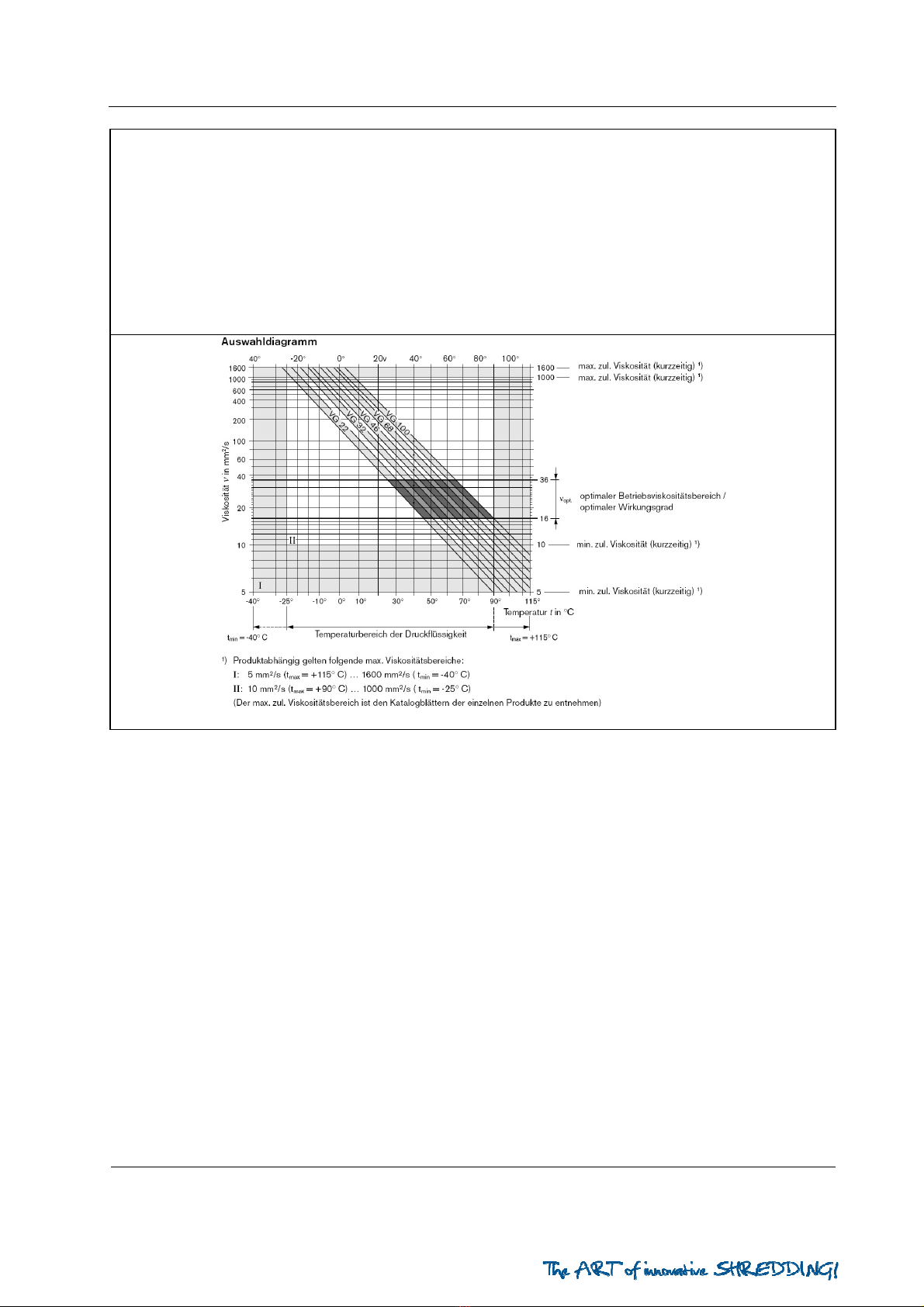

Auswahldiagramm Selection diagram

A = arktische Verhältnisse oder für extrem lange Leitungen A = arctic conditions or for extremely long lines

W = winterliche Verhältnisse in Mitteleuropa W = winterly conditions in Middle Europe

S = sommerliche Verhältnisse in Mitteleuropa oder geschlossene

Räume

S = summerly conditions in Middle Europe

T =tropische Verhältnisse oder Räume mit starkem Wärmeanfall T =tropical conditions or rooms with high heat exposure

U = übermäßig starker Wärmeanfall (z.B. durch

Verbrennungsmaschinen)

U =excessively high heat exposure (e.g., by combustion engines)

Max. zul. Viskosität (kurzzeitig) max. permissible viscosity (short-term)

Optimaler Betriebsviskositätsbereich optimaler Wirkungsgrad Optimal operating viscosity range, optimal efficiency

min. zul.. Viskosität (kurzzeitig) min. permissible viscosity (short-term)

min. zul. Viskosität (kurzzeitig) min. permissible viscosity (short-term)

Temperatur t in °C Temperature t in °C

1) Druckflüssigkeitstemperaturbereich 1) Pressure liquid temperature range

Produkt- bzw. nenngrößenabhängig gelten folgende

Viskositätsbereiche:

The following viscosity ranges apply, depending on product or

nominal size:

(Der max. zul. Viskositätsbereich ist den Katalogblättern der

einzelnen Produkte zu entnehmen)

(For the maximum admissible viscosity range, refer to the

catalogue sheets of every product.)

URRACO 75 D 





ERVICE GUIDELINES

Managing director

LINDNER

Mobile Shredder GmbH

Industriestrasse 1A

D-99820 Hörselberg / Eisenach

Service hotline:

+49 (0) 36920 - 7269 - 600

[email protected]

Manuel Lindner

Gerhard Buhl

Walter Geiger

Page - 10 - of - 38 -

The oil change intervals for the gear and hydraulic oil can be extended subject to written

approval of our Service Department if the results of an oil analysis (laboratory report) have

been submitted.

You can have the oil analysis

conducted yourself in a certified laboratory and then send us the laboratory report, or

further advice and information concerning the oil analysis can be found at

www.wearcheck.de.

The maximum oil change intervals are 1000 h and must on no account be exceeded.

1.7.-4 Initial Maintenance Work

When servicing the drive engine, observe the separately enclosed operating

and maintenance manual of the engine manufacturer!

ATTENTION: Mandatory!

After 100 operating hours, the customer must order an inspection to be

performed by LINDNER.

After 100 -200 operating hours, the engine inspection has to be performed by

the responsible, authorised CAT dealer or OEM dealer to ensure the warranty

for the engine. The customer must order this inspection independently.

All maintenance work may only be executed by trained and instructed

personnel. Before carrying out servicing work, you must always read the safety

instructions.

The initial maintenance tasks are performed 16 hours (2 working days) and 100 - 200 hours

(1 month) after installation and commissioning of the machine.

The daily and the regular maintenance tasks are carried out according to section 1.7-5.

Autres manuels pour URRACO 75 D

Table des matières

Autres manuels Lindner destructeur de papier

Lindner

Lindner URRACO 75 D Mode d’emploi

Manuels destructeur de papier populaires d'autres marques

Swingline

Swingline STACK-AND-SHRED200X&200XL 60X Mode d’emploi

GBC

GBC ShredMaster CC055 Manuel utilisateur

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuel utilisateur

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuel utilisateur

Rexel

Rexel Optimum AutoFeed+ 45X Manuel utilisateur

Martin Yale

Martin Yale 227284S1 Manuel utilisateur

Bonsaii

Bonsaii DocShred C223-A Manuel utilisateur

HSM

HSM Pure 740 max Manuel utilisateur

TRU RED

TRU RED TR-BMC20A Manuel utilisateur

Fellowes

Fellowes 50S Manuel utilisateur

GBC

GBC SHREDMASTER 1236SE Manuel utilisateur

Gude

Gude GH 2600 P Manuel utilisateur

Ativa

Ativa DQ80M Manuel utilisateur

Q-Connect

Q-Connect Q8CC Manuel utilisateur

Fellowes

Fellowes POWERSHRED C-325CI Manuel utilisateur

Olivetti

Olivetti Privacy 5000C Guide de démarrage rapide

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuel utilisateur

Dahle

Dahle paperSAFE 22022 Manuel utilisateur
