Mounting instruction

lindab | we simplify construction

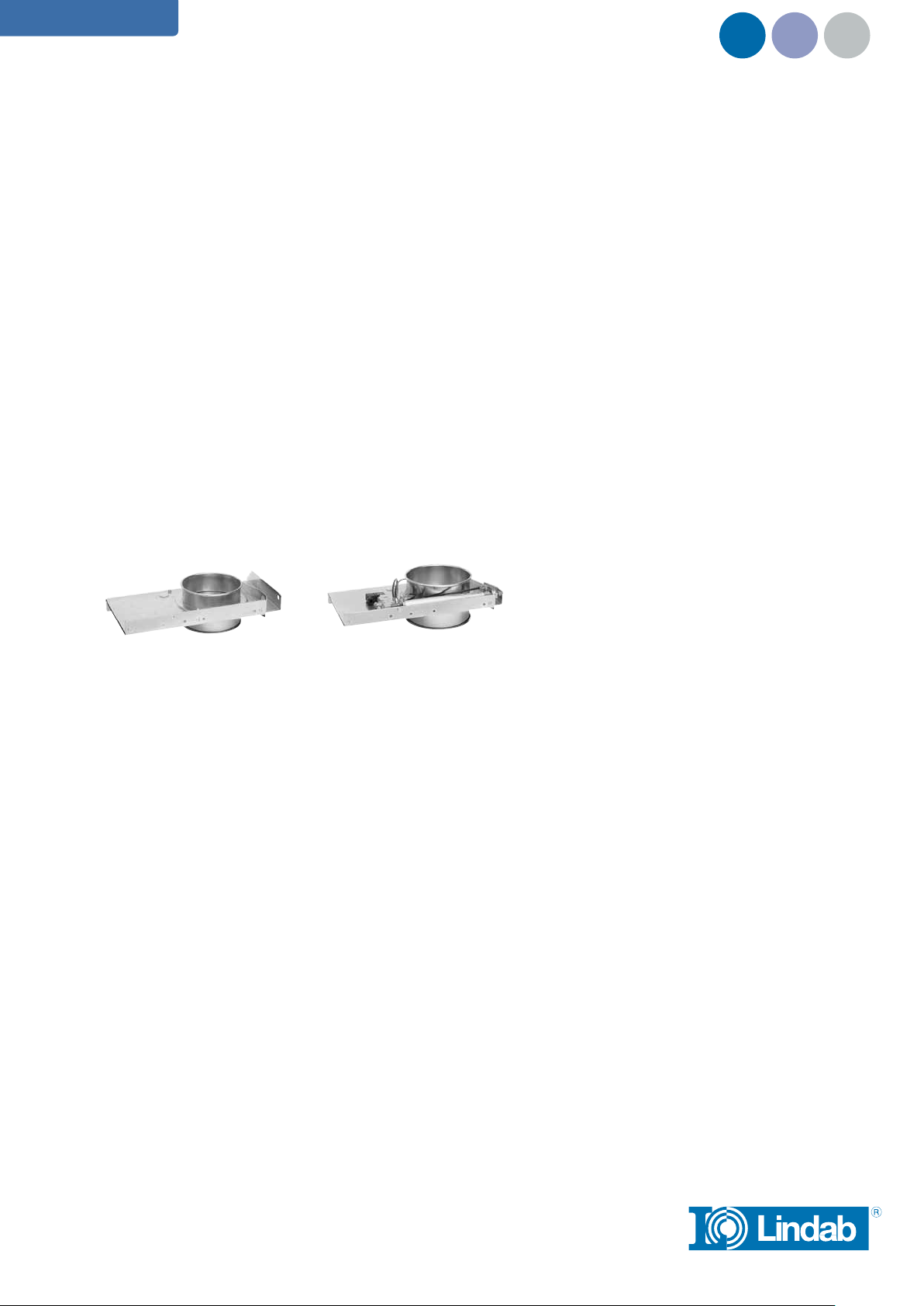

Sliding

dampers

SKMTR SKPTR

Библиотека СОК 

lindab | we simplify construction

Sliding dampers

SKMTR, SKPTR

Assembly

Install the damper as per instructions for straps or flanges.

Check that the space before/beyond the damper allows the damper blade to be fully opened.

When installing SKPTR with automatic opening and closing function, the risk of personal injury must be

considered. The damper must therefore be installed outside any possible contact zone, for example min.

2.1 m above the floor.

Connecting conduits must be suspended so that the damper is not exposed to destructive forces. These

can cause the damper to jam or stick.

Example of horizontal installation.

Electrical connection

Electrical connection must not be performed before the damper is connected to the pipe system or the

pipe connections are covered in some other way.

Electricity must be connected by a qualified electrician. Connection must be carried out in accordance

with the adjoining diagram.

The motor must, however, be preceded by a multi-pin switch with a break distance of at least 3 mm.

Wiring diagram

lindab | we simplify construction

Sliding dampers

SKMTR, SKPTR

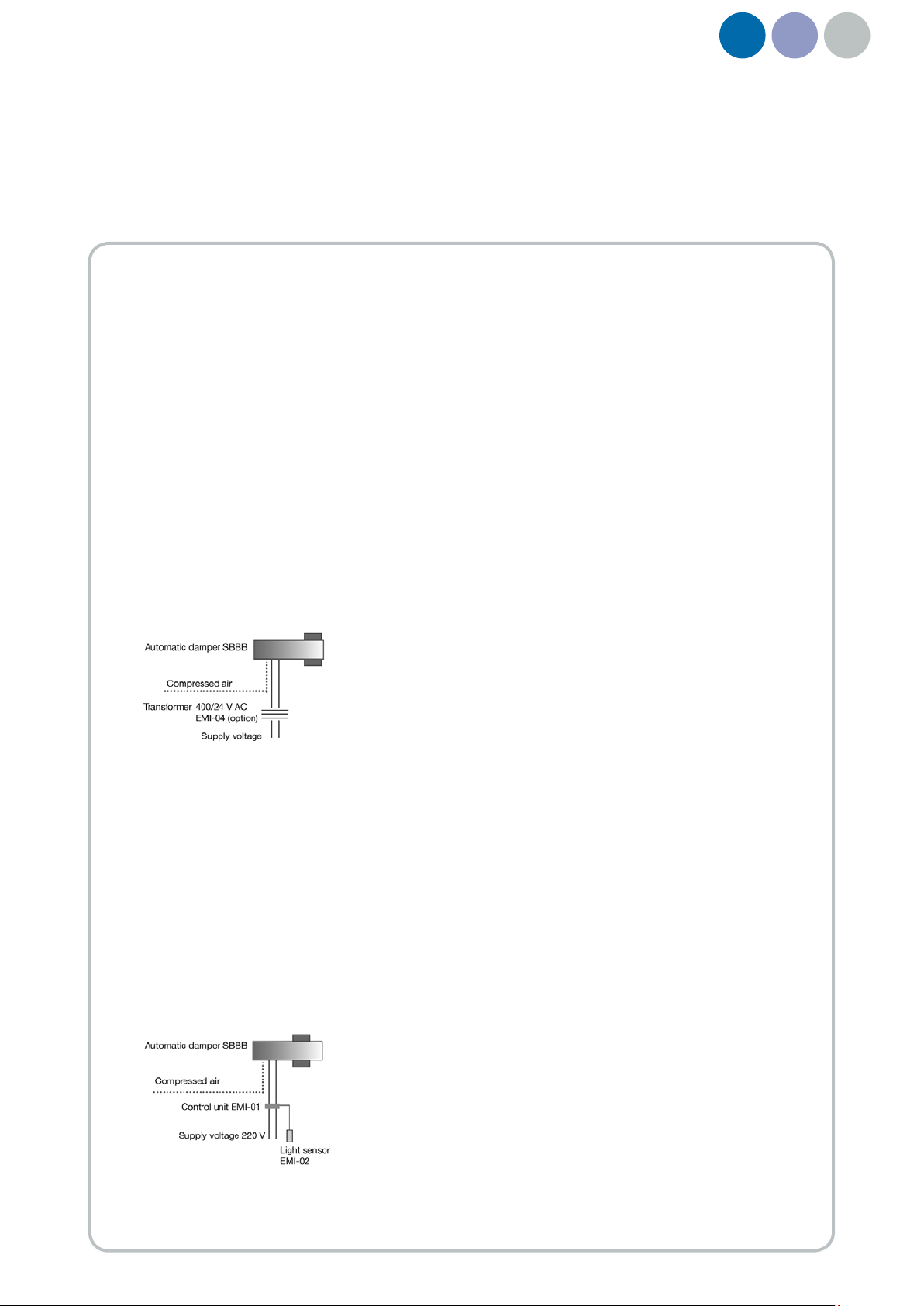

Example of control for automatic damper

Electrical signal to solenoid valve

The solenoid valve on the damper is connected to 230 V or 24 V from the governing process (e.g. a pro-

cessing machine).

Connection:

• Compressed air 5-8 bar is connected by a 6 mm compressed air hose to the solenoid

valve.

• The solenoid valve is connected to the required voltage.

Options:

If the supply voltage from processing machines is 400 V, you must use an EMI-04 transformer in order to

be able to connect the solenoid valve on the damper to the machine. EMI-04 is connected to 400 V and

supplies 24 V AC to the solenoid valve.

Control signal from light sensor

In light sensor EMI-02, a circuit is closed when the sensor is activated by the beam from an arc. Via con-

trol unit EMI-01 the solenoid valve is supplied with 230 V when the sensor is activated. The control unit

contains a potentiometer where damper closing can be delayed by 30 seconds.

Connection:

• Compressed air 5-8 bar is connected by a 6 mm compressed air hose to the solenoid valve.

• The control unit is connected to 230 V and the solenoid valve (230 V) on the damper is connected to

the control unit.

• The light sensor that must be installed close to the light source is connected to the control unit.

lindab | we simplify construction

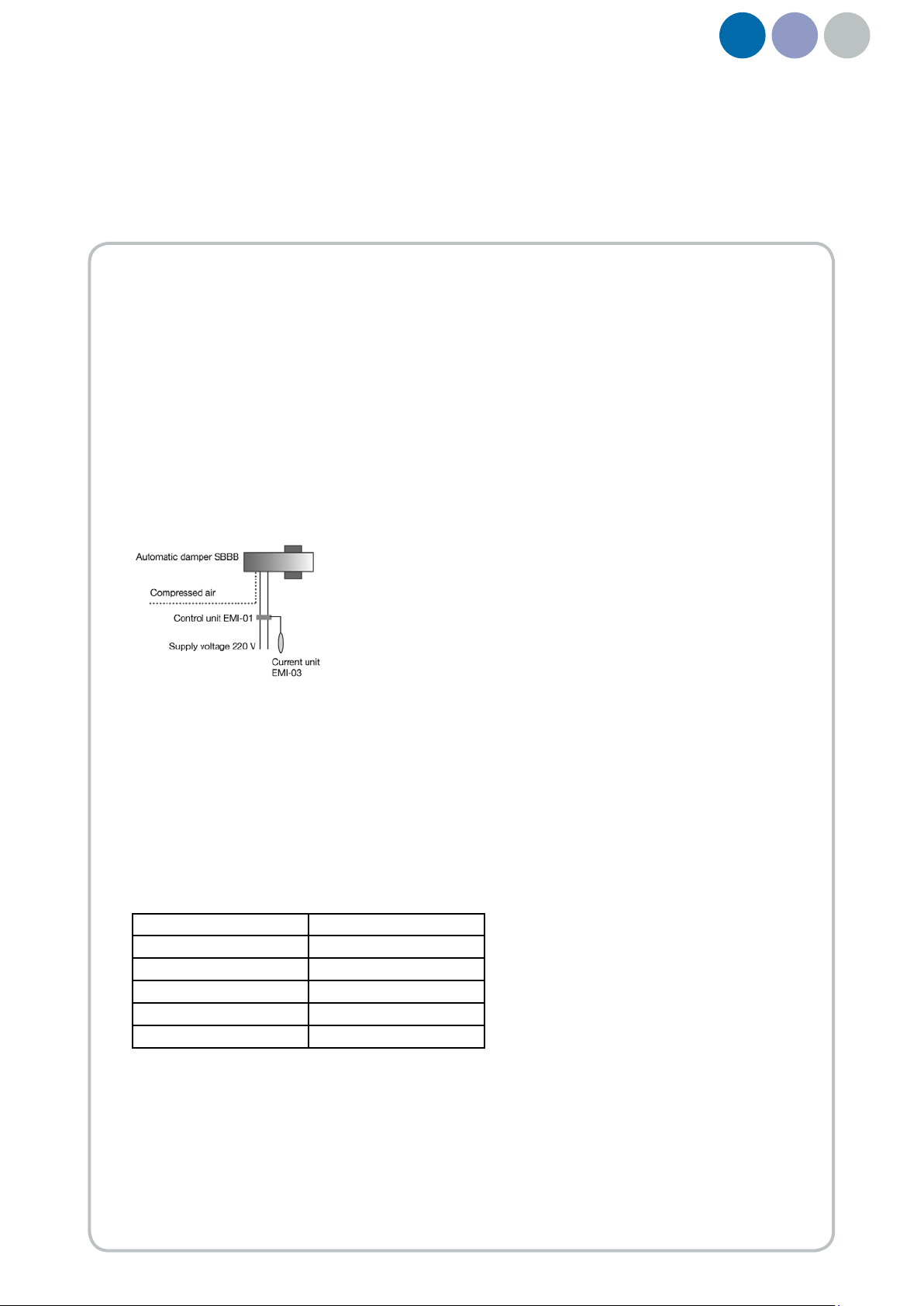

Control signal from current sensor

In a current sensor EMI-03 a circuit is closed when the sensor is activated by a suitable electric current.

Via control unit EMI-01 the solenoid valve is supplied with 230 V when the sensor is activated. The control

unit contains a potentiometer where damper closing can be delayed by up to 30 seconds.

Connection:

• Compressed air 5-8 bar is connected by a 6 mm compressed air hose to the solenoid valve.

• The control unit is connected to 230 V and the solenoid valve (230 V) on the damper is connected to

the control unit.

• The current sensor that is to be installed on the power cable to the governing machine is connected to

the control unit.

Commissioning

Check that the damper blade moves easily (must be performed after mechanical installation).

Check that the damper opens and closes as per projected function.

Maintenance

The damper is maintenance free. If necessary, cleaning can carefully be performed.

Spare parts

When ordering spare parts, state damper designation and size. See product plate on damper.

Designation Description

T-08 Microswitch

T-12 Microswitch socket

T-901 Damper blade

T-902 Sealing kit

T-920 Damper blade protection

Troubleshooting

Damper blade jams or sticks.

1. The damper needs to be cleaned

2. Breaking forces are affecting the pipe system

3. The blade is damaged

4. Sealing is loose

Sliding dampers

SKMTR, SKPTR

lindab | we simplify construction

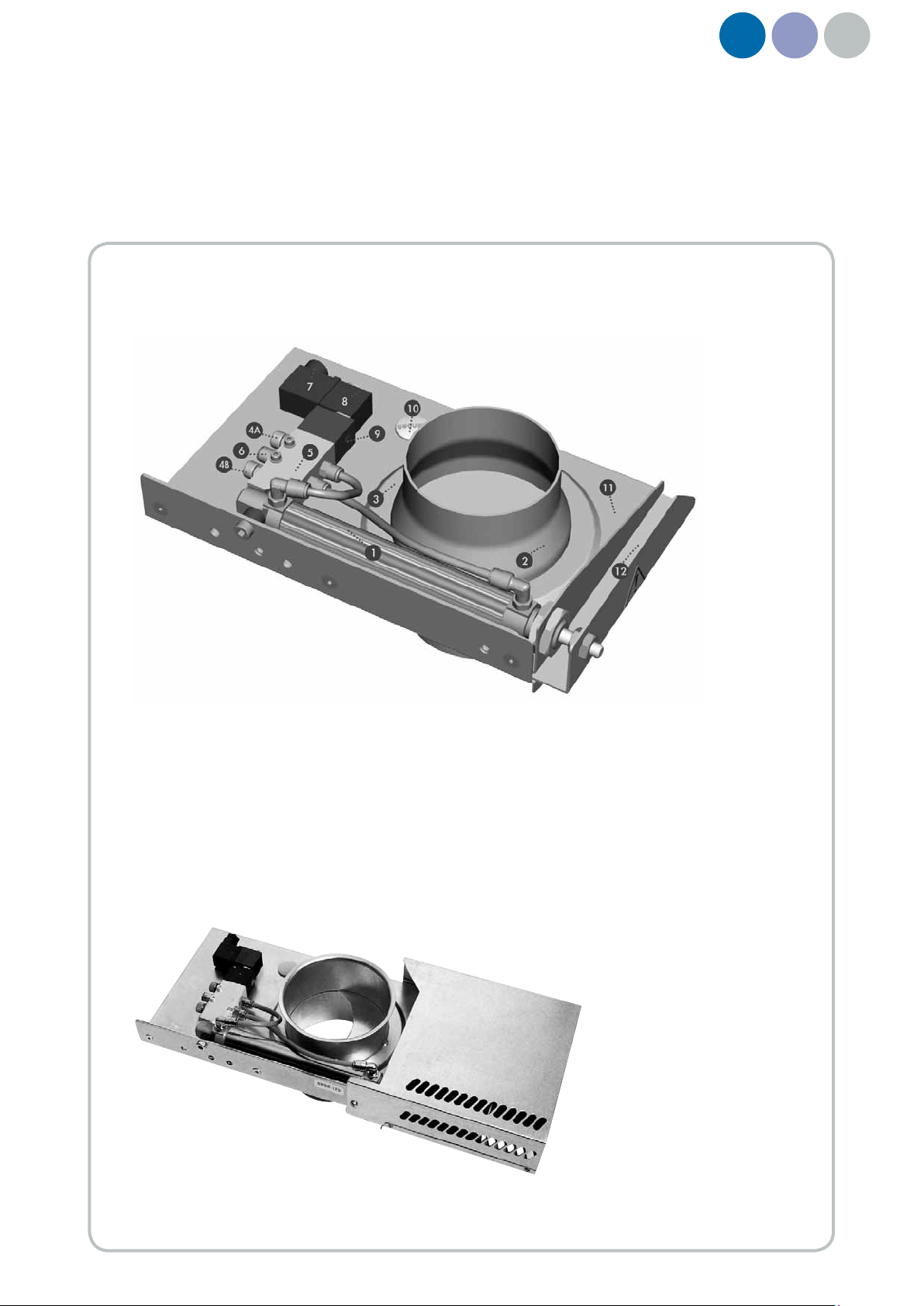

Structure of the automatic damper

RK design

FM design with damper blade protection (SPZZ)

1. Cylinder

2. Connection

3. Sealing housing

4. Throttle valves

A. Closing

B. Opening

5. Solenoid valve

6. Compressed air supply (6

mm)

7. Cable contact

8. Solenoid

9. Screw for manual operation

of valve

10. Socket for microswitch

11. Damper housing

12. Damper blade

13. Damper blade protection

(SPZZ)

Sliding dampers

SKMTR, SKPTR

1050 EN 2011-03-15
