Lincoln D Series Manuel utilisateur

Section

Page

- C8

JULY - 2005

Printed in U.S.A.

One Lincoln Way

St. Louis, Missouri 63120-1578

(314) 679-4200

FORM 403572

-130G

Model No. 83834

AIR OPERATED

GREASE PUMP

Series "D"

*Based on Lubricants that are free from entrapped air. Lubricants that are aerated will reduce output of pump.

The 83834 Pump is used as the Pumping Unit for a Centralized Lubrication System having a Single Line Circuit of SL-1, SL-32, or SL-33

Injectors. Dispenses grease up through NLGI No. 1.

It is an air-operated, single-stroke pump requiring air for both forward and return stroke and discharges *2.15 cu. in. of lubricant into the

circuit for each pump stroke (Lubrication Cycle).

The total quantity of lubricant needed for the lubrication cycle of the system must not exceed the amount of lubricant discharged per

pump stroke.

TO PRIME SYSTEM

SUPPLY LINES: After pump reservoir has been ﬁlled with recommended lubricant, turn vent plug counter-clockwise one complete turn and

operate pump until lubricant ﬂows freely from opening in vent plug to expel air pockets trapped between the pump and the supply line connection.

Tighten vent plug. Remove all plugs in dead ends of the injector manifolds and supply lines. Operate pump until lubricant ﬂows from any plug

opening. Close opening with plug. Continue operating pump until lubricant ﬂows from another plug opening. Repeat this procedure until all

supply lines are primed and plug openings closed.

FEEDER LINES: Fill each feed line with lubricant before connecting lines to outlet of injectors and bearings. This will prevent having to cycle

each injector for every inch of feed line between injector and bearing.

INJECTORS: Check each injector for proper operation. Injector stem moves when injector discharges lubricant to bearing. This may require

cycling system several times. After checking injectors for operation, adjust injectors for the volume required for each bearing.

TO FILL RESERVOIR

Use a manual ﬁller pump to ﬁll reservoir through

the ﬁller ﬁtting in the pump body. Attach coupler

on delivery hose to ﬁller ﬁtting. Stroke ﬁller pump

handle until lubricant weepage is noted at air vent

hole in the reservoir (lower portion of follower must

rise beyond air vent hole to expel entrapped air from

lubricant).

NOTE: When ﬁlling the reservoir, caution should

be used as extreme pressure can cause damage to

RATIO

LUBRICANT

OUTPUT

(CU. IN.)

RESERVOIR

CAPACITY AIR INLET LUBRICANT

OUTLET

LUBRICANT OPERAING PRESSURE (PSI)

TYPE OF

SYSTEM MINIMUM MAXIMUM RECOMMENDED

1,850 3,500 2,500

SL-1 with with with

25:1 *2.15 4 LBS. 1/4 NPT 1/4” NPT 75 PSIG Air 140 PSIG Air 100 PSIG Air

(120 Cu. In.) Female Female SL-32 1,200 3,500 1,500

SL-33 with with with

50 PSIG Air 140 PSIG Air 60 PSIG Air

FORM 403572 PAGE 2

MODEL 83671

83671 Low Level Cut-Off Kit may be used as

an alarm or signal device when lubricant drops

below an acceptable level.

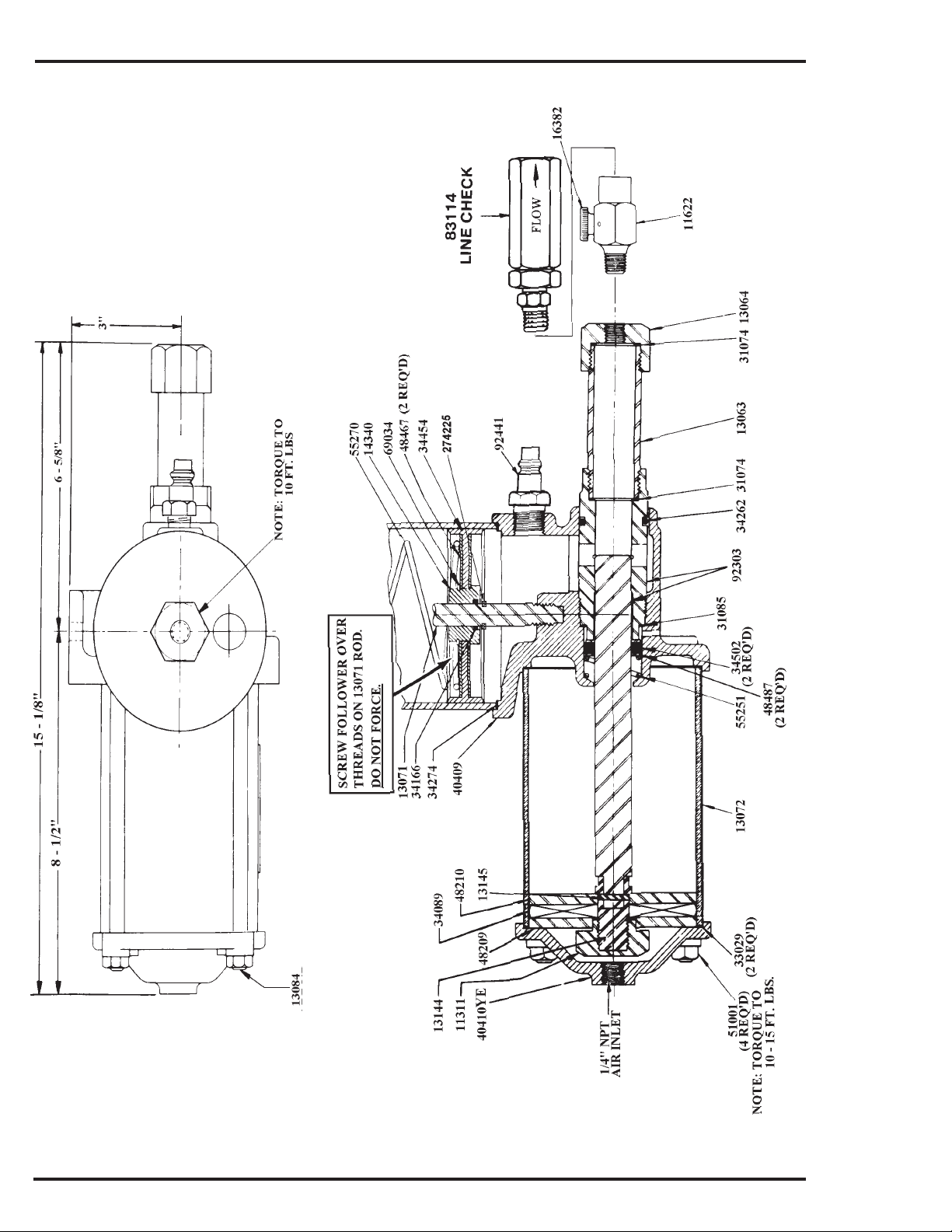

FORM 403572 PAGE 3

Model 83834

AIR OPERATED SINGLE

STROKE

GREASE PUMP

FORM 403572 PAGE 4

RETAIN THIS INFORMATION FOR FUTURE REFERENCE

When ordering replacement parts, list: Part Number, Description, Model Number and Series Letter.

LINCOLN provides a Distributor Network that stocks equipment and replacement parts.

SERVICE PARTS

WHAT TO DO IF: PUMP LOSES PRIME - Check lubricant supply.

SYSTEM FAILS TO CYCLE - and calculated system planning has been followed - Lubricant is leaking by packing

of 91733 Check or the 66250 Check. Failure of injectors to cycle can also be caused by a leak in supply lines.

Examine supply lines and connections.

PUMP FAILS TO OPERATE - Check air supply.

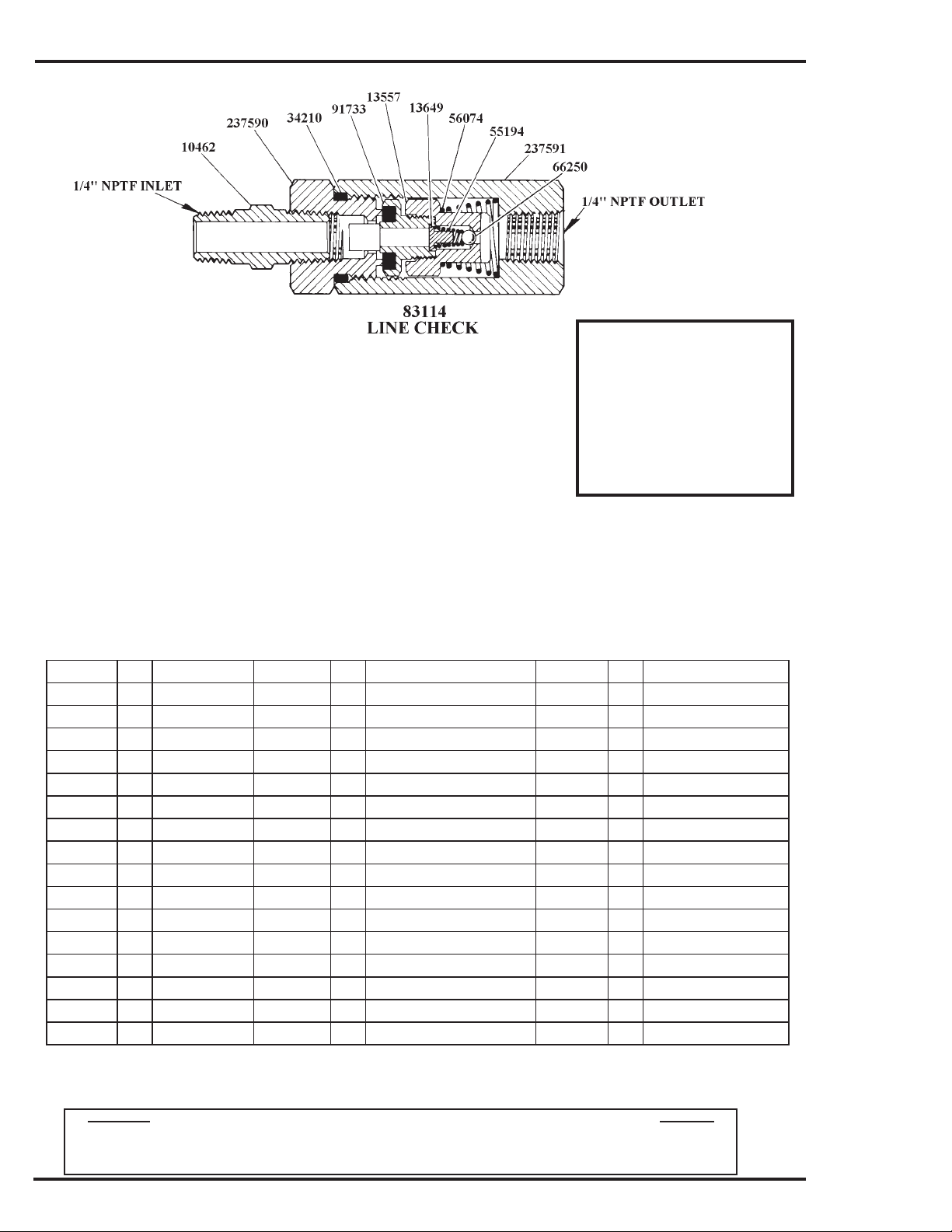

TO CLEAN LINE CHECK 83114

Remove 91733 Check and examine

packing for presence of foreign particles. If

packing is damaged, replace 91733 Check.

Remove 66250 Ball Check, 55194 Spring

and 13649 Ball Stop from 13557 Check

Retainer. Examine for presence of foreign

particles. Clean thoroughly.

*Included in 252715 Soft Parts Kit. © Indicates Change

PART NO. QTY DESCRIPTION PART NO. QTY DESCRIPTION PART NO. QTY DESCRIPTION

10462 1 Nipple *33029 2 Gasket 51084 1 Nut

11311 1 Piston nut *34089 1 Packing (Nitrile) *55194 1 Spring

11622 1 Outlet Body *34166 1 O-ring (Nitrile) 55251 1 Spring

13063 1 Pump tube *34210 1 O-ring (Nitrile) 55270 1 Spring

13064 1 Outlet *34262 1 O-ring (Nitrile) 56074 1 Spring

13071 1 Tie rod *34274 1 Gasket *66250 1 Steel ball

13072 1 Air cylinder *34454 1 Follower Packing (Nitrile) 68797 1 Plug button

13084 4 Tie rod *34502 2 Packing (Nitrile) 69034 1 Retaining ring

13144 1 Packing stud 40409 1 Body casting 83114 1 Line check assembly

13145 1 Pin 40410YE© 1 Cylinder cap *91733 1 Check

13557 1 Check retainer 45936 1 Cover cap 92303 1 Bushing & plunger

*13649 1 Ball stop 48209 1 Washer 92441 1 Filler ﬁtting

14340 1 Bushing 48210 1 Washer 237590 1 Check seat

16382 1 Vent plug 48467 2 Washer 237591 1 Check body

*31074 2 Gasket 48487 2 Washer 247210 1 Reservoir (Acrylic)

*31085 1 Gasket 51001 4 Nut 274225© 1 Retaining ring
