Lincoln Electric PCT 80 Manuel utilisateur

Description

Output Input

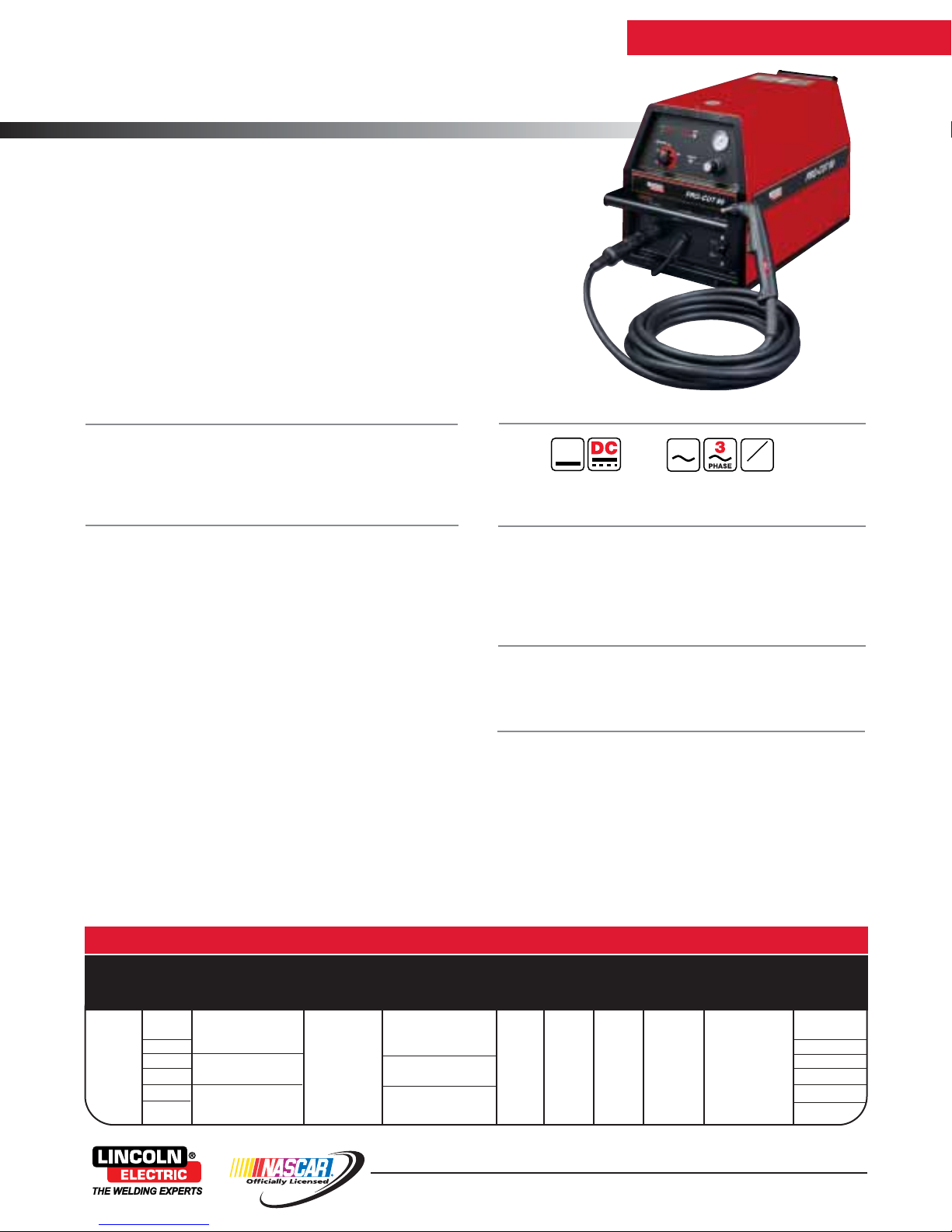

Pro-Cut® 80

PLASMA

The Pro-Cut 80 exhibits maximum cutting ability with a full 85 amps of power,

slicing through metal up to 1-1/4" (32mm) thick with ease! Using six patented

technologies, the unit is perfect for maintenance, fabrication or other applications

which require cutting of thicker metals. The machine weighs only 95 lbs. (43 kg.)

and its optional “valet style” undercarriage provides uncluttered cable storage

and easy transport on the job site.

Publication E11.70 3/04

www.lincolnelectric.com

Air Plasma Cutting Gouging

Valet Style Undercarriage, Combination Circle Cutting Kit, Inverter

and Wire Feeder Cart, Suction Pivot, Replacement Bushing,

Torches

K1581-1 w/25 ft. (7.6m) torch 208/230/460/1/3/50/60

K1581-2 w/50 ft. (15.2m) torch 208/230/460/1/3/50/60

K1581-3 w/25 ft. (7.6m) torch 460/575/3/50/60

K1581-4 w/50 ft. (15.2m) torch 460/575/3/50/60

K1677-1 w/25 ft. (7.6m) torch 220/380/415/3/50/60

K1677-2 w/50 ft. (15.2m) torch 220/380/415/3/50/60

•PCT 80 Torch

•Work lead and clamp

•Spare consumables

• Built-in air filter and pressure regulator with gauge

PHASE

•85 amps of power for quality cut performance up to 1-1/4"

(32mm) in only a 95 lb. (43kg) package.

•Dual winding technology for fast arc transfers and improved cut

quality.

•Patented PCT 80 torch and VORTECH™ technology

consumables for excellent cutting speed and performance.

•Can be powered by most Lincoln engine driven welders for

ultimate portability.

•Back-lit LED system for status indicators eliminates confusion

yet conveys all the information necessary to monitor the power

source readiness.

•Parts-In-Place safety indicator and lockout circuit to protect

both the operator and the system.

•Quick disconnect torch for fast and easy torch removal.

•“Valet Style” undercarriage available for easy transport around

the shop or site.

•CNC/Robotic Interface is included as a standard feature.

• Three-year warranty on parts and labor. (1 year warranty on

plasma torch.)

Processes

Advantage Lincoln Base Unit Includes

Order

Recommended General Options

TECHNICAL SPECIFICATIONS

Input Air Air Dimensions Net Weight

Product Product Input Rated Output Current @ Pilot Output Pressure Flow H x W x D w/Torch

Name Number Power Current/Duty Cycle Rated Output Current Range Required Rate in. (mm) lbs (kg)

K1581-1 1-ph: 87/81/48A 98 (44.5)

K1581-2 208/230/460/1/3/50/60 3-ph: 48/44/25A 113 (51.4)

K1581-3 80A/60% 18A 35-85A 70 PSI 480 SCFH 13.7 x 16.5 x 29.5 98 (44.5)

Pro-Cut 80 K1581-4 460/575/3/50/60 65A/100% 3-ph: 25/20A (348 x 419 x 749) 113 (51.4)

K1677-1 98 (44.5)

K1677-2 200/380-415/3/50/60 3-ph: 46/27/24A 113 (51.4)

Pro-Cut 80

www.lincolnelectric.com

FEATURES

• One control dial with current indicators for easy operation and

setup.

•Air pressure regulator, air filter and pressure gauge are standard.

Pressure gauge is right on the control panel for easy setup.

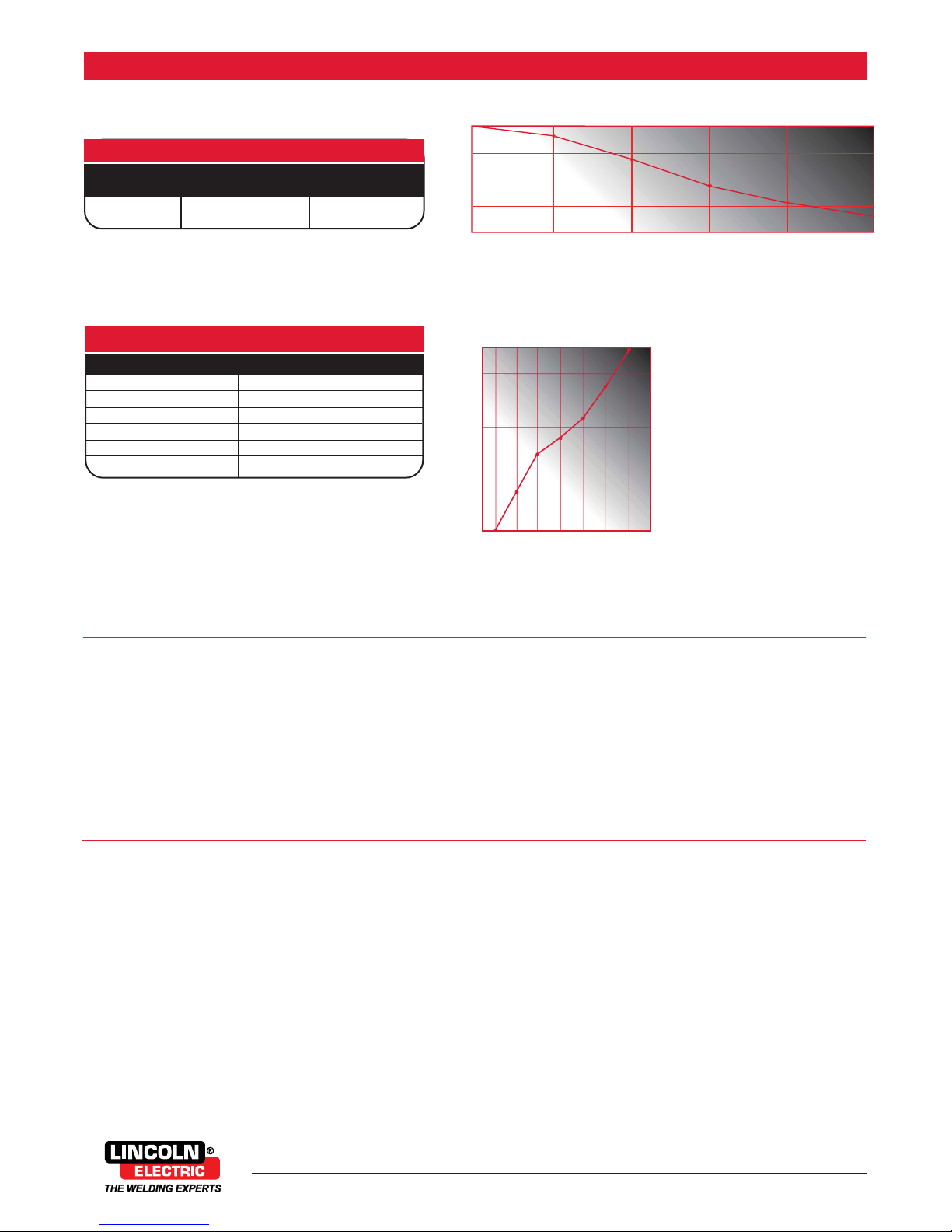

CUT CAPACITY DATA

ELECTRODE LIFE TEST DATA(2)

0.500.375 0.625

MtlThi k (I h )

0.75 1.0 1.25

0060 120 180

Electrode Pit Depth (X.001 Inch)

Time in HoursTime in Hours 0.5 1.0

CUTTING CAPACITY

Ordering Information Description

KP2063-1B1 Electrode

KP2062-2B1 VORTECH™ Nozzle (.043)(1)

KP2062-3B1 VORTECH™ Nozzle (.053)

KP2062-5B1 VORTECH™ Nozzle (.082) Gouging

KP2064-1 Shield Cup

KP2065-1 Drag Cup

EXPENDABLE PARTS

(1) .043 Nozzle can be used when cutting at 60 amps or lower for a

smaller kerf.

A CLOSER LOOK

PERFORMANCE

QUALITY AND RELIABILITY

•Parts-In-Place safety indicator and lockout circuit to protect both

the operator and the system.

•Thermostatically protected against overheating.

•Line voltage compensation.

•Manufactured under a quality system certified to ISO 9001

requirements.

•Three-year warranty on parts and labor. (1 year warranty on

plasma torch.)

Number of Starts (20 Sec. Arc/Start)

(2) Electrode erosion of .060” is typically end of

electrode life.

Metal Thickness (inches)

Time in Hours

IPM (80% Max. Speed)

Electrode Pit Depth (X.001 inch)

[2]

Production Recommended Maximum

Capacity Capacity Capacity

3/4" @ 18 IPM 1" @ 11 IPM 1-1/4" @ 7 IPM

Pro-Cut 80

www.lincolnelectric.com

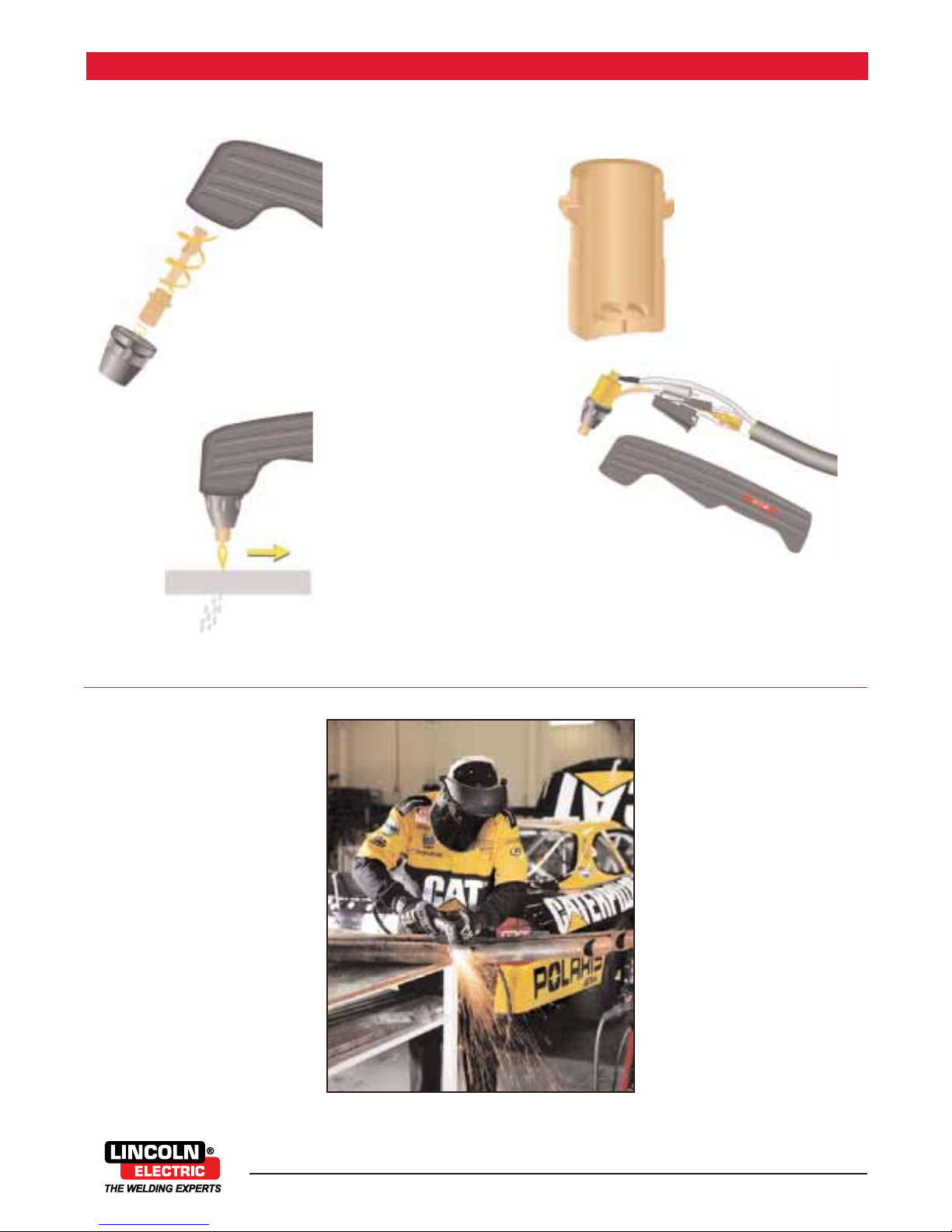

A CLOSER LOOK

[3]

Provides an additional kick of

arc constriction that “tightens”

the arc, concentrating more

cutting power than

conventional consumables.

A long powerful arc

cuts thicker and

quicker than most

comparable units on

the market today.

Patented torch technology with air

controls in the torch handle allows for

faster arc ignition.

VORTECH®Technology consumables produce a tighter plasma arc by concentrating the swirl.

Extra swirl built

into the bottom

of the nozzle.

Winners Don’t Compromise!

Some of the most sucessful motorsports team

fabricators rely on Lincoln welding and cutting

equipment.

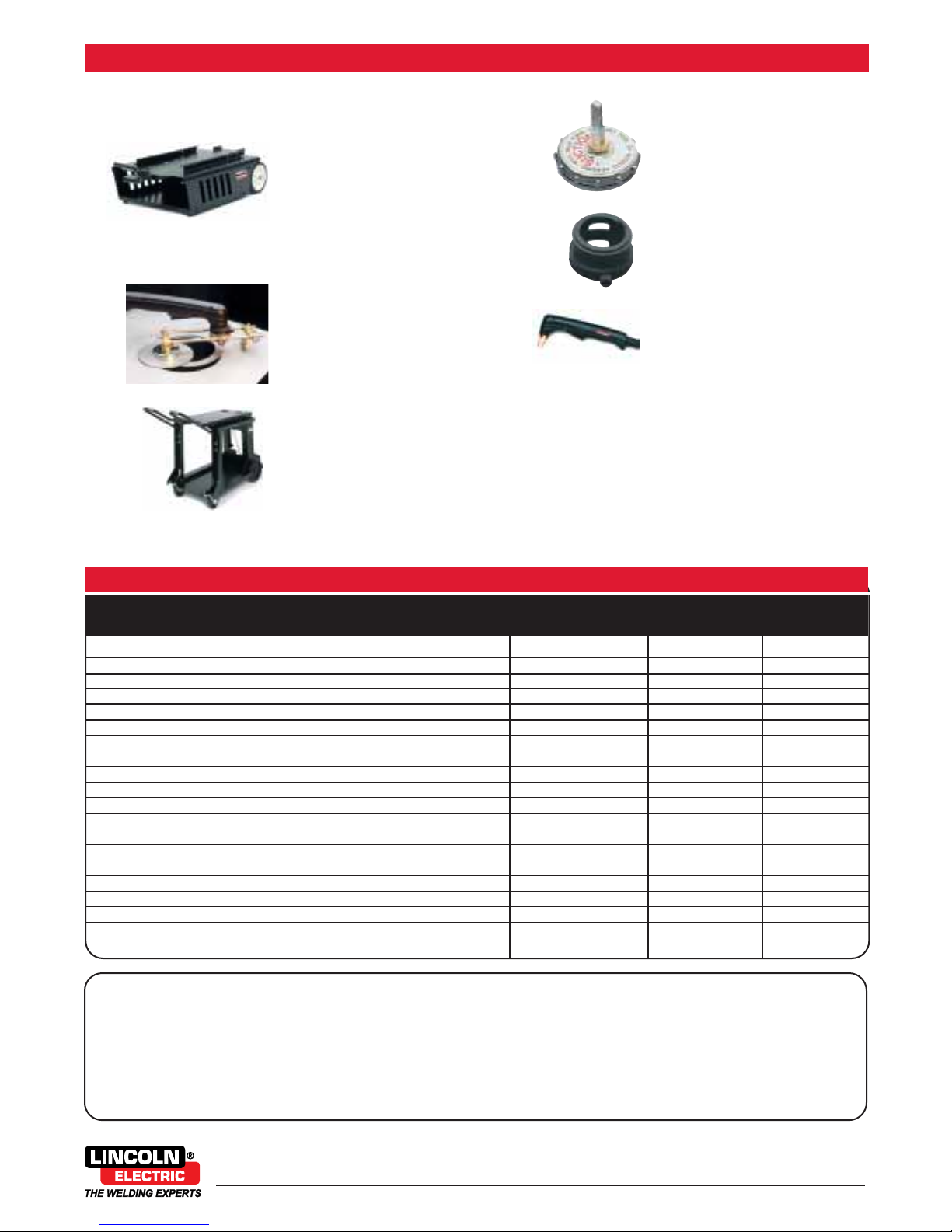

PRO-CUT 80 ORDER FORM

PRODUCT DESCRIPTION ORDER NUMBER QUANTITY PRICE

PRO-CUT 80 w/25 ft. (7.6m) torch, 208/230/460/1/3/50/60 K1581-1

PRO-CUT 80 w/50 ft. (15.2m) torch, 208/230/460/1/3/50/60 K1581-2

PRO-CUT 80 w/25 ft. (7.6m) torch, 460/575/3/50/60 K1581-3

PRO-CUT 80 w/50 ft. (15.2m) torch, 460/575/3/50/60 K1581-4

PRO-CUT 80 w/25 ft. (7.6m) torch, 220/380/415/3/50/60 K1677-1

PRO-CUT 80 w/50 ft. (15.2m) torch, 220/380/415/3/50/60 K1677-2

RECOMMENDED GENERAL OPTIONS

Valet Style Undercarriage K1838-1

Combination Circle Cutting Kit K1625-1

Inverter and Wire Feeder Cart K1764-1

Suction Pivot K1628-1

Replacement Bushing K1626-1

Hand Torch

25 ft. (7.6m) K1571-1

50 ft. (15.2m) K1571-2

Machine Torch, 25 ft. (7.6m) K1571-3

Robotic Torch, 25 ft. (7.6m) K1571-5

TOTAL:

THE LINCOLN ELECTRIC COMPANY

22801 St. Clair Ave., Cleveland, OH 44117-1199 • 216.481.8100 • www.lincolnelectric.com

CUSTOMER ASSISTANCE POLICY

The business of The Lincoln Electric Company is manufacturing and selling high quality welding equipment, consumables, and cutting equipment. Our challenge is to meet the needs of our

customers and to exceed their expectations. On occasion, purchasers may ask Lincoln Electric for advice or information about their use of our products. We respond to our customers based

on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such information or

advice. We expressly disclaim any warranty of any kind, including any warranty of fitness for any customer’s particular purpose, with respect to such information or advice. As a matter of

practical consideration, we also cannot assume any responsibility for updating or correcting any such information or advice once it has been given, nor does the provision of information or

advice create, expand or alter any warranty with respect to the sale of our products.

Lincoln Electric is a responsive manufacturer, but the selection and use of specific products sold by Lincoln Electric is solely within the control of, and remains the sole responsibility of the

customer. Many variables beyond the control of Lincoln Electric affect the results obtained in applying these types of fabrication methods and service requirements.

Subject to Change — This information is accurate to the best of our knowledge at the time of printing. Please refer to www.lincolnelectric.com for any updated information.

GENERAL OPTIONS

Valet Style Undercarriage

Valet style undercarriage with

unique pull-out handle. Provides

torch cable storage (up to 50 ft.

lengths), work cable storage, and

input cord wrap for the ultimate in

portability. With the undercarriage

installed, the unit may be operated

in a vertical position.

Order K1838-1

Combination Circle Cutting Kit

For cutting circles from 2" to 40"

(50.8 to 1016mm) in diameter.

Works with all K1571 hand torches.

Order K1625-1

Inverter and Wire Feeder Cart

Rugged, heavy-duty rear-wheeled

cart includes front casters and no-

lift gas bottle platform. Convenient

handles allow for easy cable

storage while full length side trays

store parts and tools. Shipped fully

assembled. Small footprint fits

through 30 inch door.

Order K1764-1

RECOMMENDED OPTIONS

GENERAL OPTIONS, CONT.

Suction Pivot

For use with non-magnetic metals.

Order K1628-1

Replacement Bushing

Replacement bushing for Circle

Cutting Kit.

Order K1626-1

Torches

Hand Torch

Order K1571-1 for 25 ft. (7.6m)

Order K1571-2 for 50 ft. (15.2m)

Machine Torch

Order K1571-3 for 25 ft. (7.6m)

Robotic Torch

Order K1571-5 for 25 ft. (7.6m)
