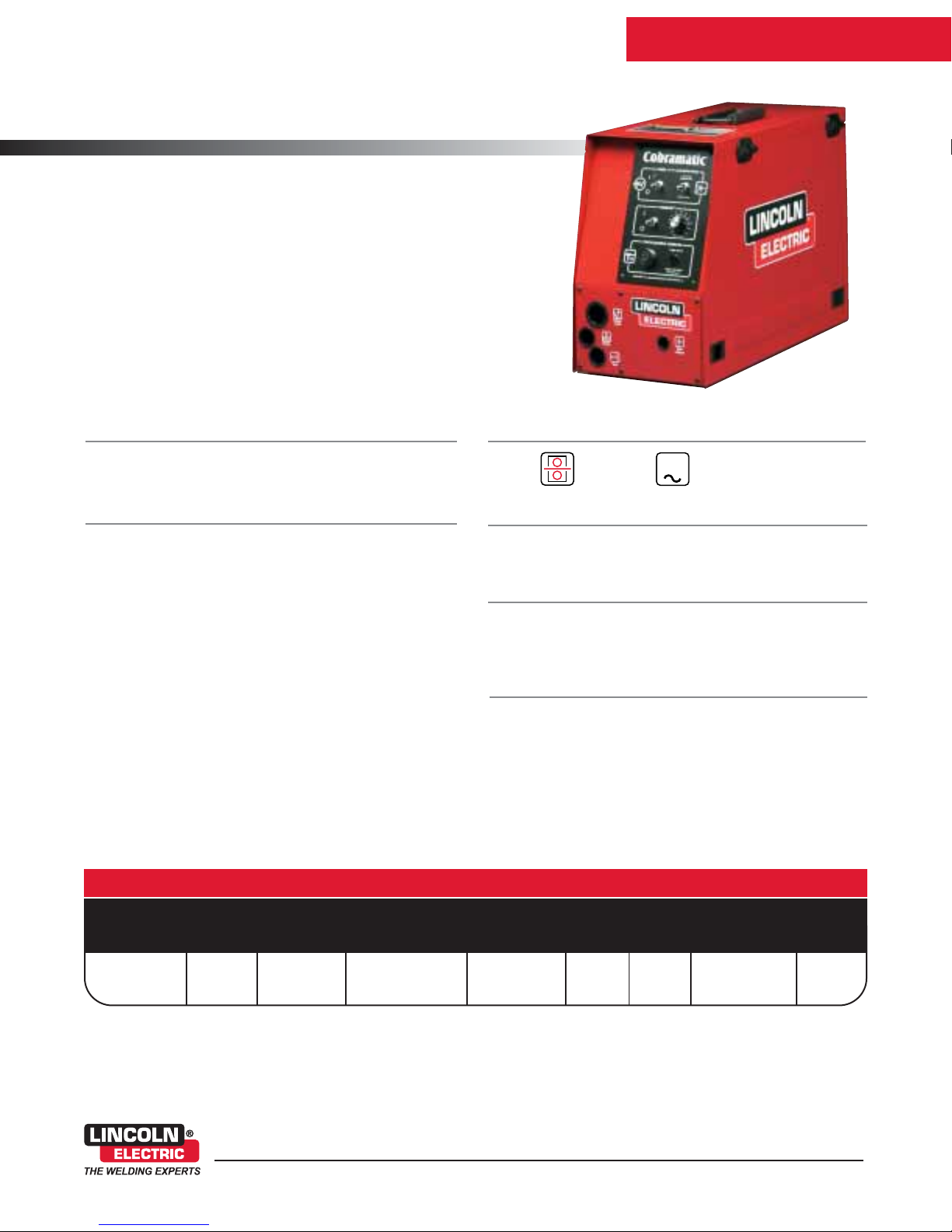

Cobramatic®

Push-Pull Cabinet

SEMIAUTOMATIC WIRE FEEDERS

Processes

Advantage Lincoln Required Options

Order

K2259-1 Cobramatic

Prince XL®, CobraMaxTM, or Python®push-pull guns.

Recommended Power Sources

CV-250, CV-300, CV-400, CV-655, V350 PRO, DC-400, DC-600,

DC-655

•Push-pull wire drive system yields reliable, consistent,

trouble-free wire feeding up to 50 ft. (15.2m) from the cabinet.

•Compatible with complete line of Lincoln push-pull torches.

•Feeds aluminum wire from diameters .030-1/16" (0.8-1.6mm)

with only a contact tip change.

•Patented paddle holds wire straight and level during feeding

to minimize damage to the wire.

•Patented clutch/brake system keeps wire from over running

on shut-off.

•Tool-less spool brake adjustment knob allows for easy

tension adjustment.

•Simplified wire tension adjustment using two position

steel/aluminum selector for foolproof operation.

•Three year manufacturers limited warranty.

VAC

The Cobramatic®push-pull wire feeding system is a great example of Lincoln’s

MIG welding expertise. The Cobramatic incorporates a push-pull drive system

that virtually eliminates the problems associated with wire feeding. This unique

master-slave drive system prevents tangling and damage to the wire, resulting in

increased weld quality and productivity. Combine that with some great new fea-

tures that make set-up easier and adjustments virtually unnecessary, and the

Cobramatic is a great MIG welding choice for all wire types.

Note: Cobramatic®, Prince®XL, CobraMaxTM and Python®are registered trademarks of MK Products, Inc.

Publication E8.300 7/03

Web Update 10/03

www.lincolnelectric.com

TECHNICAL SPECIFICATIONS

Wire Feed Speed Wire Size Range Dimensions

Product Product Rated Output Range ipm (m/min) H x W x D Net Weight

Name Number Input Power Current/Duty Cycle(1) ipm (m/min.) Solid Cored inches (mm) lbs.(kg)

Cobramatic K2259-1 42 VAC 400A/100% 0-800 Max. .030-1/16 .030-1/16 14.8 x 9.5 x 19.3 42

(0-20.3) (0.8-1.6) (0.8-1.6) (376 x 241 x 490) (19.0)

(1) With appropriate gun.

A CLOSER LOOK

Cobramatic K2259-1

Required Options

Prince XL Gun See Publication E12.11

CobraMAX Gun See Publication E12.12

Python Gun See Publication E12.13

Recommended Power Sources

CV-250 See Publication E4.10

CV-300 See Publication E4.20

CV-400 See Publication E4.30

CV-655 See Publication E4.40

V350-PRO See Publication E7.53

DC-400 See Publication E5.20

DC-600 See Publication E5.40

DC-655 See Publication E5.46

TOTAL:

COBRAMATIC ORDER FORM

PRODUCT DESCRIPTION ORDER NUMBER QUANTITY PRICE

THE LINCOLN ELECTRIC COMPANY

22801 St. Clair Ave., Cleveland, OH 44117-1199 • 216.481.8100 • www.lincolnelectric.com

CUSTOMER ASSISTANCE POLICY

The business of The Lincoln Electric Company is manufacturing and selling high quality welding equipment, consumables, and cutting equipment. Our challenge is to meet the needs of our customers and to exceed their expectations. On occasion, purchasers may ask Lincoln

Electric for advice or information about their use of our products. We respond to our customers based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such

information or advice. We expressly disclaim any warranty of any kind, including any warranty of fitness for any customer’s particular purpose, with respect to such information or advice. As a matter of practical consideration, we also cannot assume any responsibility for updating

or correcting any such information or advice once it has been given, nor does the provision of information or advice create, expand or alter any warranty with respect to the sale of our products.

Lincoln Electric is a responsive manufacturer, but the selection and use of specific products sold by Lincoln Electric is solely within the control of, and remains the sole responsibility of the customer. Many variables beyond the control of Lincoln Electric affect the results obtained

in applying these types of fabrication methods and service requirements.

Subject to Change – This information is accurate to the best of our knowledge at the time of printing. Please refer to www.lincolnelectric.com for any updated information.

Wire Diameter

1/16" (1.6mm)

3/64" (1.1mm)

.035" (0.9mm)

.030" (0.8mm)

Air Cooled

50 75 100 200 250 275 300 325 350 375 400 425225125 150 175

Welding Current

(amps)

50%100%

Duty Cycle Limitation

Allowable time within a 10 minute period

the maximum rated amperage can be maintained

Amps

CobraMaxTM Gun

Air Cooled

Prince®XL Push-Pull Gun

Python®Gun

Air Cooled using Air/ Water Barrel

Air Cooled using HD Finned Copper Cup

Water Cooled using HD Finned Copper Cup

Water Cooled using Air/ Water Barrel

Optional Water Cooled Barrel (KP2224-1)

Optional Water Cooled Barrel using Water Cooled Cup (KP2225-1)

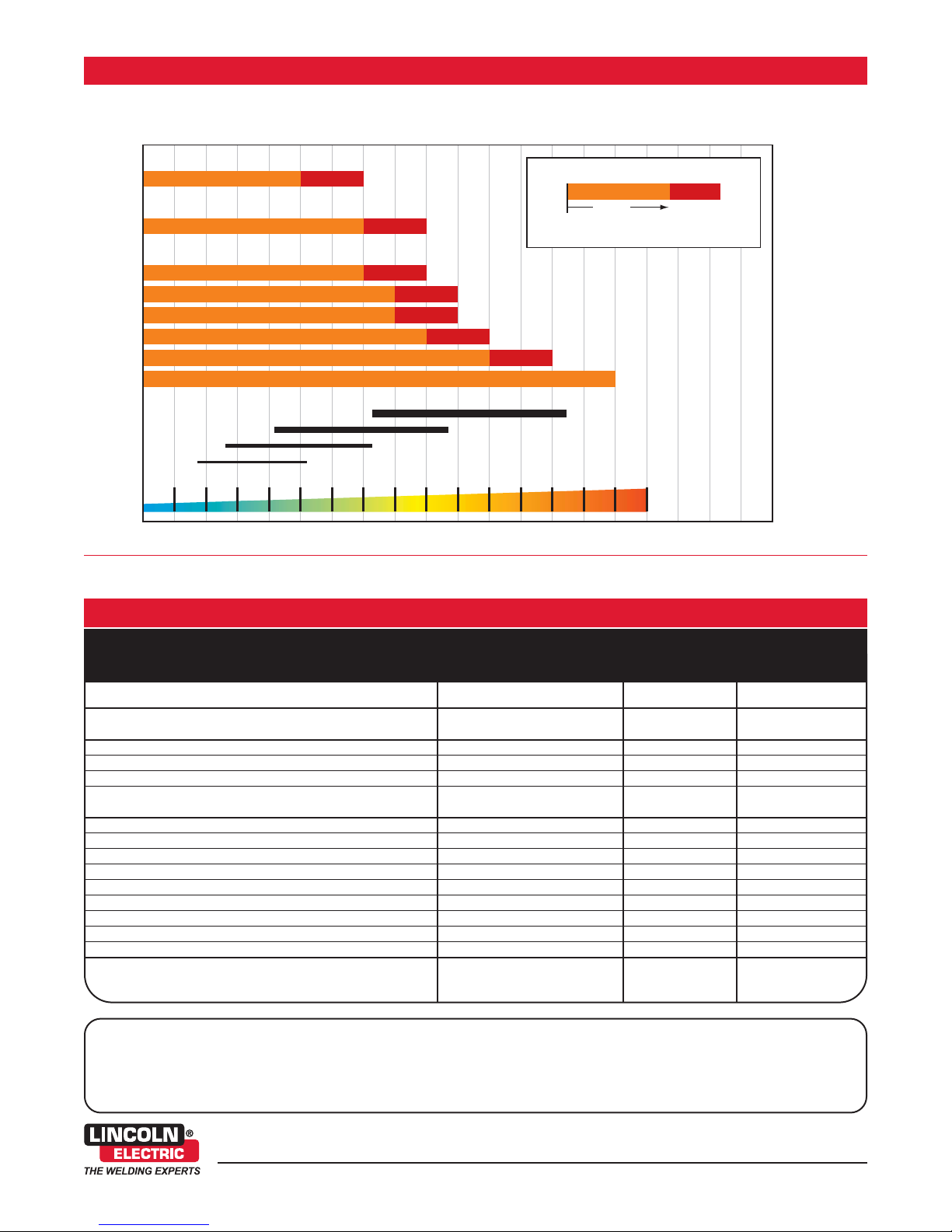

TORCH SELECTOR GUIDE
