D/N 1080P HD Dome IR IP Camera
1080P HD Dome IP Camera
Quick Installation Guide
IPR2122ES
IPD2122ES
D/N 1080P HD Dome IR IP Camera
D/N 1080P HD Dome IP Camera
CAUTION
Do not drop or strike this equipment
Do not install the equipment near any naked flames or heat
sources
Do not expose this unit to rain, moisture, smoke or dust
environment
Do not cover the opening of the cabinet with cloth and
plastic or to install this unit in poor ventilated places. Allow
10cm between this unit and its surroundings
Do not continue to operate the unit under abnormal
conditions such as detection of smoke, strange smell or no
display on screen while power is turned on
Do not touch the power connection with wet hands
Do not damage the power cord or leave it under pressure
Do not operate this unit near magnet, speaker system, etc., to
avoid unnecessary magnetic interference
onnection cables should be grounded properly
Product Overview
(IR IP amera)
(IP amera)
English
Unit: mm
- 1 -
① RJ-45 Network able (Support PoE)
② D 12V Power Input Jack (D 12V±10%)
③ Base
④ Fix Ring
⑤ Inside over
⑥ Dome over
⑦ Lens
⑧ Reset Key
Restores server back to factory default setting.
⑨ Network Indicator LEDs
Green (LINK): Network connection. LED remains lit while
connection is in place.
Orange (A T): Data communications. This LED should continue
to blink.
Installation
1. Disassemble the inside cover (FIG.1, IR IP amera), and then put
the provided screws (M3.0 x 25, wooden screw) through the holes
marked as "a", and fix the base in the desired area (FIG.2, FIG.3 &
FIG.4).
FIG.1
FIG.2
FIG.3
(IR IP amera)
(IP amera)
English
- 2 -

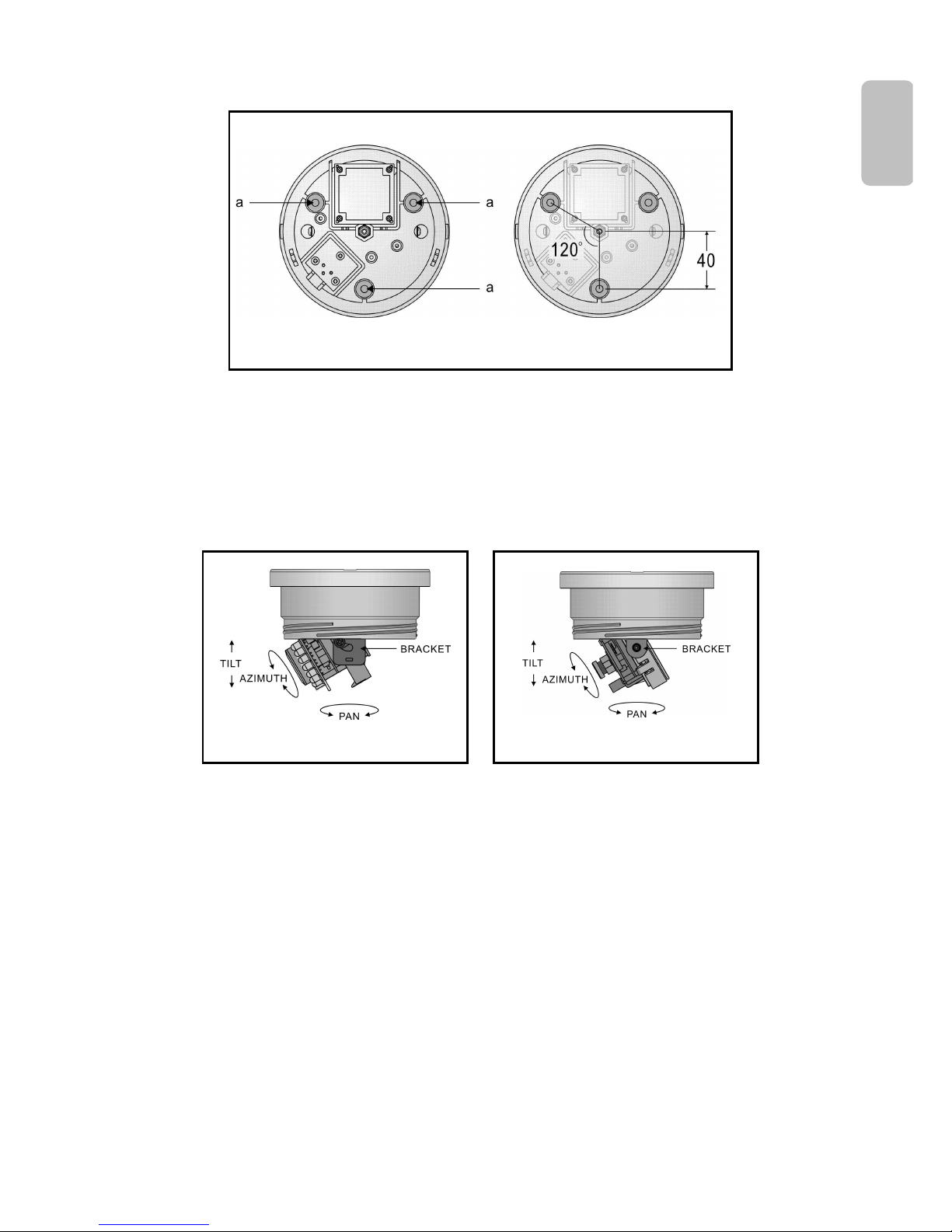

2. The direction of the lens is adjustable through the adjustable
Pan/Tilt brackets and rotatable round bracket for Azimuth. The
lens can be adjusted easily by hand without using screw driver.
Please refer to FIG.5 & FIG.6.
3.
Install the inside cover first. Then insert the dome cover into the
fix ring. Tighten the fix ring into the base, while holding the dome
cover. So that the dome cover not rotate with the fix ring (FIG.7,
IR IP amera). Put on the inside cover first, and followed by put
on the dome cover. Make sure joints “b” connected to “c.” Then
tighten the fix ring (FIG.8, IP amera).
FIG.4
FIG.5
FIG.6
(IR IP amera)
(IP amera)
English
- 3 -
System Architectures
For connecting HD IP cameras to the network, please follow one of
the system architectures:
(1). Use a D 12V power adapter and a network switch to connect to
the network.
FIG.7
FIG.8
(IR IP amera)
(IP amera)
English
- 4 -
(2). Use a PoE network switch to connect to the network.
(3). Use a PoE power injector and a network switch to connect to the
network.
Emergency Factory Default
To restore factory default settings by hardware, please follow these
steps:
1. Hold “RESET Key” for 10 seconds, then release.
2. After about 40 seconds, the network LED light should turn off,
and the back on again.
3. This camera has completed the factory default settings, and can
then reboot.
4. Search for the IP device using the IPScan software.
5. Start the IP device via Internet browser.
6. Enter the default username “admin” and password “pass” to
operate.
NOTE: For user convenience, restoring the factory default settings
will revert to the default IP address 192.168.0.200.
English
- 5 -
Before Accessing IP Cameras
Before accessing the IP camera, make sure that the camera’s RJ-45
network, audio, and power cables are properly connected. To set the
IP address, consult your network administrator for an available IP
address. The default IP address for each IP camera is 192.168.0.200.
Users can use the default IP address for verifying the camera’s
network connection.
Software Requirements
Merit LILIN Universal ActiveX software components are required for
web interface display of JPEG or H.264 Full HD video. When you
login to the IP camera by Internet Explorer, the security warning
dialog box will prompt the installation of the LILIN Universal ActiveX.
lick Install to download it.
Configuring IP Addresses by IPScan Software
To configure an IP address using the IP scan tool, you can copy the
IPScan software from the installation D, and paste to your
computer. Alternatively, you can execute the IPScan software from
the installation D, or download the software from the Merit LILIN
website (www.meritlilin.com). To change the settings of the IP
address, subnet mask, gateway, or HTTP port, you can follow the
steps below:
- 6 -
English
1. Run the IPScan software.
2. lick Refresh. All available devices should be listed in the
device list.
3. Select your device from the list provided.
4. hange the IP address, subnet mask, gateway, or HTTP port for
the IP camera.
5. lick Apply to submit the settings.
6. lick Refresh to verify the settings.
Configuring IP Addresses via Web Interface
To change an IP address via web interface, type the default IP
address (192.168.0.200) in the Internet browser and follow the steps
below:
1. Login to the H.264 Full HD IP camera by the default username
“admin” and default password “pass”
2. lick Basic Mode configuration hyperlink.
3. lick Network->General hyperlink.
4. hange the IP address, subnet mask, gateway, or HTTP port for
the IP camera.
5. lick ubmit to verify the settings.
English
- 7 -
Internet Browser Settings & Application Required
Make sure your Internet browser allows the signed ActiveX plug-in
to work on your computer. Set “Download Signed ActiveX plug-in
controls” to “Prompt” and “Run ActiveX control and plug-in” to
“Enable”. You can set this option via Internet Explorer-> Tools->
Options-> Security Settings.
Once complete, you can access the IP camera’s live video by entering
the default IP address via your Internet browser. As the security
warning dialog box appears, click OK to download the ActiveX
directly from the IP camera.
English
- 8 -
