INSTRUCTION MANUAL
66-DVR304CSE
DVR304/308/316
4/8/16CH DIGITAL VIDEO RECORDER
Summary
DVR series are designed to meet the demands for full 4/8/16-channel real-time recording
systems. Frame rate, video quality, and resolution can be adjusted for each channel to
meet recording requirement. VGA engines are built-in 3D intellectual motion adoptive
refinement with vivid image enhancement algorithm to provide best video quality.
DVR series provide various backup features include USB DVD/RW, USB flash disk, HTTP
download, and Backup Manager FTP for multiple DVRs' files download. Mobile phone
device remote monitoring is also supported. Browser based remote live monitoring and
video playback features are provided.
The DVR can provide D1 real-time for 4-channel and CIF real-time for 8/16-channel
recording and playback. Full features web-based user interface, multiple DVR system
monitoring features, various backup features, and easy of cabling, the DVR is ideal solution
for DVR applications.
Major Features
Full D1 real-time for 4-ch and CIF real-time for 8/16-channel H.264 recording and
playback.
VGA outputs at 1920x1080i, built-in 3D intellectual motion adoptive refinement and vivid
image enhancement engines.
Concurrect multiple-channel playback for 4/8/16-channel.
Audio recording and playback.
Full features of remote controller controlling.
HTTP web-based interface including DVR configuration, PTZ control, playback, and live
monitoring.
3G mobile phone solutions provided.
Resolution, frame rate, and video quality configurable for each channel.
LCD Power saving design.
1
Trademarks and Registered Trademarks
Microsoft, Windows 2000, Windows XP, Internet Explorer are registered trademarks of
Microsoft Corporation in the U.S. And/or other countries.
Adobe and Adobe PDF are registered trademarks of Adobe Systems Incorporated in the
U.S. and/or other countries.
JavaScript and all Java-based trademarks and logos are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and/or other countries.
Linux, Macintosh, Mozilla, and Netscape Navigator are registered trademarks of the
respective holders.
Pelco is a trademark of Pelco-Clovis, CA, and may be registered in certain jurisdictions.
Other names of companies and their products mentioned in this manual may be trademarks
or registered trademarks of their respective owners.
Caution
Do not drop or strike this equipment.
Do not install the equipment near any naked flames or heat sources.
Do not expose this unit to rain, moisture, smoke or dust environment.
Do not cover the opening of the cabinet with cloth and plastic or to install this unit in poor
ventilated places. Allow 10cm between this unit and its surroundings.
Do not continue to operate the unit under abnormal conditions such as detection of
smoke, strange smell or no display on screen while power is turned on.
Do not damage the power cord or leave it under pressure.
Do not operate this unit near magnet, speaker system, etc., To avoid unnecessary
magnetic interference.
Connection cables should be grounded properly.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
2
Front Panel
[DVR304]
REC
POWER
BACKUP
ALARM
12 43HDD
NET
SEQ EJECT ESC
MENUBACKUPRECORD
DVR304
1 2 3 4 5 6 7 8 9
10
11
121314151617181920
1. LED status panel
2. Split-display/camera buttons
3. SEQ button
4. EJECT button
5. ESC button
6. Left button
7. Enter button
8. Up button
9. Remote control IR receiver
10. USB 2.0 connector
Please see system LED status panel.
a. 4 split-display.
b. Camera selection mode.
a. Move cursor left at menu setup.
b. Pan left at PTZ control mode.
c. Decrease a value.
a. Enter operation in menu setup.
b. Instant PTZ camera selection at
live mode.
c. Camera active mode.
a. Move cursor up in menu.
b. Tilt up at PTZ control mode.
a. USB flash disk.
b. USB DVD/RW.
11. Right button
12. Down button
13. Menu button
14. Backup button
15. REC button
16. Fast forward button
17. Play button
18. Pause button
19. Stop video playback button
20. Fast reverse button
a. Move cursor right in menu.
b. Pan right at PTZ control mode.
c. Increase a value.
a. Move cursor down at menu mode.
b. Title down at PTZ control mode.
Start recording operation or stop the
recording task.
a. Video fast forward.
b. Next event page.
a. Invoke playback selection menu.
b. Replay after FF, FR, Pause, stepping
when playing video.
Live: freeze video, Playback: pause video.
a. Video fast reverse.
b. Previous event page.
3
[DVR308]
1. LED status panel
2. Camera buttons
3. SEQ button
4. PTZ button
5. ESC button
6. Left button/Split-display
7. Enter button
8. Up button
9. Remote control IR receiver
10. USB 2.0 connector
Please see system LED status panel.
Camera selection mode.
a. At PTZ control mode.
b. At Split-display mode.
a. Move cursor left at menu setup.
b. Pan left at PTZ control mode.
c. Decrease a value.
d. 4 split-display.
a. Enter operation in menu setup.
b. Instant PTZ camera selection at
live mode.
c. Camera active mode.
a. Move cursor up in menu.
b. Tilt up at PTZ control mode.
a. USB flash disk.
b. USB DVD/RW.
c. USB Mouse.
1 2 3 4 5 6
DVR308
POWER
REC
12345678
ALARM
HDD
SEQ PTZ ESC
MENUBACKUPREC
7 8 9
1011121314151617181920
11. Right button/Split-display
12. Down button
13. Menu button
14. Backup button
15. REC button
16. Fast forward button
17. Play button
18. Pause button
19. Stop video playback button
20. Fast reverse button
a. Move cursor right in menu.
b. Pan right at PTZ control mode.
c. Increase a value.
d. 9 split-display.
a. Move cursor down at menu mode.
b. Title down at PTZ control mode.
Start recording operation or stop the
recording task.
a. Video fast forward.
b. Next event page.
a. Invoke playback selection menu.
b. Replay after FF, FR, Pause, stepping
when playing video.
Live: freeze video, Playback: pause video.
a. Video fast reverse.
b. Previous event page.
4

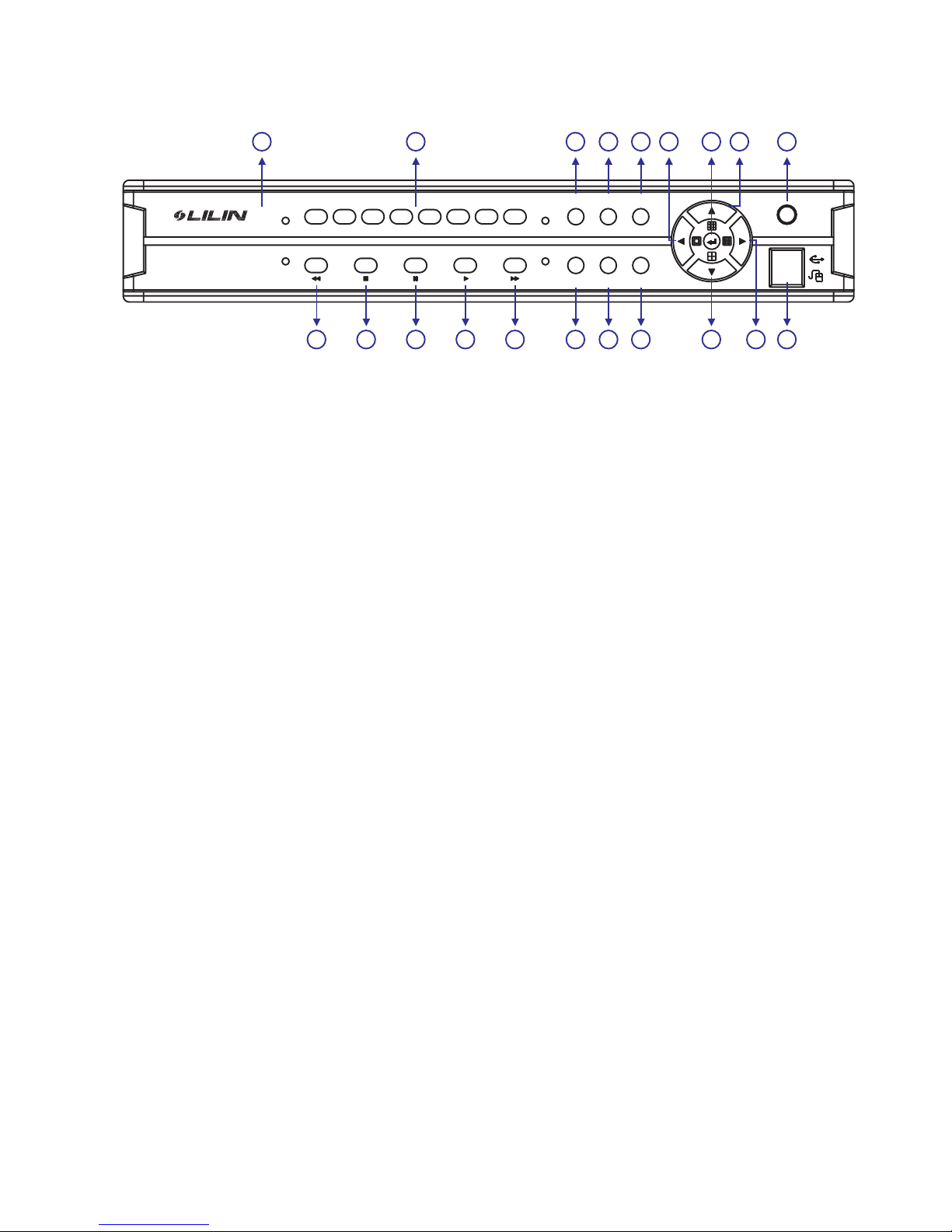

[DVR316]
1. LED status panel
2. Camera buttons
3. SEQ button
4. PTZ button
5. ESC button
6. Left button/Split-display
7. Enter button
8. Up button
9. Remote control IR receiver
10. USB 2.0 connector
Please see system LED status panel.
Camera selection mode.
a. At PTZ control mode.
b. At Split-display mode.
a. Move cursor left at menu setup.
b. Pan left at PTZ control mode.
c. Decrease a value.
d. 13 split-display.
a. Enter operation in menu setup.
b. Instant PTZ camera selection at
live mode.
c. Camera active mode.
a. Move cursor up in menu.
b. Tilt up at PTZ control mode.
c. 9 split-display.
a. USB flash disk.
b. USB DVD/RW.
c. USB Mouse.
11. Right button/Split-display
12. Down button
13. Menu button
14. Backup button
15. REC button
16. Fast forward button
17. Play button
18. Pause button
19. Stop video playback button
20. Fast reverse button
a. Move cursor right in menu.
b. Pan right at PTZ control mode.
c. Increase a value.
d. 16 split-display.
a. Move cursor down at menu mode.
b. Title down at PTZ control mode.
c. 4 split-display.
Start recording operation or stop the
recording task.
a. Video fast forward.
b. Next event page.
a. Invoke playback selection menu.
b. Replay after FF, FR, Pause, stepping
when playing video.
Live: freeze video, Playback: pause video.
a. Video fast reverse.
b. Previous event page.
DVR316
POWER
REC
3-4 5-6 7-8 9-10 11-121-2 13-14 15-16 ESCPTZSEQ
ALARM
HDD
REC BACKUP MENU
1 2 3 4 5 6 7 8 9
1011121314151617181920
5
Rear Panel
[DVR304]
1. Main monitor
2. Camera inputs
3. Audio inputs
4. Audio output
5. USB button
6. VGA output
Analog camera BNC inputs.
Four RCA audio connectors.
For mouse connection.
7. Network RJ-45 connector
8. RS-485
9. Alarm I/Os
10. DC12V input
11. Fan
For PTZ connection.
Alarm input switches, 1 N/O alarm output,
and 1 N/C alarm output.
[DVR308]
8. Network RJ-45 connector
9. RS-485
10. Alarm I/Os
11. RJ-45 Keyboard-in
12. RJ-45 keyboard-out
13. DC12V input
15. Power switch
For PTZ connection.
Alarm input switches, 1 N/O alarm output,
and 1 N/C alarm output.
Connected from previous DVR's keyboard
output in daisy chain.
Conncet to the next DVR's input.
RJ-45 connector.
1. Main monitor
2. Camera inputs
3. Audio inputs
4. External IR receiver(RCA)
5. Audio output
6. Spot monitor
7. VGA output
Analog camera BNC inputs.
Four RCA audio connectors.
a. Spot monitor accessible by
keyboard.
b. Each spot output can be
programmable for alarmed camera
display and sequence display.
1 2 3
4 5 6 7 8 9 10 11
1 2 3 4 5
6 7 8 9 10 11 12 13 15
6
[DVR316]
8. Network RJ-45 connector
9. RS-485
10. Alarm I/Os
11. RJ-45 Keyboard-in
12. RJ-45 keyboard-out
13. DC12V input
15. Power switch
For PTZ connection.
Alarm input switches, 1 N/O alarm output,
and 1 N/C alarm output.
Connected from previous DVR's keyboard
output in daisy chain.
Conncet to the next DVR's input.
RJ-45 connector.
1. Main monitor
2. Camera inputs
3. Audio inputs
4. External IR receiver(RCA)
5. Audio output
6. Spot monitor
7. VGA output
Analog camera BNC inputs.
Four RCA audio connectors.
a. Spot monitor accessible by
keyboard.
b. Each spot output can be
programmable for alarmed camera
display and sequence display.
LED Status Panel
System LEDs are meaningful while operating the DVR. The status of each LED is decribed
as in the following table:
Item
1
2
3
4
5
6
Backup LED indicator
DVR power on/off indicator
Master HDD recording indicator
External alarm switches indicators
when motioned or alarmed
Recording indicator
Network indicator
BACKUP
POWER
HDD
ALARM
REC
NET
Green (blinking)
Yellow
Green (blinking)
Red
Yellow
Green
LED Description Color
[DVR304] [DVR308]
[DVR316]
1 2 3 4 5
6 7 8 9 10 11 12 13 15
1 2 3
4 5 6
2 4
5 3
7

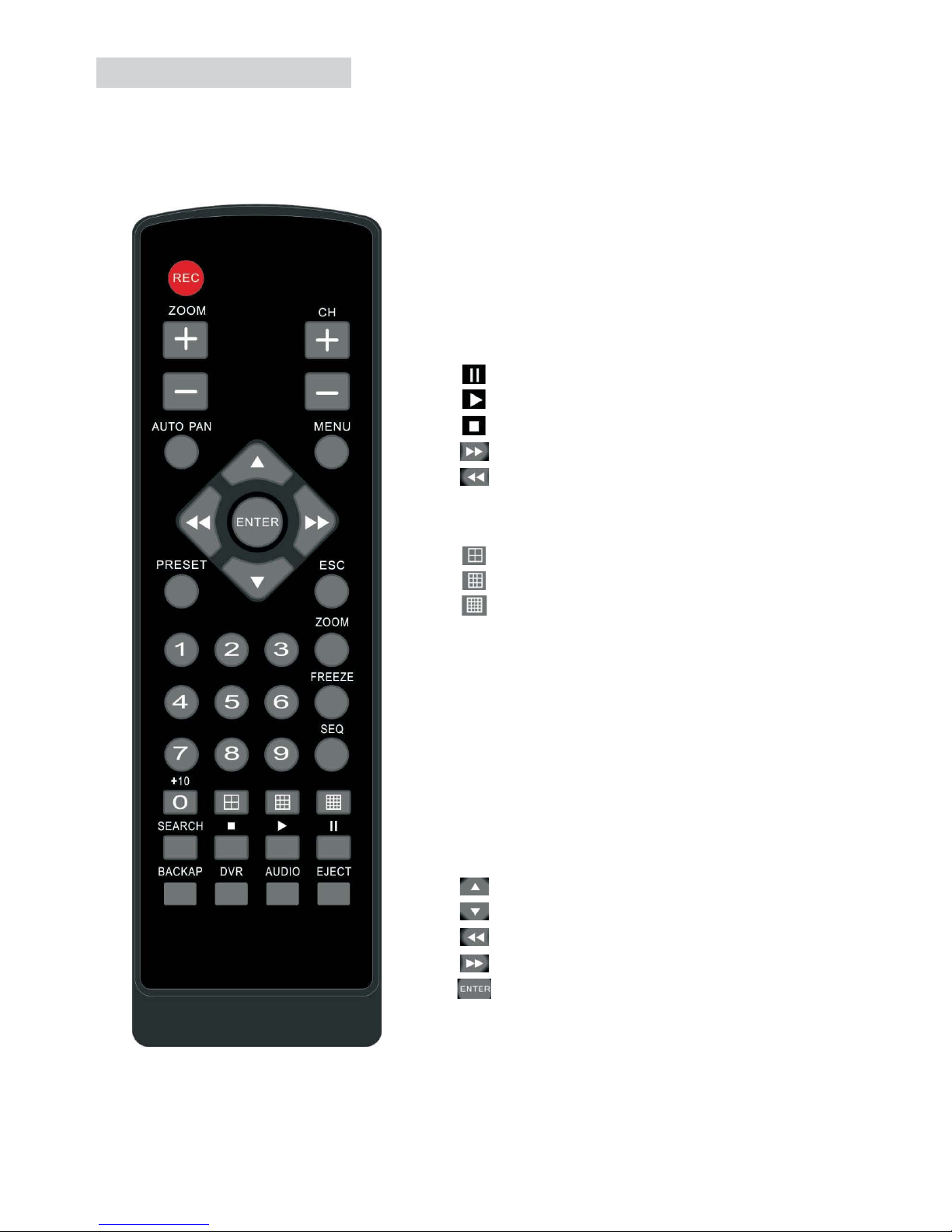

Remote Controller
The button arrangement of the remote controller is designed for easy-to-use purposes.
Buttons are separated in regions based on their features including DVR operational keys,
pan, tilt, and zoom camera device(PTZ) keys, numerical keys, and PTZ buttons.
DVR operational keys:
PTZ operational keys:
0 to 9: Numerical keys.
MENU
ESC
ZOOM
REC
FREEZE
CH+
CH-
SEQ
AUDIO
BACKUP
DVR
Auto Pan
Zoom in
Zoom out
Preset
: Setup menu.
: Escape/exit/stop buzzer
: Digital video 5X or 9X zooming.
: Record/stop recording.
: Live video freeze.
: Pause.
: Playback.
: Stop.
: Fast forward.
: Fast rewind.
: Next single channel.
: Previous single channel.
: 4 split display.
: 9 split display.
: 16 split display.
: Sequential display.
: Audio/mute.
: Video backup.
: Addressable DVR control.
: Perform auto pan feature.
: Zoom in of a fast dome camera.
: Zoom out of a fast dome camera.
: Call preset of a fast dome camera.
: Move up/tilt up.
: Move down/tilt down.
: Move left/pan left.
: Move right/pan right.
: Enter/set.
8
HDD Information
HDD INFO shows the following information:
1. Size The capacity of the hard disk drive.
2. Approximate recording hour recording hours based on the HDD(s).
3. Approximate recording days recording days based on the HDD(s).
4. Average frame size Average picture size.
HDD INFO
PRI
SEC
HDD FORMAT
APPROX REC HOURS
APPROX REC DAYS
RESET COUNTER
MASTER
SIZE
SLAVE
SIZE
MASTER
SIZE
SLAVE
SIZE
250 GB
250 GB
142
7
HDD Format
To format HDDs, please select HDD Format menu item. Password is required for
preventing unauthorized access. A warning message also gets prompted for formatting
verification. Please be alerted to this operation. It may erase not only event list data but
also recorded video data. Press [Enter] button at HDD Format menu to format the hard
disk drives.
Formatting hard disk drives may take several seconds based on the number of lists
recorded.
Password/Access
The DVR has three sets of password protection(accounts) preventing unauthorized access.
To activate password function, please turn Enable Password on or off at
System -> Password.
The password consists of four to eight digits for entering the DVR. The default passwords
are admin, "1111", operator, "2222", and guest, "3333". The acceptable characters are 1 to
10(0) and A to Z. To change the password setting, please press [Enter] at System ->
Password -> Change Password.
9
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Lilin DVR
Lilin
Lilin PDR-400 Manuel utilisateur
Lilin
Lilin DVR216C Manuel utilisateur
Lilin
Lilin DVR216B Manuel utilisateur
Lilin
Lilin PDR-3160 Manuel utilisateur
Lilin
Lilin dvr2 series Manuel utilisateur
Lilin
Lilin PDR-2160A Manuel utilisateur
Lilin
Lilin DVR708 Manuel utilisateur
Lilin
Lilin DVR004S Manuel utilisateur
Lilin
Lilin NVR2400 Mode d’emploi
Lilin
Lilin NVR404C Manuel utilisateur
Lilin
Lilin PDR-3160 Manuel utilisateur
Lilin
Lilin PDR-6040 A Manuel utilisateur
Lilin
Lilin NDR104 Manuel utilisateur
Lilin
Lilin DVR508 Manuel utilisateur
Lilin
Lilin PDR 6164 Manuel utilisateur
Lilin
Lilin DHD204 Manuel utilisateur
Lilin
Lilin nvr400L Manuel utilisateur
Lilin
Lilin DVR308 Manuel utilisateur
Lilin
Lilin DHD204A Manuel utilisateur
