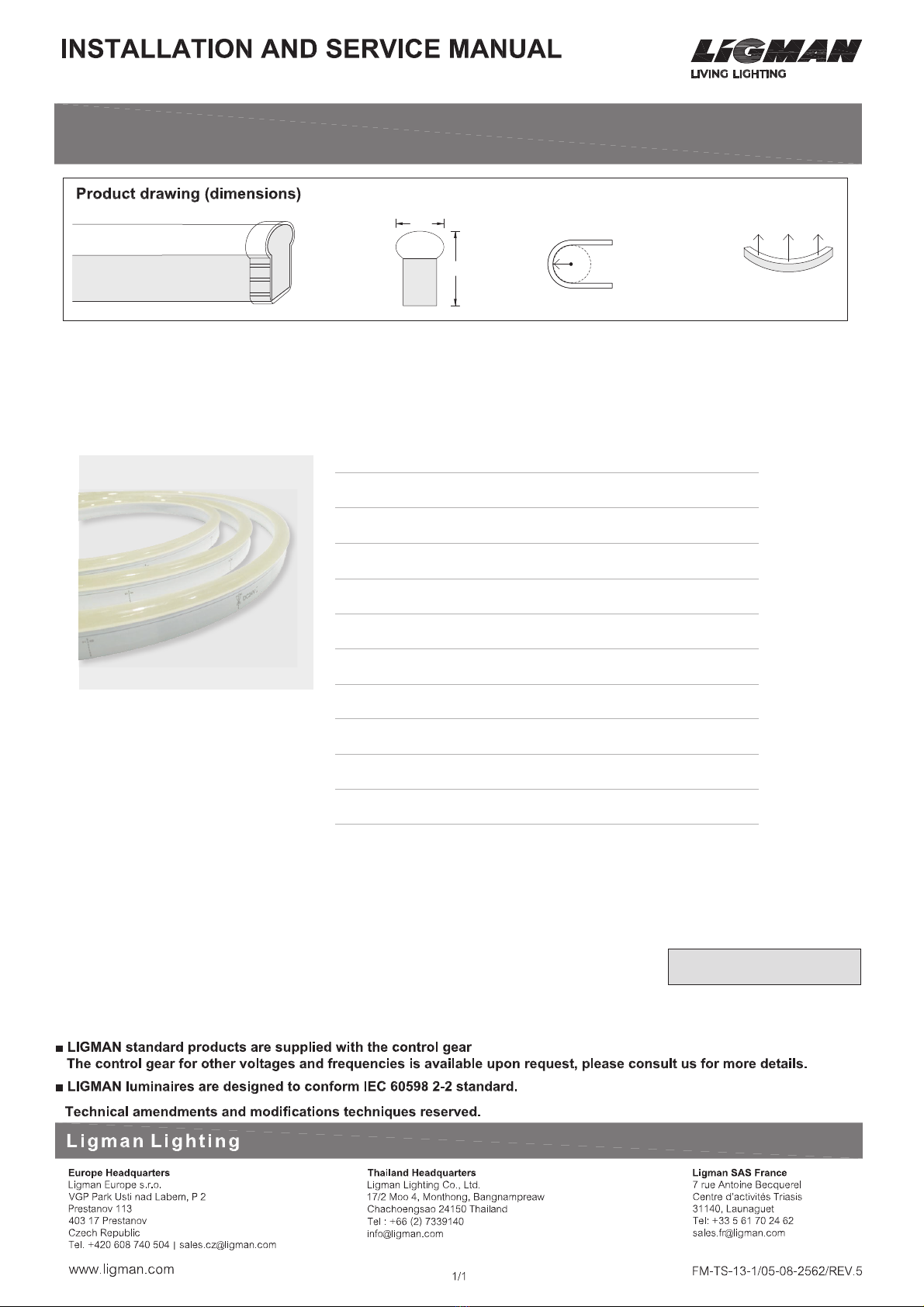

LIGMAN NEON Series Manuel utilisateur

For Installation of NEON CLASSIC Continuous LED Solution IP67 (24VDC)

24VDC

M ITNO1230001067-CL-HB/16/12/19/REV.0

IP67

ALWAYS UNCOIL BEFORE USE

Actual product characteristics may vary. Ligman Lighting reserves the right to improve, modify or update the product designs without prior notice.

Please note drawings are an installation guide only. Each LED tape application may have variable factors. Cable size may need to be specified to limit the voltage drop throughout the circuit.

COLOUR NEON SERIES

WARM WHITE

3000K +/- 175K NEON 7

NATURAL WHITE

4000K +/- 275K NEON 7

2500 - 5000K

TUNEABLE WHITE NEON 8

RGB NEON 10

RGBW NEON 11

RGB DYNAMIC NEON 19

ELECTRICAL & OPTICAL DATA VARIANCE +/- 10%

SOLD BY THE METRE

IES FILES AVAILABLE

NEON CLASSIC │ELECTRICAL AND PHYSICAL INSTALLTION GUIDE

VARIANT CODE

ITNO1230001067-CL-HB

ITNO1240001067-CL-HB

ITNO12TUW01067-CL-HB

ITNO12RGB01067-CL-HB

ITNO15RGBW0567-CL-HB

ITNO12RGBC1067-CL-HB

RED

615–625mm

GREEN

520–530mm

BLUE

465–475mm

YELLOW

580mm

16.5

HORIZONTAL BENDING

MINIMUM

BEND RADIUS

60mm

NEON 9 ITNO12Y0001067-CL-HB

NEON 9 ITNO12B0001067-CL-HB

NEON 9 ITNO12G0001067-CL-HB

NEON 9 ITNO12R0001067-CL-HB

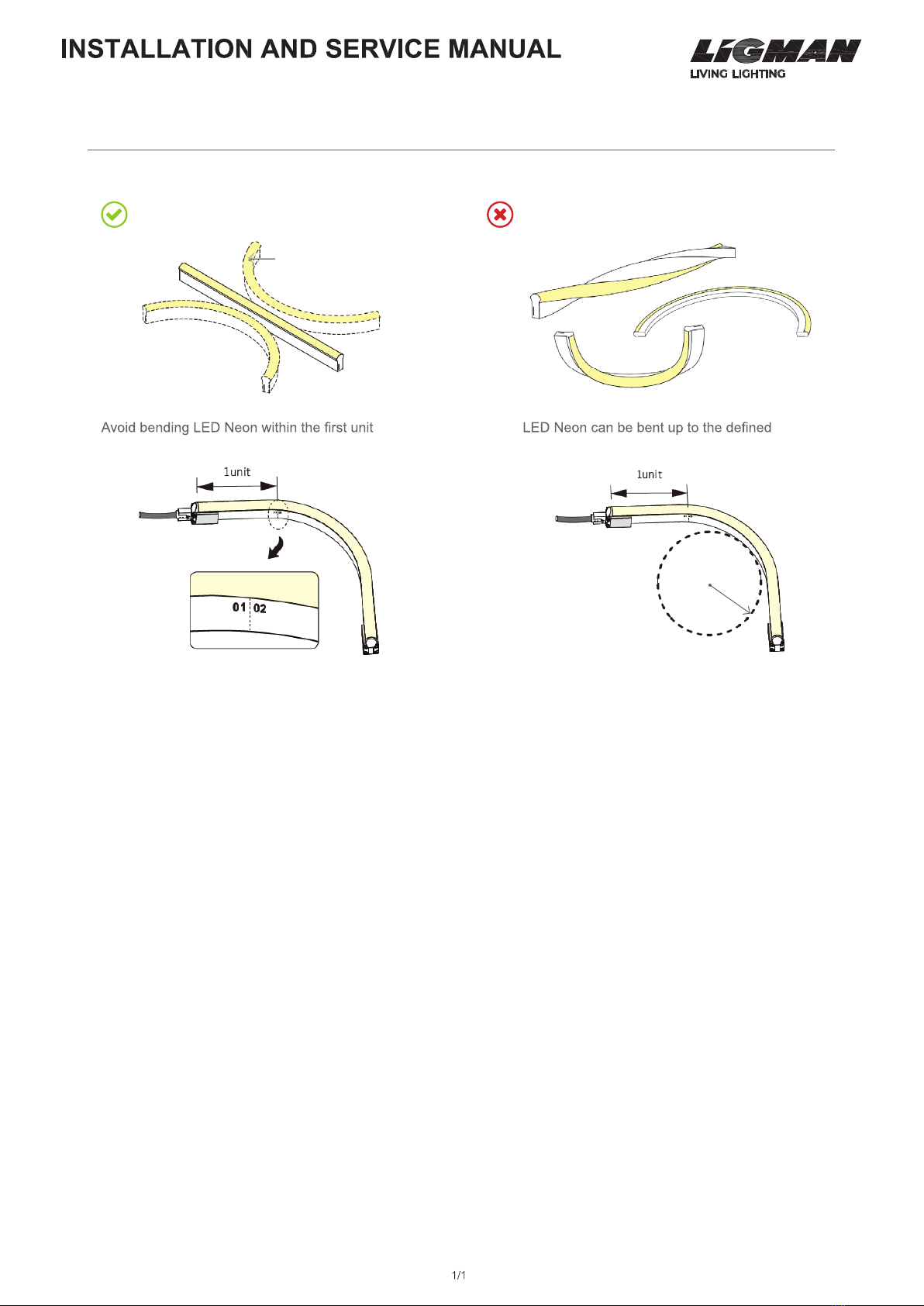

DO NOT TWIST THE LIGHT OR BEND

AGAINST THE LIGHT SURFACE

NEON CLASSIC CAN BE CURVED

AS SHOWN BELOW

LIGHT SURFACE

– (units are

clearly marked with dashed lines on the sides of the product)

–

“minimum bend radius” (60mm for Neon Classic)

BENDING PARAMETERS

60mm

M ITNO1230001067-CL-HB/16/12/19/REV.0

NEON CLASSIC| ELECTRICAL AND PHYSICAL INSTALLATIONGUIDE

– LED Neon must always be used in conjunction with a

– Check the polarity of the connector before inserting the front

connector and switching on the mains power.

– To minimise voltage drop and ensure consistent light output,

position the power supply near to the power feed end of the

LED Neon, and keep the line as short as possible

– Ensure your maximum run per power feed adheres to the

– Ensure to add 20% buffer when selecting a power supply

– Before making any cuts, installation, maintenance, or

connection, be sure the mains power is disconnected.

– If essential; cut and connect LED Neon correctly. Any

incorrect operation can cause damage.

– All connector joints must be connected correctly to

achieve connector IP rating.

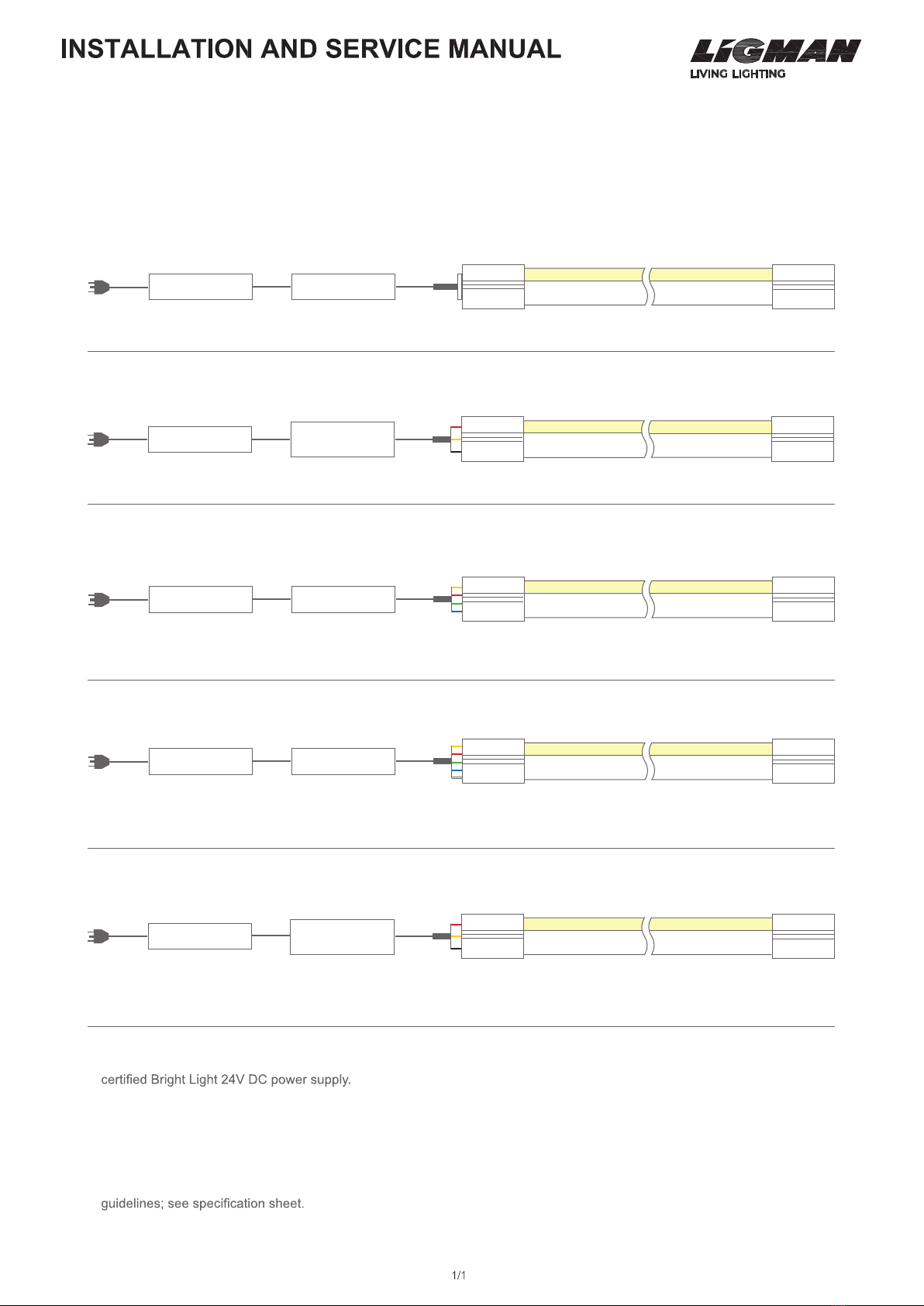

WHITE / SINGLE COLOUR

WIRING DIAGRAMS

RGBW

RGB

POWER SUPPLY RGB CONTROL

green wire: “G” terminal (-)

blue wire: “B” terminal (-)

yellow wire: +

red wire: “R” terminal (-)

24V DC

TUNEABLE WHITE

POWER SUPPLY 2-CHANNEL

CONTROL

black wire: Cool White connection (-)

red wire: +

yellow wire: Warm White connection (-)

24V DC

POWER SUPPLY RGBW CONTROL

green wire: “G” terminal (-)

blue wire: “B” terminal (-)

white wire: “W” terminal (-)

yellow wire: +

red wire: “R” terminal (-)

24V DC

DYNAMIC RGB ‘CHASING’

POWER SUPPLY DIMMER

optional black wire: -

red wire: +

24V DC

DMX OPTION AVAILABLE

black wire: “GND”, Cathode (-) terminal

red wire: “VCC”, Anode (+) terminal

yellow wire: “Signal” terminal

POWER SUPPLY INDEPENDENT

SPI CONTROL

24V DC

M ITNO1230001067-CL-HB/16/12/19/REV.0

NEON CLASSIC| ELECTRICAL AND PHYSICAL INSTALLATIONGUIDE

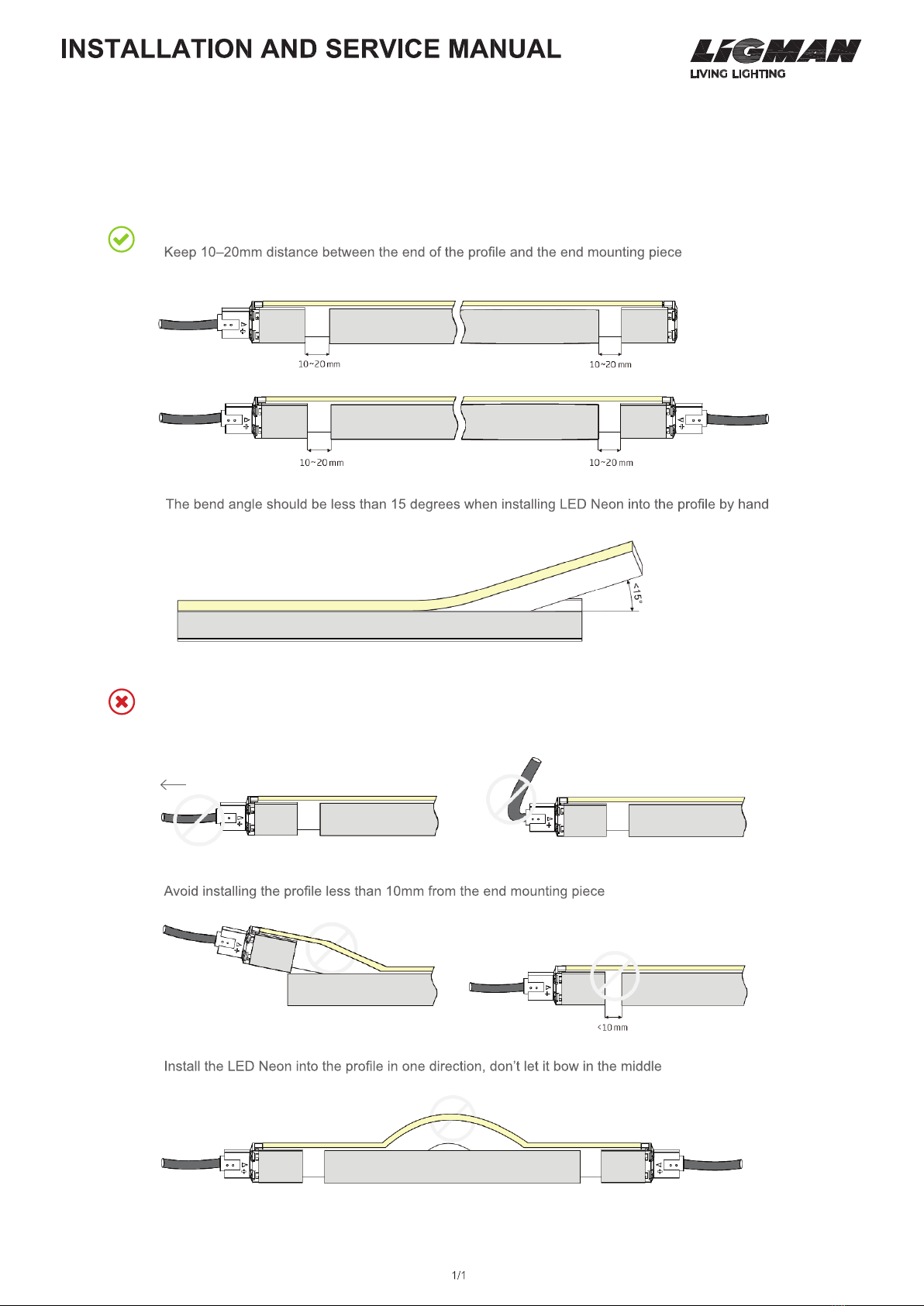

PROFILE INSTALLATION REQUIREMENTS

– Ensure the supply cord is not subject to mechanical stress

–

– Avoid placing mechanical stress on the front connector cable

– Do not curl or bend the front connector cable with excessive force

–

PULL

M ITNO1230001067-CL-HB/16/12/19/REV.0

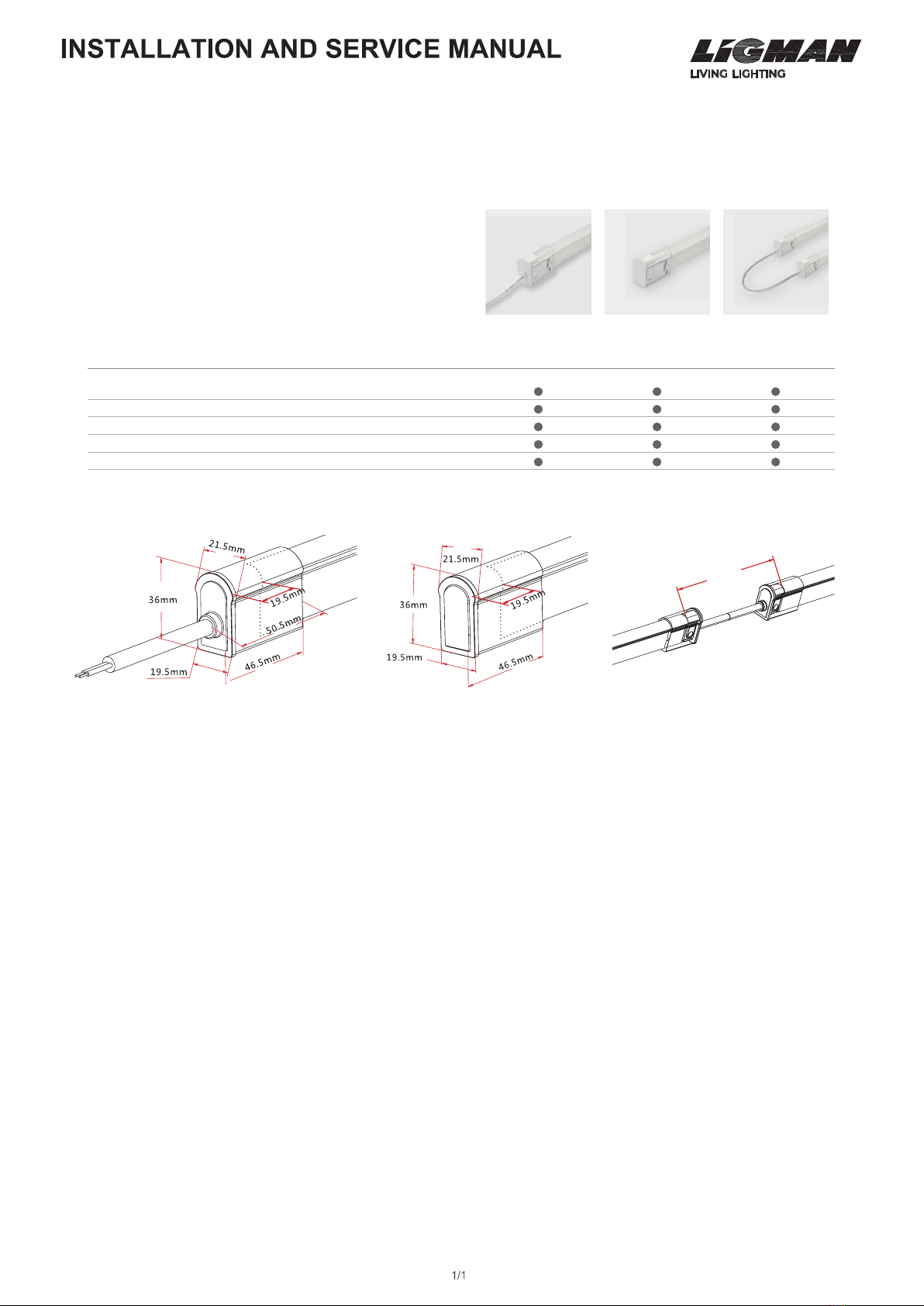

SNAP CONNECTIONS - IP67

TOP END FEED END CAP FLEXIBLE

CONNECTOR

WHITE

TUNEABLE

SINGLE COLOUR

RGB

RGB CHASING

RGBW ---

NEON CLASSIC | CONNECTIONS

SUITABLE FOR OUTDOOR APPLICATIONS

MUST BE FITTED CORRECTLY FOR IP67 RATING

FEED CONNECTORS SUPPLIED AS 1M CABLE STANDARD,

CHECK WITH BRIGHT LIGHT FOR ALTERNATE LENGTHS

FLEXIBLE CONNECTOR

300mm

END CAPTOP END FEED

M ITNO1230001067-CL-HB/16/12/19/REV.0

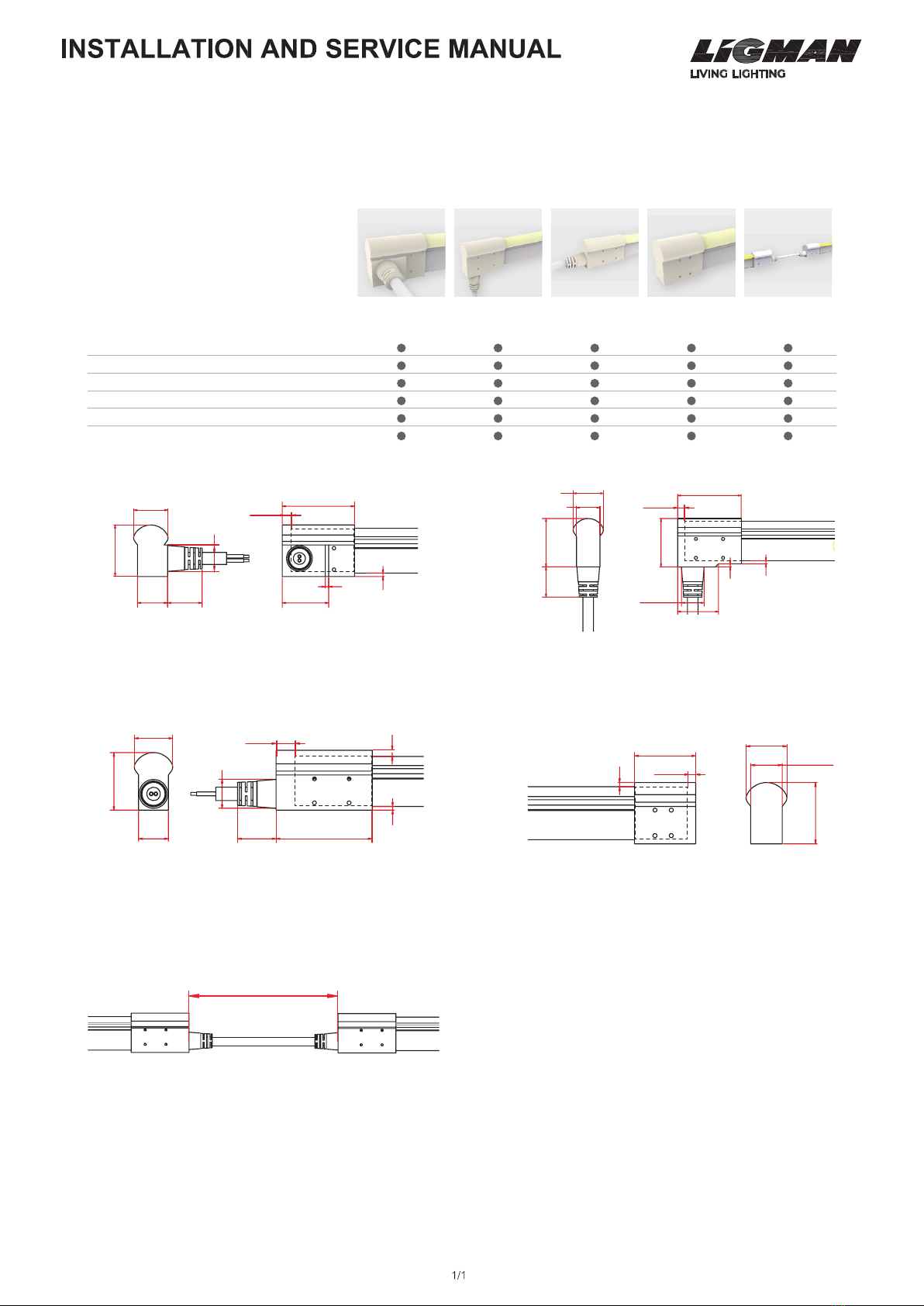

SLIMLINE INJECTION MOULDING CONNECTIONS - IP67

SIDE FEED BOTTOM

FEED

TOP END

FEED

MIDDLE FEED END CAP FLEXIBLE

CONNECTOR

T FEED

WHITE

TUNEABLE

SINGLE COLOUR

RGB

RGB CHASING -

RGBW -

NEON CLASSIC | CONNECTIONS

SIDE FEED

END CAP FLEXIBLE CONNECTOR

BOTTOM FEED

T-FEED

TOP END FEED MIDDLE FEED

300mm

REQUIRES FITTING AT FACTORY. LEAD

TIMES APPLY

SUITABLE FOR OUTDOOR APPLICATIONS

FEED CONNECTORS SUPPLIED AS 1M

CABLE STANDARD, CHECK WITH BRIGHT

LIGHT FOR ALTERNATE LENGTHS

300mm 300mm

1000mm

M ITNO1230001067-CL-HB/16/12/19/REV.0

CAPPED DUAL INJECTION MOULDING - IP68

SIDE FEED BOTTOM FEED TOP END FEED END CAP FLEXIBLE

CONNECTOR

WHITE

TUNEABLE

SINGLE COLOUR

RGB

RGB CHASING

RGBW

NEON CLASSIC | CONNECTIONS

REQUIRES FITTING AT FACTORY. LEAD TIMES APPLY

SUITABLE FOR OUTDOOR APPLICATIONS

FEED CONNECTORS SUPPLIED AS 1M CABLE

STANDARD, CHECK WITH BRIGHT LIGHT FOR

ALTERNATE LENGTHS

33mm

20mm17.5mm

42mm

2m m2 mm

Φ15m m

27mm

20mm

4mm

2mm

TOP END FEED

FLEXIBLE CONNECTOR

END CAP

Φ15m m

34mm

20mm18mm

22mm 3m m

2m m

50mm

10mm

2m m

33mm

35mm 20mm

15.5mm

4mm

BOTTOM FEEDSIDE FEED

15.5mm

20mm

35mm20mm

2m m

35mm

42mm

Φ15m m

27mm

4mm

300mm

M ITNO1230001067-CL-HB/16/12/19/REV.0

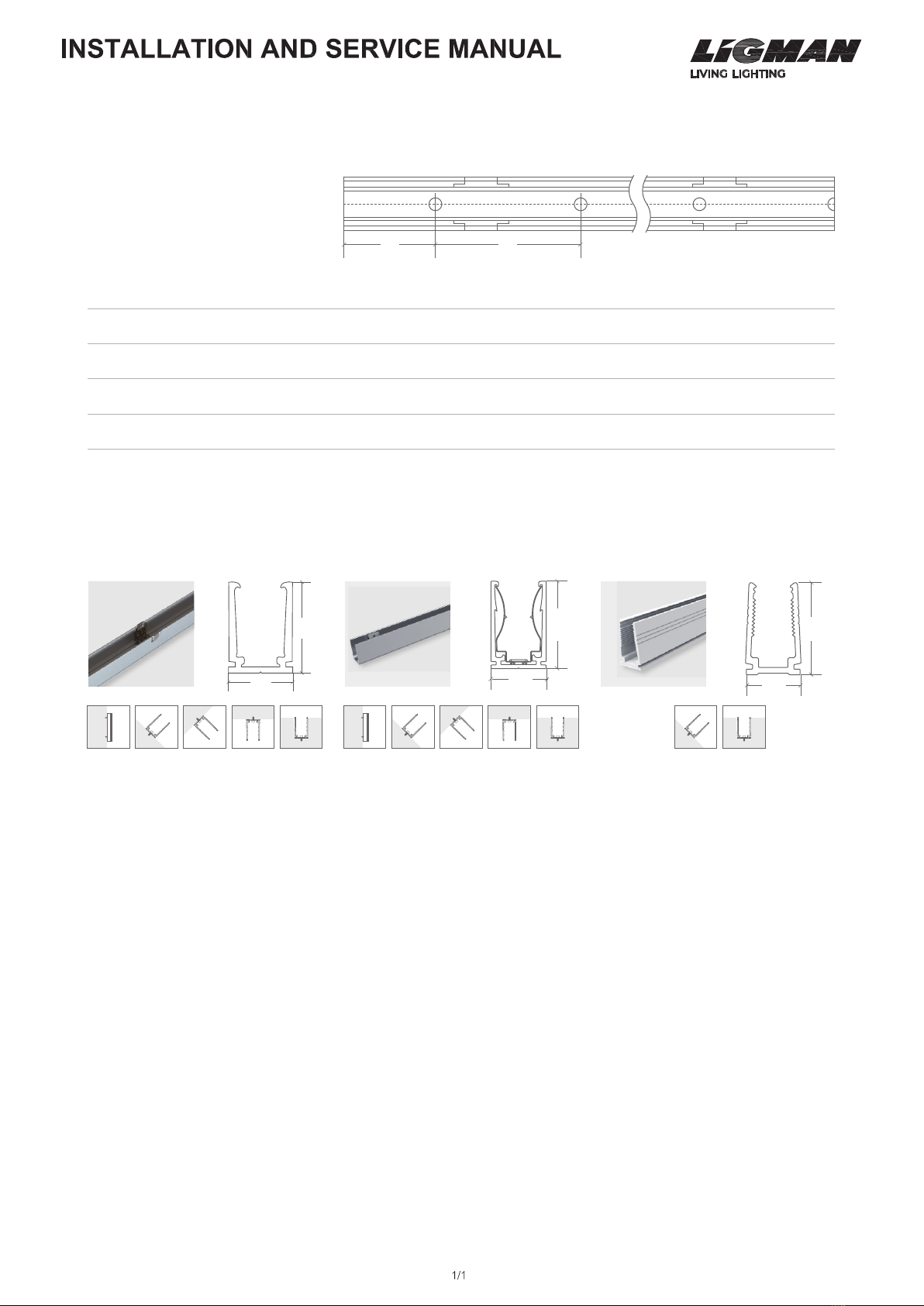

NEON CLASSIC| MOUNTING ACCESSORIES

ACCESSORY L1 L2 HOLE

DIMENSIONS

HOLE

NUMBER

SELF-LOCKING ALUMINIUM PROFILE 2M 100mm 200mm Ø3.5mm 10

SELF-LOCKING ALUMINIUM V2 MOUNTING CLIP 35MM 5mm 25mm Ø3.5mm 2

PLASTIC PROFILE 2M 100mm 200mm Ø3.5mm 10

PLASTIC PROFILE 1M 100mm 200mm Ø3.5mm 5

SELF-LOCKING ALUMINIUM

V2 MOUNTING CLIP

SELF-LOCKING ALUMINIUM

PROFILE 2M

PLASTIC PROFILE

L1 L2

16.2

25.6

16.8

23.7

M ITNO1230001067-CL-HB/16/12/19/REV.0
