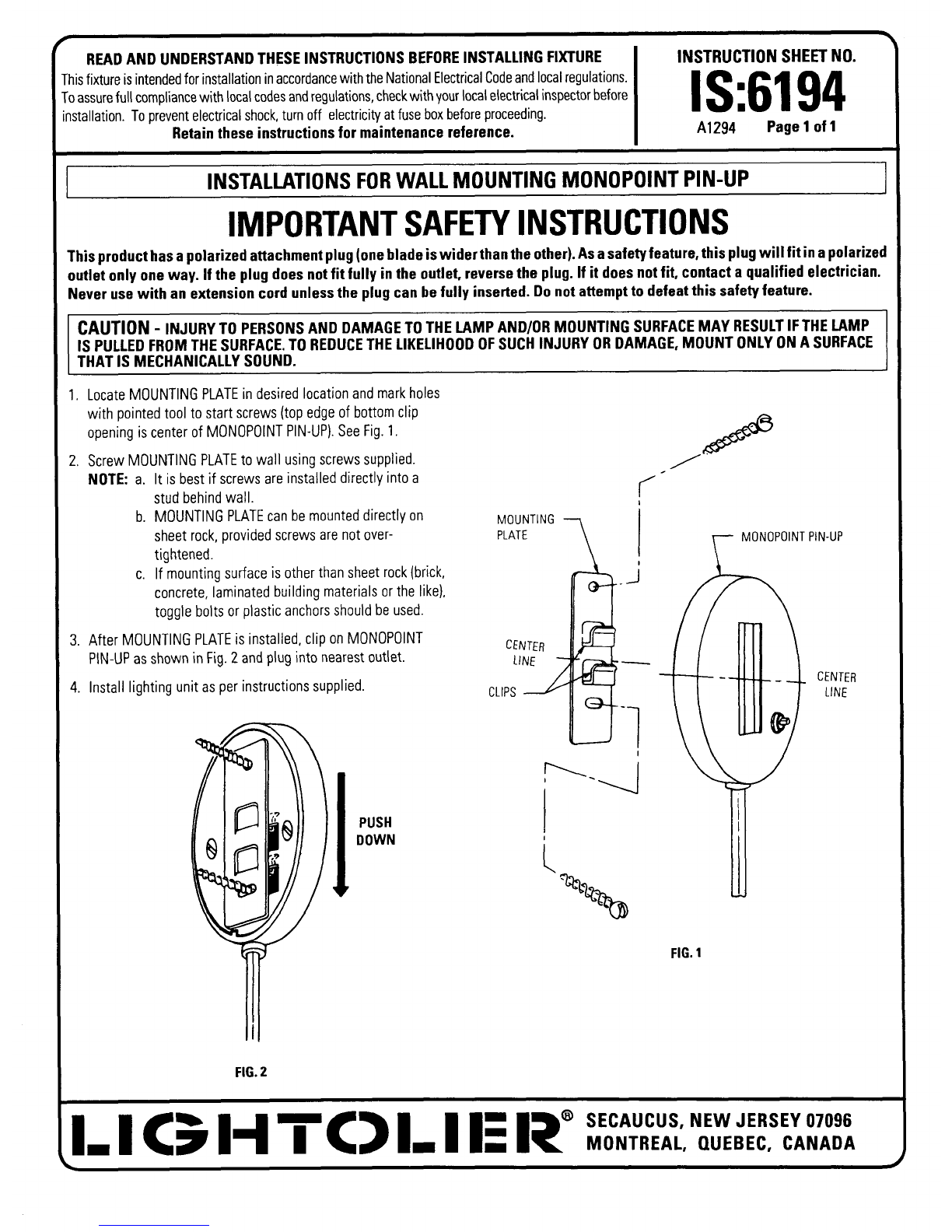

Lightolier WALL MOUNTING MONOPOINT PIN-UP Manuel utilisateur

●

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE INSTRUCTIONSHEETNO.

rhis fixture is intended for installation in accordance with the National ElectricalCodeandlocalregulations.

roassurefull compliance with local codes and regulations, check with your local electrical inspector before

nstallation. Toprevent electrical shock, turn off electricity at fuse box before proceeding. IS:6194

Retain these instructions for maintenance reference. A1294 Page 1of 1

INSTALLATIONS FOR WALL MOUNTING MONOPOINT PIN-UP

IMPORTANT SAFETY INSTRUCTIONS

This product has apolarized attachment plug (one blade is wider than the other). As asafety feature, this plugwill fit in apolarized

outlet only one way. If the plug does notfitfully in the outlet, reverse the plug. If it does notfit, contact aqualified electrician.

Never use with an extension cord unless the plug can be fully inserted. Do notattemptto defeat this safety feature.

CAUTION-INJURY TO PERSONS AND DAMAGE TO THE LAMP ANDIOR MOUNTING SURFACE MAY RESULTIFTHE LAMP

IS PULLEDFROMTHESURFACE.TO REDUCETHELIKELIHOODOFSUCHINJURY ORDAMAGE, MOUNT ONLYON ASURFACE

THAT IS MECHANICALLYSOUND.

1.Locate MOUNTING PLATE in desired location and mark holes

with pointed tool to start screws (top edge of bottom clip

opening is center of MONOPOINT PIN-UP). See Fig. 1.

2. Screw MOUNTING PLATE to wall using screws supplied. /

./’

NOTE: a. It is best if screws are installed directly into a

stud behind wall. f’

b. MOUNTING PLATE can be mounted directly on

sheet rock, provided screws are not over- MONOPOINT PIN-UP

tightened.

c. If mounting surface is other than sheet rock (brick, .i

concrete, laminated building materials or the like),

toggle bolts or plastic anchors should be used.

3. After MOUNTING PLATE is installed, clip on MONOPOINT

PIN-UP as shown in Fig. 2and plug into nearest outlet.

4. Install lighting unit as per instructions supplied.

-$-

CENTER

cLINE

‘@’

-4 1

PUSH

DOWN

[%.

FIG.1

FIG.2

Im IC5HiCX IER“z~~~~~~;8N~
