Lighting Systems A-16

1BHFPG "MFSPOÜ4FSJFT-JHIU51FShDN4FDUJPO

$

2-3/16”

(5.56cm)

3-5/16”

(8.41cm)

8-1/16” (20.48cm)

NOT TO SCALE

Module Ordering Information

Family Series Track Length Shielding Lamps Finish Options

A 2 B D

A= Track

B= No Track

4= 4-Foot

8= 8-Foot

12 = 12-Foot

A= Solid

B= Perf

C= Pierce

D= Lens

28 = 28w

54 = 54w

WH = White

AL = Aluminum

D1 = Dimming 120v

D2 = Dimming 277v

X5 = 5 Through Wires

Complete ordering instructions below.

Labels

UL, cUL and I.B.E.W.

Finish

Powder coated baked white or silver enamel.

Customcolors available, consult factory.

Mountings

All mounting is on 48” (121.92cm), 96” (243.84cm) and 144” (365.76cm) centers.

Cable Suspension (not shown) 4-1/2" (11.43cm) diameter flat canopy finished

white enamel, 1/16" (0.16cm) diameter stainless steel aircraft cable adjustable up

to 36" (91.44cm) and adjustable cable gripper. Cable mounting at the ends of a run

is not available when track is being used. Installing stems at the ends of the run

will prevent the fixture fromhanging off center caused by the weight of the track

fixture. Cable suspension can be used in the center of runs that have track

installed. Consult factory for other options.

Stem Mounting (not shown) - 4-1/2" (11.43cm) diameter flat canopy, 1/4"

(0.64cm) IP (1/2” (1.27cm) OD) stem. The stemcan accommodate up to 2-12 gauge

and 3-18 gauge solid wires. All components have a white finish.

Electrical

Ballast is <10% THD, 1.0 ballast factor, programstart. Color-coded quick

connectors allow ease of connection for joiner modules. For special circuiting

consult factory. Factory installed ballast disconnect allows the ballast to be

disconnected fromand reconnected to incoming power under load without turning

the entire circtuit off.

Dimming: 120/277 VAC 1% dimming level, 4 or 5 wire feed required.

Emergency Battery Pack: 28 watt: 520 lumens @ 90 minutes, 54 watt: 700

lumens @ 90 minutes.

Ordering Instructions

Individual Fixtures:

1. Order number of MODULES required.

2. Order one POWER FEED END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one POWER FEED END SET per run.

4. Order one INTERMEDIATE SUSPENSION per MODULE minus one per run.

5. For runs that exceed amperage limits, order the appropriate number of

INTERMEDIATE POWER FEEDS.

Features

1. Housing: Extruded aluminumhousing in lengths of 4’ (121.92cm), 8’ (243.84cm)

and 12’ (365.76cm). There are no exposed fasteners. The end caps are die-cast

aluminumsculpted and finished to match the housing.

2. Reflectors: Extruded aluminumbrite dipped anodized, kick reflector and

3. Lamping: One T5 28W or 54W lamp per four-foot nominal length. Provided

by others.

4. Alignment Mechanism: The housing and the end cap each have a draw tight

mechanismthat creates a hairline joint along and at the ends of the run. To

operate the mechanism, the installer tightens two screws.

die-formed high purity anodized specular aluminum.

5. Shielding: Extruded acrylic lens. 26% opaque. Textured white finish.

E1 = Emergency Pack, 120v

E2 = Emergency Pack, 277v

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems A-16

1BHFPG "MFSPOÜ4FSJFT-JHIU51FShDN4FDUJPO

$

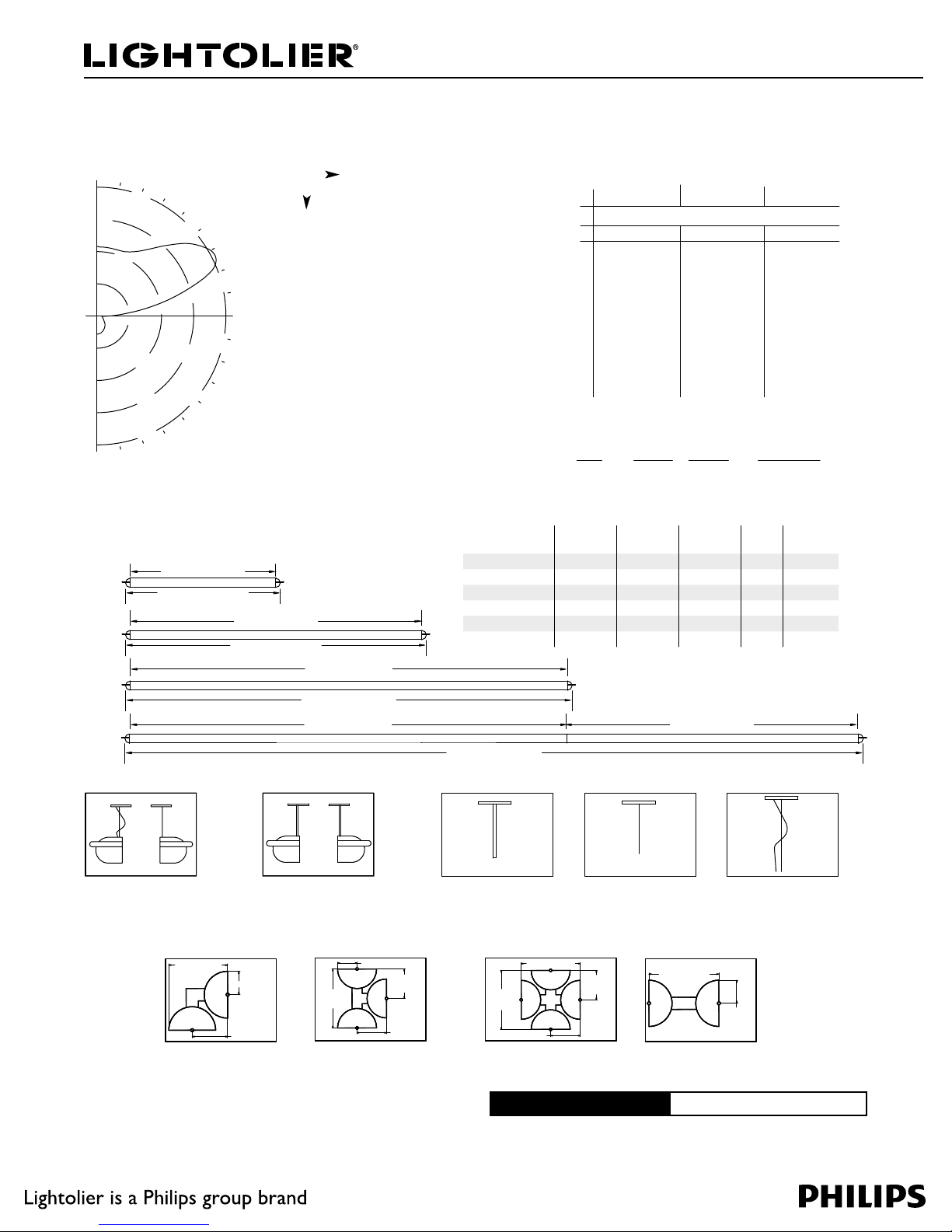

Fixture Lengths and Mounting Locations

A2EC36ALX4 = Aluminum

A2EC36WHX4 = White

4 Wires 18ga.

Cable Power Feed

A2ES24ALX4 = Aluminum

A2ES24WHX4 = White

AC36

Intermediate

36" (91.44cm) Cable Set

ALS24

Intermediate

24" (60.96cm) White StemSet

ACC36X4

Intermediate 36" (91.44cm)

Cable & 4 Wire 18 ga.

Cord Set for Fluorescent Only

A2LAL= Aluminum

A2LWH = White

"L" Joiner Block

A2TAL = Aluminum

A2TWH = White

"T" Joiner Block

A2XAL = Aluminum

A2XWH = White

"X" Joiner Block

A2ILAL = Aluminum

A2ILWH = White

Inline Joiner Block

Mounting Accessories

End Set 36” (91.44cm) Cables

96” (243.84cm)

144” (365.76cm)

20’ 9-1/4” (633.10cm)

20-Foot

12’ 9-1/4” (389.26cm)

144” (365.76cm)

12-Foot

48” (121.92cm)

4-Foot

4’ 9-1/4” (145.59cm)

8-Foot

8’ 9-1/4” (267.34cm)

96” (243.84cm)

4 Wires 18ga.

StemPower Feed

End Set 24” (60.96cm) Cables

6" (15.24cm)

(15.24cm)

6" (15.24cm)

(15.24cm)

4" (10.16cm)

(10.16cm)

10" (25.40cm)

12”

(30.48cm)

12” (30.48cm)

12”

(30.48cm)

12” (30.48cm)

CANDLEPOWER CURVE CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

Performance

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-90 568 11.4 12.3

90-180 4038 80.8 87.7

0-180 4606 92.1 100.0

ROOM CAVITY RATIO

70 50 30 70 50 30 50 30 10

090 90 90797979 575757

182 78 75716865 504846

274 68 63655955 434038

368 60 53595247 383532

462 52 46544640 343027

557 47 39494135 302623

652 41 34453630 272320

748 37 30423327 242018

844 34 27382924 221815

941 30 24362721 201613

10 38 28 21 33 24 19 18 14 12

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

WALL REFLECTANCE

20% FLOOR CAVITY REFLECTANCE

180

175

165

155

145

135

125

115

105

702

704

679

632

559

469

363

242

123

125

148

166

178

185

184

702

704

684

642

584

513

452

424

434

236

122

147

166

178

185

184

702

700

688

664

653

690

792

900

806

269

116

115

139

160

176

183

184

702

697

693

695

755

901

1121

1230

878

315

117

139

159

175

182

184

702

698

697

715

810

1010

1245

1326

865

293

132

114

135

155

172

181

184

REPORT NO: ITL50922

CAT NO: A2X4D54

LAMPS: 1- F54T5

LUMENS: 5000

EFFICIENCY: 92.1%

1300

975

650

325

100

110

120

130

140

150

160

170

180

4' (121.92cm)

Module

8' (243.84cm)

Module

12' (365.76cm)

Module End Set Suspension

4' (121.92cm) Run 11

8' (243.84cm) Run 11

12' (365.76cm) Run 11

16' (487.68cm) Run 211

20' (609.60cm) Run 1111

24' (731.52cm) Run 211
