Installation Instructions for Light My Bricks LED Lighting Kits

Mar 1 ·28 min read · Unlisted

Light My Bricks: Downtown Diner

Lighting Kit

The following page is instructions for the Light My Bricks LEGO

Downtown Diner (10260) LED light kit. You purchase this kit on our

ocial website.

To ensure a trouble-free installation of your light kit, please read and

follow each step carefully.

If you run into any issues, please refer to the online troubleshooting

guide.

This user guide is also available to download in PDF format here.

...

Package contents:

1x LEGO Lamp Post with Bit Light installed

3x Flashing White 30cm Bit Lights

1x White 30cm Bit Light

7x White 15cm Bit Lights

11x White Strip Lights

2x 8-Port Expansion Boards

1x 6-Port Expansion Board

5x 5cm Connecting Cables

5x 15cm Connecting Cables

2x 30cm Connecting Cables

1x 50cm Connecting Cable

4x Adhesive Squares

AA Battery Pack (Requires 3x AA Batteries)

LEGO Pieces

2x Trans Clear Round Plate 1x1

5x Trans Red Round Plate 1x1

5x Plate 1x6 (for mounting strip lights)

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

...

Important things to note:

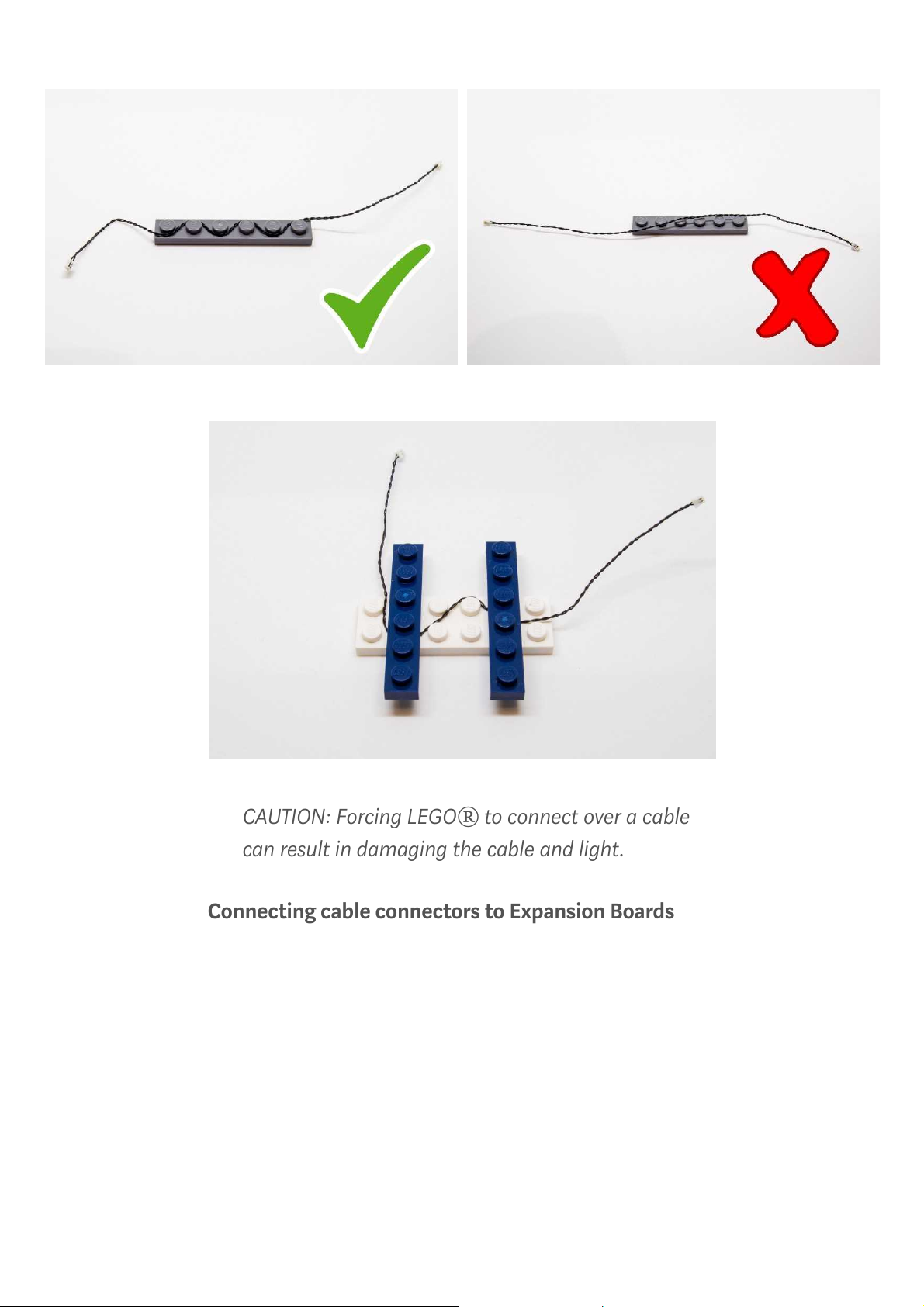

Laying cables in between and underneath bricks

Cables can t in between and underneath LEGO® bricks, plates, and

tiles providing they are laid correctly between the LEGO® studs. Do

NOT forcefully join LEGO® together around cables; instead ensure they

are laying comfortably in between each stud.

CAUTION: Forcing LEGO® to connect over a cable

can result in damaging the cable and light.

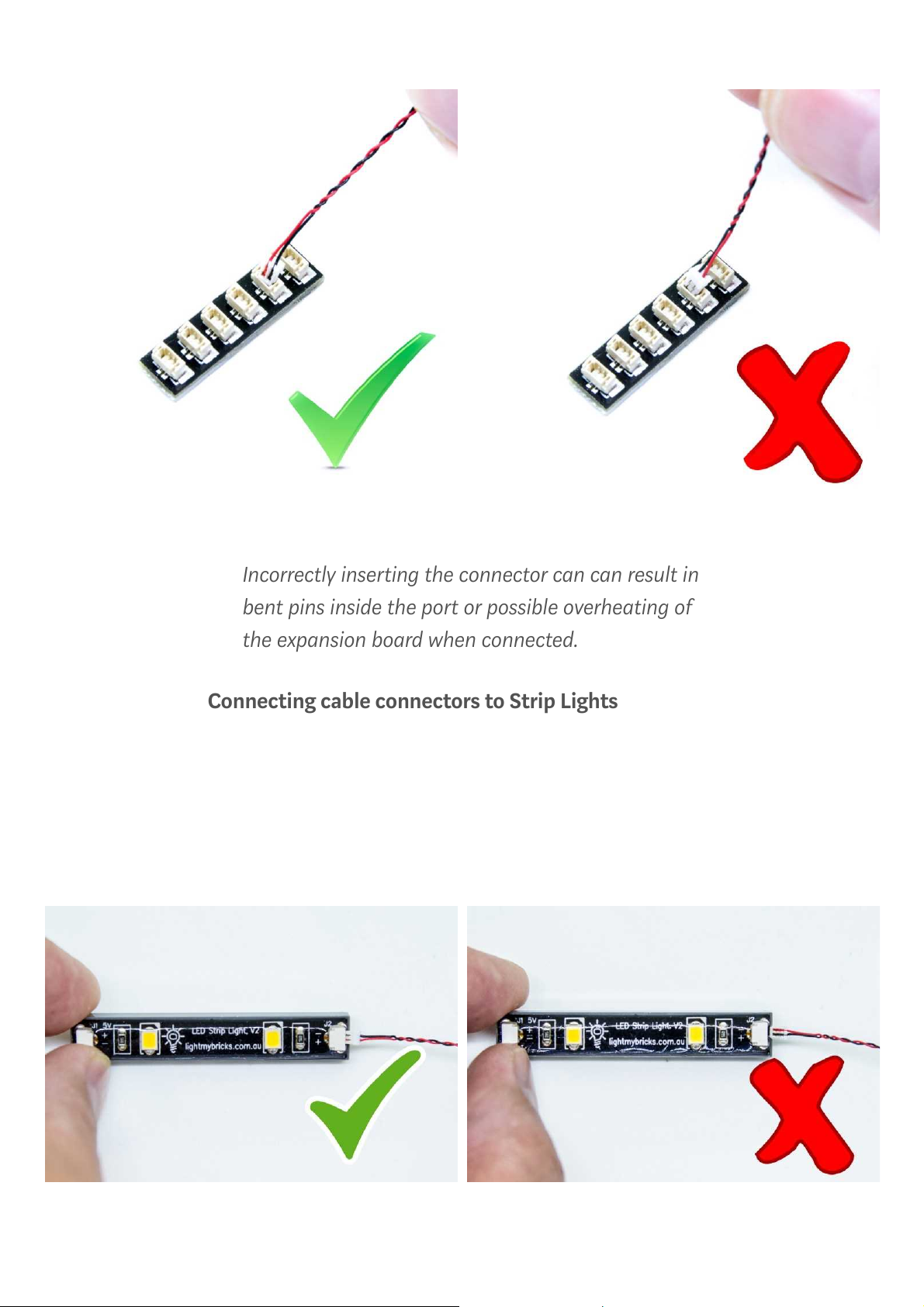

Connecting cable connectors to Expansion Boards

Take extra care when inserting connectors to ports of Expansion

Boards. Connectors can be inserted only one way. With the expansion

board facing up, look for the soldered “=” symbol on the left side of the

port. The connector side with the wires exposed should be facing

toward the soldered “=” symbol as you insert into the port. If a plug

won’t t easily into a port connector, do not force it.

Incorrectly inserting the connector can can result in

bent pins inside the port or possible overheating of

the expansion board when connected.

Connecting cable connectors to Strip Lights

Take extra care when inserting connectors to ports on the Strip Lights.

Connectors can be inserted only one way. With the Strip Light facing

up, ensure the side of the connector with the wires exposed is facing

down. If a plug won’t t easily into a port connector, don’t force it.

Doing so will damage the plug and the connector.

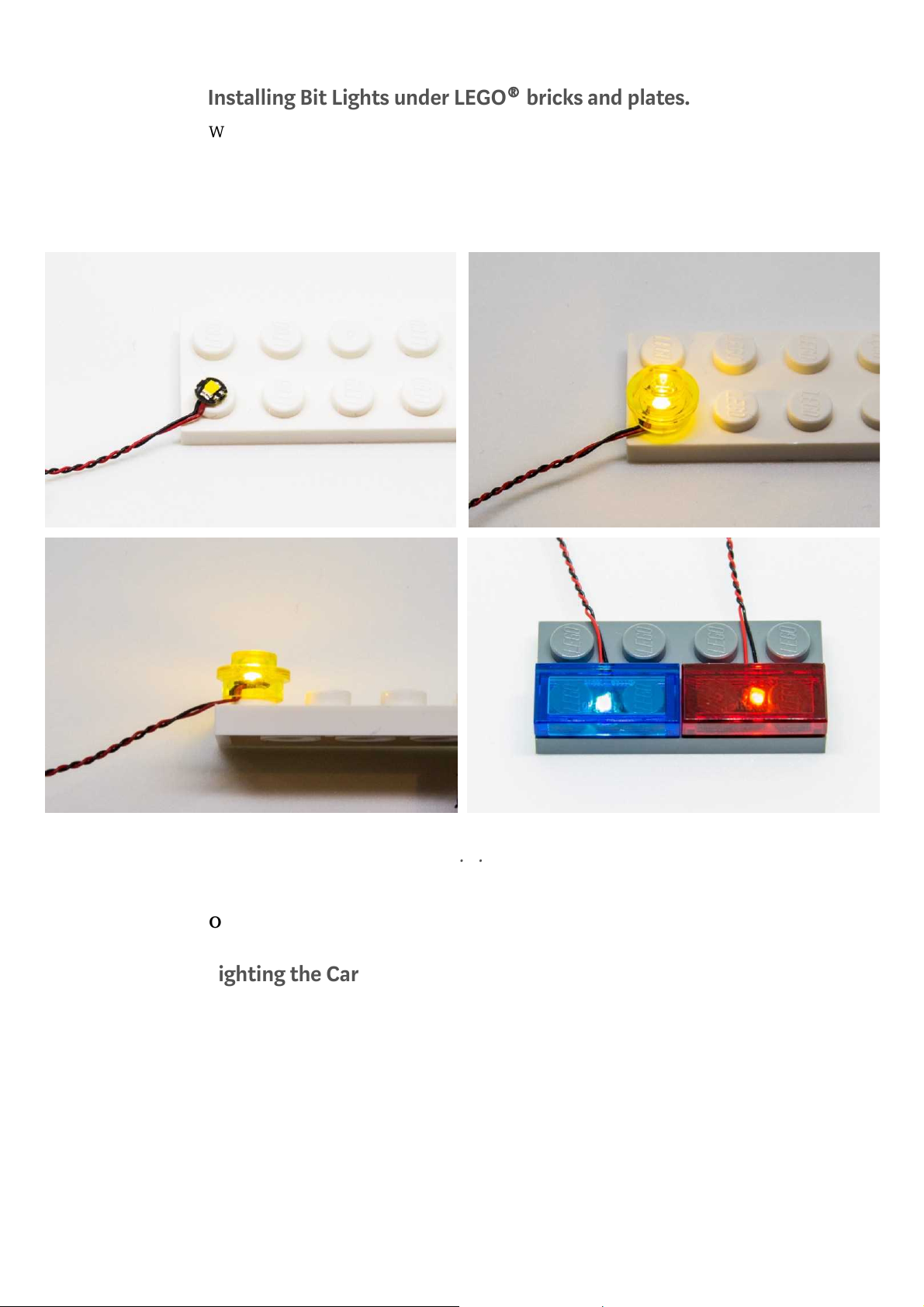

Installing Bit Lights under LEGO

®

bricks and plates.

When installing Bit Lights under LEGO® pieces, ensure they are placed

the correct way up (Yellow LED component exposed). You can either

place them directly on top of LEGO® studs or in between.

...

OK, Let’s Begin!

Lighting the Car

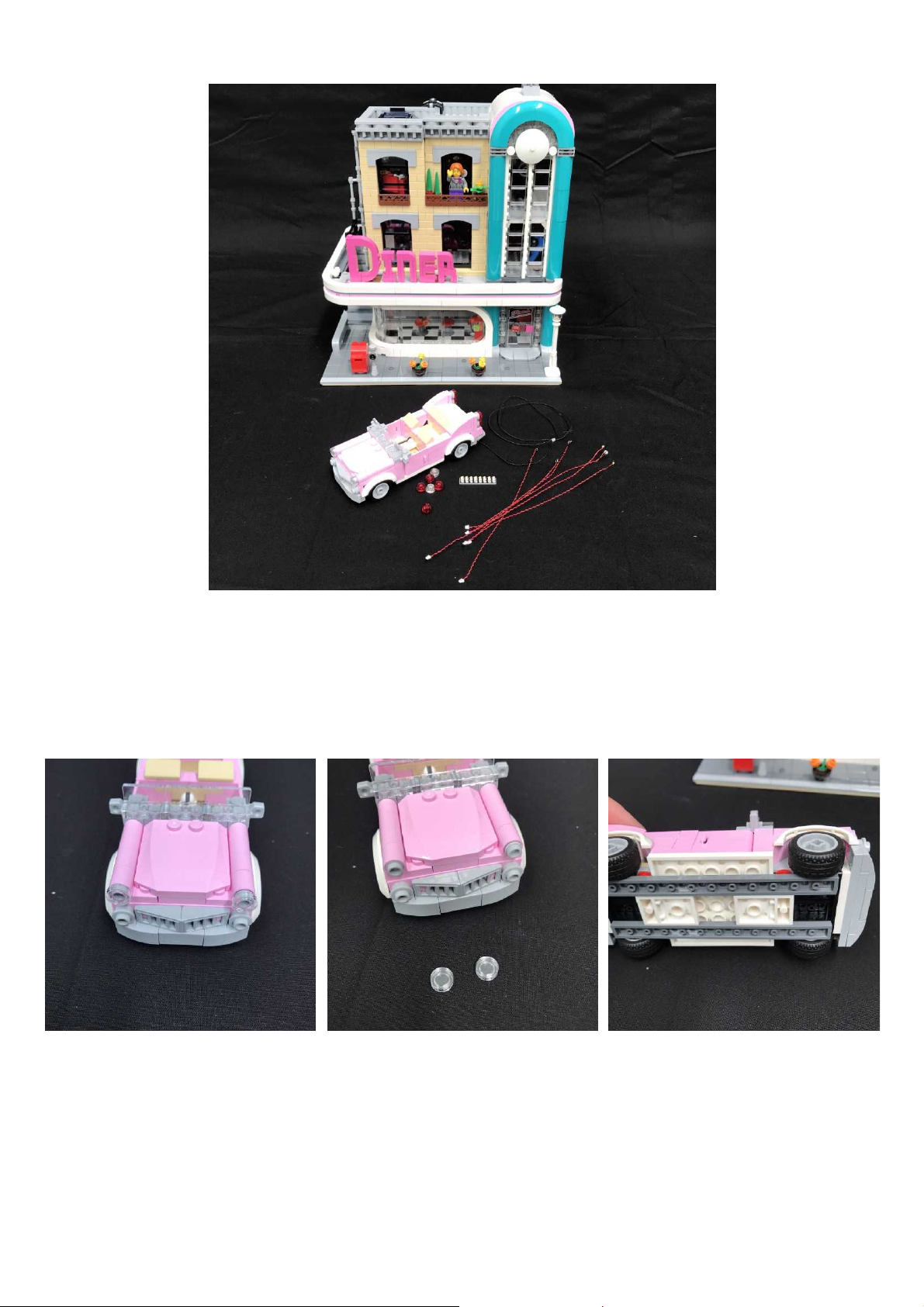

1.) Start by disconnecting the following sections of the front and

bottom of the car (trans clear tiles, 1x12 plates, and front bumper

section).

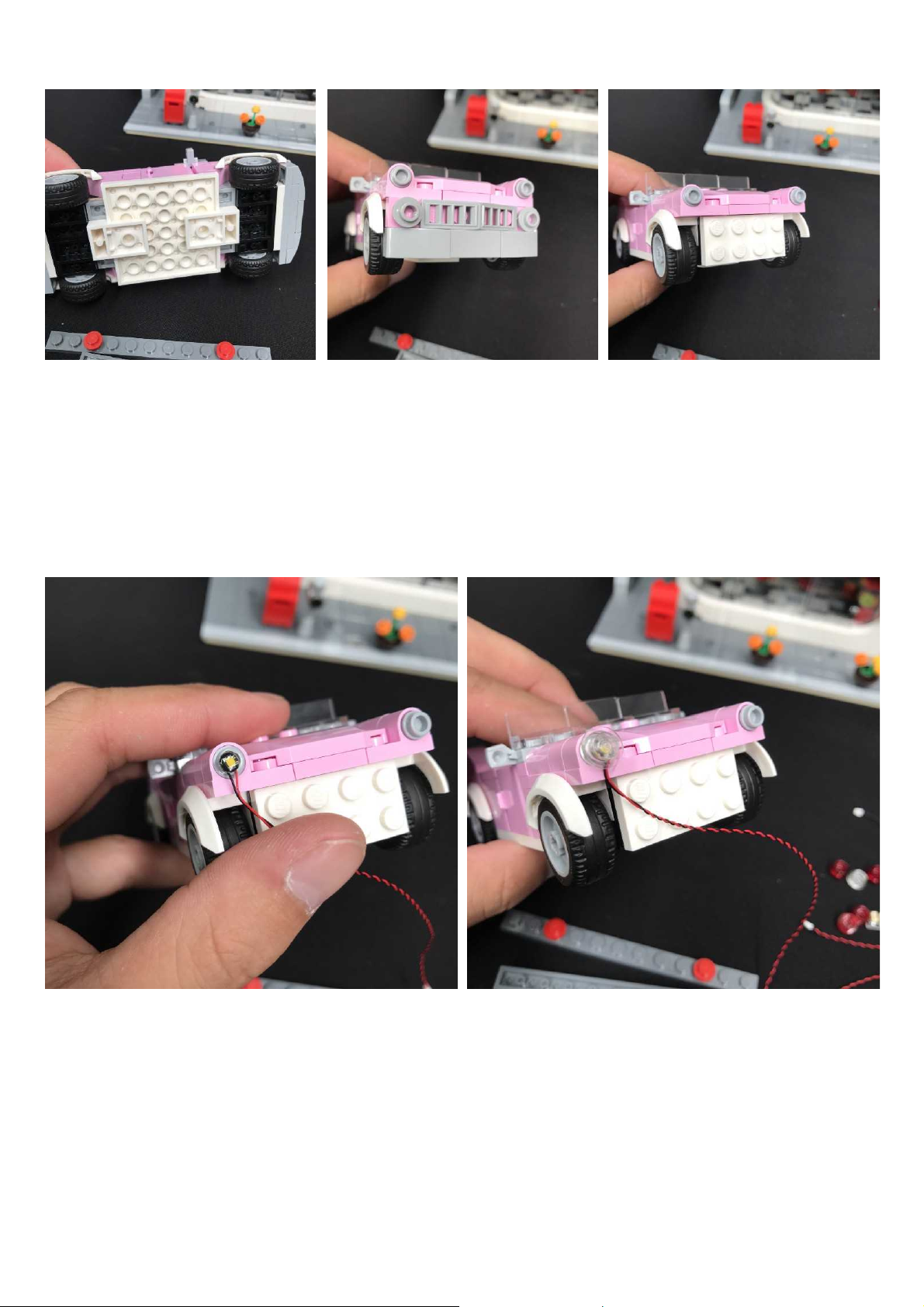

2.) Take a White 15cm Bit Light and with the cable facing down, place

it directly over one of the front grey studs. Take a provided Trans Clear

Round Plate 1x1 and connect it over the top to secure the Bit Light in

place.

Install another White 15cm Bit Light to the other headlight using the

same method as above.

3.) Lay both Bit Light cables down the side of the White 2x4 plate and

then reconnect the front bumper section over the top.

Bring both cables down the base of the car and then thread each cable

through the spacing in between the back wheel and side of car.

Pull each cable up from the inside of the car.

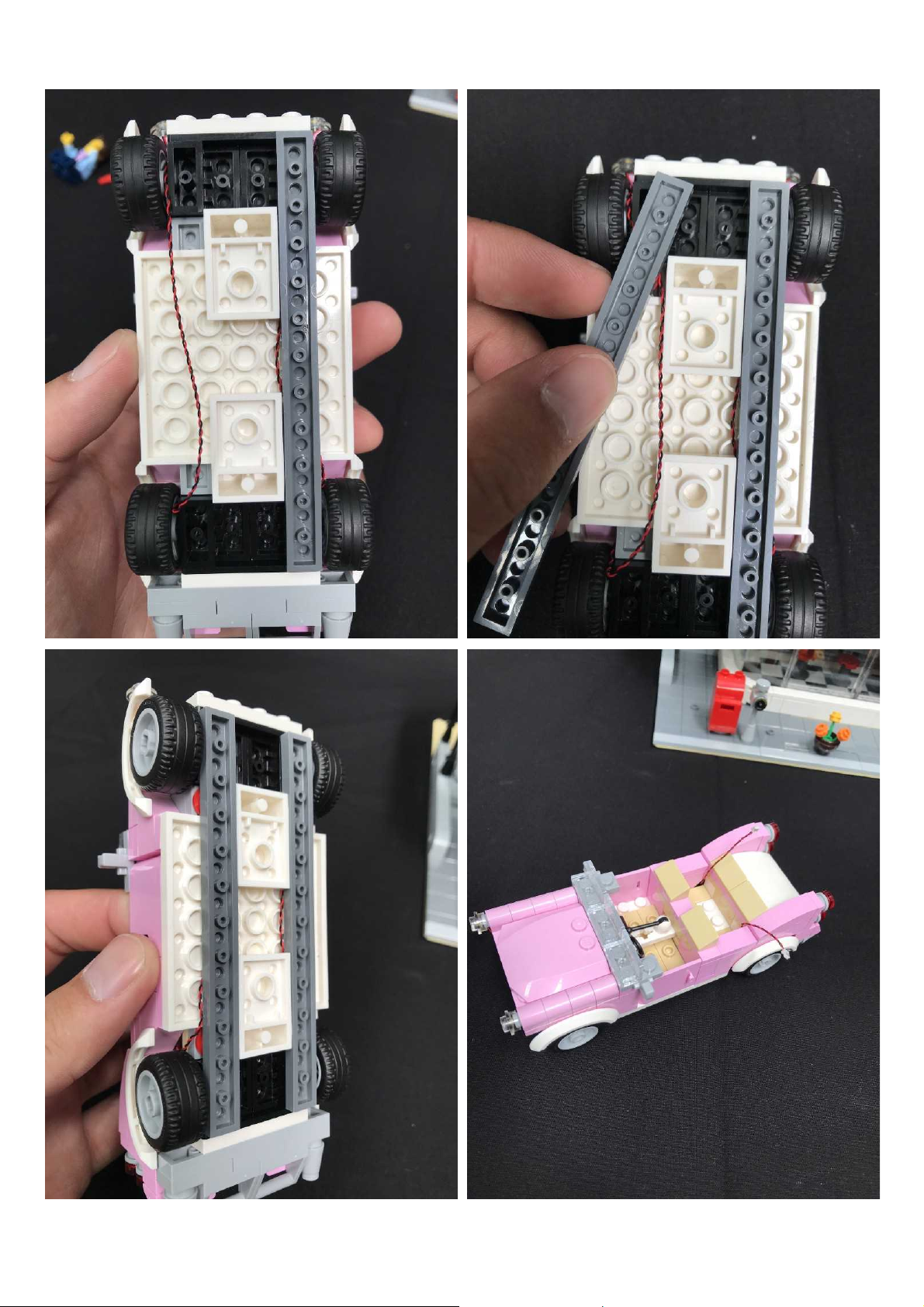

4.) Reconnect the two 1x12 plates ensuring you secure each cable in

between studs of each plate.
