Light Sky SUPER SCOPE Manuel utilisateur

SUPER SCOPE

Please read these user manual carefully before use!

E-mail:

Address: No. 43, Yunfeng Road, Xiuquan Street,

Huadu District, Guangzhou, China

Contents

1. Safety information........................................................................................................2

2. Technical information...................................................................................................4

3. Attachment and body size.........................................................................................8

4. Installation and connecting.......................................................................................9

5. Control panel..............................................................................................................12

6. Menu setting...............................................................................................................13

7. Channel function.........................................................................................................18

8. Circuit connecting diagram.......................................................................................24

9. Cleaning and maintenances.......................................................................................25

10.Troubeshooting..........................................................................................................26

11.Duty exonerative and copyright protection............................................................28

Congratulations on choosing our company product! We thank you for your custom.

◆Please note that this product, as all the others in the rich my company range, has

been designed and made with total quality to ensure excellent performance and

best meet your expectations and requirements.

◆Carefully read this user manual in its entirety and keep it safe for future reference.

It is essential to know the information and comply with the instructions given in this

manual to ensure the fitting is installed, used and serviced correctly and safely.

◆My company disclaims all liability for damage to the fitting or to other property or

persons deriving from installation, use and maintenance that have not been carried

out in conformity with this user manual, which must always accompany the fitting.

◆My company reserves the right to modify the characteristics stated in this user

manual at any time and without prior notice.

Ensure a minimum clearance of 0.2m around the cooling fans and ventilation.

Please do not install the fixture onto combustible surface.

The double insulation between the LV power supply and the control conductor on the fixture.

The fixture is intended for indoor application.

ta40℃

Do not expose the front glass to sunlight or other strong light source from any angle.

Lenses can focus the sun's rays inside the fixture, creating a potential fire hazard.

■Mounting surface and fire protection

Keep all combustible materials at least 20 cm away from the fixture.

■This lighting fixture is for professional use only - it is not for household use.

Make sure all parts for fixing the projector are in a good state of repair.

Make sure the point of anchorage is stable before positioning the projector.

The safety chain must be prgperly hooked onto the fitting and secured to the framework.

When suspending the fixture, ensure that the supporting structure and all hardware used

can hold at least 10 times the weight of all the devices they support.

。

The products referred to in this manual conform to the European Community Directives to which

they are subject:

Low Voltage 2014/35/EU

Electromagnetic Compatibility 2014/30/EU

Protection against explosion

The protection screen, lens or uv screen on the lamp can be damaged to the degree of failure

if visible damage, such as a crack or deep mark, should be replaced。

The light source in this ﬁxture shall be replaced by the manufacturer or its service agent or

similar qualiﬁcation.

Always disconnect from mains before replacing the light.

Light

The maximun temperature that can be reached on the external surface of the fitting,

in a thermally steady state,is 80℃ 。

Avoid contact bypersons and materials.

Allow the fixture to cool for at least 15 minutes before handling.

tc 80℃

Never look directly into the light source. You risk injury to your retina, which may induce blindness.

Do not look at LEDs with magnifiers, telescopes, binoculars or similar optical instruments that may

concentrate the light output.

Protection optical radiation

● ：Power supplies available

AC100-240V∽，50/60Hz

190-240V/4.5A; 100-125V/8.5A

● Rated power ：

910W PF 0.980-

● Light source

- 580W white light LED module

- Light source power ：580W

- Colour temperature:6300K

- Average life :20000h

● Motors :

- 30 ultra-quiet motors

● Channe ：

-Standard channel:39CH; Extension channel:54CH

● Protocols: DMX-512, RDM, Art-Net

● Color wheel

- 8 colors + white，Bi-direction rainbow effect

● Color mixing system

- Linear CMY+CTO color mixing system

Enhance CRI color rendering ：●

- Can increase to 91 the above

●Static gobo wheel

- φ138 9Gobo + 1 white + animation

●Rotation Gobo Wheel

- 7 rotating Gobos + white,Bi-direction flow water

animation effect，Design size: inside diameter 17,

outside diameter 22.9 .

Framing Shutters System●：

- A cutting module that can freely transform from

eight to four pieces.

The aperture●：

-5-100% linearly adjustable with macro.

●Strobe

- 1-25 times/second

●Dimmer

- Electronic dimmer 0-100％ linear adjustment.，

●Prism

- 4 Prism+16 double Prism+multi combination effect

● Beam angle：

6°-50°-

● Frost

- 1° and 10° two levels of atomization

●Focus and Lens

- φ127High precision optical lens, linear adjustment

● X/Y Travel：

Pan movement 540°，Tilt movement 270°

● X/Y Resolution：2.11°/1.05°

● X/Y Speed：2.7S/2.1S

● Software upgrade

- Insert USB upgrade software.

●Display

- Display panel adopts 2.8 inch resistive color touch screen

with good pressure sensitivity

- Chinese and English languages can be switched freely，

menu available to display 180°reversely

● IP set

- Automatic chang battery,IP could be set without electricity.

●Features

- Input signal isolation: guarantees stable signal transmission

without interference。

Advanced Art-Net function

●IP20 protection

● Safety Devices

- BIPOlar circuit breaker with thermal protection.

● Cooling

- Forced ventilation with axial fans.

●Structure

- Heat-proof plastic+module pressing alloy materials.

●CE Marking

- In conformity with the European Union Low Voltage

Directive 2014/35/EU and Electomagnetic compatibility

Directive 2014/30/EU.

●The vertical direction of the use of hidden locking

device,convenient transportation and maintenance.

● Lighting Size ：510X300X731MM

● Box Size ：810X580X395MM

N.W.：33.2kg ，G.W.：37.5kg

● Flycase Size (1SETS)：

620X580X850MM

N.W.：33.2kg ，G.W.：66.5kg

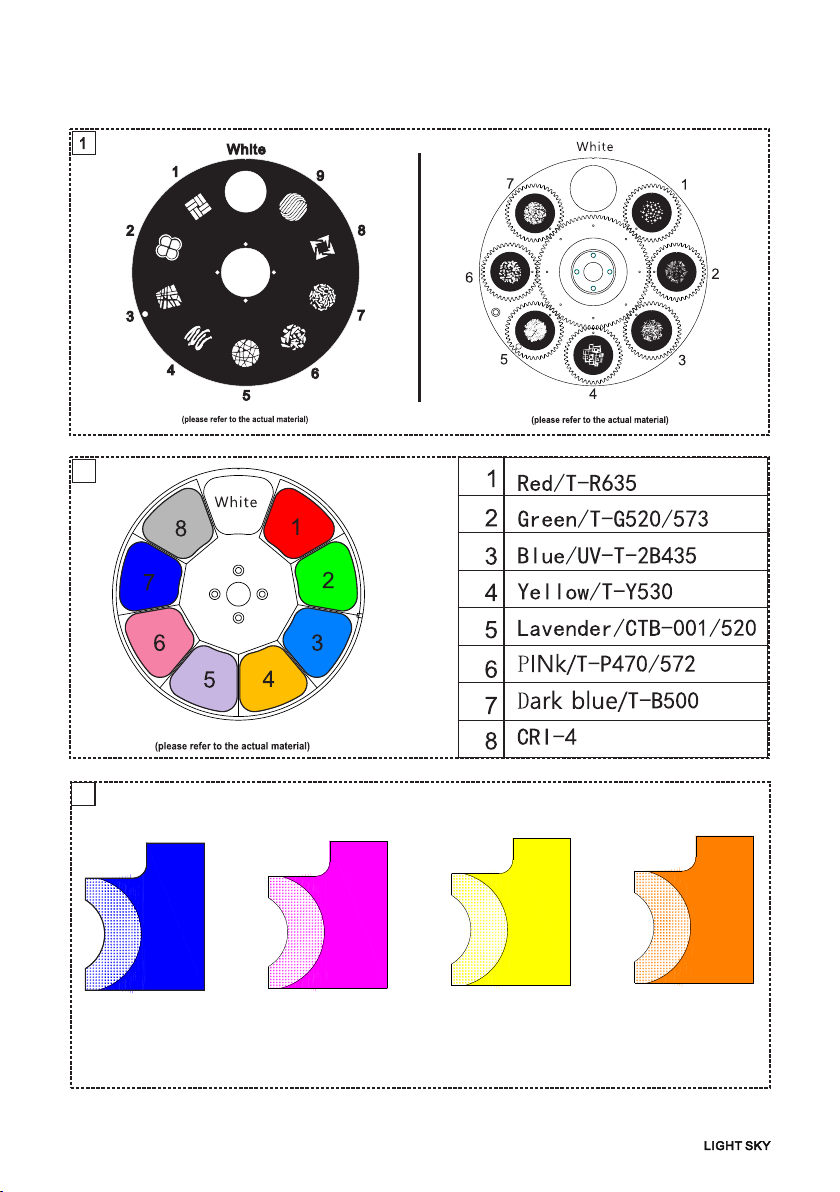

Static gobo wheel

Color wheel

Rotating gobo wheel

CMY color mixing system

CM Y K

90° turn

Blade UP 2

Blade DW 2

Blade UP 1

Blade DW 1

Blade RG 2

Blade LF 2

Blade RG 1

Blade LF 1

Pan：0

Tilt：43

Blade UP/Blade D W/Blade RG/Blade LF:45

All Blade Rot:0

Pan：0

Tilt：43

Blade UP/Blade D W/Blade RG/Blade LF:45

All Blade Rot:255

Note: The xture is standing on the oor.

The display panel is facing the xture's head.

Framing Shutters System

Blade UP 1

Blade RG 2

Blade DW 1

Blade LF 2

Blade DW 2

Blade RG 1

Blade UP 2

Blade LF 1

4 Prism 16 double Prism

510 15 20 400 30 50

Distance m

50 diameter m(ft in)

6 diameter m(ft in) 0.55(1'10'')

4.72(15'6'')

1.05(3'5'')

9.57(31'5'')

1.58(5'2'')

14.4(47'3'')

2.10(6'11'')

18.95(62'2'')

4.3(14'1'')

37.6(123'4'')

3.23(10'7'')

28.25(92'8'')

5.0(61'4'' )

46.8(153'6'')

Standard 6 - 50°)( °

distance,spot diameter and illumination diagram

6 highlights

50 highlights

60500(5623) 15000(1394) 6520(606) 3750(349) 2650(153) 1918(178) 580(54)

1970(183) 512(48) 206(19) 132(12) 58(5) 37(3) 23(2)

power cord

40 0

51 0

196

209.77

140.1

14 1 .4

580.61

731

412

281.23

207.28

555.32

397.03

323.22

626

488

270

300

Safety rope

The fixture can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.

WARNING:with the exception of when the fixture is positioned on the floor, the safety rope must be fitted.

This must be securely fixed to the support structure of the fixture and then connected to the fixing point at

the centre of the base.

Make sure all parts for fixing the fixture are in a good state of repair.

Make sure the point of anchorage is stable before positioning the fixture.

When suspending the fixture, ensure that the supporting structure and all hardware used can

hold at least 10 times the weight of all the devices they support.

Compact,standard clamp system equipped & easy installation
