LifeSentry LogicMark 37911 Instruction manuelle

v0.4

English

Guardian Alert

SET-UP&OPERATINGINSTRUCTIONS

Model#37911

With DECT Technology

2LifeSentry® v0.4

PLEASE READ THIS MANUAL COMPLETELY AND SAVE IT

FOR REFERENCE.

Thank you for choosing LifeSentry® – the most unique Personal Emergency

Response System in the world, and covered by both US and Canadian patents.

Because you are speaking through the pendant, This system allows you to

personally communicate your emergency from anywhere in your home or

yard. Emergencies can happen anyplace. And just one button activation.

Voice prompts provide easy set-up and testing.

Base unit comes with 4 rechargeable batteries that provide up to 24 hours of

standby power in the event of a power outage.

Need others to share the system in your home? No problem, you can add up

to 3 additional Pendants to one Base unit for a total of 4 pendants as you wish.

Caution - To ensure proper operation, this System’s equipment must be

installed according to the enclosed installation instructions. To verify

that the equipment is operating properly and can successfully report

an alarm, this equipment must be tested immediately after installation,

and periodically thereafter, according to the enclosed test instructions.

This System is designed to be used in conjunction with a professionally

monitored call center. This system must be programmed by an experi-

enced installer to be fully functional.

v0.4 LifeSentry® 3

TABLE OF CONTENTS

System Components ..................................................................................4

Limitations of Liability .............................................................................5

Installing the Batteries ..............................................................................6

Connecting the Base Unit

Power Connection ...........................................................................8

Telephone Connections ...................................................................8

Operating the LifeSentry

Emergency Dialing Using the Pendant ...........................................9

Holding the Pendant ......................................................................10

Hanging Up ...................................................................................10

Lanyard, Belt Clip or Wrist-Strap ................................................. 11

Battery Check ................................................................................ 11

System Check ................................................................................12

Operating Range ...........................................................................13

Water Resistance ...........................................................................13

Key to LEDs on product ...............................................................14

Periodic Testing / Maintenance

Replacing Batteries .......................................................................14

Adding Additional Pendants to the System ..................................15

Out of Service Storage or Transportation .....................................16

Troubleshooting Guide ...........................................................................17

Disclaimer / General Warnings & Precautions / Safety ......................19

Warranty ..................................................................................................20

Replacement Parts / Additional Accessories Available ........................22

Product Specications ............................................................................23

4LifeSentry® v0.4

Pendant

Rechargeable Lithium-Ion Special

Pendant Batteries - 2 Pieces

Screwdriver

Base Unit

AC Adapter

Phone Cord

Wrist / Walker / Wheelchair

strap

Belt Clip

Lanyard

Rechargeable AA Batteries - 4 Pieces

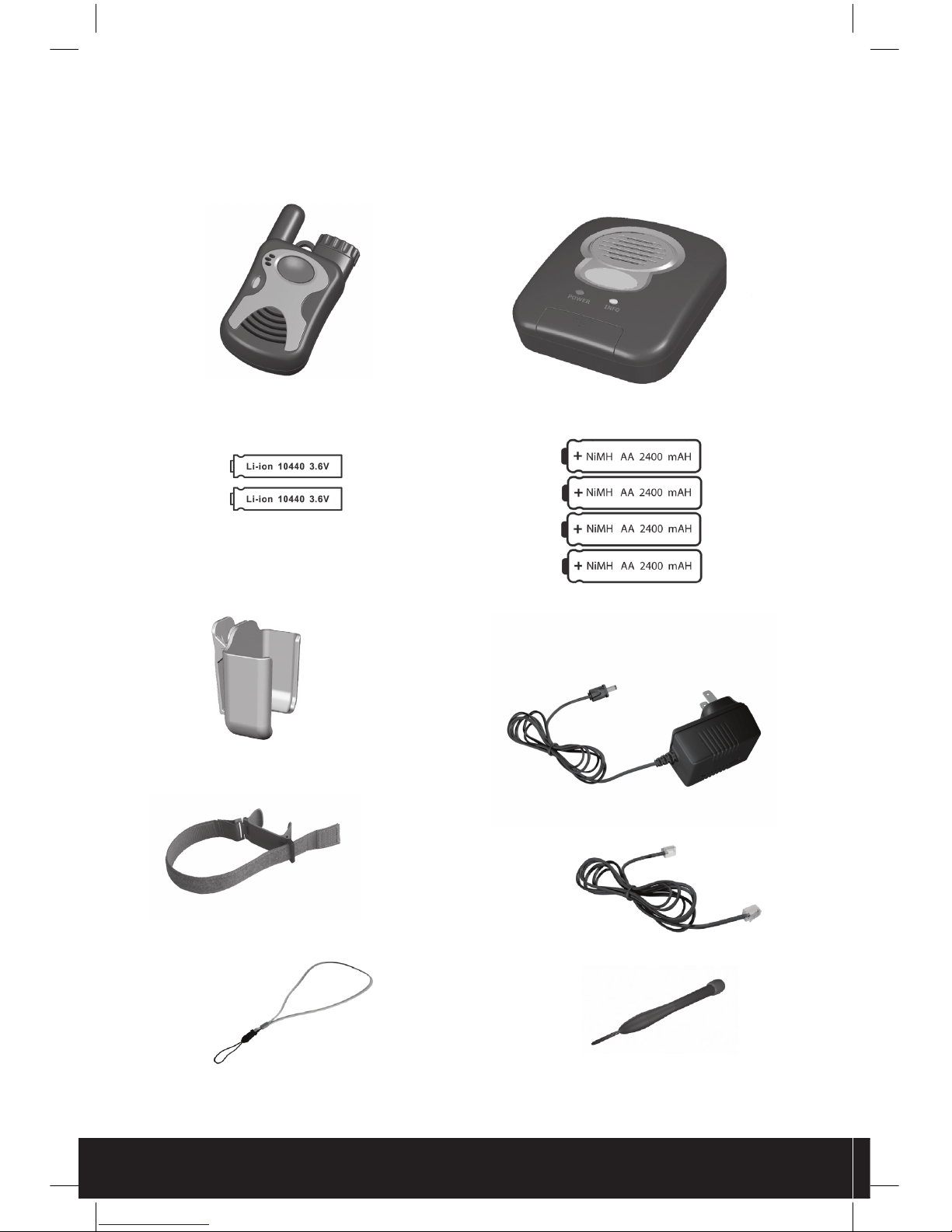

System Components:

The items below are included with your system .

v0.4 LifeSentry® 5

Limitation of Liability

This page is a summary of the Disclaimer and Limited Warranty disclosed

in full at the end of this instruction manual. Read these carefully.

The purchaser agrees by using this LifeSentry (the “System”) to the terms

and conditions below and in the Disclaimer and Limited Warranty. The

purchaser also agrees to read and follow all instructions and warnings on the

product and contained within these Installation and Operation Instructions.

It will be the sole responsibility of the purchaser and user to assure that this

System is installed and programmed properly, and that the unit is used and

maintained correctly. This includes, but is not limited to, periodic use to

assure that the system, including batteries, are in proper working order, that

the unit is located in an appropriate location in the home, that the electri-

cal outlet is supplying power, and that the user has been educated as to the

operation and functionality of the product as a whole.

The System’s equipment is not designed or guaranteed to prevent any loss or

injury. This Limited Warranty and Disclaimer of Liability discussed in full

at the end of this instruction manual constitutes the terms of sale and use of

the system (and accessories) equipment, and if, notwithstanding these terms

of sale and use of the product, there should arise any liability on the part of

LogicMark LLC as a result of any cause whatsoever, regardless of whether

or not such loss, damage, or personal injury was caused by or contributed to

by LogicMark’s negligence to any degree or failure to perform any obligation

or strict products liability, such liability will be limited to an amount paid by

the Purchaser for the product.

Further, LogicMark has no obligation to assure that calls are made, received

or responded to, nor is LogicMark responsible for acts, or consequences of

the acts, of those responding.

LogicMark provides no monitoring service for this product. It is up to the

persons at the numbers called to respond in an appropriate manner.

6LifeSentry® v0.4

Installing the Batteries

Pendant - small white batteries. The Pendant requires one of the white

Li-Ion (Lithium Ion) batteries at any given time. The pendant should be able

to run over 4 months on a fully charged battery. The second battery is to be

charging in the Base unit when not being used in the Pendant. There is no

problem of over charging while in the base charger.

The battery should already be installed for you at this time. You can con-

rm this by simply pushing the gray button on the back of the pendant for a

second. You will hear the battery status.

If your Pendant did not come with the batteries installed - simply follow these

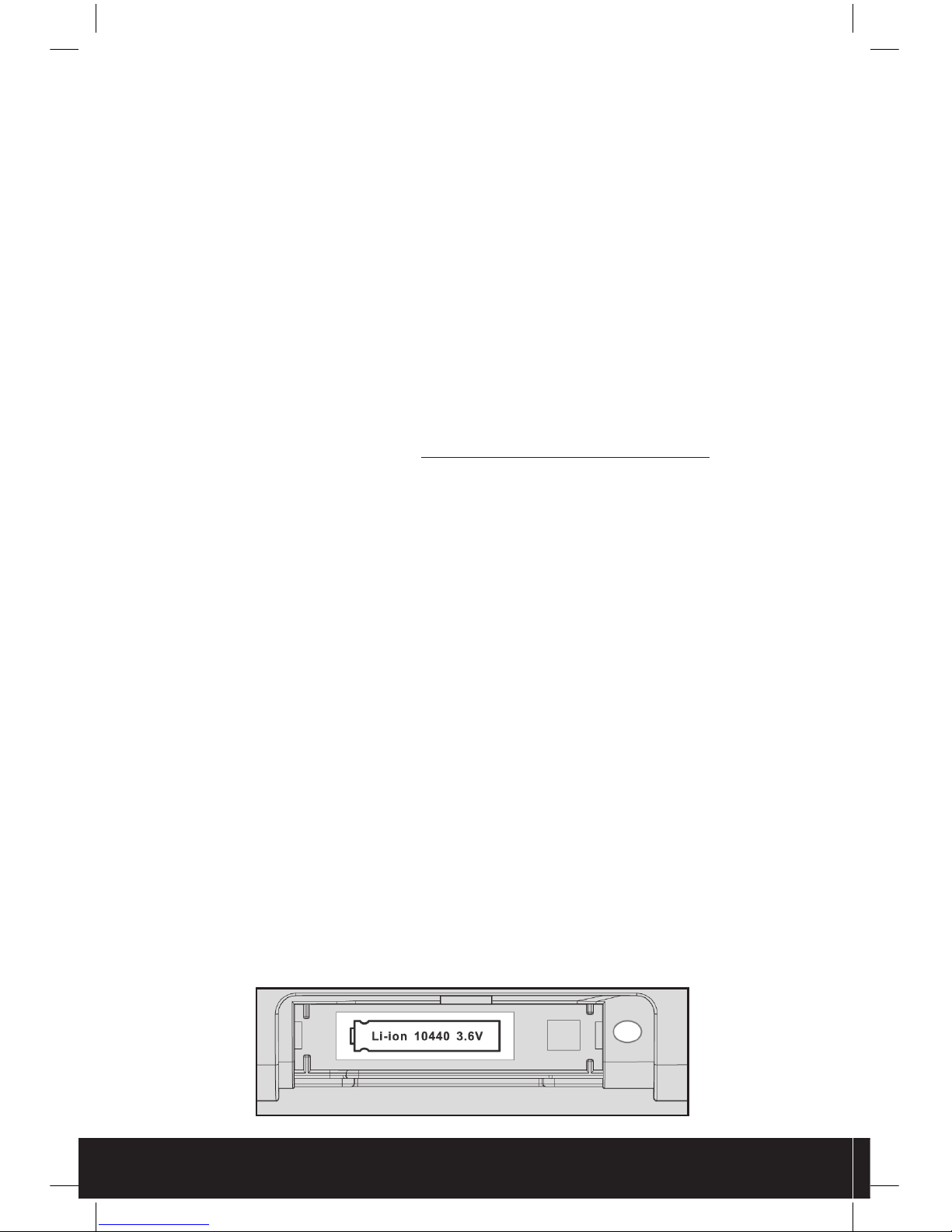

directions: Unscrew the battery cap counter-clockwise. Pull the battery cap

off. Install the battery with the negative side up facing the cap. Re-install

the cap by screwing the cap clockwise until snug .

When the battery is rst installed into the Pendant - you will hear an audible

announcement of the battery status: “Battery is ok”; “Battery is low” or

“Replace battery now”. If the battery is fully discharged when you get your

unit - you may not hear anything - at which point you will need to charge

one of the batteries up overnight in the base charger (at the top front edge of

the base unit) before you will be able to use the system.

You can check the battery status at any time by simply pushing the gray bat-

tery test button on the back of the Pendant for a second.

NOTE: These white batteries are very special batteries that are not available

at your local store. See Specication on page 23 for more details, or contact

your dealer or service provider to purchase replacement batteries.

Place the extra Pendant battery into the front charging area of the Base unit

so that it will charge and be ready when its time to swap the batteries around.

The LED on the right side will turn red when charging and green when fully

charged.

v0.4 LifeSentry® 7

Base - larger AA rechargeable batteries: The Base unit requires 4 recharge-

able 2400 NiMH batteries. Unlike the Pendant battery - these are readily

available in many retail stores. These are to provide you with up 24 hours

of battery back-up protection in the event of a power failure. They will not

be damaged by continually charging in the base unit.

These should have been installed for you during the set-up. If they are not

installed, simply follow these directions here.

When you rst get your unit - these

batteries will probably be low, or even

fully discharged - and will need to be

charged overnight before being able to

provide you the 24 hour battery back-

up protection.

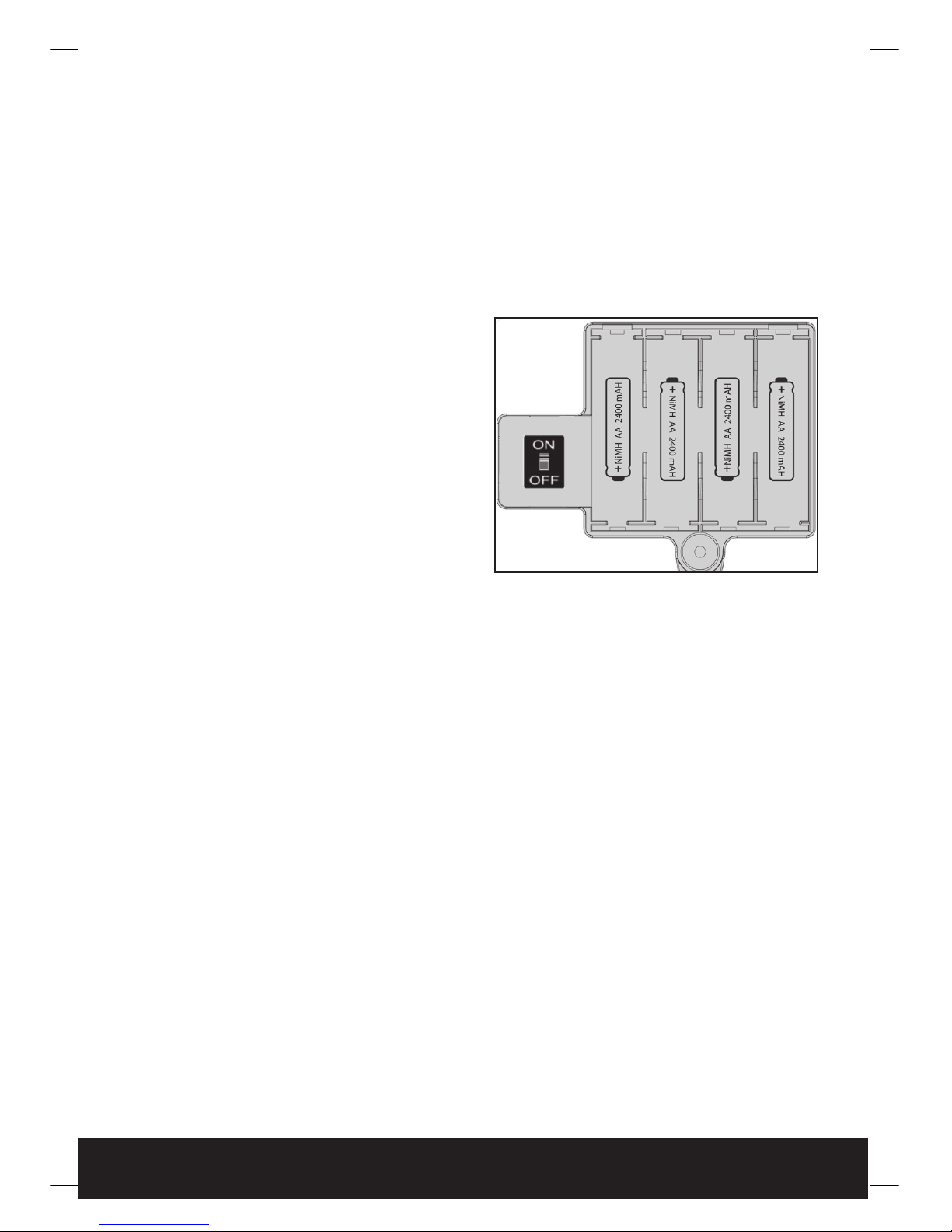

Unscrew the cover on the bottom of

the Base unit with the supplied screw-

driver. Install the 4 batteries as shown

in the plastic engraving in the battery compartment area. A few seconds

after you install these, you might hear “Running on battery power”. This

will continue once every minute for the rst 15 minutes, then once every

30 minutes until power is applied through the power adaptor - or until the

batteries are depleted. (If you do not hear anything - this simply means

your batteries will need to be fully charged overnight. Or it may mean that

you have already plugged in the power adaptor - which is why it would not

announce “Running on battery power”.

NOTE: the voice prompts of “battery is OK” etc only apply to the pendant

battery - not to the status of the base unit’s batteries. It is recommended that

you replace the base unit batteries with a new set of similar batteries every

two years.

Master ON/OFF switch:

LifeSentry has a Master ON/OFF switch on the bottom of the base unit –

just left of the rechargeable batteries for the base unit. This switch controls

all power – back up batteries and power from the AC adapter. This switch

should be ON at all times while the unit is in use. This switch should only

be turned OFF if the LifeSentry unit is taken out of service – during trans-

portation or no longer needed.

8LifeSentry® v0.4

Connecting the Base Unit

Power Connection. Simply plug in the AC Adapter in to the nearest elec-

trical outlet. Plug the other end of the AC power adapter into the Base unit.

You need to push the plug into the opening in the Base unit and twist 90’

clockwise to lock in place. To remove in the future, simply rotate 90’ coun-

ter-clockwise and pull outward.

Caution: Do not plug the AC Adapter into an outlet which is controlled

by a switch. The switch could accidentally be turned off, thus rendering

the Base unit inoperable after approximately 24 hour when the back up

batteries become discharged.

Telephone Connection. A standard telephone line is required to use your

system. Your phone will work with your existing touch-tone phone line and

existing service. It works the same way as any cordless phone. NOTE:

Touch Tone service is required.

Simply plug one end of the telephone cord into your telephone jack in the

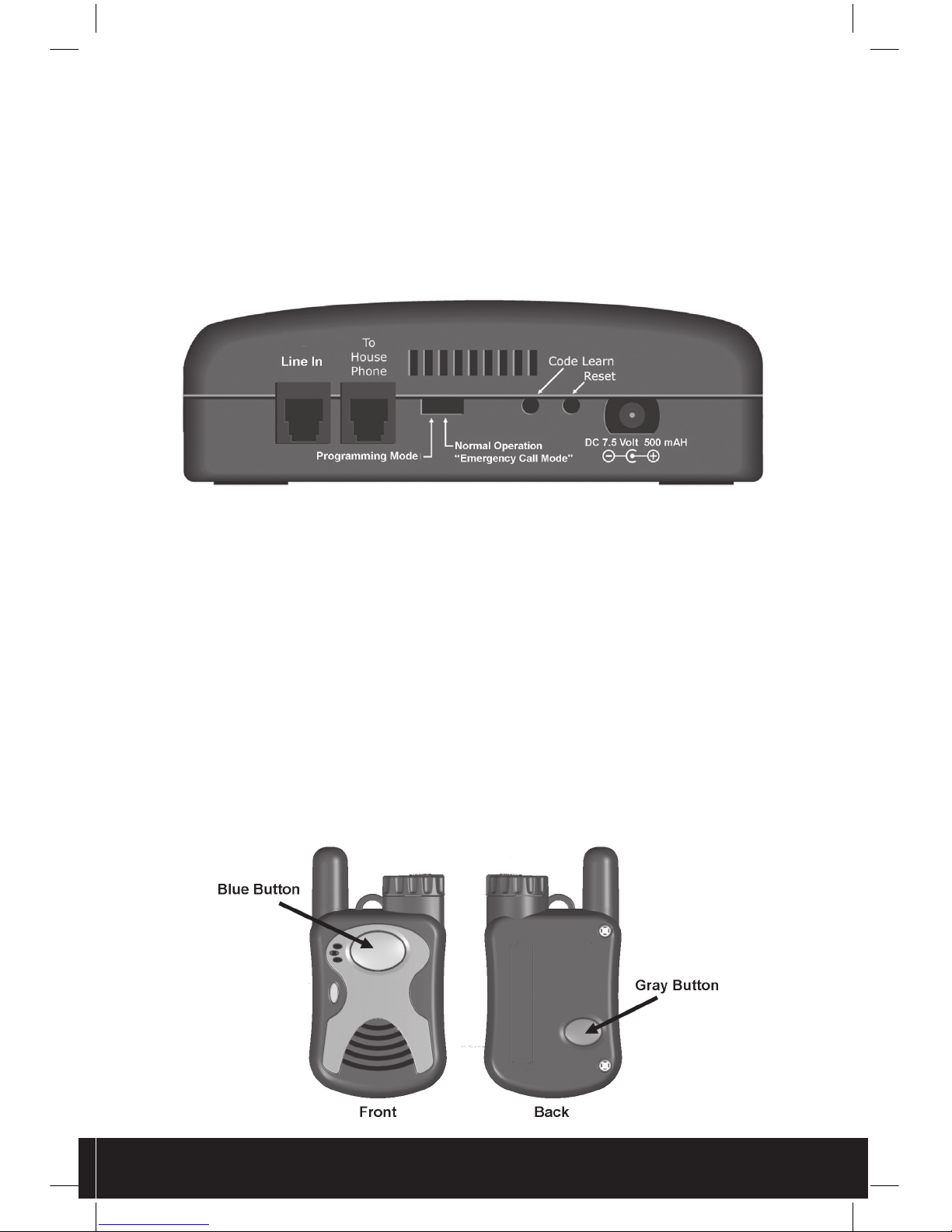

wall, and the other end into the “Line In” at the back of the Base unit. Note

- you will feel a ‘click’ when the cords are rmly seated in the wall and the

Base unit jack receptacles.

If you need to plug a conventional telephone into same outlet used by the Base

unit, simply plug the telephone into the spare jack labeled “To House Phone”

How to Handle VoIP, DSL and other Internet phones: Make sure you

consult with your service provider about the use of VoIP telephones. Your

v0.4 LifeSentry® 9

service provider has several programming options available to help with your

particular type of telephone service

Base Unit Options and Features:

The Base unit must be programmed with the central station telephone num-

bers before operation can be successful.

Operating the System:

Emergency Dialing Using the Pendant:

In the event of an emergency, press the blue panic button on the front of the

Pendant. When this button is pressed for more than 4 seconds, the unit will

automatically dial the central monitoring station or emergency call center.

The rst thing you will hear is a few beeps from the pendant - then the dial-

ing sound. You will then hear the pick-up from the Central Station then

communication tones as the Base and Central Station communicate back

and forth - 10 to 20 seconds later, you will hear an operator come on line to

communicate with you.

10 LifeSentry® v0.4

Holding the Pendant. At this

point - you simply hold the Pen-

dant as you would any normal

telephone receiver - close to the

head so that you can hear the

other person being called - and

they can hear you speaking.

The microphone is sensitive

enough to easily pick up your

voice regardless of where you are

holding the pendant.

Hanging -Up. If you choose to cancel the call once initiated - you can simply

push the Gray button on the back of the Pendant to cancel the call and you

will hear “Hanging up”. If at the end of the conversation, the Central Station

hangs-up, the System will hang-up and reset automatically over the next sec-

onds to minute, or you can push the gray button to end the call immediately.

Answering an Incoming Call with the Pendant: The LifeSentry has the

ability to answer incoming calls through the pendant or the Emergency Wall

Communicator accessory Once the customer hears the phone ring (the pen-

dant will NOT ring), they simply push the Blue Emergency button or Red

“HELP” button on the Emergency Wall Communicator to answer the call.

Example:

1. Incoming call to customers home

2. Base unit rings

3. Push the Blue Emergency button on pendant for 2 seconds to activate

the pendant

4. LifeSentry will answer the incoming call – talk using pendant

5. To end the call

a. User pushes the Gray test button on pendant to hang-up.

b. Or, the calling person pushes #9 to end call and reset unit

c. Or, the unit listens for 3 minutes of silence and then hangs-up and

resets

Autres manuels pour LogicMark 37911

Table des matières

Autres manuels LifeSentry Système de sécurité

LifeSentry

LifeSentry LogicMark 37911 Manuel d'installation

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
