Lifecycle LC85R-0100-28 Manuel utilisateur
1
LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001
Unit Assembly
Operation Manual M051-00K20-A347
Service Manual M051-00K39-A012
NOTE: Optional Polar Accessory Kit, GK39-00002-0001.
Console Overlay
Bezel Assembly
Left Pedal
End Cap
Leveler
Accessory Tray
& Seat Pads
Wheel
Right
Pedal
Console
Support
Assembly
Belts/6VBatery
Resistor
Assembly
Shrouds
Power
Control
Board Alternator
Assembly
Crank Shaft&
Bearing Assembly
Intermediate Shaft&
Bearing Assembly
Idler Bracket
Seat Assembly
Extrusion
Assembly
Lock
Assembly
Cable
Seat Frame
Assembly
Seat Assembly
Bottom
2
LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001

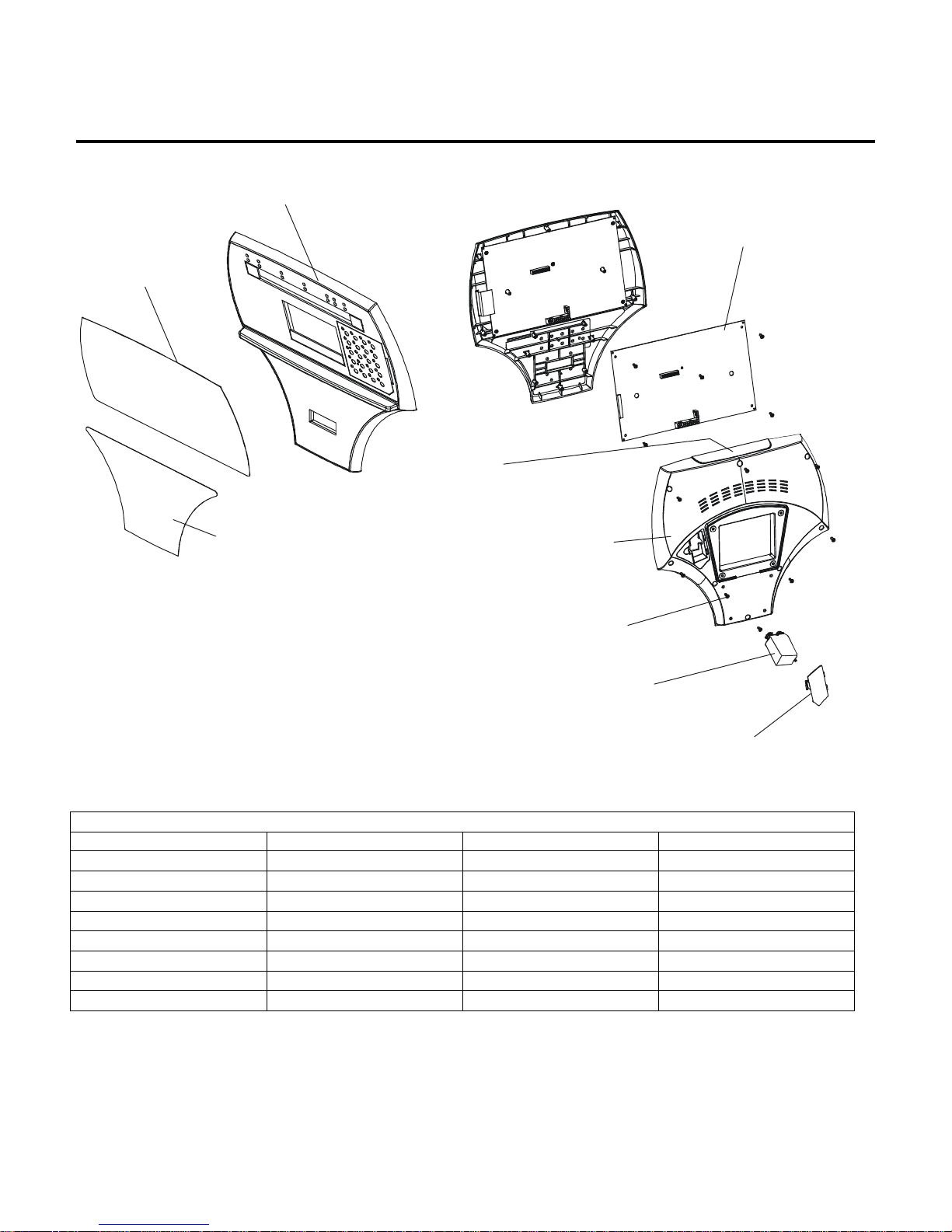

Console Overlay Bezel Assembly
LC8500 Recumbent
Console Assembly Overlay Bezel Upper Overlay Lower Overlay
AK63-00072-0001 Eng Met AK63-00080-0001 Eng Met 0K63-01104-0001 Eng Met 0K63-01106-0001 Eng Met
AK63-00072-0003 Ger Met AK63-00080-0003 Ger Met 0K63-01104-0003 Ger Met 0K63-01106-0003 Ger Met
AK63-00072-0004 Spn Met AK63-00080-0004 Spn Met 0K63-01104-0004 Spn Met 0K63-01106-0004 Spn Met
AK63-00072-0006 Jap Met AK63-00080-0006 Jap Met 0K63-01104-0006 Jap Met 0K63-01106-0006 Jap Met
AK63-00072-0007 Frn Met AK63-00080-0007 Frn Met 0K63-01104-0007 Frn Met 0K63-01106-0007 Frn Met
AK63-00072-0008 Itl Met AK63-00080-0008 Itl Met 0K63-01104-0008 Itl Met 0K63-01106-0008 Itl Met
AK63-00072-0009 Itl Met AK63-00080-0009 Itl Met 0K63-01104-0009 Itl Met 0K63-01106-0009 Itl Met
AK63-00072-0010 Por Met AK63-00080-0010 Por Met 0K63-01104-0010 Por Met 0K63-01106-0010 Por Met
Console Board -Upper
A084-92220-A002
Console Case Assembly
AK63-00121-0000
Battery Door
0K63-01029-0000
Phillips Pan Screws(13)
9917-00101-1650
Upper Overlay
Lower Overlay
Bezel/Switch Assembly
AK63-00075-0000
Decal
0K63-11118-0000
9V Battery
0017-00003-0757
3
LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001

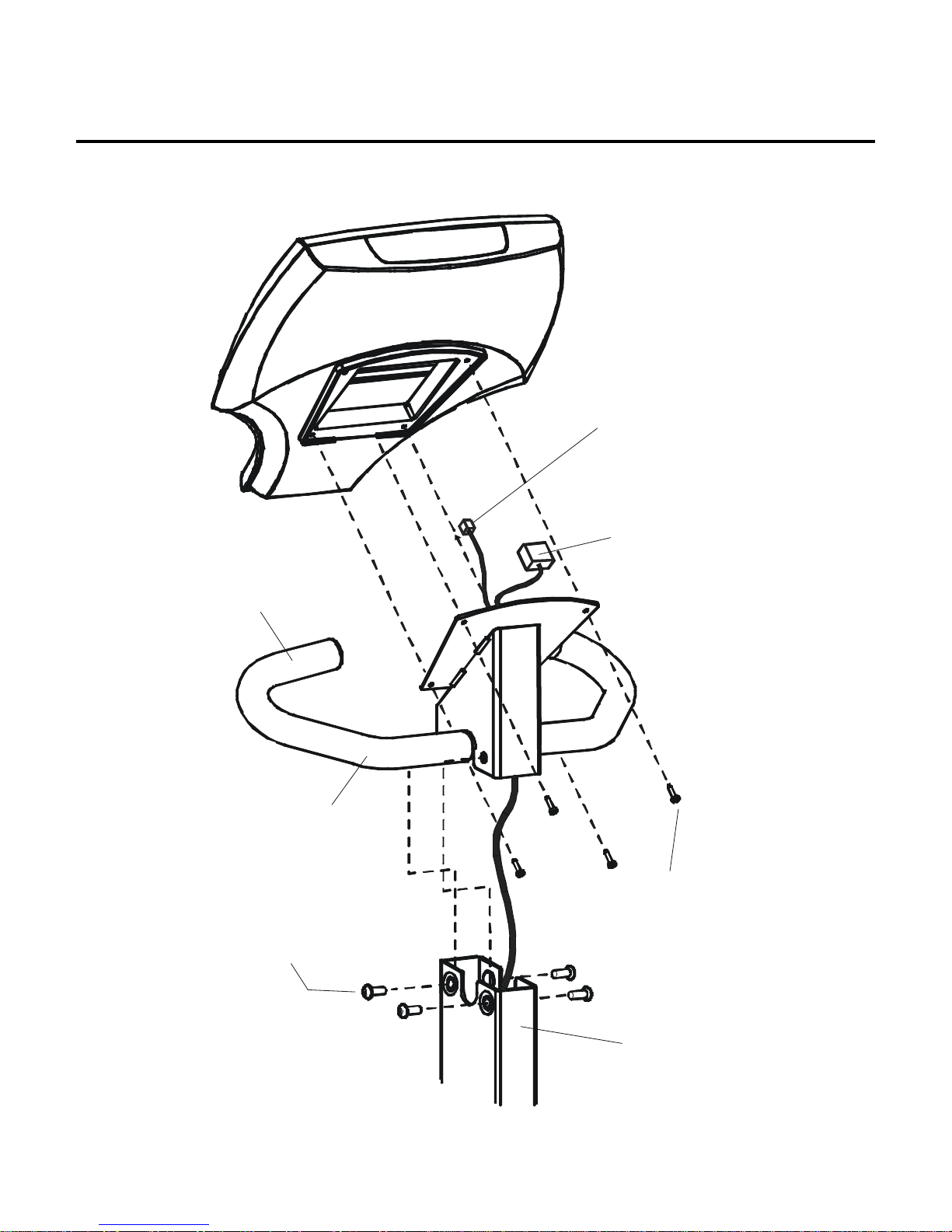

Console Support Assembly
10-Pin Connector
Main Wiring Cable
4-Pin
Heart Rate Cable
Console Support
AK39-00003-0000
Console Mounting
Screw(4)
0017-00101-1253
Frame Post
Frame Post Bolt(4)
0017-00101-1737
Grip(2)
0K39-01005-0000
4
LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001

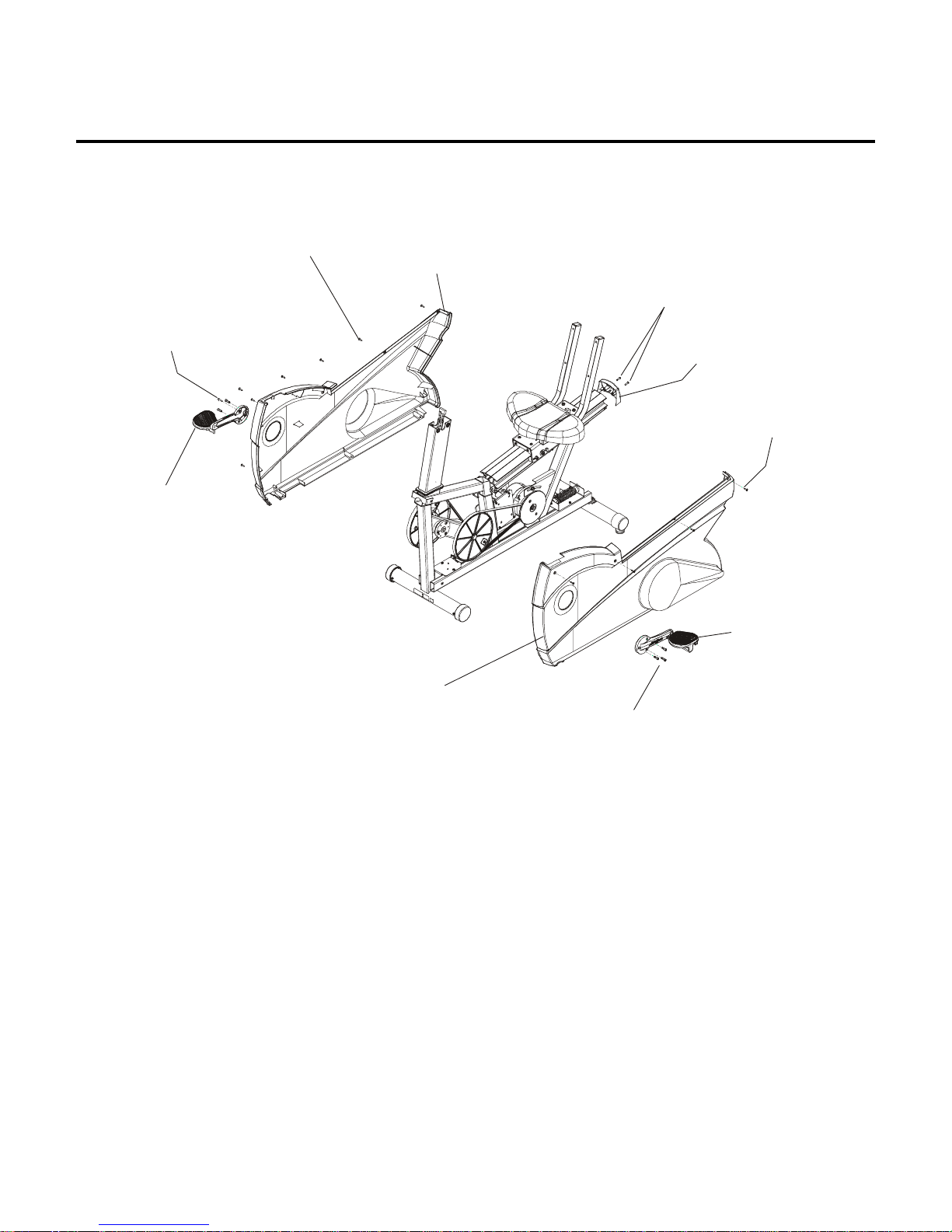

Shrouds, End Cap, and Pedals
End Cap
A
K39-00050-0001
End Cap Screws(2)
0017-00101-1614
Left Shroud
AK39-00033-0002
Decal
0K51-07020-0000
Left Pedal
AK63-00123-0002
Pedal Strap
(not shown)
0K63-01237-0002
Shroud Screws(4)
0017-00101-0991
Right Shroud
AK39-00033-0001
Decal
0K51-01020-0000
Right Pedal
AK63-00123-0001
Pedal Strap (not shown)
0K63-01237-0001
Crank Arm, RT
0K63-01209-0003
Screws(3)
0017-00101-1702
Shroud Screws(7)
0017-00101-0991
Crank Arm, LT
0K63-01209-0004
Screws(3)
0017-00101-1702
5
LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001
Wheel and Leveler
Pan Screw(2)
0017-00101-1611
Wheel Screw
0017-00101-1611
Flat Washer
0K63-01041-0000
Wheel Insert
0K63-01039-0000
W
heel/Bearing Assembly
AK63-00017-0000
Lock Nut
0017-00103-0273
Leveler
0017-00009-0795
Leveler Assembly
AK61-00035-0000
Decal
0K63-01147-0000
Rear Stabilizer
AK39-00004-0000
6
LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001

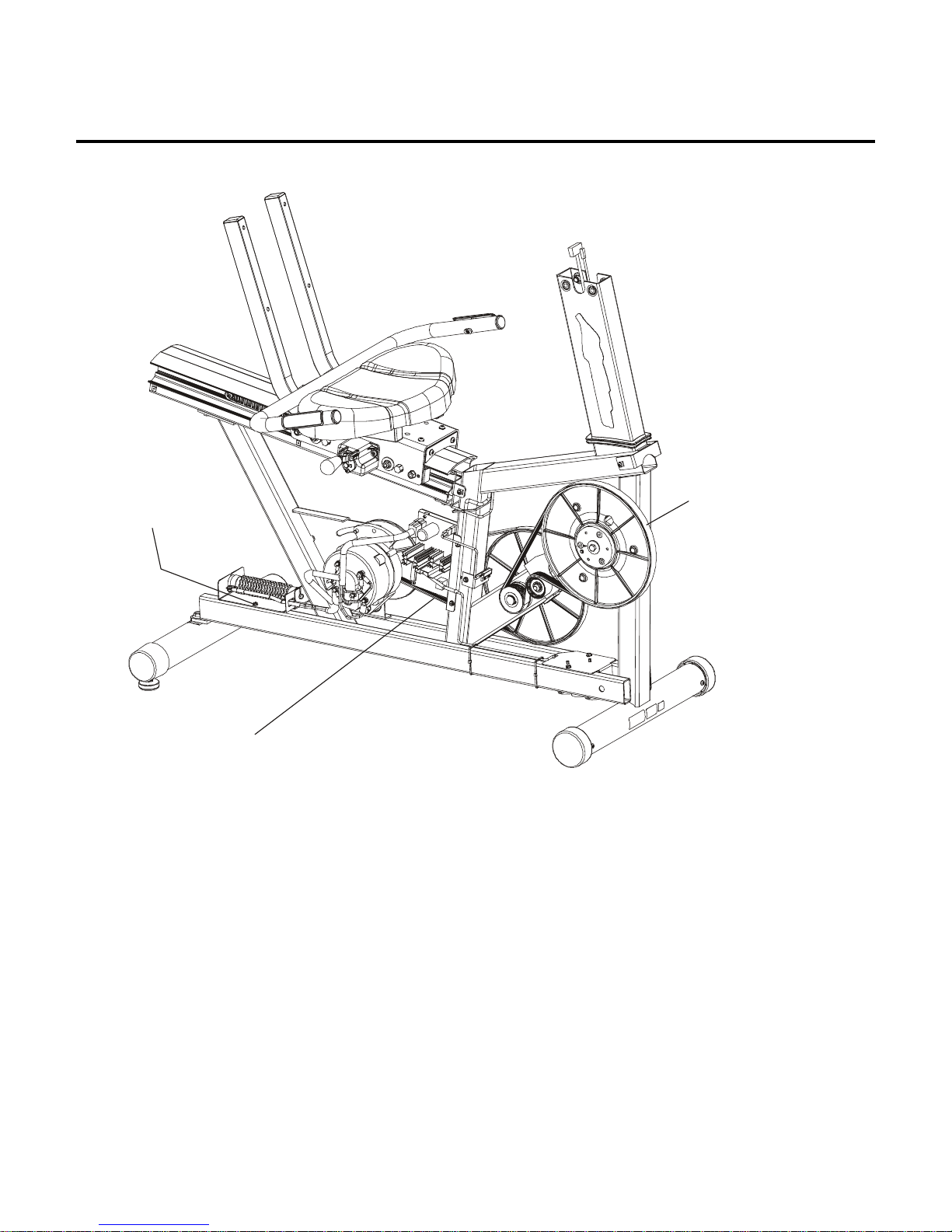

Belts and 6V Battery
Alternator Belt
0K63-01065-0000
Intermediate
Pulley Belt
0K63-01066-0001
Screw
0017-00101-1193
7
LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001
Resistor Assembly
Resistor
110E-00002-0084
See Ccble
Page
Pan Screw(2)
0017-00101-1282
Washer(2)
0017-00104-0309
Retainer
0K39-01043-0000
Hex Nut(3)
0017-00103-0081
Mounting Rod
0K63-01166-0000
Bracket
0K39-01036-0000
8
LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001

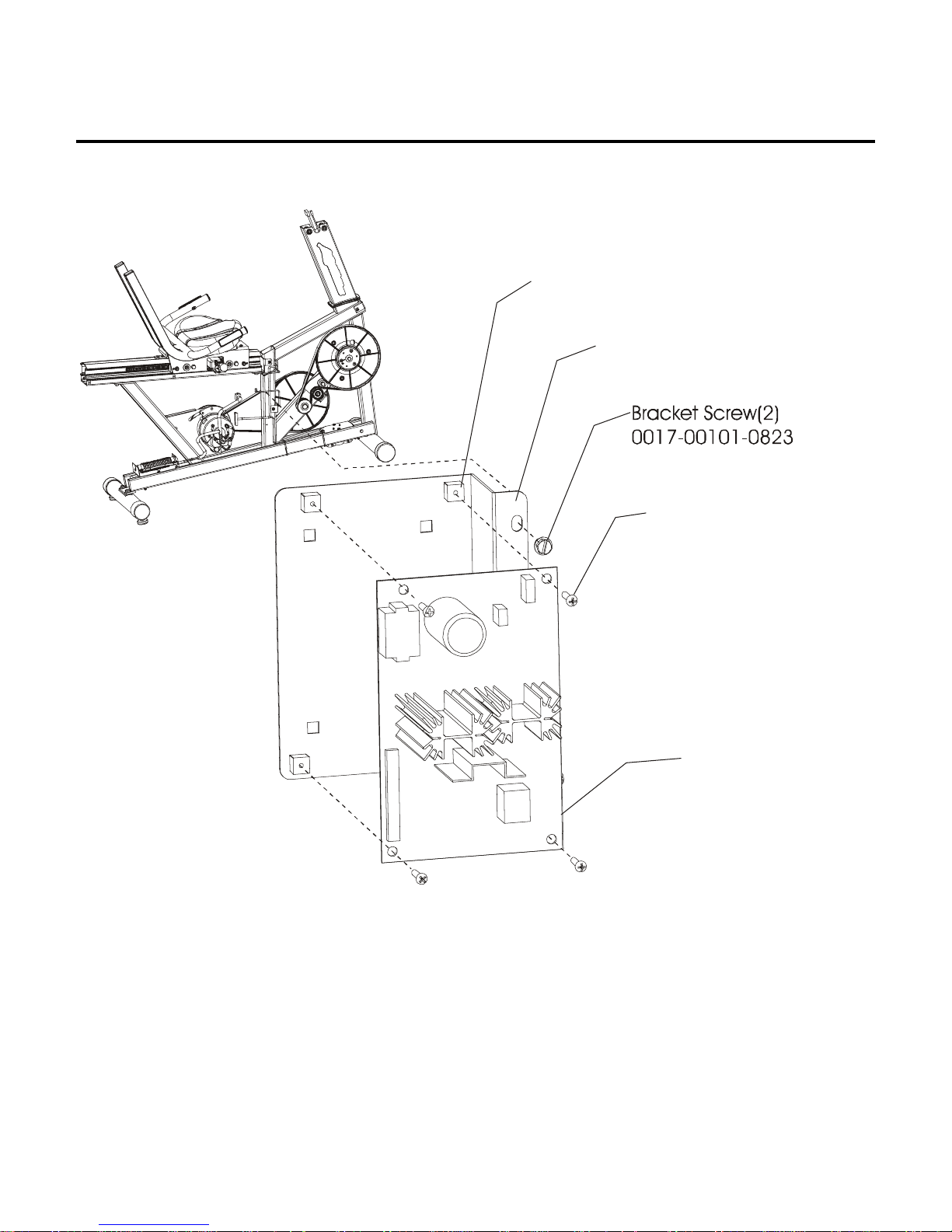

Power Control Board - AK39-00022-0002
Bracket
0K39-01027-0000
Philip Screw(4)
0017-00101-0832
Plastic Gromment(4)
0017-00042-0821
Power Control
Board
B084-92064-A000
9
LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001
Alternator w/Pulley - AK63-00093-0000
Alternator Pulley
0K61-02500-0001 Alternator
0017-00009-0841
Locking Nut
0017-00103-0117 Washer
0017-00104-0044
Bolt
0017-00101-0956
10
LifeCycle Recumbent Bike - Model LC85R-0100-28 S/N CEH100001

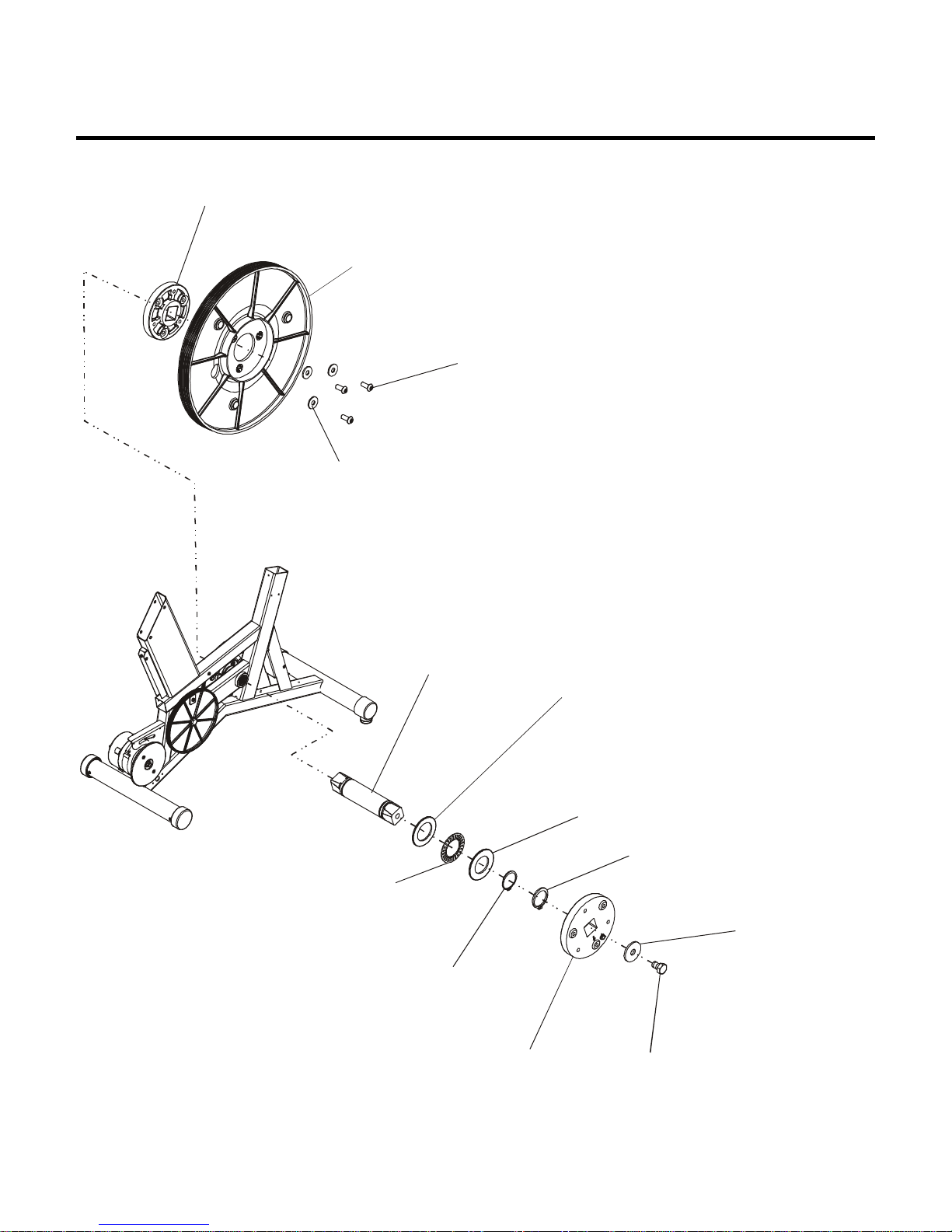

Crank Shaft and Bearing Assembly – GK63-00002-0006 Kit
*Small Thrust Washer(2)
0K63-01129-0000
*Needle Bearing(2)
0K63-01128-0000
*Large Thrust Washer(2)
0K63-01129-0001
*Small Snap Ring(2)
0017-00100-0241
*Bowed Retainer Ring(2)
0017-00100-0243
Washer(2)
0017-00104-0409
Bolt(2)
0017-00101-1705
Flywheel Screws(3)
0017-00101-01715
Washers(3)
0017-00104-00458
Pulley Assemlby
AK63-00051-0000
Pully
0K63-01018-0000
Crank Arm Hu
b
*Crank Shaft
*Crank Shaft & Bearing Kit
GK63-0002-0006
Crank Arm Hub(2)
0K63-01095-0001
