Lifan M70 Manuel utilisateur
OWNER'S MAN-UAL
GENERAL GASOLINE EHGINE
168F-C 16gF-2C,1 70F-C
168FD-C l68FD-2C 170FD-C
CHONGQING LIFAN POWER CO.,LTD.
LTHIN
M70 (170F-C)
PREFACE
Thank you for choosing a general gasoline engine by our company. ::
Based on the latest engine technology at home and abroad, our Co. has individually developed general
gasoline engines with 4-stroke single cylinder, OHV and forced-air cooling. The engines are characte rized, by
advanced design, compact structure, reliable performance, convenient service low fuel consumption and easy speed
adjustment' They are widely used as ideal power in many fields such as generating set, tour, open working, public
place of entertainment, construction machine, agricultural machinery etc. the vital part bodies including cylinder
cover, crankcase, etc, are all cast formed with aluminum alloy. Laser-scanning technology, 3D shaping technology
and CN program processing technology used in the mould production upgrade the engine surface and
manufacturing accnracy obviously. Applying auto-press reducing system and centrifugal fly hammer regulating
system assure that assemblies equipped with the engine function smoothly and reliably as well as the engine start
easily' Besides, the introduction of the lubricant film-sensing protection system prevents accidental damage of the
engine for poor lubrication.
The manual gives information with respect to operation and maintenance of the general gasoline engine, and
be sure to read it carefully first before operating. All the materials and diagrams of this manual are in accordance
with the newest products at the publishing time. Due to revision and other change, the information descried in this
manual may be a little different form the actual status. The copyright of this manual belongs to our Co., any group
or individual is forbidden to reprint or copy any it. The manual is subject to change without notice.
Please pay special attention to statements preceded by the following words:
2
A, WARNING
O A warning is used to alert the user to fact Iha|hazardous operation and maintenance procedures may result
in injury to or death ofpersonnel ifnot strictly observed.
CAUTION
O A caution is used to alert the user to fact thathazardous operation and mainJenance procedures may result
in injury to or death ofpersonnel ifnot strictly observed.
NOTE
O A note is used to give helpful information.
This manual book is the part of engine; it must be along with the engine.
J
CONTENTS
Safety Precautions.
Parts Description.. ..
Pre-Operate Inspection.
L Engine Oil....
II. Oil in the reduction gearbox (only for equipped model)....
IIL AiT cleaner..
IV Fuel..
Starting of the Engine.......
Operation.
Stop. ...
Exhaust Control System..
Maintenance.
I. Maintenance schedule.
II. Maintenance method..
l.Replacement of Engine Oil.. .. . .
2.Service ofAir Cleaner............
3.Washing of Deposit Cup ........
4.Spark Plug....
4
5.Spark Eliminator (Option).......
6.Adjustment of Carburetor Idling ... ... ....30
........ ....3 I
,..........32
...........33
...........43
',...,.,..'46
Transport and Storage
Troubleshooting. ... ...
Specifications.........,
Electric Diagram......
5
SAF'ETY PRECAUTIONS
A WARNING
Before operating the engine, be sure to read and familiar with the manual carefully, otherwise injury to
personnel or damage to equipment may occur.
Please pay special attention to the following:
1. Running the engine in a well-ventilated place, keep it at least one meter away ftom building walls
or other equipments; keep away from inflammables such as gasoline, matches and so on to avoid
possibility of fire.
2. Keep the engine out of reach of children and pets to avoid accidents.
3. Operator on the engine has been specially trained.
4. Refuel in a well-ventilated area with the engine stopped, and in places refueling or storing
gasoline, no smoking and any flames or sparks.
5. Refuel the fuel tank not too full so as to avoid fuel's spilling out. If there is spilled fuel around, be
sure to clean it thoroughly before starting. i
6. Locate the engine on a level-working platform to avoid fuel's spilling outi l
7. Mack sure the fuel filler cap is tightened securely.
The exhaust mufiler is very hot during running the engine even after the engine stops. Never touch it, or you may
get burns. Transport or store the engine with it cooling down entirely.
6
PARTS DESCRIPTION
Throttle lever
Choke lever
Air cleaner
Kick-starter
Muffler Fuel tank cop
Fuel tank
Dipstick
Drain plug
Slarting motor
Fuel cock
Starting rope handle
Start control box
- / tr7 t/---{ l-
7
(Pic.1) (Pic.2)
PRE-OPERATE INSPECTION
I .ENGINE OIL ::
CAUTION
O Engine oil is a key factor in deciding the engine's performance. Do not apply engine oil with
additives or 2-stroke gasoline oil, as they haven't enough lubricption, which may shorten the
engine's service life.
O Check the engine with it stopped on a level ground.
SAE Engine oil recommended: SAEI0W-30. As viscosity varies
with regions and temperatures, so the Lubricant has to be
selected in accordance with our recommendation. (pic.3)
Temperature Dipstick
-20
Environment temperature
(Pic.3)
Inspect step:
1. Remove the dipstick and clean it. (pic. a)
2. Reinsert the dipstick into the oil filler without
Screwing in, and check oil level.
Upper lever mark
8
I
III
(Pic.4)
3. If the oil level is too loq add recommended engine oil to the filler neck.
4. Reinstall the dipstick
CAUTION
Run with insufficient engine oil may damage the engine ,*n.r.ty.
II. OIL IN THE REDUCTION GEAR BOX (only for the model equipped with it)
1/2 Reduction gearbox with an auto-centrifugal clutch.
1. Remove the dipstick and clean it. 1ric. 5. Pic.6)
2. Reinsert the dipstick without screwing it in, and then take out it and check oil level.
3. If the oil level is too low, and recommended engine oil until it arrives the upper level mark.
Brand of the oil is the same as that of engine oil.
Oil capacity: 0.50 liters Oiloprcity 0,50litrs Dip!licl
l)lpstick
IJ
(\ z
Upper level mork Drain plug
Uppsr l,evcr Morl
(Pic.5 )
9
(Pic.6)

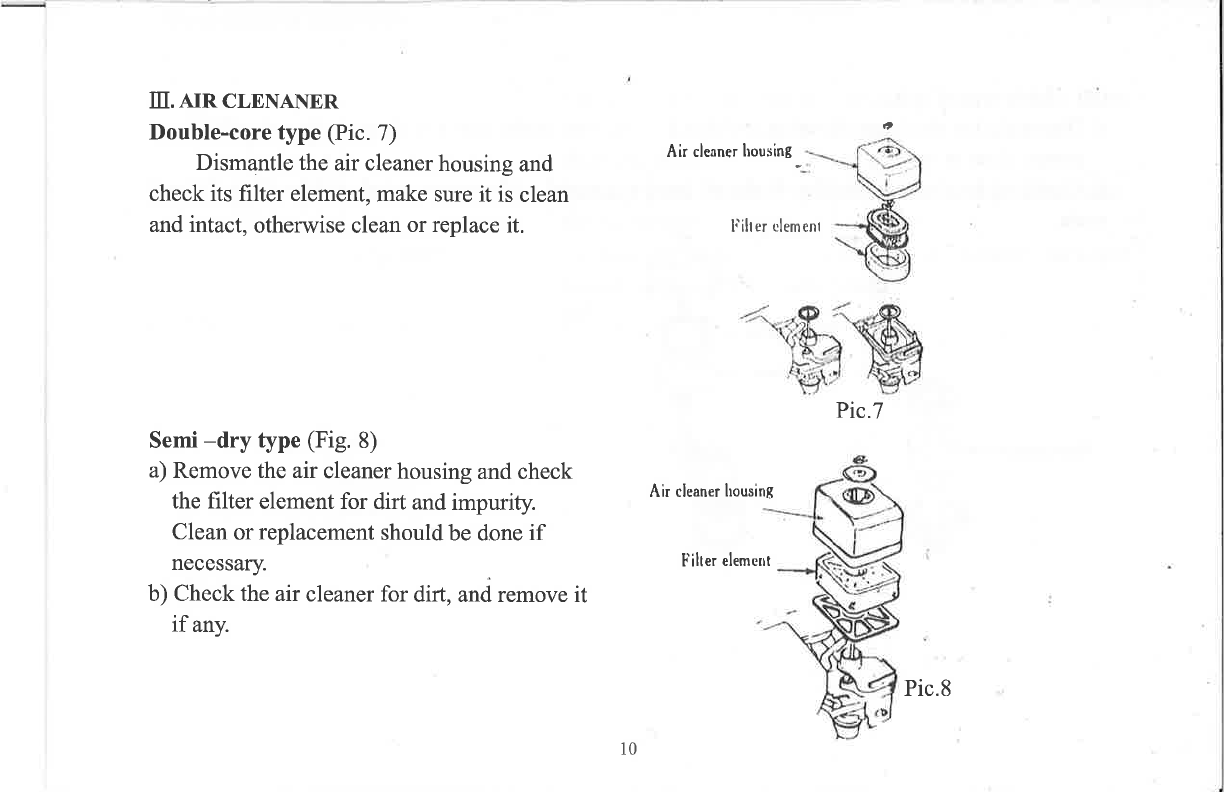

M.AIR CLENANER
Double-core type (Pic. 7)
Dismantle the air cleaner housing and
check its filter element, make sure it is clean
and intact, otherwise clean or replace it.
Semi -dry type (Fig. 8)
a) Remove the air cleaner housing and check
the filter element for dirt and impurity.
Clean or replacement should be d.one if
necessary.
b) Check the air cleaner for dirt, and remove it
if any.
a
Air cleaner housinB
l'ilter clement
Air cleaner housing
l'ilter elemcnt
^@r@
\4\/ w/t,
Pic.7
10
Pic.8
