Liberty Pumps LSG202A Manuel utilisateur

IMPORTANT:

Prior to installation, record Model, Serial Number, and

Code Number from pump nameplate for future reference.

MODEL ________________________

SERIAL ______________________

CODE ______________________

INSTALLATION

DATE _______________________

Installation Manual

7353000E

Features:

36” Diameter Fiberglass Tank

Available in 48”, 60”, 72”, 84”, and 96” heights

LSG Single or LSGX 2 Stage 2HP Grinder Pumps

Factory Installed Guide Rail System

Quick Tree™pre-mounted float system

NEMA 4X Junction Box

NEMA 4X Duplex Alternating Control Panel

Contents

1. General Information

2. Precautions / Pre-Installation

3. Installation Instructions

4. Maintenance & Troubleshooting

5. GR20 Assembly

D3600- Series Duplex Grinder Systems

7000 Apple Tree Avenue

Bergen, NY 14416

Phone: (800) 543-2550

Fax: (585) 494-1839

www.libertypumps.com

1General Information

GRINDER PUMP SPECIFICATIONS

MODEL

VOLTAGE

PHASE

FULL

LOAD

AMPS

LOCKED

ROTOR

AMPS

THERMAL

OVERLOAD

TEMP

STATOR

WINDING

CLASS

SHUT-OFF

HEAD

CORD

LENGTH

DISCHARGE

LSG202A

208/230

135˚C 275°F

108’

1-1/4”

LSG202M

208/230

135˚C 275°F

108’

1-1/4”

LSG202M-C*

208/230

135˚C 275°F

108’

1-1/4”

LSG203M

208/230

10.6

N/A

108’

1-1/4”

LSG204M

440/460

5.3

N/A

108’

1-1/4”

LSG205M

575

4.9

N/A

108’

1-1/4”

LSGX202A

208-230

135˚C 275°F

185’

1-1/4”

LSGX202M

208-230

135˚C 275°F

185’

1-1/4”

LSGX202M-C*

208-230

135˚C 275°F

185’

1-1/4”

LSGX203M

208/230

10.6

N/A

185’

1-1/4”

LSGX204M

440/460

5.3

N/A

185’

1-1/4”

LSGX205M

575

4.9

N/A

185’

1-1/4”

*Note: LSG202M-C & LSGX202M-C are for external capacitor applications and require the use of control panels fitted with properly

matched capacitors and start relays.

Maximum fluid temperature: 140F (60C)

The grinder pump and the control panel are supplied with their own separate Installation/Operation/Maintenance

manuals. Ensure that you have received these manuals, and that you read and understand them prior to installing this unit. Your

familiarity with the grinder pump manual and the control panel manual is critical. This installation manual gives a brief overview of the

system, and deals mainly with inspection and installation of the basin, but it does not cover the specifics of the pump operation or the

control panel operation. If you have any questions, call customer service at (800) 543-2550.

2Precautions / Pre-Installation

Risk of electric shock. Always disconnect the pump from the power source before handling or making adjustments.

These pumps are not to be installed in locations classified as hazardous in accordance with the National Electric Code, ANSI/NFPA

70.

The electrical connections and wiring for a pump installation should only be made by qualified personnel.

This pump is supplied with a grounding conductor or a grounding-type attachment plug. To reduce the risk of electric shock, be

certain that the grounding conductor is connected only to a properly grounded control panel or, if equipped with a grounding-type

plug, that it is connected to a properly grounded, grounding-type receptacle.

Do not bypass grounding wires or remove ground prong from attachment plugs.

Do not remove cord and strain relief, and do not connect conduit to pump.

Do not use an extension cord.

This system requires separate, properly fused and grounded branch circuit. Make sure the power source is properly sized for the

voltage and amperage requirements of the system, as noted on the nameplate.

The installation must be in accordance with the National Electric Code and all applicable local codes and ordinances.

Sump and sewage pumps often handle materials which could cause illness or disease. Wear adequate protective

clothing when working on a used pump or piping.

Never enter a pump basin after it has been used. Sewage and effluent can emit several gases which are poisonous.

D3600

Series

System

Pre-installation checklist:

1. Inspect the unit upon arrival to ensure that there is

no shipping damage. Pay careful attention to the

condition of the fiberglass basin, control floats,

pump guide rail brackets, and control panel. Notify

the carrier immediately if there is any damage.

2. Read all instructions and familiarize yourself with

the unit’s operation prior to proceeding with the

installation.

3. A qualified licensed electrician should install and

test all electrical circuits.

4. Check to ensure that your power source is adequate

to handle the pump amperage as noted above and on

the pump nameplate. Ensure that the electrical supply

circuit is equipped with fuses or breakers of the proper

capacity.

5. A separate 115V branch circuit should be installed for

the control circuit. We do not recommend splitting

the incoming pump power circuit to power the control

circuit.

6. All electrical connections should be tested to ensure

that a proper ground has been established

3Installation Instructions

1. Excavation: Excavate the hole for the basin as small as possible, with a minimum base diameter of 50”. Never

place the basin in direct contact with rocks or other sharp objects. Place enough fine, 1/8" to 3/4" pea gravel or

1/8" to 1/2" washed, crushed stone at the bottom of the excavation to create a minimum of 12 inches stone or

gravel after compaction. Do not use sand or native soil as backfill*. Properly compact underneath the basin to

provide a solid, level base that can support the weight of the filled basin. If a concrete pad will be used under the

basin, the compacted stone sub-base can be reduced to 6 inches.

2. Connections & Backfill: Pour enough concrete over and around the anti-floatation flange to anchor the basin

and prevent upward movement. Connect 2” schedule 80 PVC pipe to the pump discharge. Do not reduce the

size of the discharge piping, and do not increase the discharge piping to larger than 3”. The remainder of the

discharge line should be as short as possible with a minimum number of turns. Connect the inlet line to the 4”

inlet hub with a rubber donut (Liberty #6112000). Connect the electrical coupling to 2” electrical conduit and run

the power and float cords through the conduit to the control panel. The remaining backfill should be only fine, 1/8"

to 3/4" pea gravel or 1/8" to 1/2" washed, crushed stone. Do not use sand or native soil as backfill*. Do Not exert

heavy pressure or run heavy equipment over the backfill material, as it may cause tank collapse.

*Other backfill options may be available –consult the factory for special instructions relative to your situation.

3. Venting: The fiberglass basin provided

with the system must be completely sealed

and properly vented in order to meet health

and plumbing code requirements. The

system is designed to be vented through

the inlet to an existing building vent stack.

In order to accomplish this, there must be

no traps between the system inlet and the

nearest building vent stack connection.

See Figure A for an example. If this is not

possible or desirable in your application, a

vent flange or grommet can be installed in

a hole cut into the solid fiberglass cover.

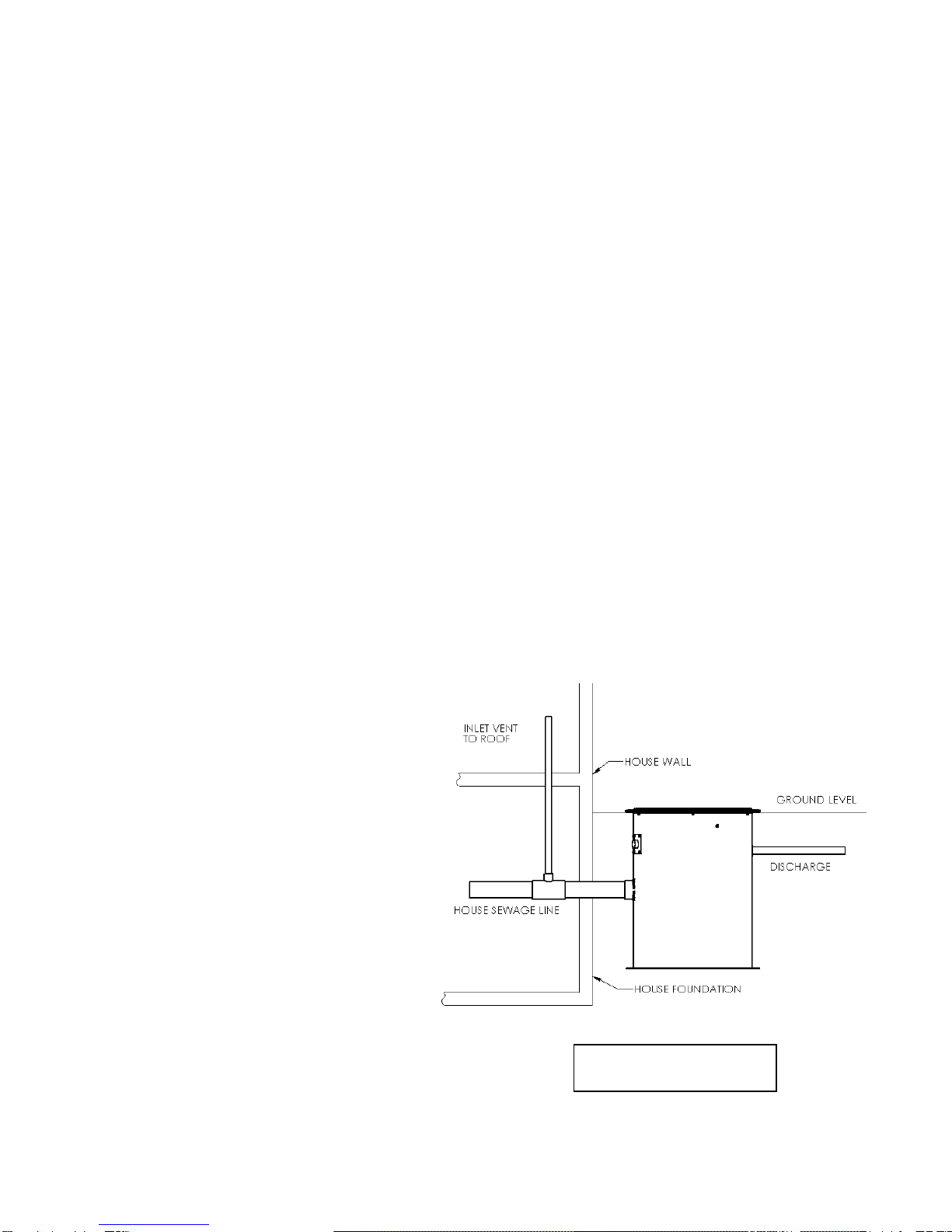

Figure A –Inlet Venting

4. Control Panel:

Risk of Electric shock: This pump is supplied with a grounding conductor. To reduce the risk of

electric shock, be certain that it is connected only to a properly grounded earth wire. All electrical circuitry should be

installed in accordance with the National Electric Code (NEC) and all applicable local codes or ordinances.

The control panel that is an integral part of this complete unit is supplied with its own separate

Installation/Operation/Maintenance manual. Ensure that you have received this manual, and that you read and

understand it prior to installing this unit. Your familiarity with the control panel manual is critical.

A separate 115V branch circuit should be installed for the control circuit. We do not recommend splitting the

incoming pump power circuit to power the control circuit. Connect the grinder pump leads and the float switch leads

to the control panel in accordance with the instructions included with those units.

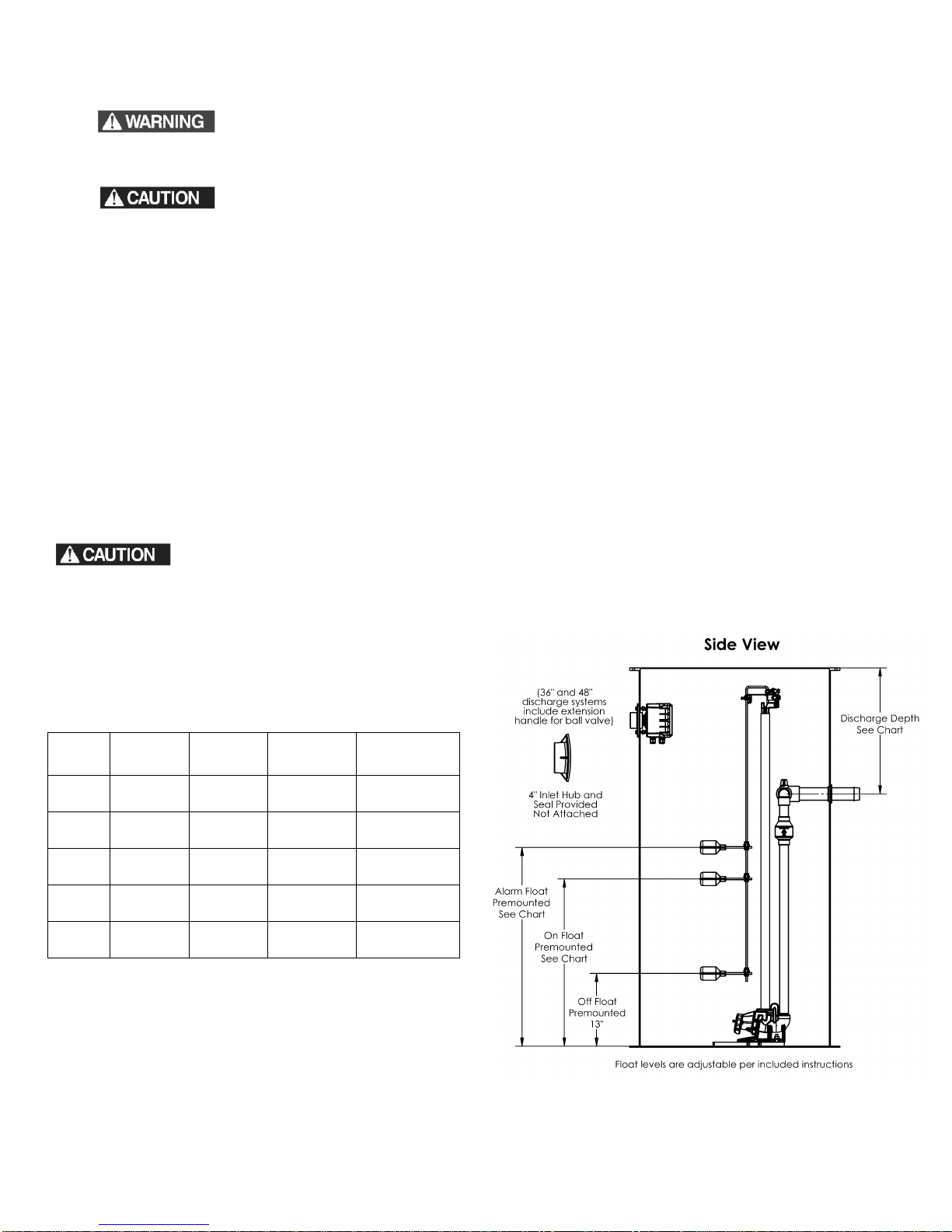

5.Float Switches: The float switches are pre-mounted on a quick tree. For quick tree removal, loosen the cord nut

and pull the tree straight out of the tank. The pump cycle is pre-set at the factory at 12” for D3648 (approximately

53 gallons) and 18” for D3672 (approximately 79 gallons). The pump cycle can be adjusted by loosening the cord

clamp and moving the “on” float up or down. We do not recommend adjustments of more than 3” in either

direction –please call the factory if you need to adjust the pump cycle beyond this recommended level.

6.Testing and Startup: Follow the testing and startup procedures found in the grinder pump and control panel

manual.

4Maintenance and Troubleshooting

The grinder pump and control panel are supplied with their own separate

Installation/Operation/Maintenance manuals. Ensure that you have received these manuals, and that you read and

understand them prior to installing this unit. Your familiarity with the grinder pump manual and the control panel manual is

critical. Please follow the Maintenance and Troubleshooting procedures provided in those manuals.

Model

Off

Level

Alarm

level

Volume/

cycle

D3648

13”

(33 cm)

25”

(64 cm)

31”

(79 cm)

62 gal.

(235 liters)

D3660

13”

(33 cm)

28”

(71 cm)

34”

(86 cm)

75 gal.

(284 liters)

D3672

13”

(33 cm)

31”

(79 cm)

37”

(94 cm)

88 gal.

(333 liters)

D3684

13”

(33 cm)

34”

(86 cm)

40”

(102 cm)

101 gal.

(382 liters)

D3696

13”

(33 cm)

37”

(94 cm)

43”

(109 cm)

115 gal.

(435 liters)

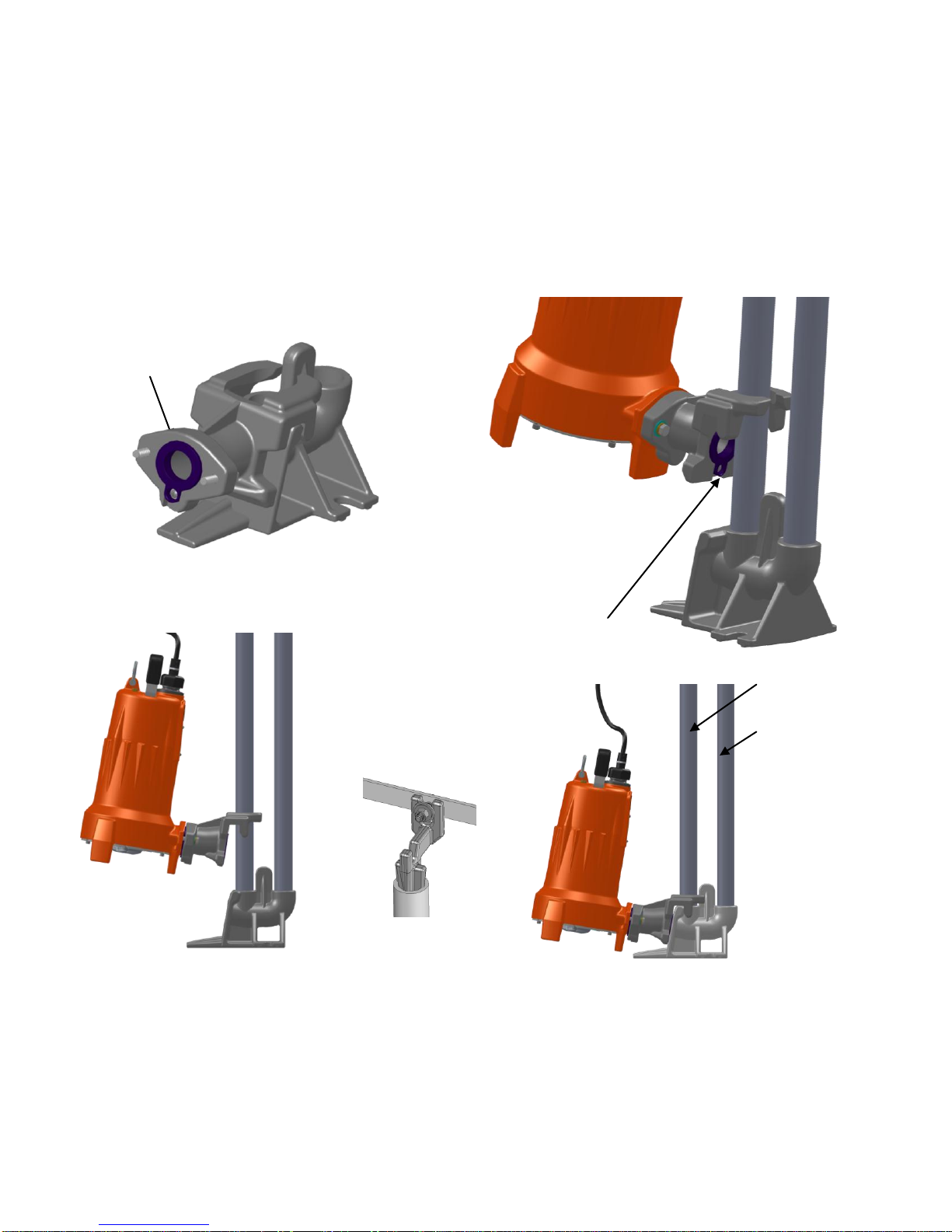

5GR20 Quick Disconnect Assembly

GR20 Assembly

The GR20 quick disconnect assembly provided with your grinder package system is designed to allow easy installation

and removal of the pump. When installed correctly it will seal and provide a means to lift the pump without disconnecting

any of the discharge piping. Please ensure that installation is done as per the diagrams below.

DISCONNECTED POSITION PIPE GUIDE ASSEMBLY OPERATING POSITION

1-1/4"

GUIDE RAIL PIPE

1-1/4"

DISCHARGE

PIPE

INSTALL 3/8X16 HEX BOLTS

HERE. EVENLY TIGHTEN

BOTH SIDES SO THAT

GASKET IS PROPERLY

COMPRESSED.

ENSURE THAT RUBBER

GROMMET IS PROPERLY

INSTALLED HERE.

ENSURE THAT

GROMMET IS

PROPERLY

INSTALLED

7000 Apple Tree Avenue

Bergen, NY 14416

Phone: (800) 543-2550

Fax: (585) 494-1839

www.libertypumps.com

3 Year Limited Warranty

Liberty Pumps, Inc. warrants that pumps of its manufacture are free from all factory defects in material and workmanship

for a period of 3 years from the date of purchase. The date of purchase shall be determined by a dated sales receipt

noting the model and serial number of the pump. The dated sales receipt must accompany the returned pump if the date

of return is more than 3 years from the "CODE" (date of manufacture) number noted on the pump nameplate.

The manufacturer's obligation under this Warranty shall be limited to the repair or replacement of any parts found by the

manufacturer to be defective, provided the part or assembly is returned freight prepaid to the manufacturer or its

authorized service center, and provided that none of the following warranty-voiding characteristics are evident:

The manufacturer shall not be liable under this Warranty if the product has not been properly installed; if it has been

disassembled, modified, abused or tampered with; if the electrical cord has been cut, damaged or spliced; if the pump

discharge has been reduced in size; if the pump has been used in water containing sand, lime, cement, gravel or other

abrasives; if the pump has been used in water above the advertised temperature rating; if the product has been used to

pump chemicals or hydrocarbons; if a non-submersible motor has been subjected to excessive moisture; or if the label

bearing the serial, model and code number has been removed.

Liberty Pumps, Inc. shall not be liable for any loss, damage or expenses resulting from installation or use of its products,

or for consequential damages, including costs of removal, reinstallation or transportation.

There is no other express warranty. All implied warranties, including those of merchantability and fitness for a

particular purpose, are limited to three years from the date of purchase.

This Warranty contains the exclusive remedy of the purchaser, and, where permitted, liability for consequential

or incidental damages under any and all warranties are excluded.

Autres manuels pour LSG202A

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Liberty Pumps Pompe à eau

Liberty Pumps

Liberty Pumps ProVore PDC Series Manuel utilisateur

Liberty Pumps

Liberty Pumps 250 Manuel utilisateur

Liberty Pumps

Liberty Pumps Omnivore 2448 Series Manuel utilisateur

Liberty Pumps

Liberty Pumps ProVore 680 Series Manuel utilisateur

Liberty Pumps

Liberty Pumps LE Series Manuel utilisateur

Liberty Pumps

Liberty Pumps 404 Manuel utilisateur

Liberty Pumps

Liberty Pumps AE Series Manuel utilisateur

Liberty Pumps

Liberty Pumps 441-10A Manuel utilisateur

Liberty Pumps

Liberty Pumps Omnivore LSG Series Manuel utilisateur

Liberty Pumps

Liberty Pumps FL152M-3E Manuel utilisateur

Liberty Pumps

Liberty Pumps 331 Manuel utilisateur

Liberty Pumps

Liberty Pumps EPS Manuel utilisateur

Liberty Pumps

Liberty Pumps XLE Series Manuel utilisateur

Liberty Pumps

Liberty Pumps D3648 Series Manuel utilisateur

Liberty Pumps

Liberty Pumps XLGV02 Series Manuel utilisateur

Liberty Pumps

Liberty Pumps SumpJet SJ10 Manuel utilisateur

Liberty Pumps

Liberty Pumps LGV Series Manuel utilisateur

Liberty Pumps

Liberty Pumps 240-Series Manuel utilisateur

Liberty Pumps

Liberty Pumps StormCell 442 Series Manuel utilisateur

Liberty Pumps

Liberty Pumps Omnivore RE Series Manuel utilisateur

Liberty Pumps

Liberty Pumps Omnivore LSG202-RE Manuel utilisateur

Liberty Pumps

Liberty Pumps LGV02 Series Manuel utilisateur

Liberty Pumps

Liberty Pumps LowPro41LP Manuel utilisateur

Liberty Pumps

Liberty Pumps LE40 Series Manuel utilisateur

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
