LIBERTY AV SOLUTIONS DigitaLinx DL-HD2A-RX Manuel utilisateur

11675 Ridgeline Drive

Colorado Springs, CO

80921

Rev 200202 Phone: 719-260-0061

Toll-Free: 800-530-8998

Fax: 719-260-0075

DL-HD2A-RX Owners Manual

Important Safety Instrucons

»Please completely read and verify you understand all instrucons in this manual before operang this equipment.

»Keep these instrucons in a safe, accessible place for future reference.

»Heed all warnings.

»Follow all instrucons.

»Do not use this apparatus near water.

»Clean only with a dry cloth.

»Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers)

that produce heat.

»Use only accessories specied or recommended by Intelix.

»Explanaon of graphical symbols:

◊ Lightning bolt/ash symbol: the lightning bolt/ash and arrowhead within an equilateral triangle

symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the

product enclosure which may be of sucient magnitude to constute a risk of shock to a person or

persons.

◊ Exclamaon point symbol: the exclamaon point within an equilateral triangle symbol is intended

to alert the user to the presence of important operang and maintenance (servicing) instrucons

in the literature accompanying the product.

»WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR

MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.

»Use the mains plug to disconnect the apparatus from the mains.

»THE MAINS PLUG OF THE POWER CORD MUST REMAIN READILY ACCESSIBLE.

»Do not defeat the safety purpose polarized or grounding-type plug. A polarized plug has two blades with one wider

than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong

is provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of

your obsolete outlet. Cauon! To reduce the risk of electrical shock, grounding of the center pin of this plug must be

maintained.

»Protect the power cord from being walked on or pinched parcularly at the plugs, convenience receptacles, and the

point where they exit from the apparatus.

»Do not block the air venlaon openings. Only mount the equipment per Intelix’s instrucons.

»Use only with the cart, stand, table, or rack specied by Intelix or sold with the equipment. When/if a

cart is used, use cauon when moving the cart/equipment combinaon to avoid injury from p-over.

»Unplug this apparatus during lightning storms or when unused for long periods of me.

»Cauon! Shock Hazard. Do not open the unit.

»Refer to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as

power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

DL-HD2A-RX Owners Manual

Table of Contents

Product Overview�� 5

Package Contents �� 5

Front and Rear Panel �� 6

Receiver View�� 6

Installaon Instrucons�� 7

Quick Start �� 7

Connect HDBaseT Link �� 7

HDBaseT Connecon .............................................................................................................................. 7

Connecng A/V Sources�� 8

HDMI Input (Transmier only) ...............................................................................................................8

VGA Video Input (Transmier only) ....................................................................................................... 8

Connecng USB Peripherals�� 8

USB Host (Transmier only) ...................................................................................................................8

USB Client ............................................................................................................................................... 8

Connecng a Display�� 8

HDMI Output .......................................................................................................................................... 8

Connecng Audio�� 8

Audio Input (Transmier only) ............................................................................................................... 8

Audio Output .......................................................................................................................................... 8

Connecng Control �� 9

RS232 Control Wiring ............................................................................................................................. 9

Apply Power �� 9

Applicaon Diagram �� 10

RS232 Port / CEC Conguraon Soware Usage �� 11

Overview ��11

Downloading RS232 Port Conguraon Soware ................................................................................11

Making a PC Connecon.......................................................................................................................11

Running RS232 Automaon Conguraon Soware��12

Serial Sengs for Wall Plate Transmier��13

Conguring RS232 Serial Commands��15

Conguring System Timeout �� 18

Technical Specicaons �� 19

DL-HD2A-RX Owners Manual

Product Overview

Package Contents

The DigitaLinx DL-HD2A-RX is an HDBaseT 2.0 receiver designed to work with the DL-1H1V1U-WP-W,

DL-3H1U-WP-W and the DL-2H1V1U-WP-W wall plate transmier (sold separately). The DL-HD2A-

RX will reliably extend HDMI or VGA video, mulchannel HDMI audio, stereo analog audio, USB 2.0

High Speed and RS232 up to 100m / 330’. The receiver is also 4K compable with a max resoluon

of 4K@60Hz / 4:2:0 8bit deep color. With an integrated PSE module built in, the DL-HD2A-RX can

power the compable HDBT 2.0 transmiers via HDBaseT transmission. There are two 3.5mm analog

audio outputs on the DL-HD2A-RX, one that de-embeds 2 channel stereo audio from the embedded

HDMI stream from the selected HDMI input on the wall plate transmier and one for the isolated and

dedicated analog audio signal from the HDBT 2.0 wall plate as well.

The DL-HD2A-RX is ideal for situaons where USB must be extended alongside HDMI or VGA for display

interacvity for items such as interacve whiteboards or projectors.

NOTE: The DL-HD2A-RX HDBaseT receiver can be used with the DL-1H1V1U-WP-W, DL-3H1U-WP-W or

the DL-2H1V1U-WP-W HDBaseT 2.0 transmier (sold separately) to complete the circuit.

• DL-HD2A-RX HDBaseT Receiver

• (1) Quick Install Guide

• (1) 3 pin Phoenix Male Connector

• (1) DC12V Power Supply with US, UK, EU and AU adapter plugs

• (2) Mounng Brackets

• (1) USB Serial Adapter

DL-HD2A-RX Owners Manual

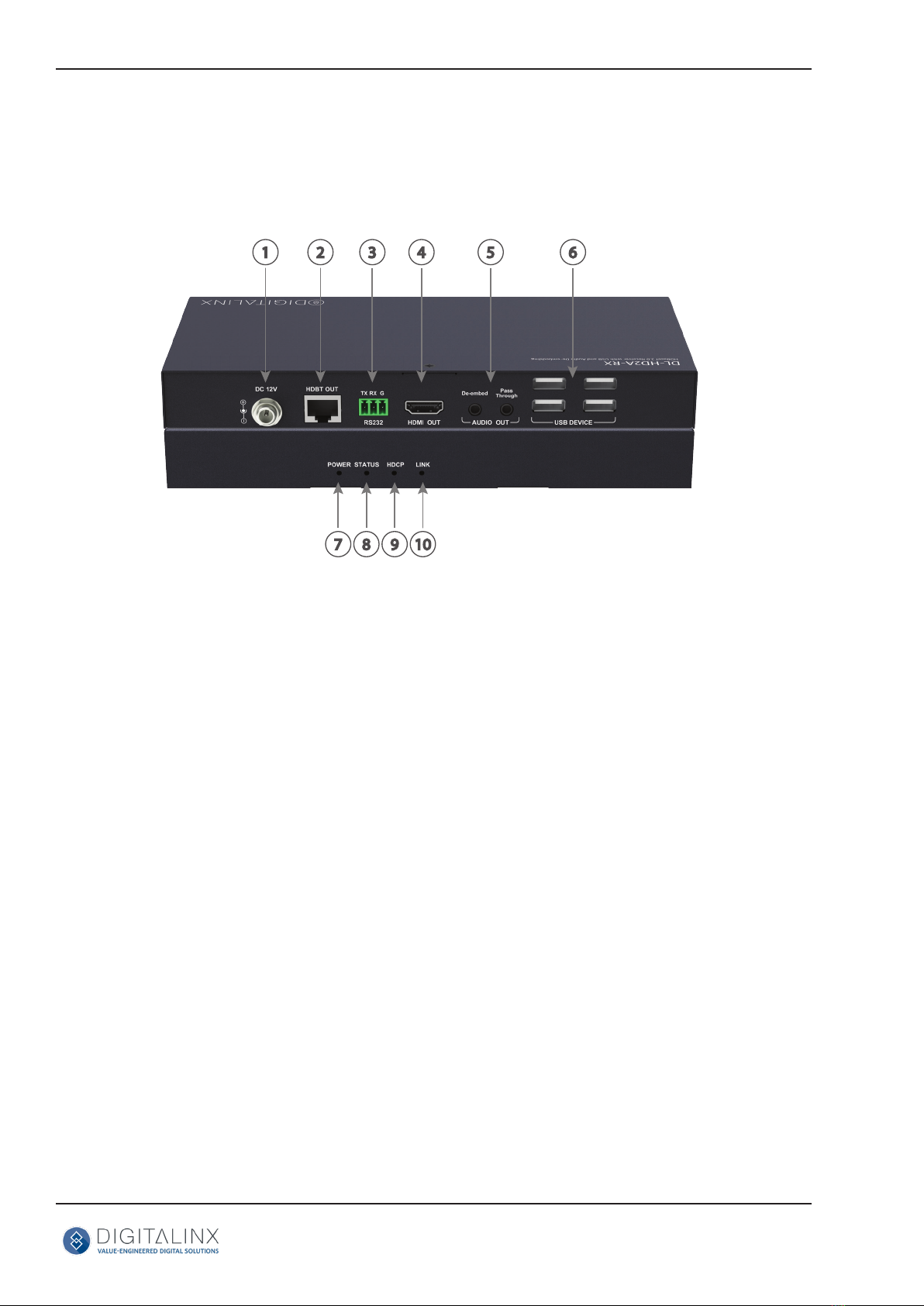

Front and Rear Panel

Receiver View

1 2 3 4 5 6

7 8 9 10

1. DC12V Power Input

2. HDBaseT Input

3. RS232 Pass Through

4. HDMI Output

5. Audio Out

• De-embed - De-embeds the embedded HDMI 2 channel stereo audio stream from selected

HDMI input from the connected HDBaseT 2.0 transmier

• Pass Through - Passes through the analog 2 channel stereo audio signal from analog 3.5mm

input from the connected HDBaseT 2.0 transmier

6. USB Device Hub

7. Power LED

• When ON; The receiver is powered on

• When OFF; The receiver is powered o

8. Status LED

• When BLINKING SLOWLY; The receiver is working properly

• When OFF; The receiver is not working properly

9. HDCP LED

• When ON; HDCP protected content is being transmied

• When BLINKING; Non-HDCP protected content is being transmied

• When OFF; No content is being transmied

10. Link LED

• When ON; HDBaseT link is working properly

• When BLINKING or OFF; HDBaseT transmission is abnormal or no link

DL-HD2A-RX Owners Manual

Installaon Instrucons

Quick Start

1. Connect HDBaseT Link

2. Connect A/V sources

3. Connect USB peripherals

4. Connect display

5. Connect audio (oponal)

6. Connect and congure control (oponal)

7. Apply power

Connect HDBaseT Link

TIA/EIA-568B

Orange/White

Orange

Green/White

Blue

Blue/White

Green

Brown/White

Brown

Pin 1

Pin 2

Pin 3

Pin 4

Pin 5

Pin 6

Pin 7

Pin 8

1 8

Connect a category cable from a compable HDBaseT 2.0 transmier HDBaseT output to the DL-HD2A-RX

receivers HDBaseT input.

HDBaseT Connecon

Twisted Pair Wiring

Use TIA/EIA-568B wiring for Category 6

connecon between the transmier and

receiver

To ensure proper performance of the DL-HD2A-RX it is recommended that you use solid core

shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but

may not support power over HDBaseT reliably.

For opmized performance use the following Liberty Wire and Cable branded cabling;

Category 6 plenum; 24-4P-P-L6SH

Category 6A plenum; 24-4P-P-L6ASH

Category 6 NON-plenum; 24-4P-L6SH

Category 6A NON -plenum; 24-4P-L6ASH

When using shielded category cabling ALWAYS...

....use shielded connectors

....properly ground the category cable

DL-HD2A-RX Owners Manual

VGA Video Input (Transmier only)

USB Host (Transmier only)

USB Client

Connect a VGA source device to the VGA input using a VGA cables that are less than or equal to 8 meters

in length. For source devices that are further away, a VGA extension device will be required to complete the

connecon.

Connect a USB host device to the USB A input using a USB A to A cable that is less than or equal to 5 meters in

length.

Connect a USB client devices to any of the USB A ports on the DL-HD2A-RX receiver using a USB cable that is

less than or equal to 5 meters in length.

Connect an HDMI source device to the HDMI input using HDMI cables that are less than or equal to 5 meters in

length. For source devices that are further away, an extension device will be required to complete the connecon.

Connecng A/V Sources

Connecng USB Peripherals

HDMI Input (Transmier only)

Connecng a Display

HDMI Output

Connect the display devices to HDMI output on the receiver using an HDMI cable that is less than or equal to

5 meters in length. For display devices that are further away, it is highly recommended to ulize the HDBaseT

output.

Audio Input (Transmier only)

Audio Output

Note: The DL-HD2A-RX audio output labeled PASS THROUGH only passes 2 channel audio from the

dedicated AUDIO IN port on a compable Digitalinx HDBaseT 2.0 transmier wall plate, the audio

output labeled DE-EMBED de-embeds 2 channel audio from the embedded HDMI stream connected

to the HDBaseT transmier.

Connecng Audio

Connect an audio source to the transmiers audio input using a 3.5mm audio cable. The DL-1H1V1U-WP-W

supports a 3.5mm stereo unbalanced input

Connect an audio amplier to the receivers audio output using a 3.5mm audio cable. The DL-HD2A-RX

supports a 3.5mm stereo unbalanced output

DL-HD2A-RX Owners Manual

Connecng Control

RS232 Control Wiring

Connect the DL-HD2A-RX receivers RS232 port to a displays serial connecon for serial control.

Apply Power

Plug the power supply into the power input port on the rear of DL-HD2A-RX receiver. The receiver will power the

transmier via HDBaseT. Twist the locking ring clockwise to prevent accidental disconnecon of power.

Note: The DL-HD2A-RX RS232 port can be congured to send stored serial commands from the HDBaseT

transmier so display ON/OFF buon or can be used for display ON/OFF automaon when a signal is

introduced to the wall plate transmier when the wall plate is in an OFF state.

For direcons on automaon conguraon see page 11, RS232 Port Conguraon Soware Usage

Connect the display devices RX RS232 signal to TX port of the DL-HD2A-RX receiver. Then connect the displays TX RS232

signal to the RX port on the DL-HD2A-RX receiver.

TX G RX

RX G TX

DL-HD2A-RX

RS232 PORT

DISPLAY

RS232

PINOUT

Connecng to

TV Display

DL-HD2A-RX Owners Manual

Laptop

Document

Camera

Apple TV

Audio

Source

Interactive

Projector

HDMI

CATx

AUDIO

USB

RS232

up to 100m / 330’

DL-HD2-RX (NOT INCLUDED)

Audio Amp

Applicaon Diagram
