WASHING MACHINE

SERVICE MANUAL

READ THIS MANUAL CAREFULLY TO DIAGNOSE TROUBLE

CORRECTLY BEFORE OFFERING SERVICE.

website : http: www.LGEservice.com

e-mail : http: LGEservice.com techsup.html

MODEL : WD-1036(0~9)SD

WD-1036(0~9)ND

WD-1036(0~9)TD

WD-1236(0~9)SD

WD-1236(0~9)ND

WD-1236(0~9)TD

WD-1236TD

CAUTION

OCT. 2004 PRINTED IN KOREA

P No.:3828ER3035F

CONTENTS

1. SPECIFICATIONS .........................................................................................................................3

2. FEATURES & TECHNICAL EXPLANATION ................................................................................ 4

3. PARTS IDENTIFICATION ............................................................................................................ 6

4. INSTALLATION............................................................................................................................. 7

5. OPERATION ................................................................................................................................10

6. WIRING DIAGRAM PROGRAM CHART.....................................................................................12

7. TROUBLESHOOTING.................................................................................................................13

7-1.BEFORE SERVICE..............................................................................................................13

7-2.TEST MODE ........................................................................................................................13

7-3.HOW TO KNOW THE WATER LEVEL FREQUENCY.........................................................13

7-4.ERROR DISPLAY ................................................................................................................14

8. ERROR DIAGNOSIS AND CHECK LIST ....................................................................................15

8-1. DIAGNOSIS AND ANSWER FOR ABNORMAL OPERATION ...........................................15

8-2. FAULT DIAGNOSIS AND TROUBLESHOOTING ..............................................................18

9. DISASSEMBLY INSTRUCTIONS ...............................................................................................24

10. EXPLODED VIEW .....................................................................................................................31

10-1. THE EXPLODED VIEW OF CABINET ASSEMBLY .........................................................31

10-2. THE EXPLODED VIEW OF CONTROL PANEL & DISPENSER ASSEMBLY..................32

10-3. THE EXPLODED VIEW OF DRUM & TUB ASSEMBLY...................................................33

APPENDIX (Replacement parts list).........................................................................................34

1. SPECIFICATIONS

ITEM

POWER SUPPLY 220-240V~, 50Hz

PRODUCT WEIGHT

WASHING 135W

SPIN (1400rpm) 530W

DRAIN MOTOR 32W

WASH HEATER

WASH 50rpm

SPIN

WD-1036(0~9)SD ND TD No Spin No Drain 400 600 800 900 1000rpm

WD-1236(0~9)SD ND TD No Spin No Drain 400 600 800 1000 1200rpm

OPERATION WATER PRESSURE 0.3-10kgf cm

(

30-1000kPa

)

CONTROL TYPE Electronic

DIMENSION

WASH PROGRAM

Cotton, Eco, Synthetic, Quick 30, Rinse+Spin, Hand Wash Wool, Delicate, Bedcover, Bio Care, Baby Care

OPTION Medic Care Rinse, Intensive, Rinse +, Pre-Wash, Crease Care

DOOR SWITCH TYPE Bi-Metal type

WATER LEVEL 9 steps

(

by sensor

)

RESERVATION From 3 hours to 19 hours

SENSING OF THE LAUNDRY AMOUNT Available

FUZZY LOGIC Available

DISPLAY OF THE REMAINING TIME Available

ERROR DIAGNOSIS 10 items

POWER AUTO OFF Available

CHILD LOCK Available

AUTO RESTART Available

ELECTRICITY

CONSUMPTION

REVOLUTION

SPEED

WASH CAPACITY

WD-1036(0~9)SD

WD-1236(0~9)SD

56 kg 59 kg 64 kg

3.5 kg 5.0 kg 7.0 kg

600mm(W)x360mm(D)x850mm(H) 600mm(W)x440mm(D)x850mm(H) 600mm(W)x550mm(D)x850mm(H)

Synthetic (1.5kg), Quick 30 (1.0kg),

Hand Wash Wool (1.0kg),

Delicate (1.0kg),

Bedcover (Rating),

Bio Care (Rating), Baby Care (3.0kg)

Synthetic (2.0kg), Quick 30 (1.5kg),

Hand Wash Wool (1.5kg),

Delicate (1.5kg),

Bedcover (Rating),

Bio Care (Rating), Baby Care (4.0kg)

Synthetic (3.0kg), Quick 30 (2.0kg),

Hand Wash Wool (2.0kg),

Delicate (2.0kg),

Bedcover (Rating),

Bio Care (Rating), Baby Care (6.0kg)

2000W 2000W 2100W

WD-1036(0~9)ND

WD-1236(0~9)ND

WD-1036(0~9)TD

WD-1236(0~9)TD

WD-1236TD

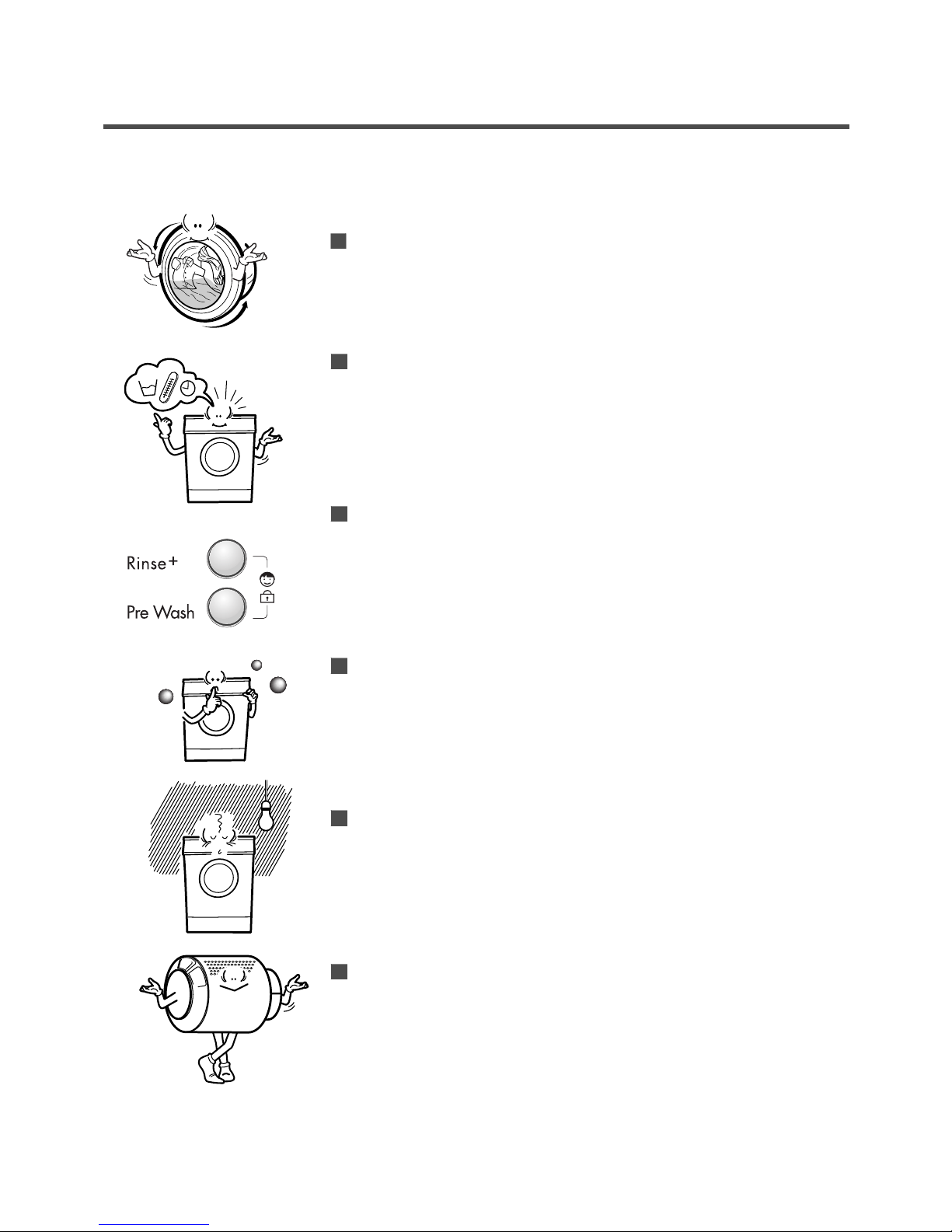

Anti Crease function

With the alternate rotation of the drum, creasing in the laundry is

minimized.

More economical by Fuzzy Logic System

FUZZY Logic System detects the amount of load and water

temperature, and then determines the optimum water level and

washing time to minimize energy and water consumption.

Child-Lock

The Child-Lock system has been developed to prevent children

from pressing any button (except Power button) to change the

programme during operation.

Low noise speed control system

By sensing the amount of load and balance, this system

automatically distributes load evenly to minimize the spinning

noise level.

Auto Restart

Auto Restart allows the program to restart all by itself in case of

power failure. It does from the stage where it stopped. It will be

also the same when washer is plugged-in after unplugging.

Direct Drive System

The advanced Brushless DC motor rotates the drum directly

without a belt and a pulley.

2. FEATURES & TECHNICAL EXPLANATION

2-1.FEATURES

2-2.DETERMINE WASHING TIME BY FUZZY LOGIC

To get the best washing performance optimal time is determined by sensing of water temperature,

selected washing temperature and laundry amount.

2-3.WATER LEVEL CONTROL

This model adopts a pressure sensor which can sense the water level in the tub.

When the water level reaches to the preset level the water supply is stopped, then the washing program proceeds.

Spinning does not proceed until the water in the tub reduces a certain level.

2-4.THE DOOR CAN NOT BE OPENED

While program is operating.

While Door Lock light turns on.

FUZZY

LOGIC

laundry

amount

selected

washing

temperature

water

temperature

washing time

rinse time

spin rhythm, time

the best

washing

performance

SENSING

PROCESSING

DETERMINATION

EFFECT

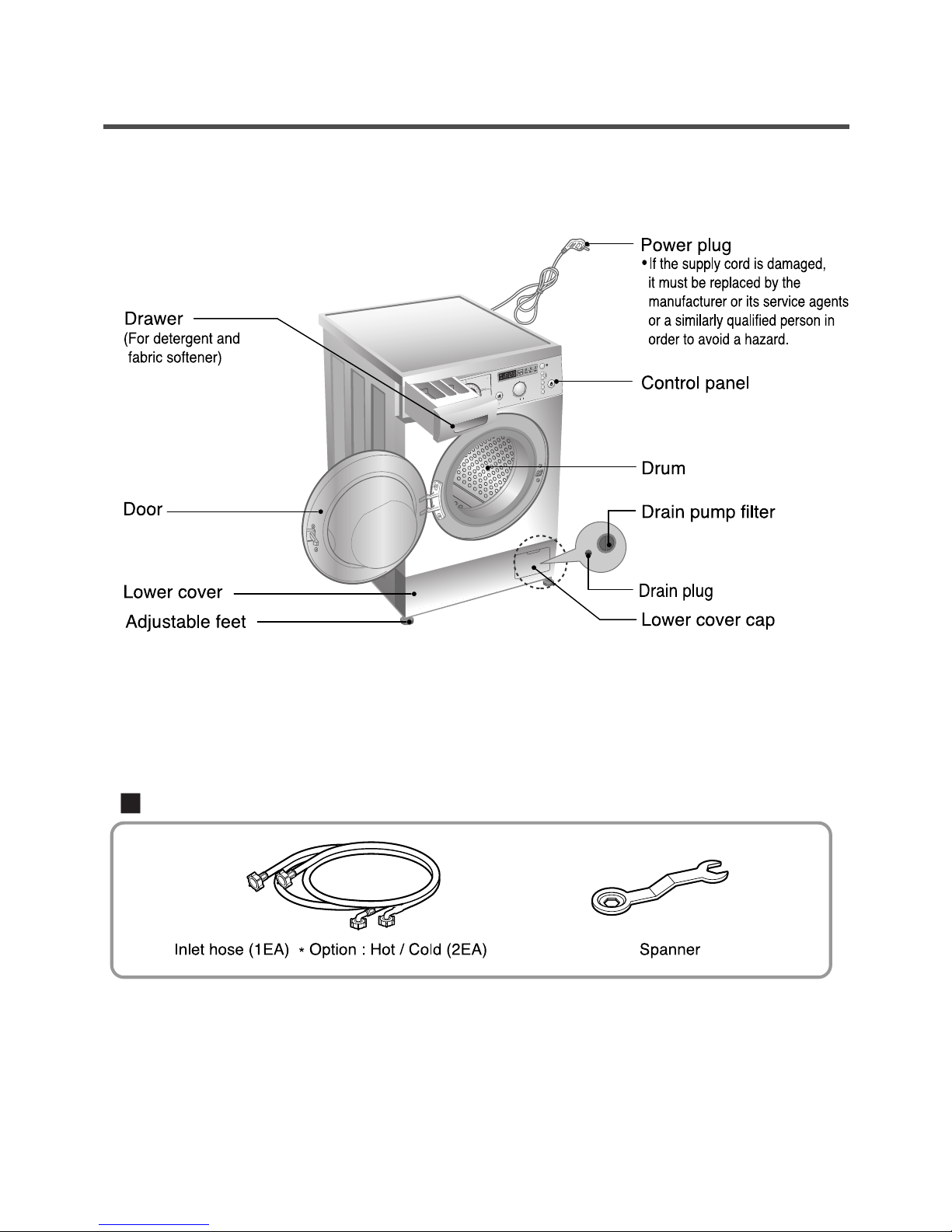

3. PARTS IDENTIFICATION

Synthetic

Wool

HandWash

Drain

Cotton

Eco

Delicate

Quick30

Rinse+Spin

Start Pause

Rinse Hold

NoSpin

Spin

rpm

1400

1000

Bio

Intensive

Rinse+

Pre Wash

Crease Care

Power

800

600

400

Time Left

ACCESSORIES

Before servicing ask the customer what the trouble is.

Check the adjustments. (Power supply :220~240V, Removal of transit bolts etc..)

Check the troubles referring to the troubleshooting.

Decide service steps referring to disassembly instructions.

Then, service and repair.

After servicing, operate the appliance to see whether it works O K or NOT.

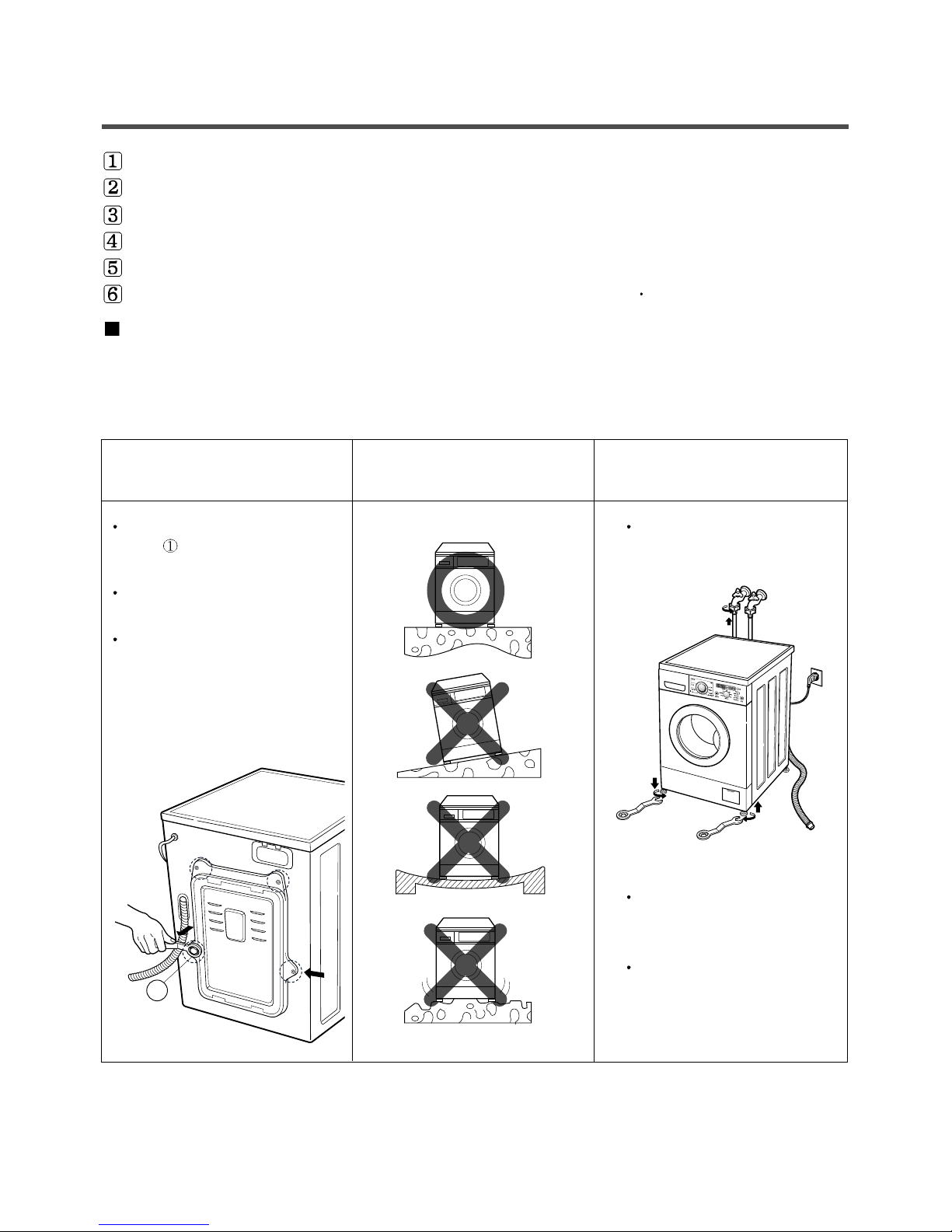

STANDARD INSTALLATION

The appliance should be installed as follows.

REMOVE THE TRANSIT INSTALL THE APPLIANCE ADJUST THE

BOLTS ON FLAT AND FIRM SURFACE HORIZONTAL

Remove the transit bolts Turn the adjustable feet to

(4EA: ) with supplied wrench. set the appliance horizontally.

Keep the transit bolts and

wrench for future use.

Insert the 4 caps provided

into the hole.

The appliance goes up by

rotating the feet clockwise.

The appliance comes down by

rotating the feet counter-

clockwise.

4. INSTALLATION

High

Low

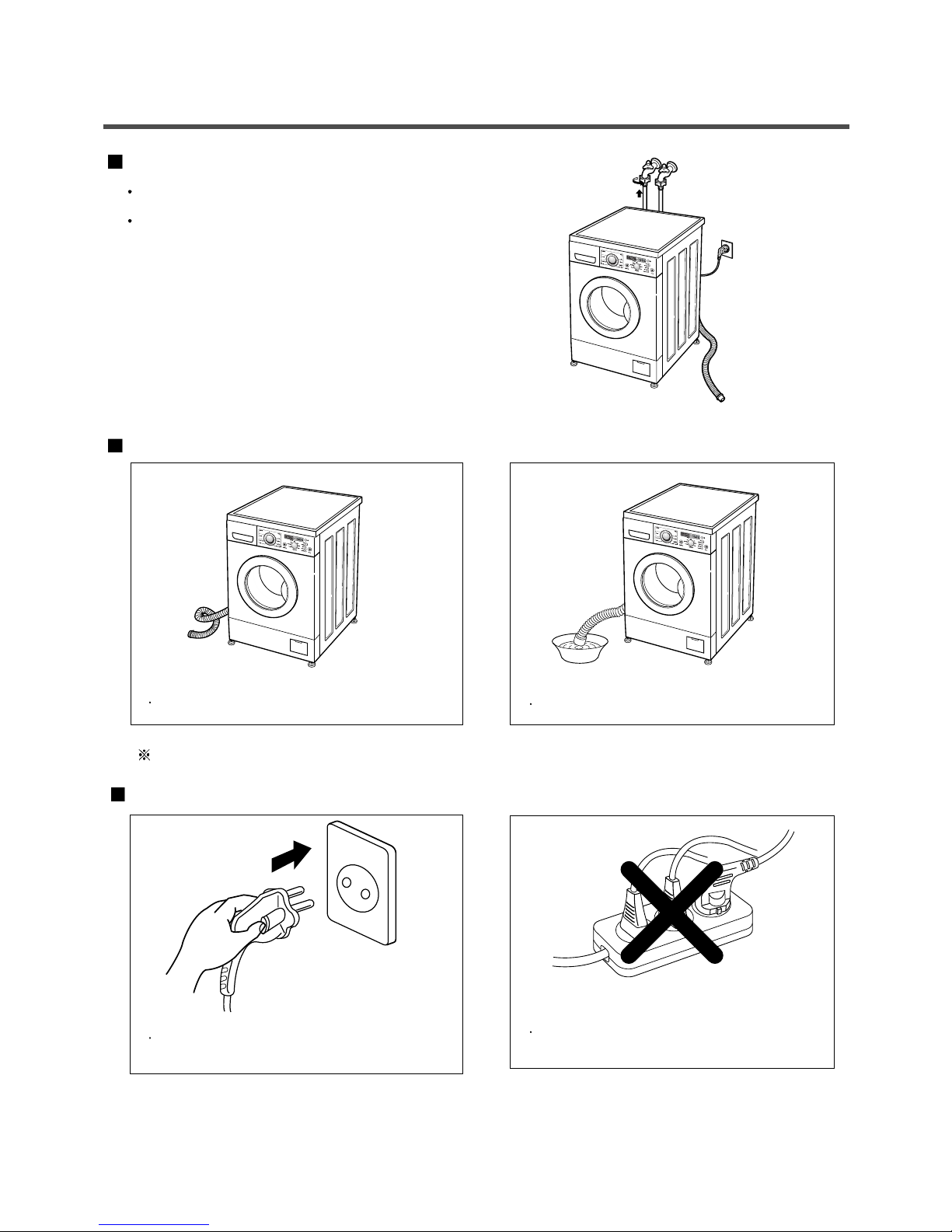

HOW TO CONNECT INLET HOSE

Check that the rubber is the inside of valve connector.

Connect inlet hoses firmly to prevent leak.

CONNECT DRAIN HOSE

CONNECT POWER PLUG

Make sure that the hose is not twisted.

The drain hose should be placed under 100cm from the floor.

Connect the power plug to the wall outlet. Avoid connecting several electric devices,

It may be the cause of a fire.

Avoid submerging the end of the hose.

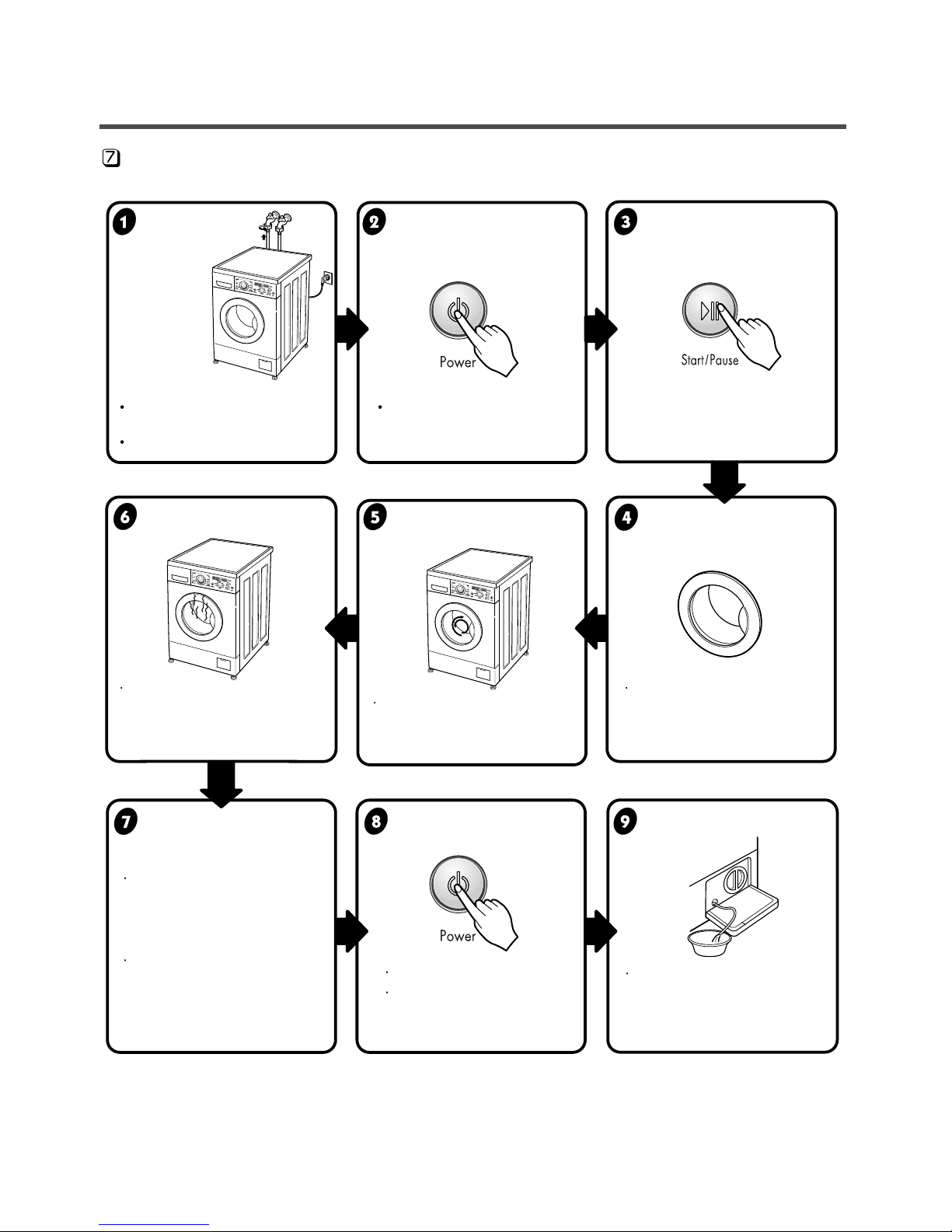

TEST OPERATION

Connect the power plug to In case of cotton program.

the outlet.

Connect the inlet hose.

Preparation for Press the power button. Press

the

START PAUSE

washing. button.

Press both Time Delay and

Pre Wash buttons simultaneously

the present temperature will be

displayed.

Check if the drum rotates clockwise

and counterclockwise.

Check if water is supplied through

the detergent dispenser.

Power off and then power on.

Check if the door can be

opened after Door Lock lamp

turns off.

Power off and then power on.

Turn on Spin lamps after

pressing the Start Pause button

and Start the machine again.

Check drain and spin.

If SVC is needed during

check, remove

the remaining water by pulling

out the hose cap.

Check the water heating. Check automatic reverse Check the water supply.

turn.

Check drain and spin

Power off and open the

Water removal

door
