LG F104G1JCH2N Manuel utilisateur

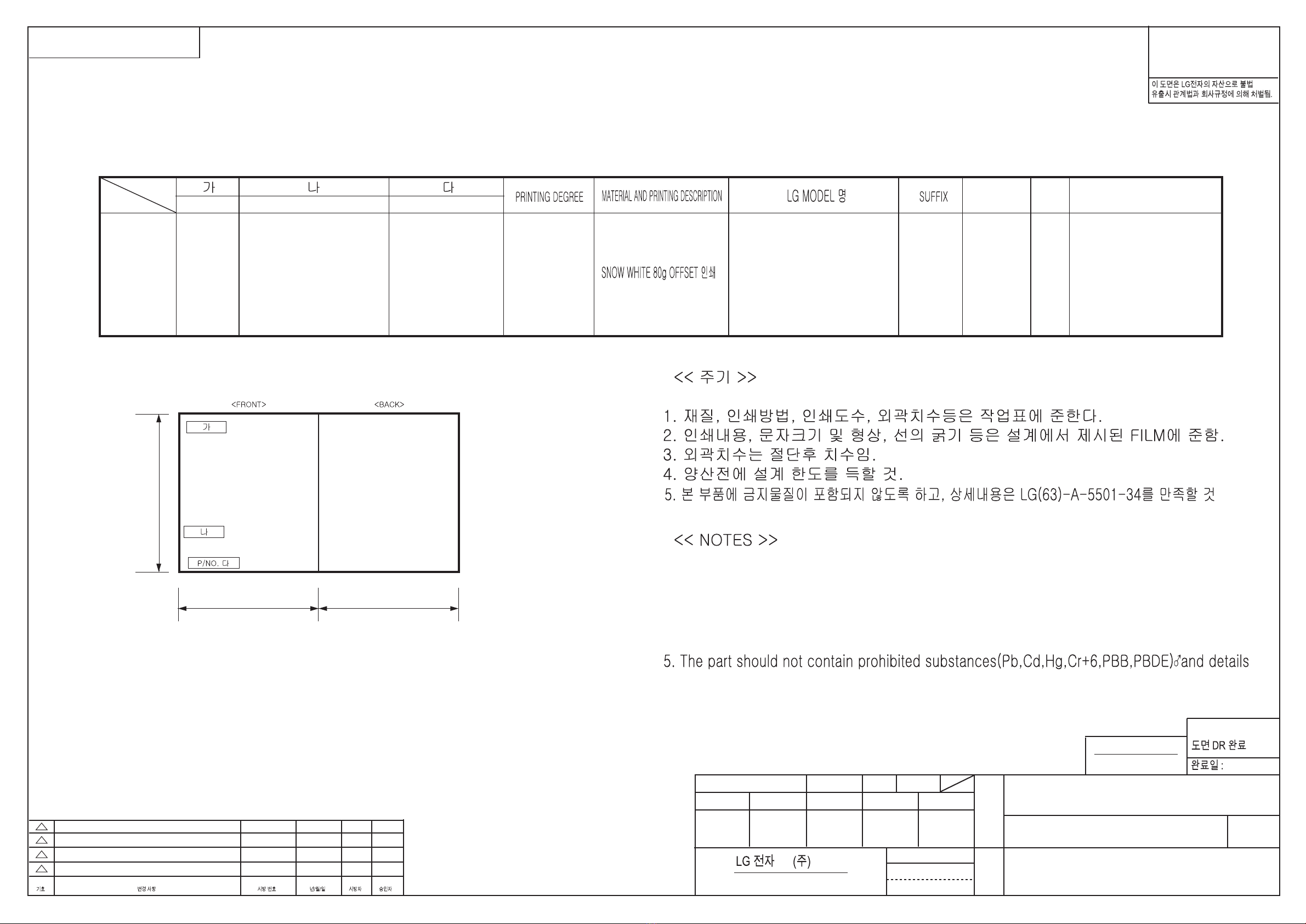

DWG.

No.

TRIG.

DR COMPLETED

LG Electronics Inc.

UNIT SCALE NS

REVIEWEDDESIGNED

주 연 수 전 종 묵 이 갑 선 김 남 철

RELATED DWG.

CHECKED APPROVED

18.01.26 18.01.26 18.01.2618.01.26

MODELING I

APPROVEDPREPARED

DATE

REF. NO.REV. NO. REVISION DESCRIPTION

RELEASING THIS DRAWING

WITHOUT PERMISSION LG

Electronics SHOULD BE

ACCUSED ACCORDING TO THE

LAWS AND COMPANY RULES.

PDF

ILLUSTRATOR

150 150

210

MFL69962064

MANUAL,OWNER’S

DRUM-EXPORT 1/1

MFL69962064

1. Material, printing and exterier size are refer to work tables.

2. Printing, text size and line are based on LG design film.

3. Exterier size on the drawing is cutting line.

4. Before product controlled by criteria sample.

WORK

BRAND

MODEL

MFL69962064

FH4G1JCHK(0-9)N

P/NO.

A**QKCZ

LANGUAGE

56ENGLISH

PAGE

REMARK

SEC.

should comply with LG standard of LG(63)-A-5501-34

F104G1JCH2N

양산처 : 국제인쇄

작업처 : 인쇄물개발파트

G+ Good

10.5/7kg HYBRID

www.lg.com

OWNER'S MANUAL

WASHING

MACHINE

Before beginning installation, read these instructions carefully. This

will simplify installation and ensure that the product is installed

correctly and safely. Leave these instructions near the product after

installation for future reference.

MFL69962064

EN ENGLISH

F104G1JCH2N

TABLE OF CONTENTS This manual may contain images or

content different from the model you

purchased.

This manual is subject to revision by the

manufacturer.

SAFETY INSTRUCTIONS .......................................................4

IMPORTANT SAFETY INSTRUCTIONS.................................................... 4

Disposal of Your Old Appliance ................................................................ 10

INSTALLATION ...................................................................... 11

Parts ..........................................................................................................11

Accessories ...............................................................................................11

Specifications ........................................................................................... 12

Installation Place Requirements ............................................................... 13

Unpacking and Removing Transit Bolts.................................................... 14

Using Anti-Slip Sheets (Optional) ............................................................. 15

Wooden Floors (Suspended Floors)......................................................... 15

Leveling the Appliance.............................................................................. 16

Connecting the Water Supply Hose.......................................................... 16

Installing the Drain Hose .......................................................................... 19

OPERATION ...........................................................................20

Using the Washing Machine ..................................................................... 20

Sorting Laundry ........................................................................................ 21

Adding Cleaning Products ........................................................................ 22

Control Panel............................................................................................ 24

Programme Table ..................................................................................... 25

Option Programme ................................................................................... 30

Sušení (Dry) ( ).................................................................................... 34

SMART FUNCTIONS .............................................................36

Using Smart ThinQ Application................................................................. 36

Using Smart Diagnosis™ ......................................................................... 38

MAINTENANCE......................................................................39

Cleaning Your Washing Machine.............................................................. 39

Cleaning the Water Inlet Filter .................................................................. 39

Cleaning the Drain Pump Filter ................................................................ 40

Cleaning the Dispenser Drawer................................................................ 41

Čištění bubnu (Tub clean) (Optional)........................................................ 41

Caution on Freezing During Winter .......................................................... 42

TROUBLESHOOTING ...........................................................44

Diagnosing Problems ............................................................................... 44

Error Messages ........................................................................................ 48

WARRANTY............................................................................50

OPERATING DATA ................................................................53

SAFETY INSTRUCTIONS EN

The following safety guidelines are intended to prevent

unforeseen risks or damage from unsafe or incorrect operation

of the appliance.

The guidelines are separated into ‘WARNING’ and ‘CAUTION’

as described below.

This symbol is displayed to indicate matters and

operations that can cause risk. Read the part with this

symbol carefully and follow the instructions in order to

avoid risk.

WARNING

This indicates that the failure to follow the instructions can

cause serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can

cause the minor injury or damage to the product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, re, death, electric shock,

injury or scalding to persons when using this product, follow

basic precautions, including the following:

Children in the Household

This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person

responsible for their safety. Children should be supervised to ensure

that they do not play with the appliance.

For use in Europe:

This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved. Children shall not

play with the appliance. Cleaning and user maintenance shall not be

made by children without supervision.

Children of less than 3 years should be kept away unless

continuously supervised.

Installation

•Never attempt to operate the appliance if it is damaged,

malfunctioning, partially disassembled, or has missing or broken

parts, including a damaged cord or plug.

•This appliance should only be transported by two or more people

holding the appliance securely.

•Do not install the appliance in a damp and dusty place. Do not

install or store the appliance in any outdoor area, or any area that

is subject to weathering conditions such as direct sunlight, wind, or

rain or temperatures below freezing.

•Tighten the drain hose to avoid separation.

•If the power cord is damaged or the hole of the socket outlet is

loose, do not use the power cord and contact an authorized service

centre.

•Do not plug multiple socket outlets, an extension power cable or

adapter with this appliance.

•This appliance must not be installed behind a lockable door, a

sliding door or a door with a hinge on the opposite side to that of

the appliance, in such a way that a full opening of the appliance

door is restricted.

•This appliance must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock by

providing a path of least resistance for electric current.

•This appliance is equipped with a power cord having an equipment-

grounding conductor and a grounding power plug. The power plug

must be plugged into an appropriate socket outlet that is installed

and grounded in accordance with all local codes and ordinances.

•Improper connection of the equipment-grounding conductor can

result in risk of electric shock. Check with a qualied electrician or

service personnel if you are in doubt as to whether the appliance is

properly grounded.

•Do not modify the power plug provided with the appliance. If it

does not t the outlet, have a proper outlet installed by a qualied

electrician.

Operation

•Do not attempt to separate any panels or disassemble the

appliance. Do not apply any sharp objects to the control panel in

order to operate the appliance.

•Do not repair or replace any part of the appliance. All repairs

and servicing must be performed by qualied service personnel

unless specically recommended in this Owner’s Manual. Use only

authorized factory parts.

•Do not put animals, such as pets into the appliance.

•Keep the area underneath and around the appliance free of

combustible materials such as lint, paper, rags, chemicals, etc.

•Do not leave the appliance door open. Children may hang on the

door or crawl inside the appliance, causing damage or injury.

•Use new hose or hose-set supplied with the appliance. Reusing old

hoses can cause a water leak and subsequent property damage.

•Do not put in, wash or dry articles that have been cleaned in,

washed in, soaked in, or spotted with combustible or explosive

substances (such as waxes, wax removers, oil, paint, gasoline,

degreasers, drycleaning solvents, kerosene, petrol, spot removers,

turpentine, vegetable oil, cooking oil, acetone, alcohol, etc.).

Improper use can cause re or explosion.

•Never reach into the appliance while it is operating. Wait until the

drum has completely stopped.

•In case of ood, disconnect the power plug and contact the LG

Electronics customer information centre.

•Do not push down the door excessively, when the appliance door is

open.

•Do not touch the door during a high temperature programme.

•Do not use ammable gas and combustible substances (benzene,

gasoline, thinner, petroleum, alcohol, etc.) near the appliance.

•If the drain hose or inlet hose is frozen during winter, use it only

after thawing.

•Keep all washing detergents, softener and bleach away from

children.

•Do not touch the power plug or the appliance controls with wet

hands.

•Do not bend the power cable excessively or place a heavy object

on it.

•Do not wash rugs, mats, shoes or pet blankets, or any other items

other than clothes or sheets, in this machine.

•This appliance must only be used for domestic household purposes

and should not be used in mobile applications.

•If there is a gas leakage (isobutane, propane, natural gas, etc.),

do not touch the appliance or power plug and ventilate the area

immediately.

Technical Safety for Using the Dryer

•Do not dry unwashed items in the appliance.

•Items that have been soiled with substances such as cooking

oil, vegetable oil, acetone, alcohol, petroleum, kerosene, spot

removers, turpentine, waxes and wax removers should be washed

in hot water with an extra amount of detergent before being dried in

the appliance.

•Never stop the appliance before the end of the drying cycle unless

all items are quickly removed and spread out so that the heat is

dissipated.

•Items such as foam rubber (latex foam), shower caps, waterproof

textiles, rubber backed articles and clothes or pillows tted with

foam rubber pads should not be dried in the appliance.

•Fabric softeners, or similar products, should be used as specied

by the fabric softener instructions.

•Remove all objects from pockets such as lighters and matches.

•The appliance is not to be used if industrial chemicals have been

used for cleaning.

Maintenance

•Securely plug the power plug in the socket outlet after completely

removing any moisture and dust.

•Disconnect the appliance from the power supply before cleaning

the appliance. Setting the controls to the OFF or stand by position

does not disconnect this appliance from the power supply.

•Do not spray water inside or outside the appliance to clean it.

•Never unplug the appliance by pulling on the power cable. Always

grip the power plug rmly and pull straight out from the socket

outlet.

Disposal

•Before discarding an old appliance, unplug it. Cut off the cable

directly behind the appliance to prevent misuse.

•Dispose of all packaging materials (such as plastic bags and

styrofoam) away from children. The packaging materials can cause

suffocation.

•Remove the door before disposing of or discarding this appliance to

avoid the danger of children or small animals getting trapped inside.

Table des matières

Autres manuels LG Rondelle

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur

Beko

Beko WKB 51231 PTMA Manuel utilisateur

Samsung

Samsung WF16J9800K Series Manuel utilisateur
