LG VC4918URT Manuel utilisateur
Model
Language English
Page
)H*W(eziSlairetaM
Designer
Designer Confirm
Color(cover/body)
Part No. Description
Date
etaD.oN
Chage Record
Change content ECO No.
1
2
3
4
5
6
7
8
9
Weight 100g
11.10.0102
VC4918URT*LAP
MFL62558846
1/1
)mm(062×091
WANGLIWEI
Owner’s Manual
16
OWNER’S MANUAL
P/No.:MFL62558846
New Type Cyclone Vacuum Cleaner
This information contains important instructions for the safe use and maintenance of the vacuum cleaner.
Especially, please read all of the information on page 4,5 for your safety.
Please keep this manual in an easily accessible place and refer to it anytime.
VC4918URT
2
Important safety instructions ................................................................................. 4 ~ 5
How to use ................................................................................................................ 6 ~ 14
Assembling vacuum cleaner ................................................................................................................. 6 ~ 7
8
.....................................................................................................................
Operating vacuum cleaner
Using turbine and floor nozzle ................................................................................................................ 9
Using accessory nozzles ....................................................................................................................... 10
Emptying dust tank ................................................................................................................................ 11
Cleaning dust tank ................................................................................................................................. 12
Cleaning air filter and motor safety filter ................................................................................................ 13
Cleaning exhaust filter ........................................................................................................................... 14
............................................. 15
............................................. 15
What to do if your vacuum cleaner does not work?
What to do when suction performance decreases?
Specifications ........................................................................................................... 3
Dimension: 402(mm) x 259(mm) x 275(mm)=L x W x H
Specifications
402
275
259
Table of contents
3

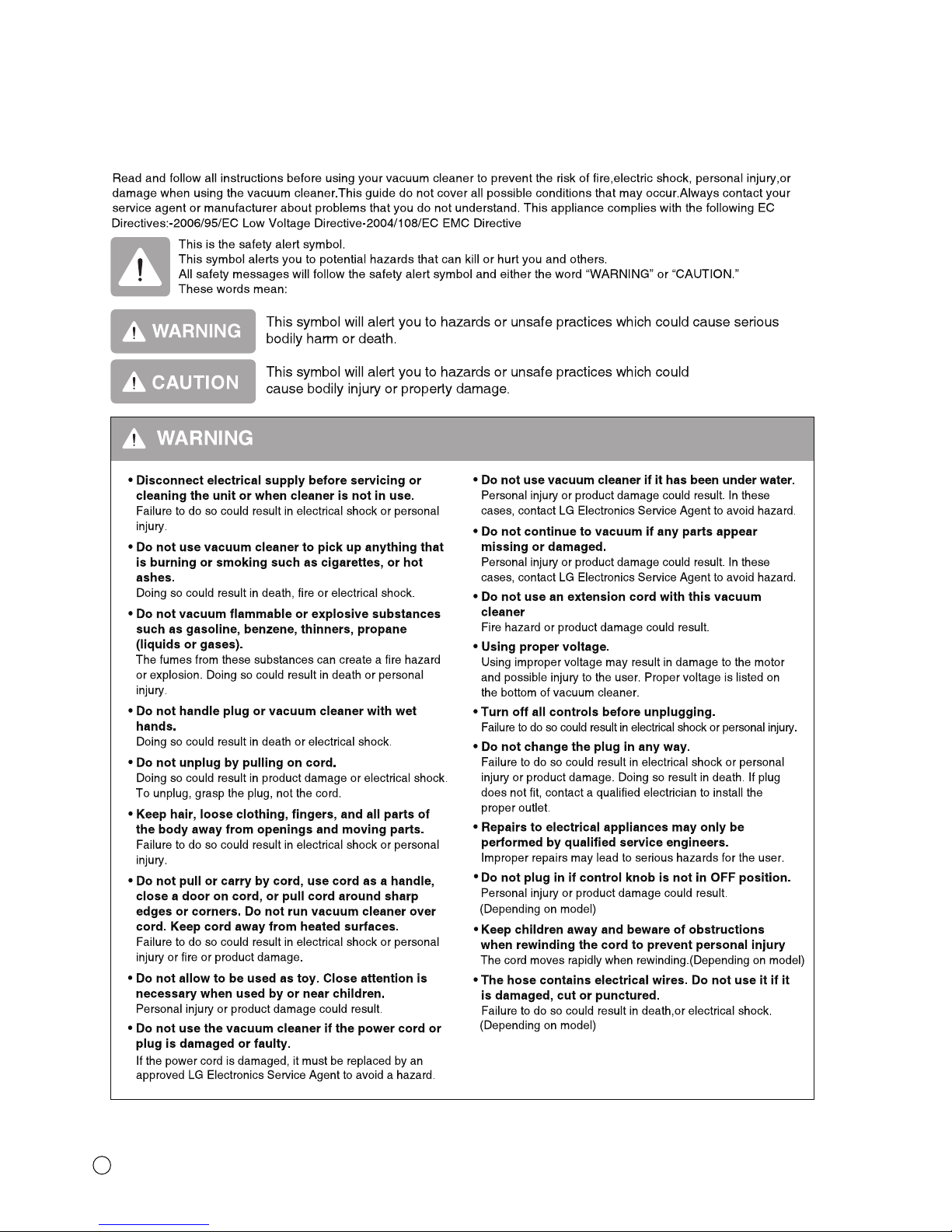

IMPORTANT SAFETY INSTRUCTIONS
4
IMPORTANT SAFETY INSTRUCTIONS
5
NOTE: This Vacuum is not intended for commercial applications. It must only be used for normal indoor domestic
applications. It must only be used for dry vacuuming.
2
1
ON/OFF type and Rotary type with advanced telescopic pipe (depending on the model)
Hose Handle
Telescopic pipe
Carpet and floor nozzle
(Depending on model)
1
Telescopic pipe
(Depending on model)
Push the nozzle into the telescopic pipe. • Push telescopic pipe firmly into hose handle.
• Grasp the spring latch to expand.
• Pull out the pipe to desired length.
2
How to use Assembling vacuum cleaner
Spring latchSpring latch
Spring latch
6
3
Attachment Point
Connecting the hose to the vacuum cleaner
3
Push the fitting pipe on the flexible hose into the attachment point
on the vacuum cleaner.
To remove the flexible hose from the vacuum cleaner, press the
button situated on the fitting pipe, then pull the fitting pipe out of the
vacuum cleaner.
Button
7
Cord
reel button
• Pull out the power cord to the
desired length and plug into the
socket.
• Press power switch to start the
vacuum cleaner.
• Slide the rotary control knob to
adjust the suction level.
• The flexible hose handle has a
manual air flow regulator which
allows you to briefly reduce the
suction level.
• Press the cord reel button to
rewind the power cord after use.
How to operate
(Rotary type)
1
How to use Operating vacuum cleaner
Rotary type
(Depending on model)
1
Air Flow Regulator
Open
Close
Plug
Power
switch
Rotary
control knob
Rotary
control knob
MIN MAX
MIN MAX
Park mode
2Storage
3
•
32
To store during vacuuming, for
example to move asmall piece
of furniture or arug, use park
mode to support the flexible
hose and nozzle.
- Slide the hook on the nozzle
into the slot on the side of
vacuum cleaner.
When you have switched off
and unplugged the vacuum
cleaner, press the cord reel
button to automatically rewind
the cord.
You can store your vacuum
cleaner in avertical position by
sliding the hook on the nozzle
into the slot on the underside
of the vacuum cleaner.
••
•
8
The Power cord is marked with
ayellow and red band marker.
the yellow is awarning band
that the cord should not be
pulled out any further, and the
red band means to stop extend-
ing the cord as it is at the end of
its length.
How to use Using turbine and floor nozzle
9
1
Long Carpet
Short Carpet
Cleaning Turbine Nozzle
Turbine Nozzle (depending on model)
• Cleaning turbine brush nozzle.
• Press the button on the rear side of the nozzle to separate the air cover.
• Use the dusting brush & crevice tool to vacuum clean the brush and fan.
1
Open
Botton
• Efficient cleaning of hard floors
(wood, linoleum, etc)
Hard Floor Nozzle (depending on model)
2
2
