LG A9 Series Manuel utilisateur

Technical documentation for Eco-design

Product : Vacuum Cleaner

Model : A9xyz

1

Table of contents

Part 1. General information 2

Part 2. Information relevant for non-destructive disassembly for

maintenance purposes and for dismantling, recycling,

recovery and disposal at end-of-life 3-9

2

2.Explanation of series (or derivation) model of the same product

This technical documentation covers series (or derivation) model [A9xyz] which has

same conceptual design and manufacturing drawing and the series (or derivation) model

have same high risk parts and applications exempted under RoHS.

[A9xyz]

- The 1st suffix “x” may vary “SLIM1R” to denote cleaning nozzle provided.

- The 2nd suffix “y" may vary “0-9 or A-Z" or blank to denote type of nozzle provided.

- The 3rd suffix “z" may vary “0-9 or A-Z" or blank to denote type of product color.

3. Manufacturer

- Company name : LG Electronics Inc.

- Address : LG Twin Towers, 128 Yeoui-daero, Yeongdeungpo-gu, Seoul, 07336, Korea

- Company name : LG Electronics Vietnam Hai Phong Co., Ltd.

- Address : Lot CN2, Trang Due Industrial Park, Le Loi Commune,An Duong District,

Hai Phong City, 184800, Vietnam

Part 1. General information

1. Product

- Product name : Vacuum cleaner

- Model name : A9xyz

4. Information on technical documentation

- Issued date (DD/MM/YYYY) : 19/05/2022

-Revision number (if applicable) : 1.1

-Written by : Do Quynh Lien

-Reviewed by : Trinh Quang Thanh

3

Part 2. Information relevant for non-destructive disassembly for

maintenance purposes and for dismantling, recycling, recovery and

disposal at end-of-life

1. Disassembly, assembly and repairing policy

When separating pre-separated parts and materials from the product, they can be separated

using only ordinary tools. Designed in consideration of the minimization of the type of fastening

to increase fastening to facilitate disassembly and dismantling.

2. How to disassemble/dismantle parts

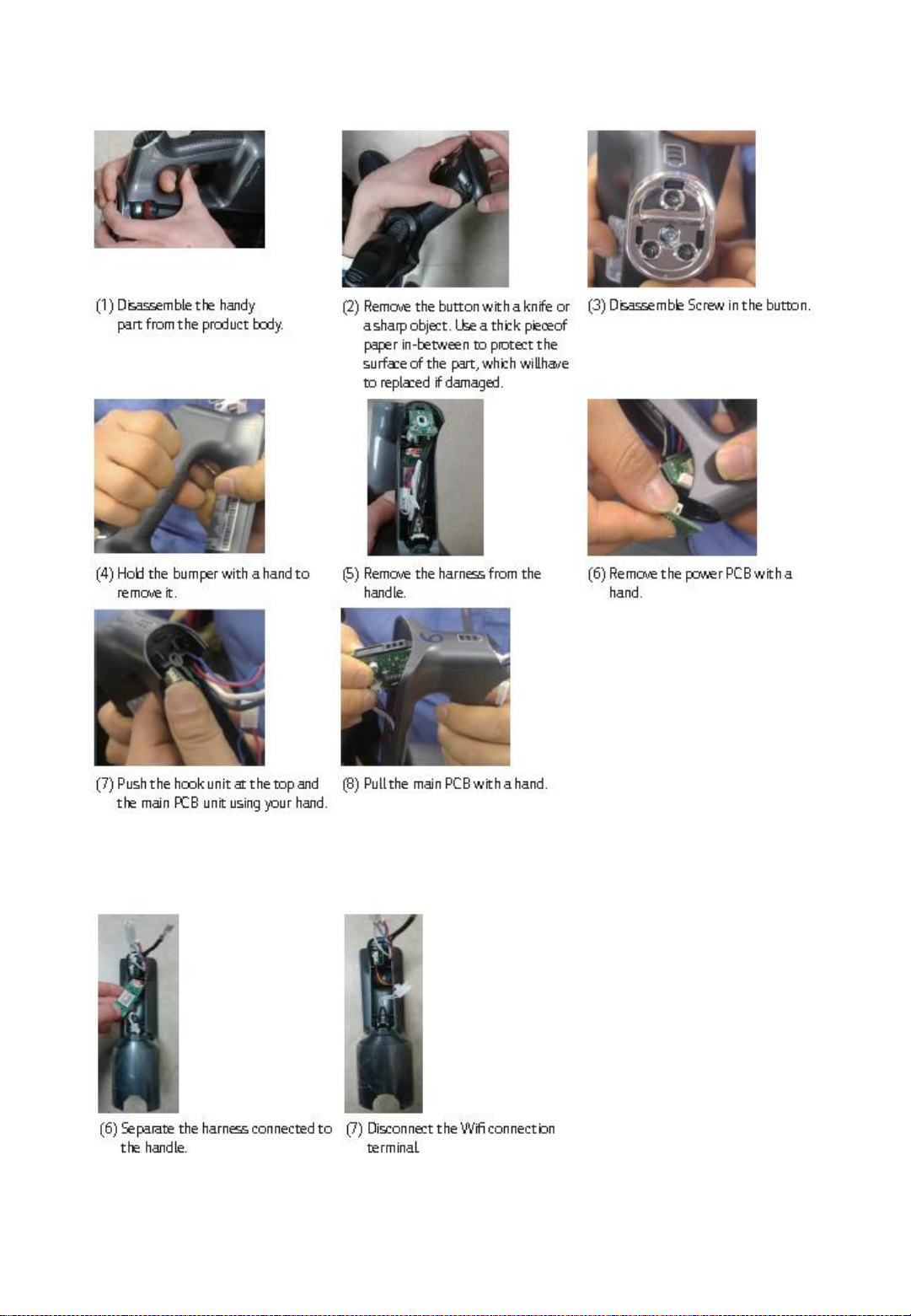

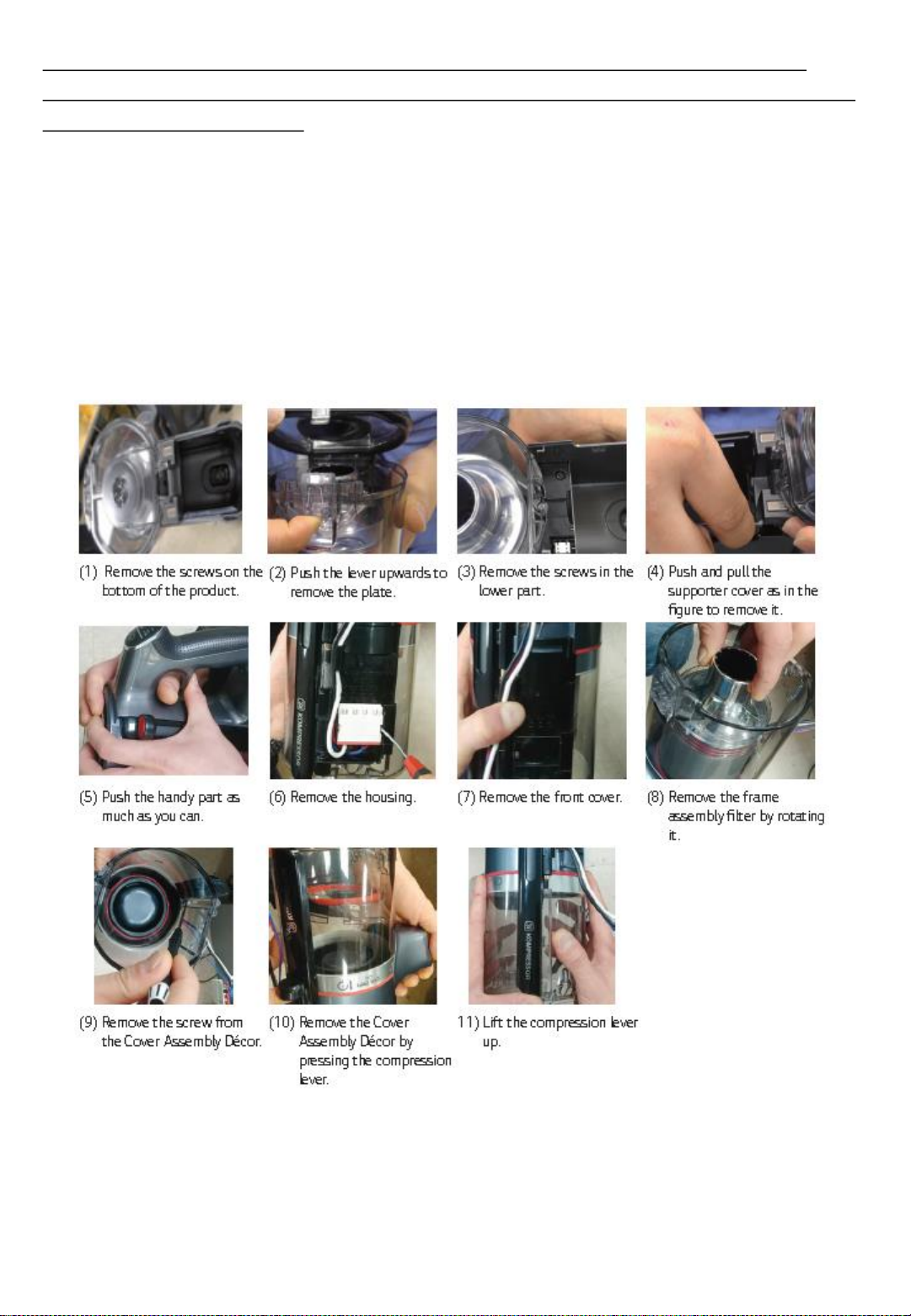

- Handy parts

4

2. How to disassemble/dismantle parts

- Main PCB

- Wifi PCB

5

2. How to disassemble/dismantle parts

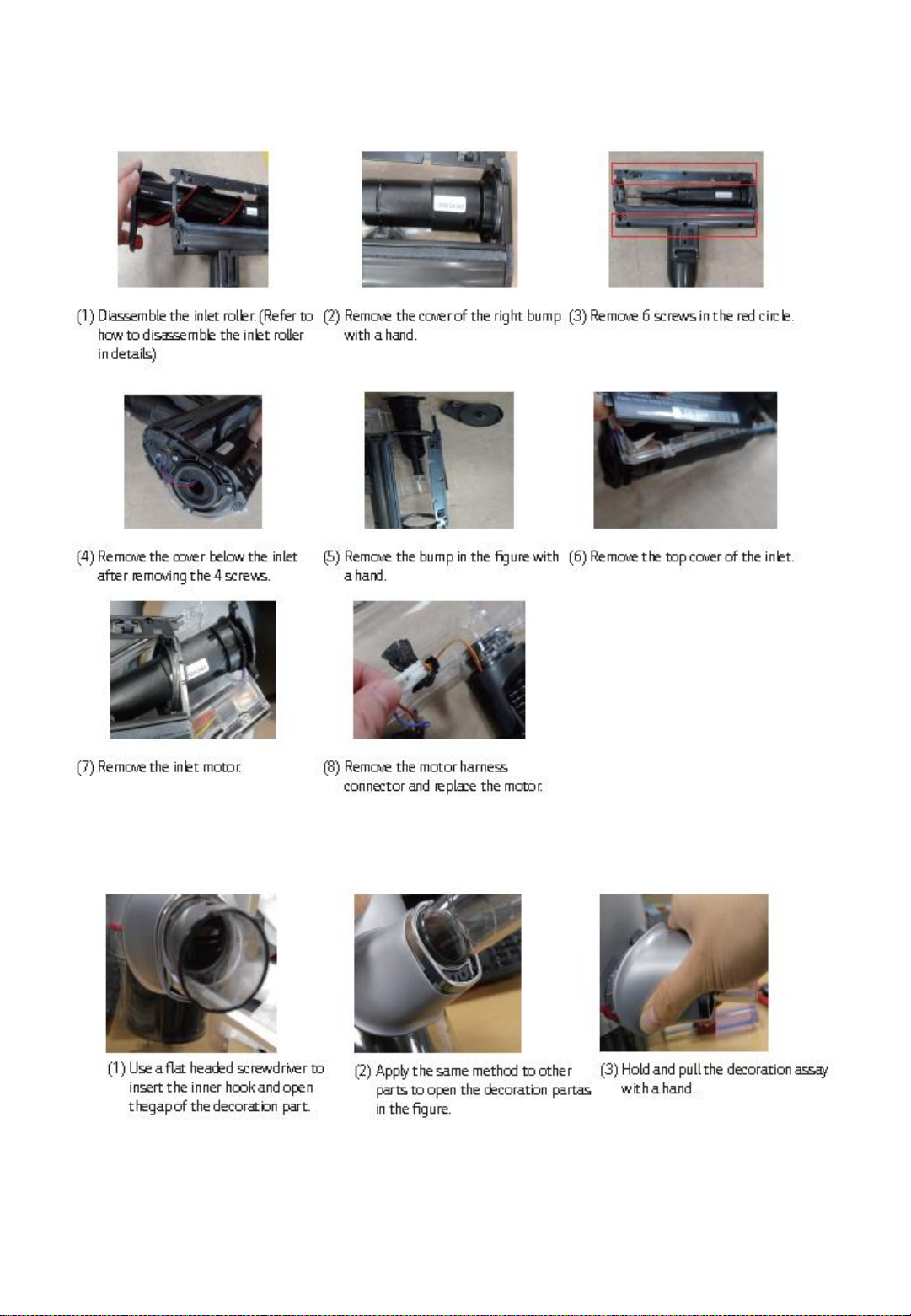

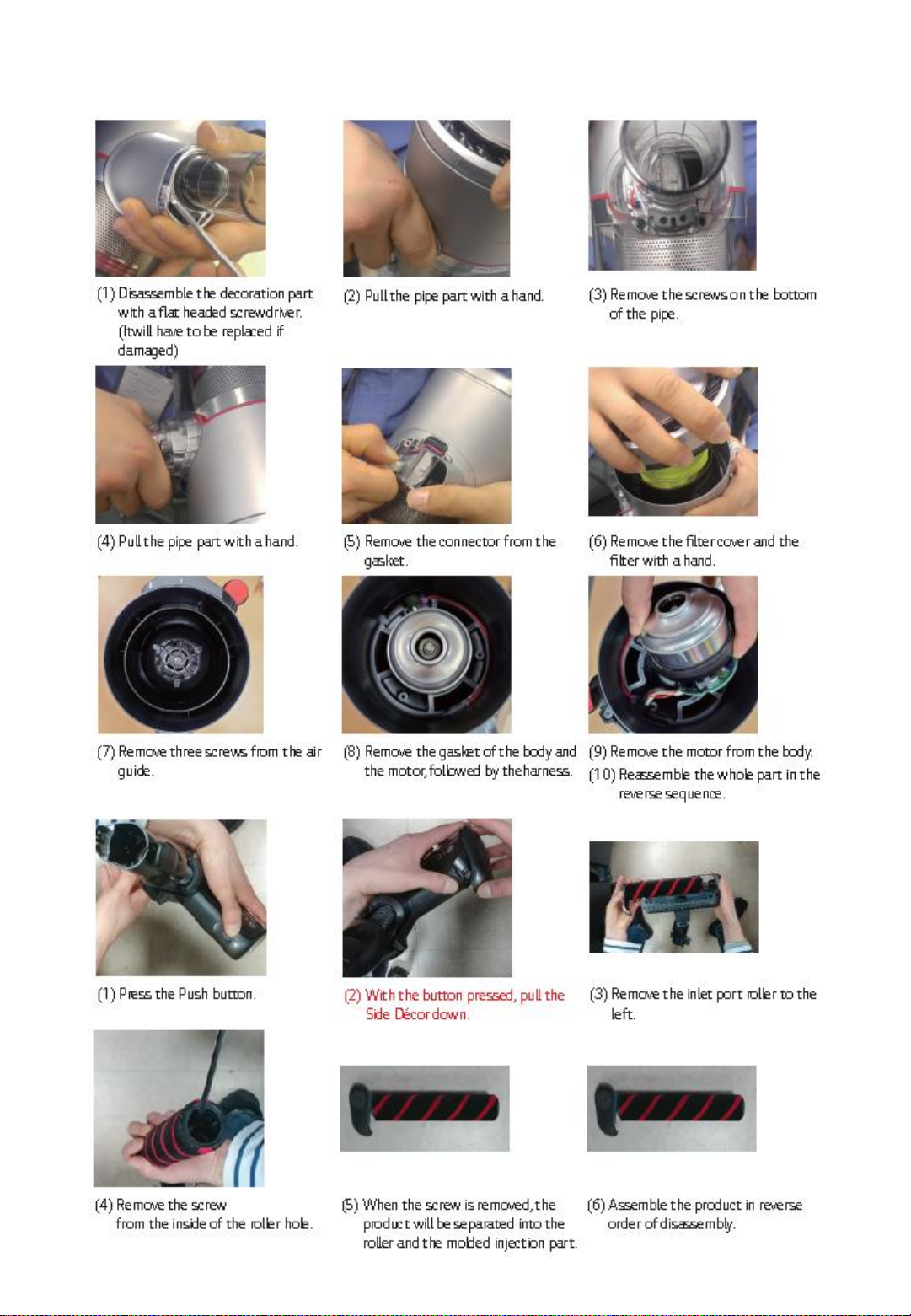

- Motor

- Inlet(Silm)

6

2. How to disassemble/dismantle parts

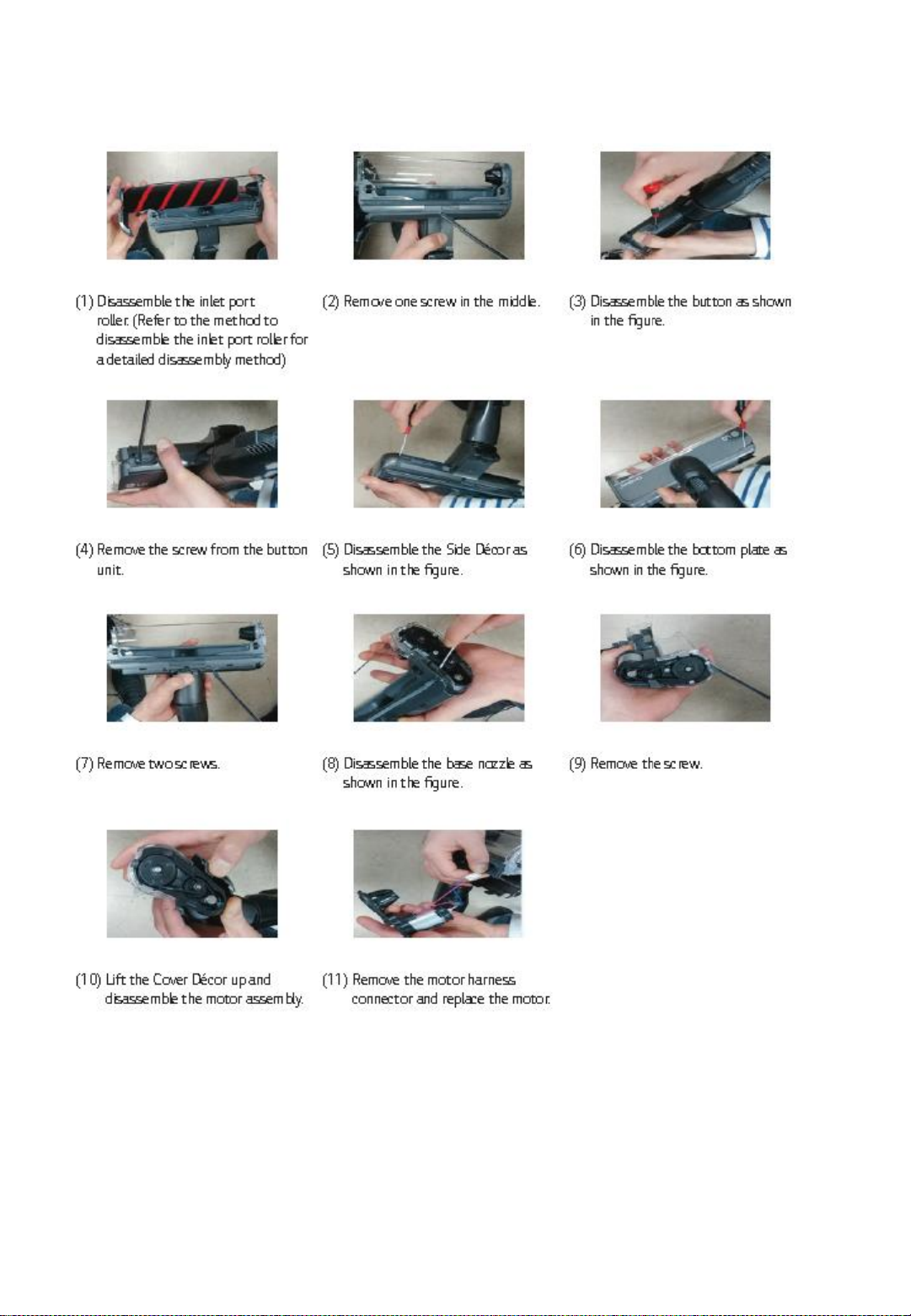

- Inlet(Floor)

7

2. How to disassemble/dismantle parts

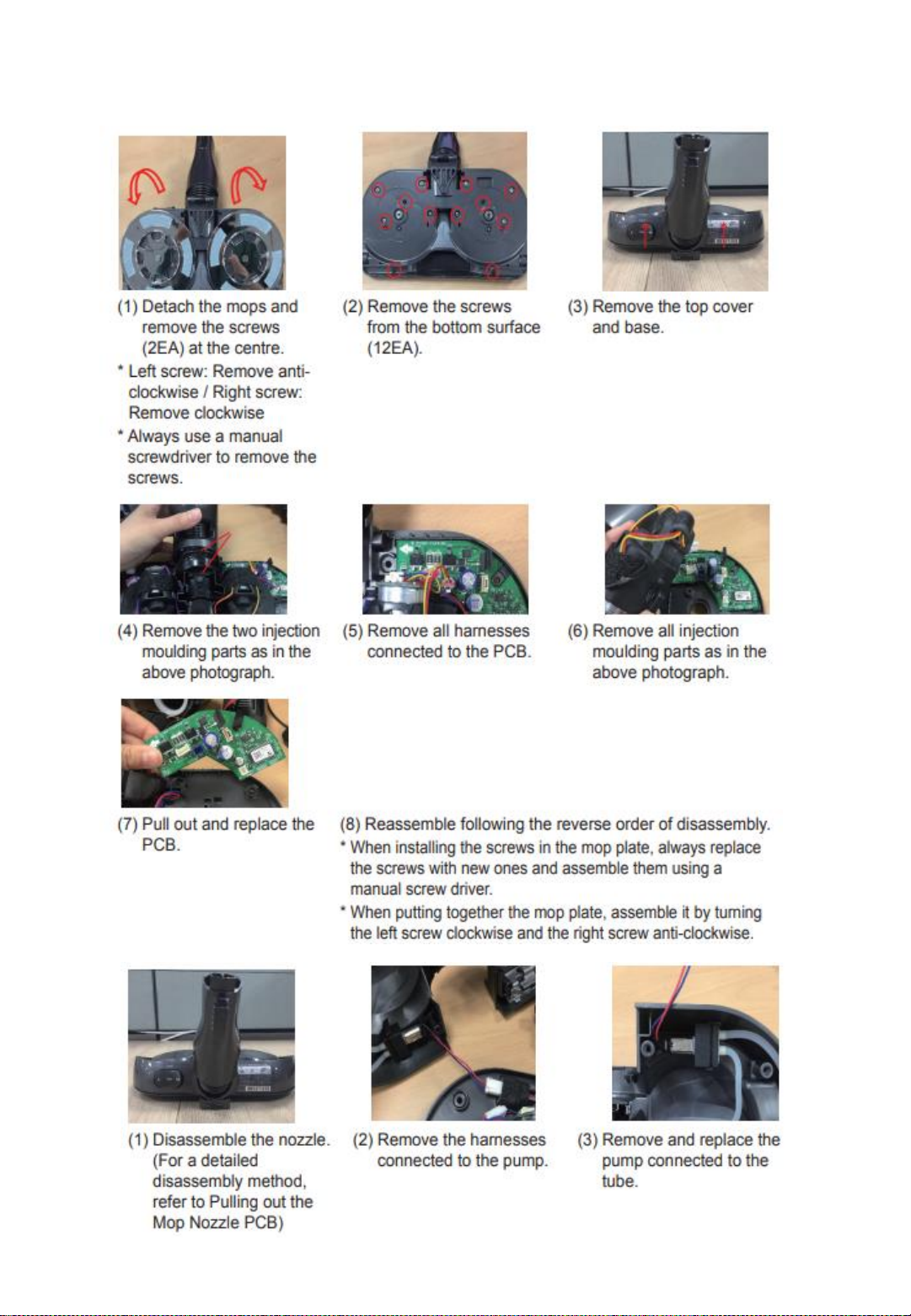

- Inlet(Mop)

8

2. How to disassemble/dismantle parts

- Inlet(Carpet)

- Handy decoration

9

2. How to disassemble/dismantle parts

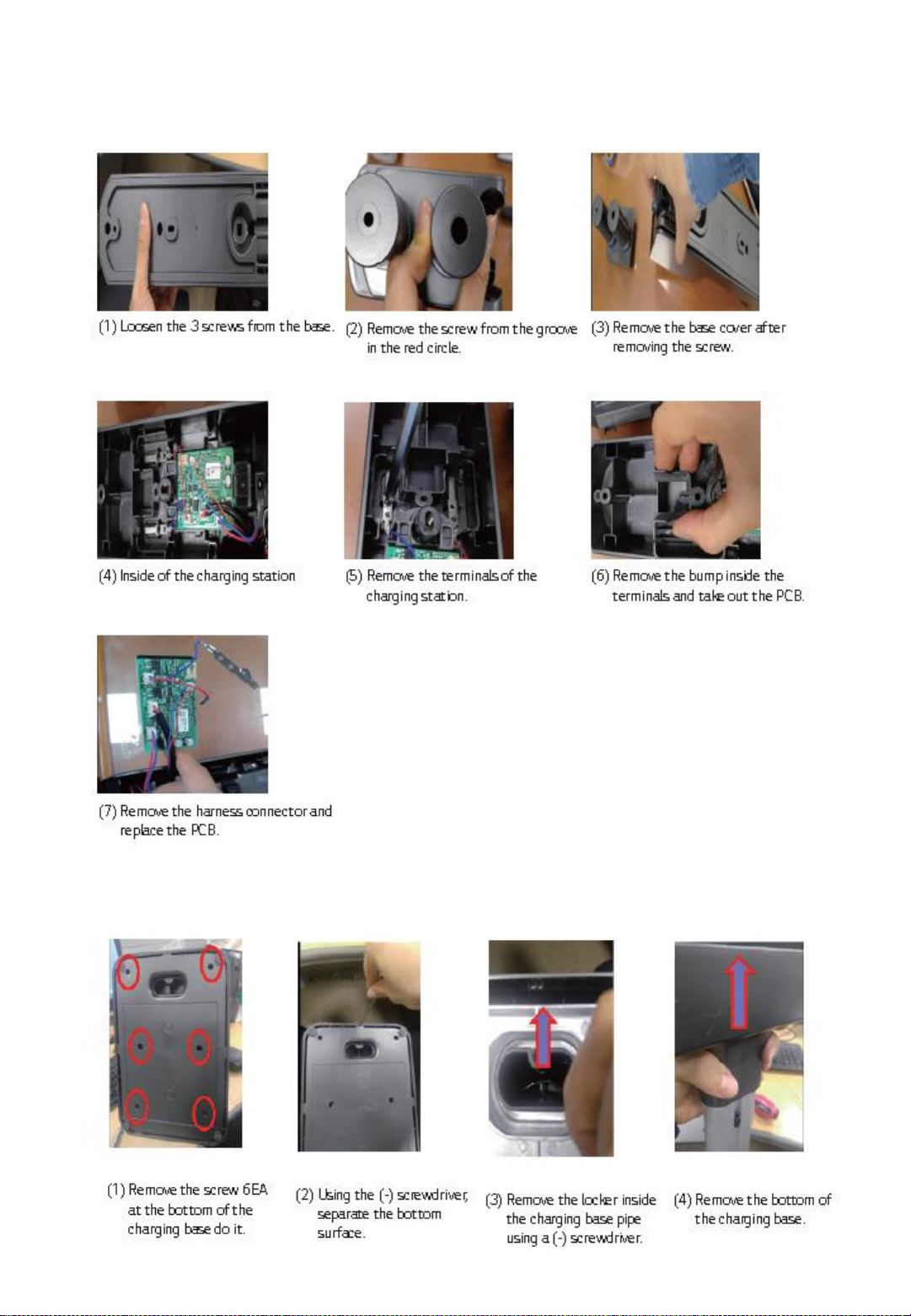

- Charging station(upper)

- Charging station(lower)
