LG NANO77 Series Manuel utilisateur

1. Model Name: 50NANO75SQA

2. Suffix: TR

3. Part No: MFL71833930

4. REV REV00

5. Number of pages 16

6. Folded/Unfolded 3 Folded

7. Trim size (W x H)_Unfolded (mm) 296 x 420 (+/-5)

8. Trim size (W x H)_folded (mm) 148 x 105

9. Bindery -

10. Color (Cover) -

11. Paper (Cover) -

12. Weight (cover) (g/m2)-

13. Color (inner) 4 (CMYK)

14. Paper (inner) Wood free

15. Weight (inner) (g/m2)70 (+/-10)

16. Coating No

17. Thomson No

18. Sub-material No

[Country Name]

LGERS/ LGEMX : Mexico

LGEKR: Korea

Changes the Country name. LGEMA: Poland

Printed in [Country Name] LGEIL: India

Others: Each Country name.

[Restriction of Hazardous Substances ]

Hazardous substances on this product should be satisﬁed by substance regulation of Level A-I, A-II, SVHC according to LG(52)B—5011 standard.

(1) Hazardous substances test report should be submitted when part certiﬁcation test and ﬁrst mass production.

(2) Especially, Don’t use or contain lead (Pb) and cadmium (Cd) in ink.

REV07

REV06

REV05

REV04

REV03

REV02

REV01 02/17/2022 EKLM200193

Checked : Aditya.K

Approved : Nitin.H

Rev. Number Date ECO Number Owner Aditya.K

3. History

2. Origin Notification

ENG

19. Languages

Printing Speciﬁcation

1. Specification 1.1 Folding / Cover

Models

SIZE

COVER

INNER

Description

NOTE Especially, Part should be followed and controlled the following speciﬁcation.

Added the new models (50/55/65NANO756QA)

12/02/2021

Sanghee Park

REV00

296 mm

Front

Back

420 mm

105 mm

148 mm

Folding Step

Folded Barcode

NANO73*

NANO75*

NANO77*

Images shown in manual may vary depending on model

Unpacking

Check your product box for the following items. If there are

any missing accessories, contact the local dealer where you

purchased your product. The illustrations in this manual may

differ from the actual product and item.

*M F L 7 1 8 3 3 9 3 0 2 2 0 4 R E V 0 0*

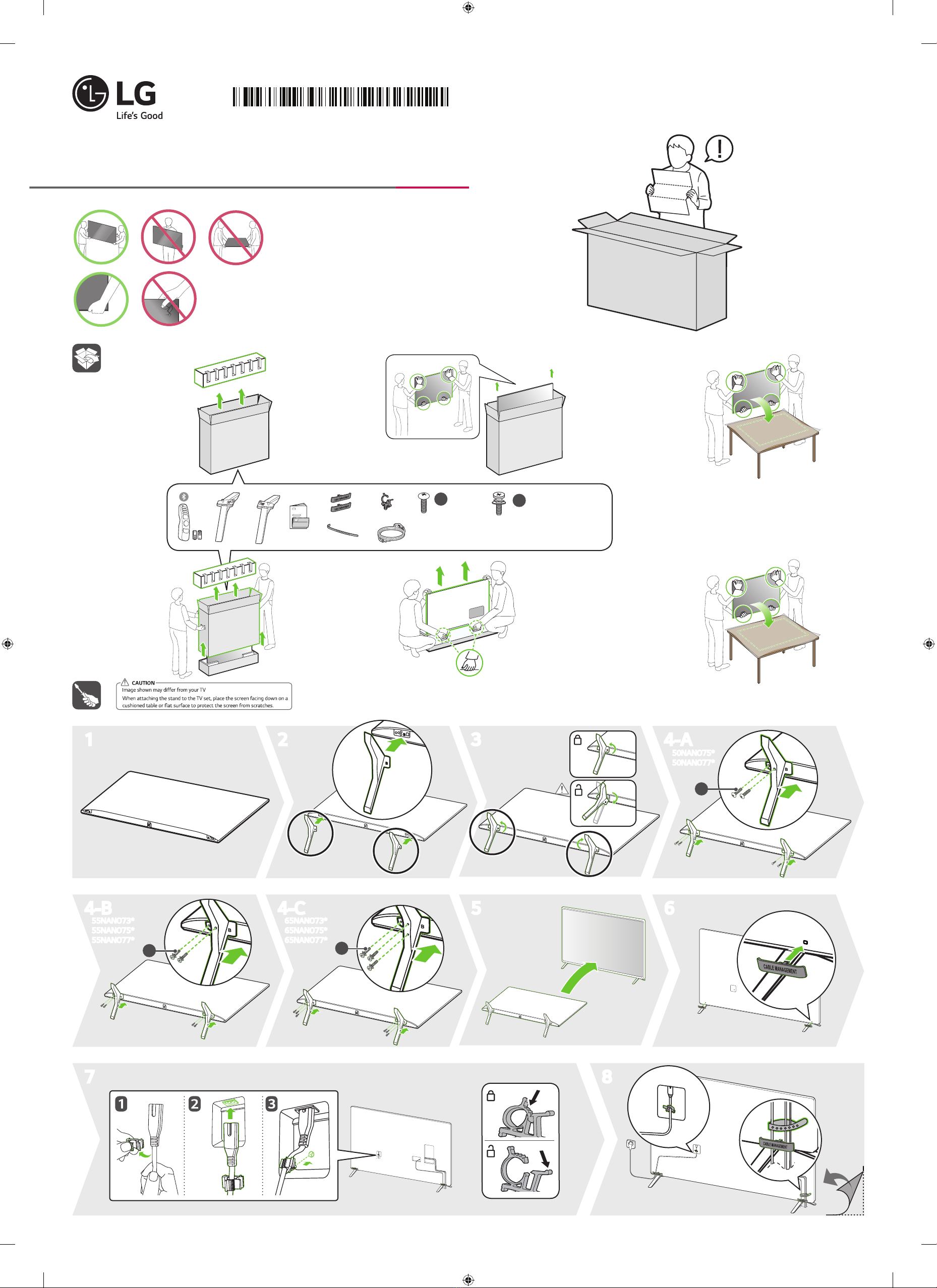

Quick Start Guide

1 2 3 4-A

50NANO75*

50NANO77*

55NANO73*

50/55NANO75*

50/55NANO77*

65NANO73*

65NANO75*

65NANO77*

5 6

7 8

4-B 4-C

55NANO73*

55NANO75*

55NANO77*

65NANO73*

65NANO75*

65NANO77*

1 2 3

321

www.lg.com

bx 4 x 6

(M4 x L20) (M4 x L20)

55NANO73*

55NANO75*

55NANO77*

65NANO73*

65NANO75*

65NANO77*

ax 4

(M4 x L16)

50NANO75*

50NANO77*

90°

A B C D(mm) E

Wallmount 50NANO75*

50NANO77* 200 x 200 M6

Wallmount

55NANO73*

55NANO75*

55NANO77*

300 x 300 M6

Wallmount

65NANO73*

65NANO75*

65NANO77*

300 x 300 M6

10 cm 10 cm

10 cm

10 cm 10 cm

10 cm

10 cm 10 cm

10 cm

10 cm 10 cm

10 cm

The Analog Gender adapter can be purchased separately at Customer Service.

AB C D E F F G

50NANO776QA 50NANO75SQA 1121 708 232 651 57.7 12.4 12.2

50NANO756QA

55NANO776QA 55NANO75SQA 1235 774 232 715 58.1 14.8 14.6

55NANO73SQA 55NANO756QA

65NANO776QA 65NANO75SQA 1454 900 271 838 58.4 22.9 22.6

65NANO73SQA 65NANO756QA

Power requirement

Some USB Hubs may not

work, if a USB device con-

nected using a USB Hub is

not detected, connect it to

the USB port on the TV

directly

Connect the external power

source if your USB is needed.

An external audio device that

supports SIMPLINK and ARC

must be connected using

HDMI IN eARC/ARC port

When connected with a

high-speed HDMI cable, the

external audio device that

supports ARC outputs SPDIF

audio without additional audio

cable and supports the

SIMPLINK function

ARC (Audio Return Channel)

Do not look into the optical

output ports, looking at the

laser beam may damage

your vision

Audio with ACP (Audio Copy

Protection)function may

block digital audio output.

Some USB Hubs may not

work, if a USB device con-

nected using a USB Hub is

not detected, connect it to

the USB port on the TV

directly

Connect the external power

source if your USB is needed.
