OWNER’S MANUAL

MONITOR TV

MONITOR TV MODELS

M197WA

M197WAE

www.lge.com

Please read this manual carefully before operating

your set and retain it for future reference.

ENGLISH

Before Connecting to the PC

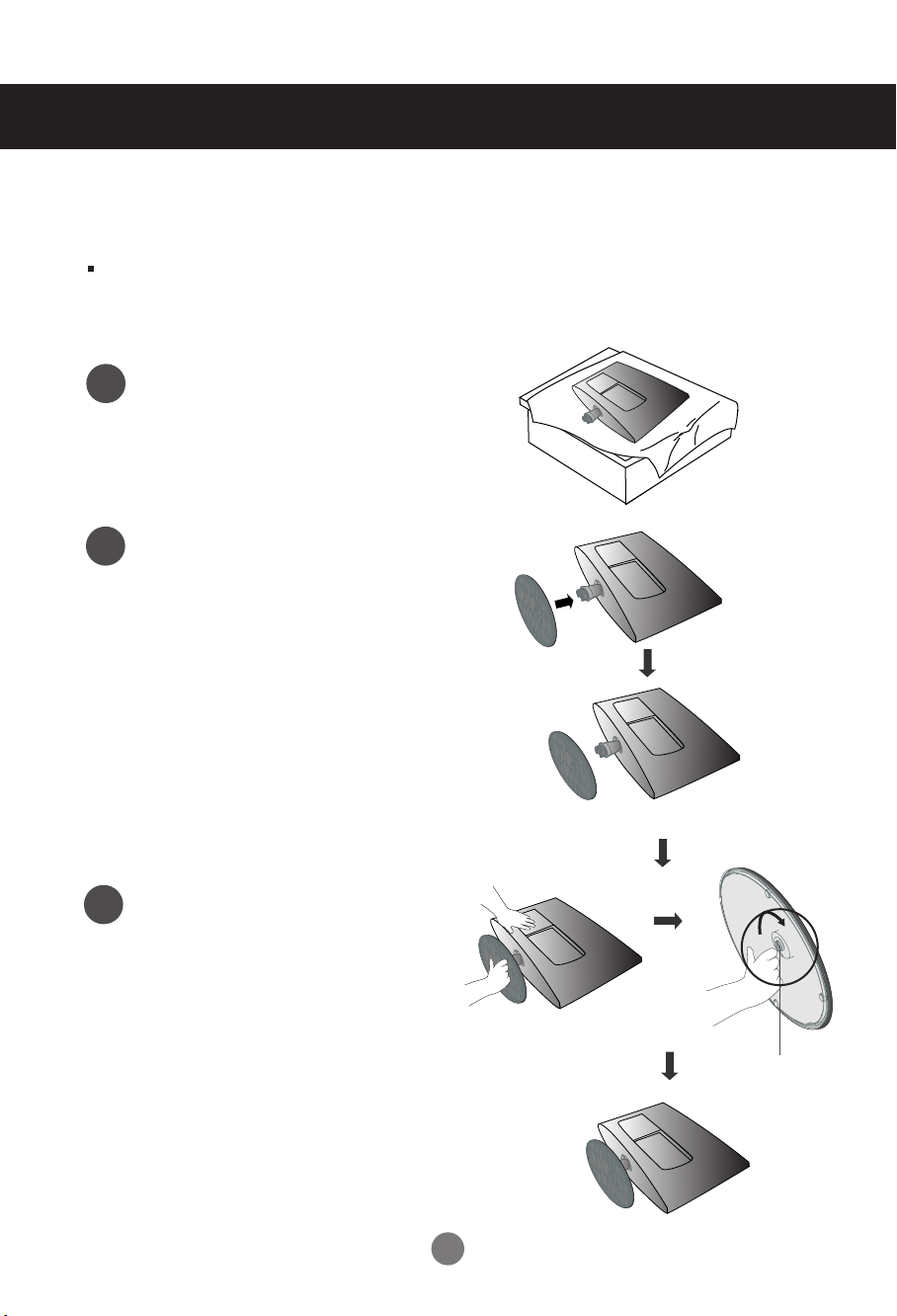

Stand Installation

Before setting up the product, ensure that the power supply, the computer system,

and other attached devices is turned off.

Carefully place the product screen side

down on a cushioned surface that will

protect product and screen from damage.

Insert the stand base into the product

Attach the monitor to the Stand Base

by turning the screw to the right.

* Turn the screw by using the screw

handle

Screw

Before Connecting to the PC

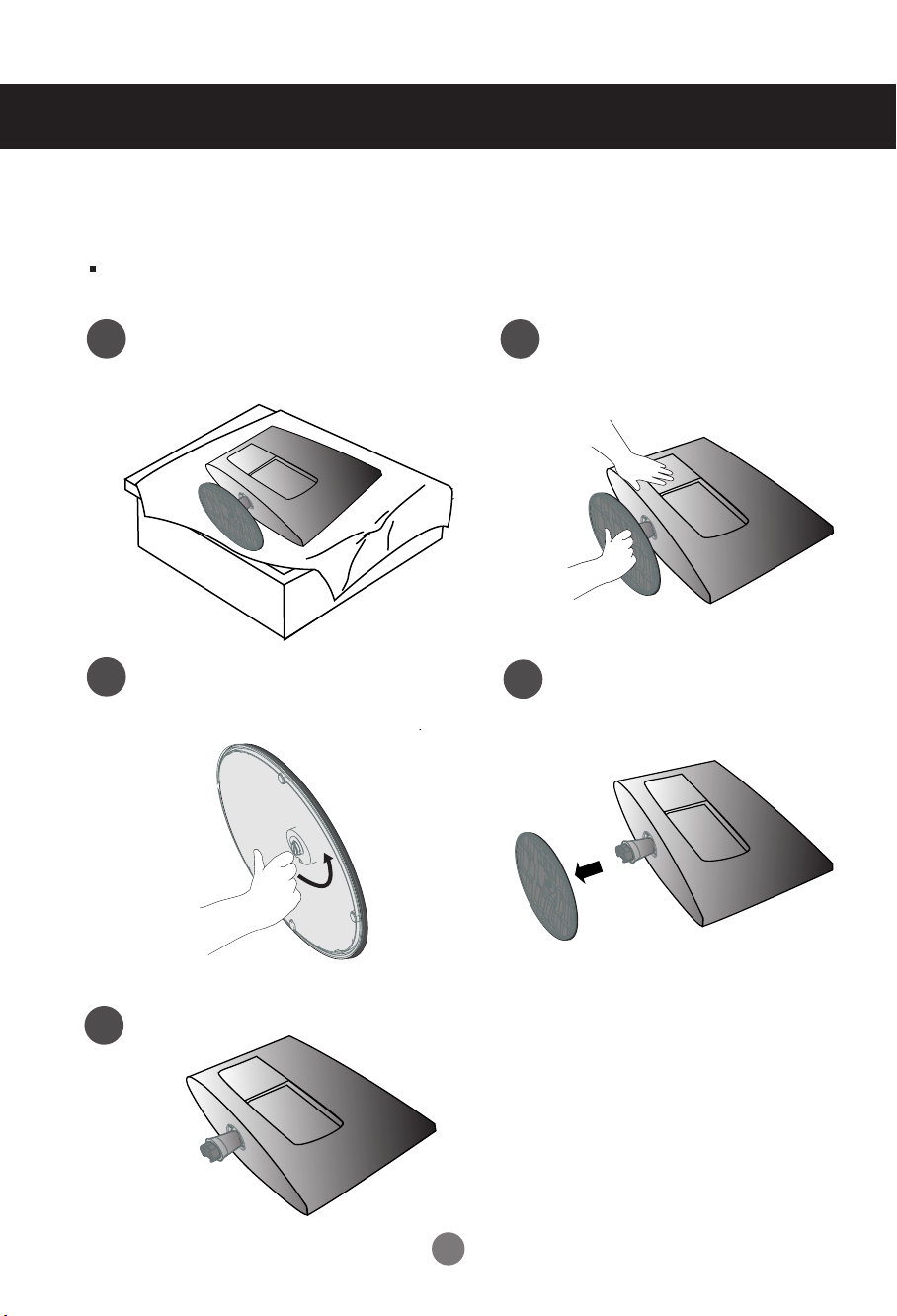

Detaching Stand

Before setting up the product, ensure that the power supply, the computer system,

and other attached devices is turned off.

Place the set screen side down on a

cushion or soft cloth. Detach the monitor to the Stand

Base by turning the screw to the left.

Turn the screw by using the screw handle 4

Pull the stand base.

Before Connecting to the PC

Before setting up the product, ensure that the power supply, the computer system,

and other attached devices is turned off.

Positioning your display

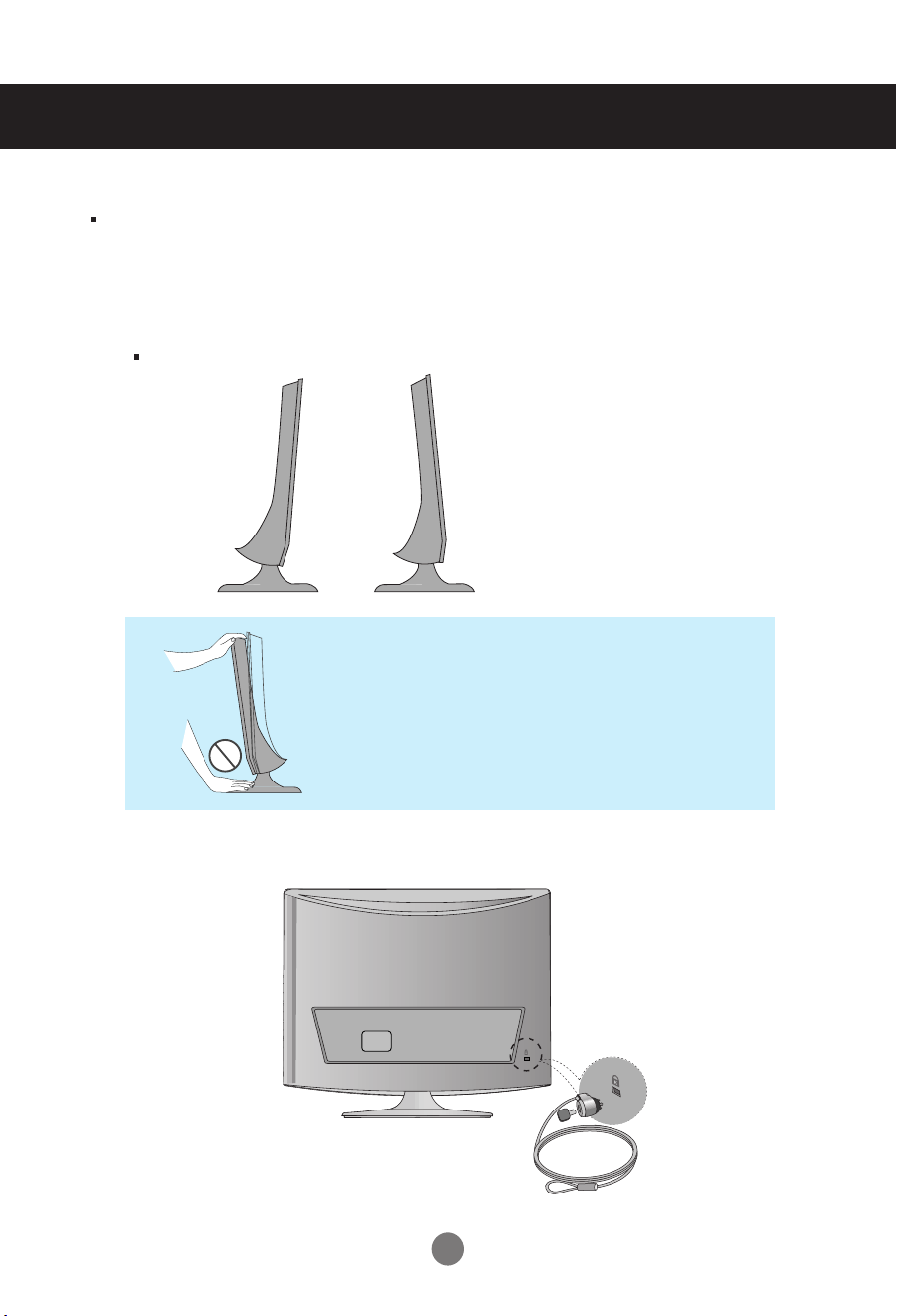

1. Adjust the position of the panel in various ways for maximum comfort.

Tilt Range

Warning:

When adjusting the angle of the screen, do not put

your finger(s) in between the head of the monitor

and the stand body. You can hurt your finger(s).

Locking Device

Use this locking cable

(This has to be purchased

separately if required.

) to prevent theft.

Theft prevention locking device

-6

to -2

to 18

Before Connecting to the PC

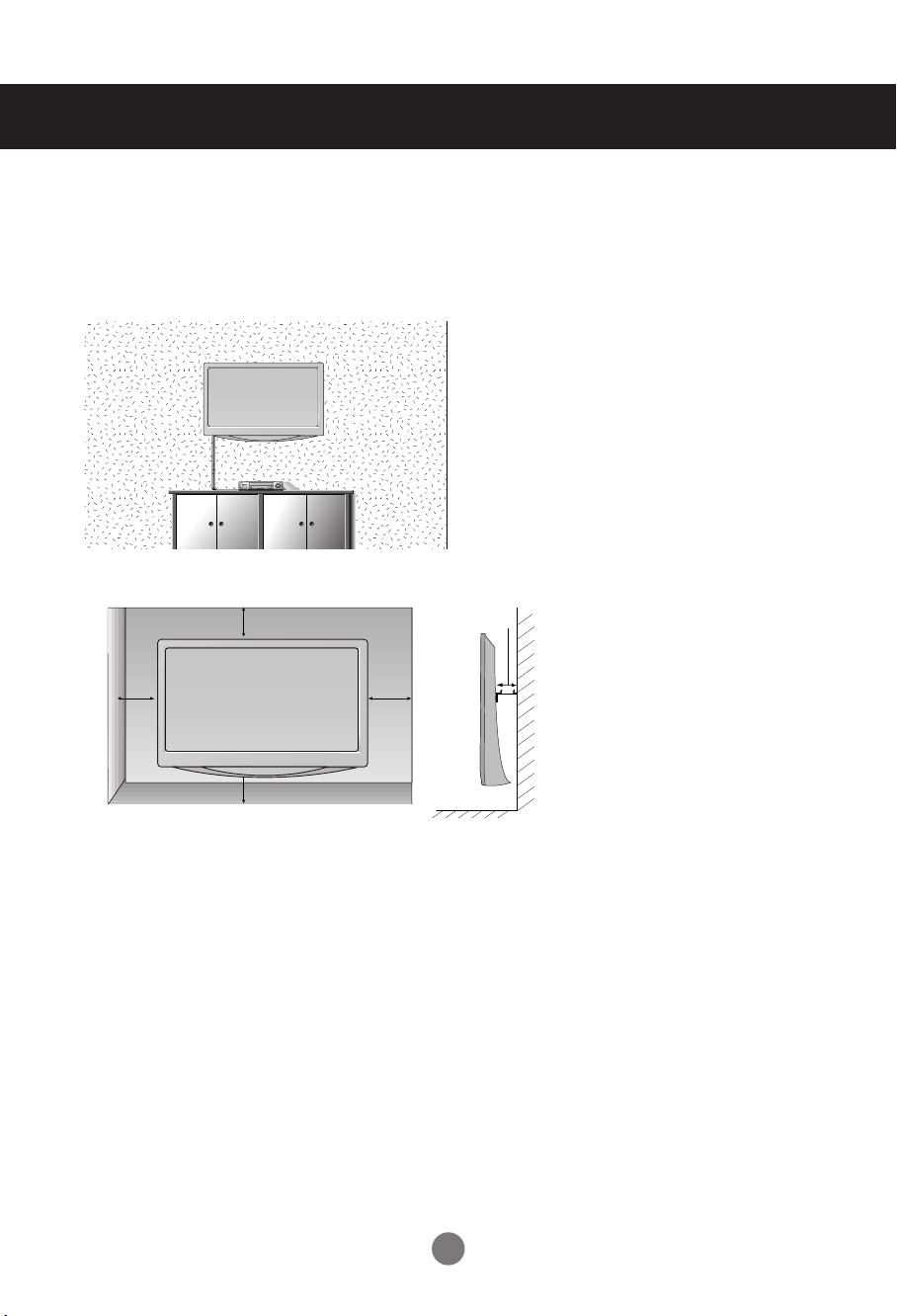

WALL MOUNT:HORIZONTAL INSTALLATION

For proper ventilation,allow a clearance of 10 cm on each side and from the wall. Detailed installation

instructions are available from your dealer,see the optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

LOCATION

Position your set so that no bright light or sunlight falls directly onto the screen. Care should be taken

not to expose the set to any unnecessary vibration, moisture, dust or heat. Also, ensure that the set is

placed in a position to allow a free flow of air. Do not cover the ventilation openings on the back cover.

If you intend to mount the set to a wall, attach Wall mounting interface (optional parts) to the back of the

set. When you install the set using the wall mounting interface (optional parts), attach it carefully so it

will not drop.

- Be sure to use screws and a wall mount that meet VESA standards.

- Using screws longer than those recommended might damage the product.

- Using screws that do not meet VESA standards might either damage the product or result in it coming

away from the wall. We will not be held responsible for any damage resulting from failure to follow

these instructions.

100 mm x 100 mm hole spacing

10 cm

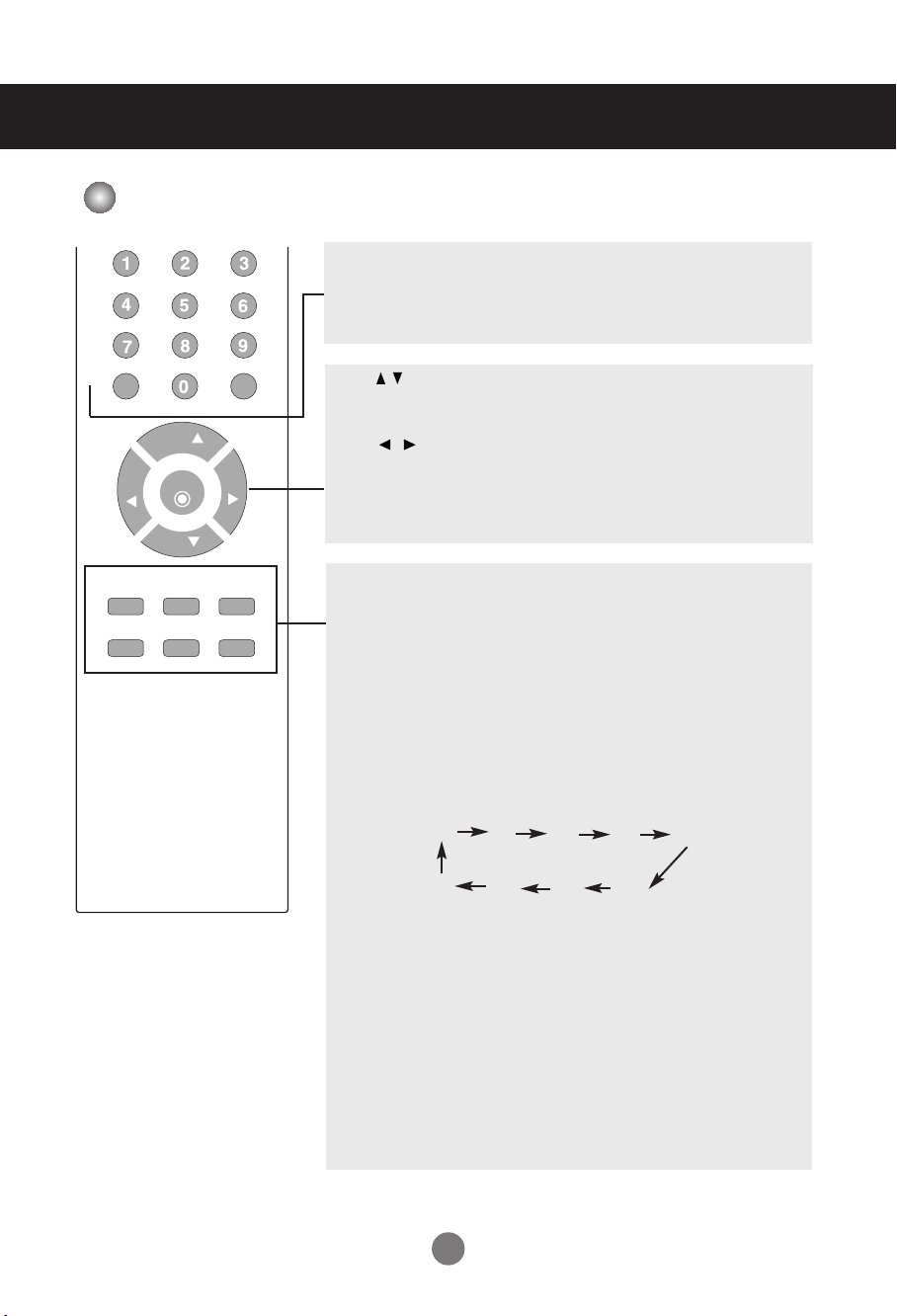

Name and Function of the Parts

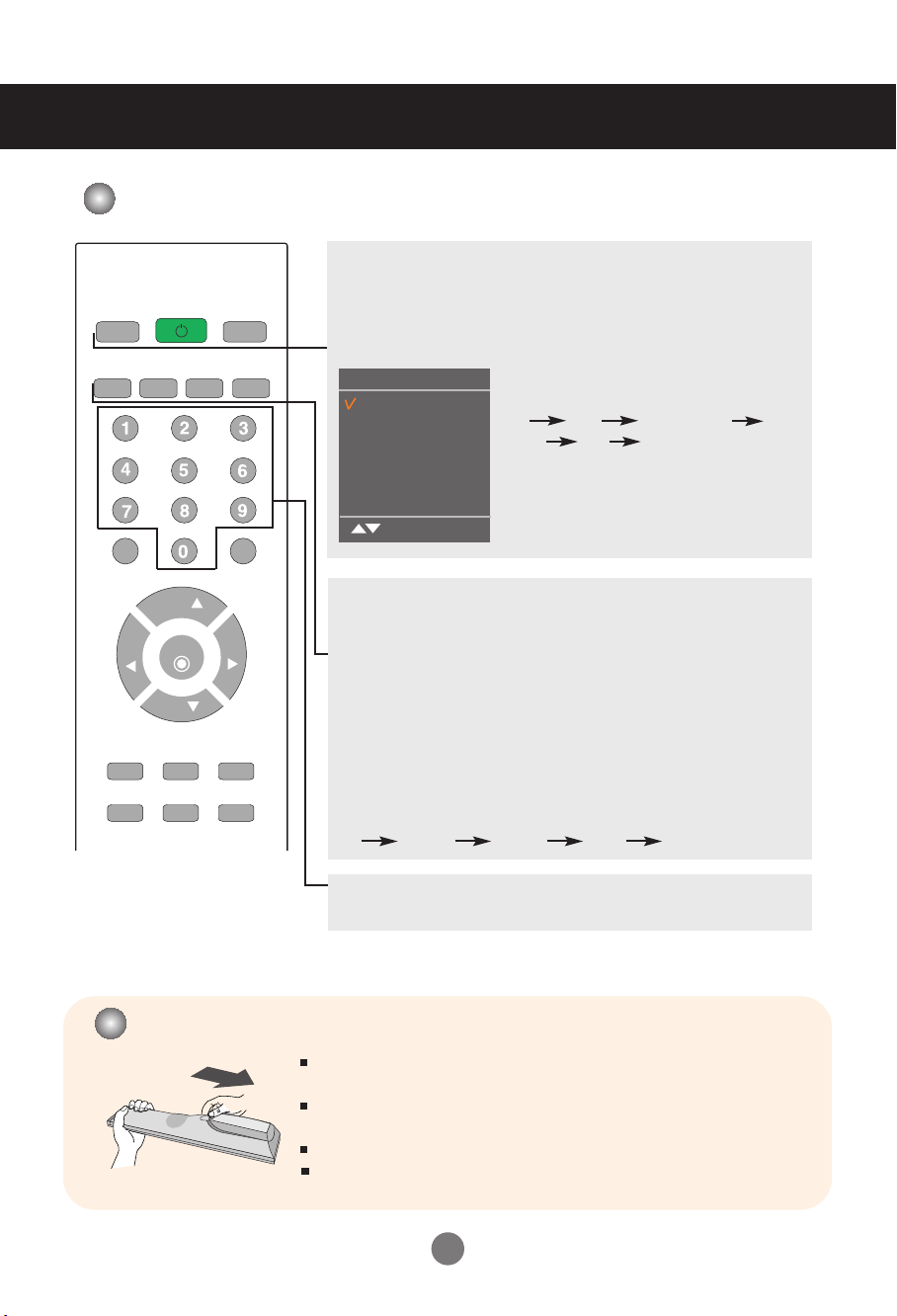

Name of the Remote Control Buttons

Open the battery compartment cover on the back and install the

batteries matching correct polarity (+ with +, - with -)

Install two 1.5 V AAA batteries. Don't mix old or used batteries with new

ones.

Close cover.

To remove the batteries, prefrom the installation actions in reverse.

Inserting batteries into remote control.

TV/PC :

Selects TV or PC mode.

Switches the set on.

POWER

INPUT

Each time you press the Input button it will

change to

TV AV Component

RGB DVI HDMI

If nothing is inputted for several seconds the

screen will automatically move to the

selected menu.

Number buttons

Able to directly select and change channel.

MTS

Press repeatedly to select Mono, Stereo, SAP sound tone.

But Stereo, SAP mode are available only if included on the broadcast signal.

A.PROG

Auto Channel Button

PC: Automatic adjustment function (Operational for the analog signal only)

MEMORY/ERASE

User can do manual channel selection and store or erase individual

channels.

CAPTION

Select a closed caption

Off Mode1 Mode2 Text1 Text2

Input

Component

RGB

DVI

HDMI

POWER

TV/PC

INPUT

ENTER

MTS

MUTE

FCR

REVIEW

MEMORY/ERASE

CAPTION

A.PROG

SLEEP

APC

DASP ARC/

VOL

Name and Function of the Parts

Name of the Remote Control Buttons

ENTER

MUTE

FCR

REVIEW SLEEP

APC

DASP ARC/

VOL

CH ( ) Buttons

Up and Down Button.

Able to change channel.

VOL ( ) Buttons

Volume Button

ENTER Button

Use when functional adjustment is completed.

Use this button to enter the On Screen Display menu.

REVIEW

Turn to the last channel viewed.

SLEEP : SLEEP Timer

You can set a time period after which the all modes should switch

itself to standby.

Press the key repeatedly to select the number of minutes.

APC Button

(Auto Picture Control)

Press repeatedly to select Clear, Optimum, Soft, User picture mode.

DASP Button

(Digital Auto Sound Processing)

Use this button to select the sound tone.

Press repeatedly to select Flat, Music, Movie, Sports, User

sound tone.

ARC/*

To select the image size of the screen.

•

When TV, AV mode: 16:9, Horizon, Zoom1,Zoom2, 4:3

•When RGB/DVI/HDMI/Component mode

: 16:9, 4:3

10 20 30 60

240 180 120 90

_ _ _ (off)

MUTE

Switches the sound on or off.

FCR

Favorite channel button.

Name and Function of the Parts

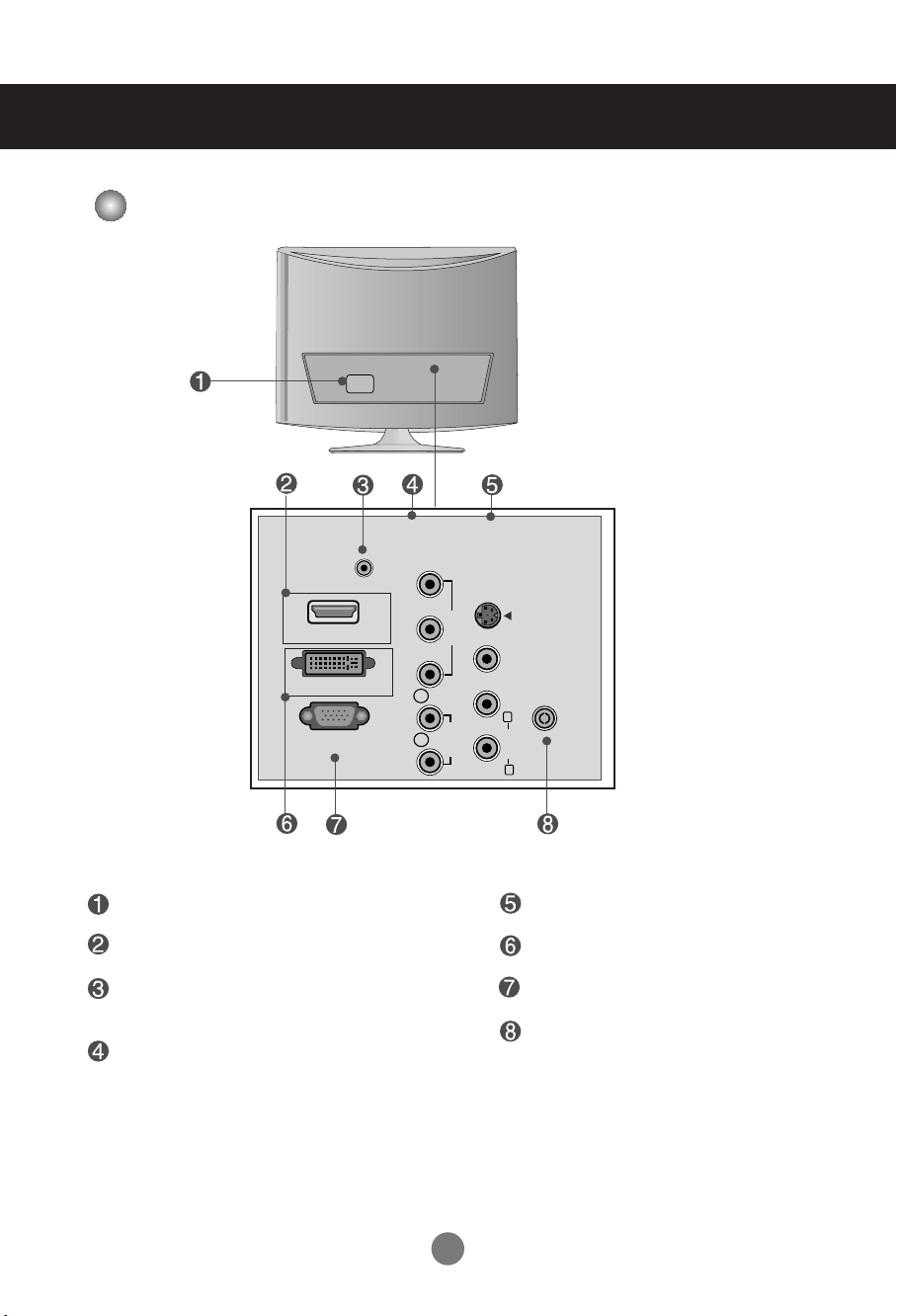

Rear View

AC IN

AUDIO IN

(RGB/DVI)

VIDEO

COMPONENT

AV IN

VIDEO AUDIO

(MONO)

S-VIDEO

AUDIO

HDMI IN

AC IN

ANTENNA/

CABLE IN

RGB IN (PC)

AC IN

DVI-D IN (PC)

Power Connector : Connect the power cord.

HDMI Digital Signal Connector

RGB, DVI Sound Jack : Connect to the jack in

the PC sound card.

Component Input Terminal

AV Input Terminal

DVI Digital Signal Connector

D-Sub Analog Signal Connector

TV Tuner Jack : Connect the antenna.

Name and Function of the Parts

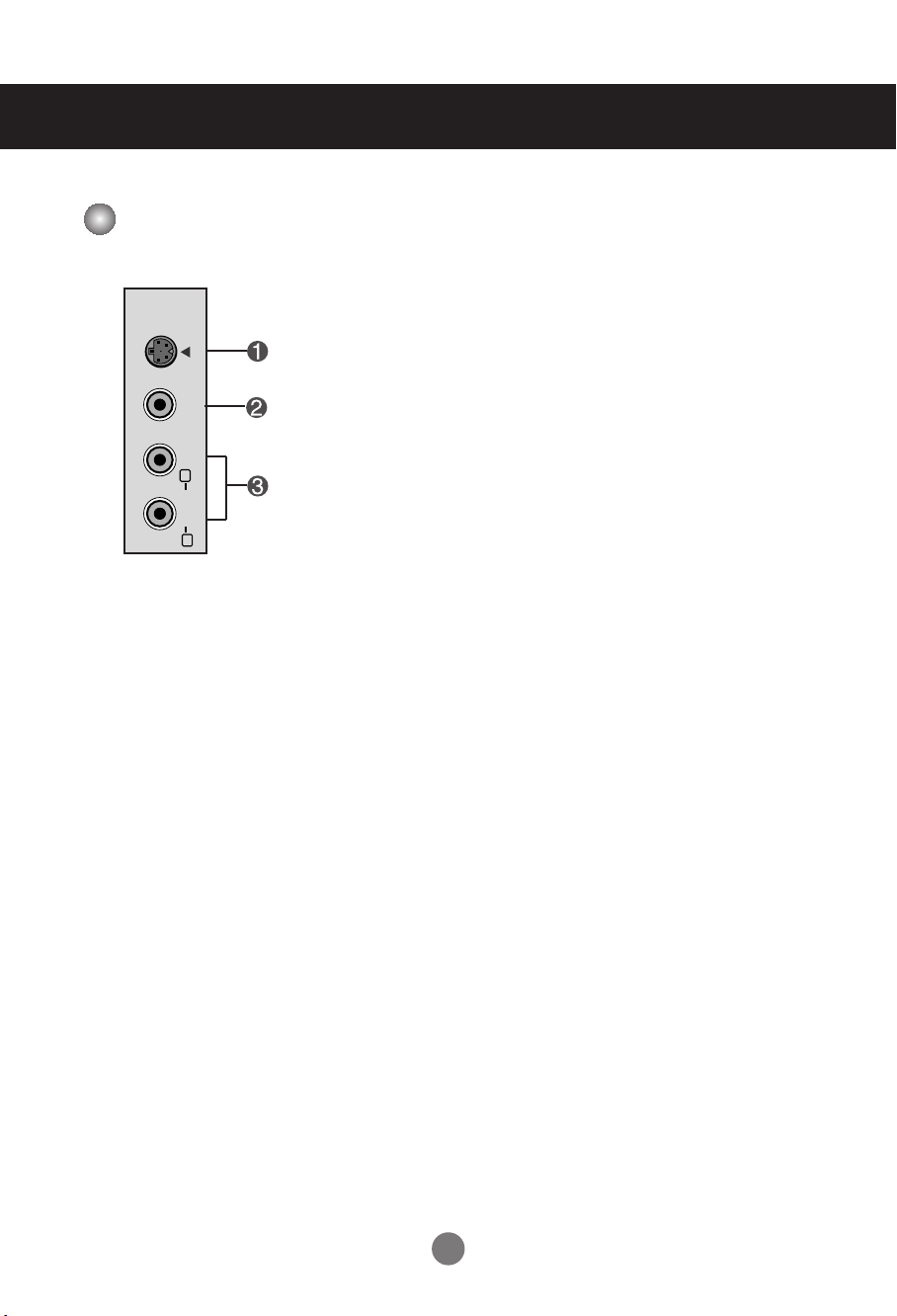

AV Input Terminal

VIDEO AUDIO(MONO)

S-VIDEO

AC IN

Audio Input Terminal

Video Input Terminal

S-Video Input Terminal
