OWNER’S MANUAL

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the back cover and quote this infor-

mation to your dealer when you require service.

Model number :

Serial number :

Contents

Installation 3

Location and function of controls 4

Remote control handset

Battery installation

Front panel / Side panel

Basic operation 7

On and off / Programme selection

Volume adjustment / Quick view

Mute function

On screen language selection (option)

On screen menus 8

Menu selection

Setting up TV stations 9

Auto programme tuning

Manual programme tuning

Programme edit

Favourite programme

Calling the programme table

Picture adjustment 15

PSM (Picture Status Memory)

Picture adjustment / Eye (option)

Turbo picture selection (option)

Sound adjustment (option) 17

SSM (Sound Status Memory) / Sound adjustment

Turbo sound selection (option)

Sound output selection (option)

Stereo/Dual reception (option)

NICAM reception (option)

Time setting 20

Setting the clock / Setting the On/Off timer

Auto sleep

Other functions 21

TV and AV modes / Auto AV switching (option)

Child lock / Blue back (option) / Tilt (option)

Degaussing (option) / Games (option) / Sleep timer

Teletext (option) 24

Switch on/off / SIMPLE text

TOP text (option) / FASTEXT / Special teletext functions

Connection of external equipment 27

Aerial socket

Audio/Video in/out sockets (option)

Euro scart socket (option)

S-video/Audio in sockets (S-AV) (option)

Component in sockets (option)

Headphone socket (option)

Troubleshooting check list 31

Installation

Power

This set operates on an AC mains supply, the voltage is as indicat-

ed on the label on the back cover. Never apply DC power to the set.

In the event of thunderstorms or powercuts, please pull out the aer-

ial and mains plugs.

Warning

To prevent fire or shock hazard, do not expose the set to rain or

moisture.

Do not place anything containing liquid on top of the set, this may

cause a fire or could give an electric shock.

Service

Never remove the back cover of the set as this can expose you to

very high voltage and other hazards. If the set does not operate

properly, unplug it and call your dealer.

Aerial

Connect the aerial cable to the socket marked +75

Ω

on the back

cover. For the best reception an outdoor aerial should be used.

Location

Position your set so that no bright light or sunlight falls directly onto

the screen. Care should be taken not to expose the set to any

unnecessary vibration, moisture, dust or heat. Also ensure that the

set is placed in a position to allow a free flow of air. Do not cover

the ventilation openings on the back cover.

All the functions can be controlled with the remote control handset.

Some functions can also be adjusted with the buttons on the front

panel of the set.

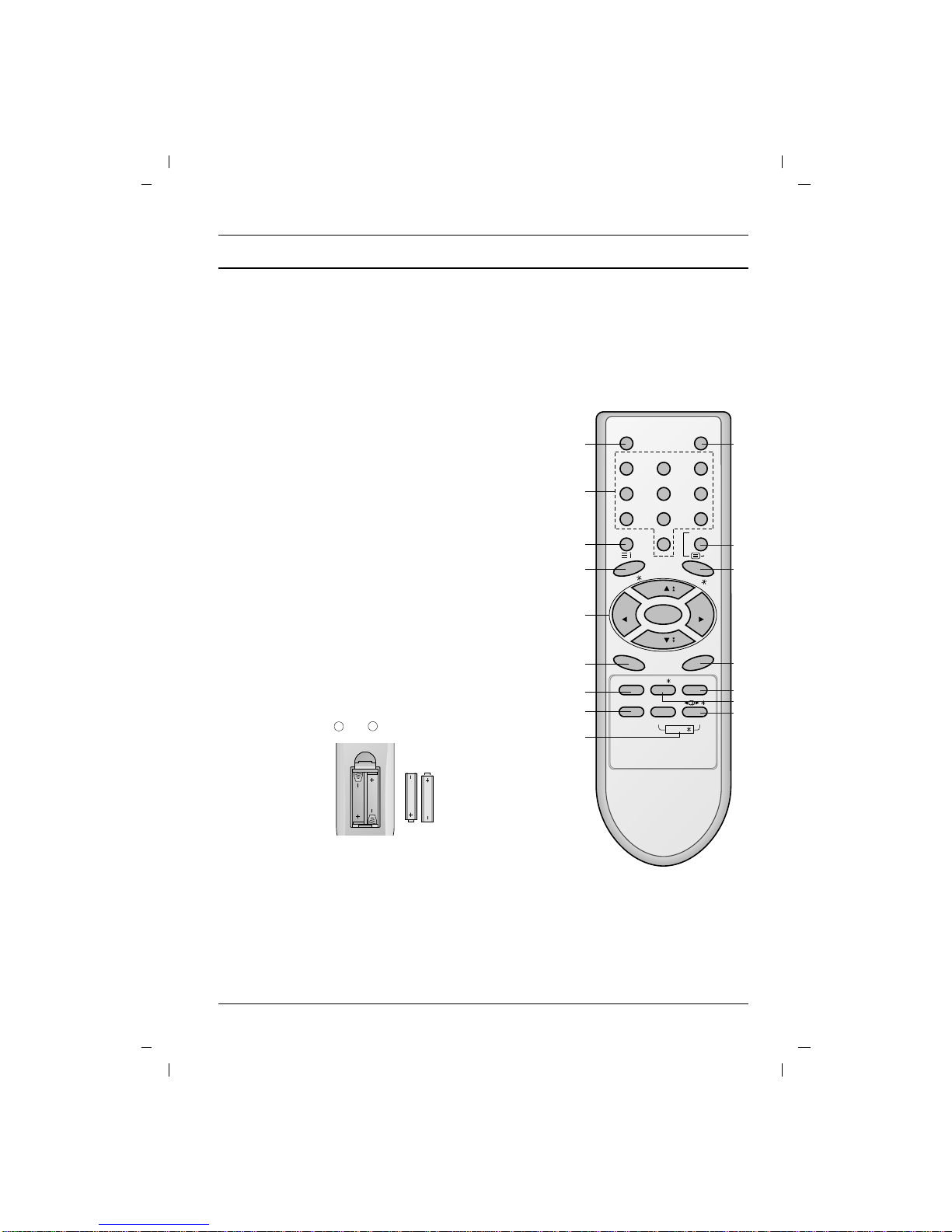

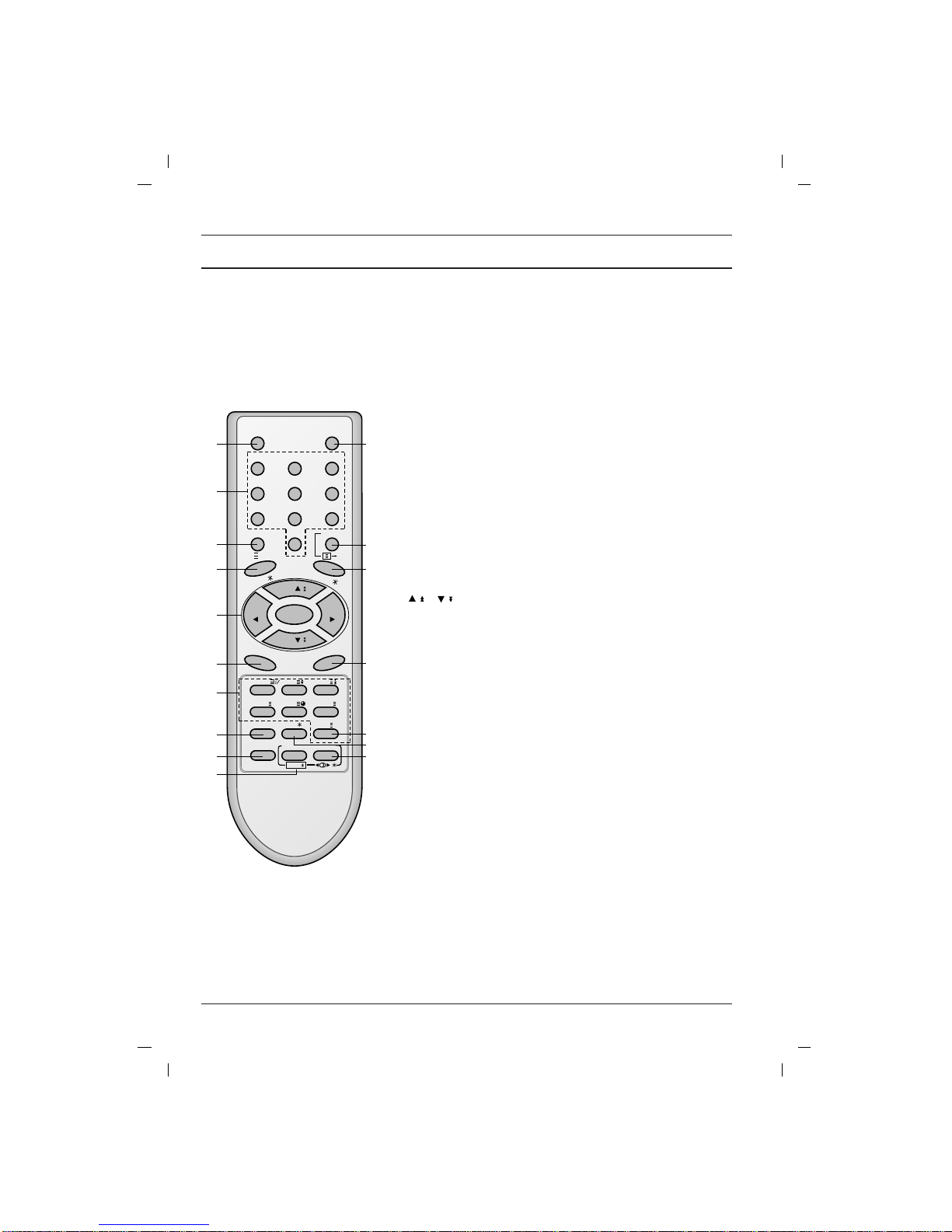

Remote control handset

Before you use the remote control handset, please install the bat-

teries. See the next page.

1. POWER

switches the set on from standby or off to standby.

2. NUMBER BUTTONS

switches the set on from standby or directly select a number.

3. MENU (or INDEX)

selects a menu.

selects an index page in the teletext mode (only TELETEXT

models). (option)

4. EYE/*(option)

switches the eye function on or off.

5. / (Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

scans programmes automatically.

FF/ GG(Volume Up/Down)

adjusts the volume.

adjusts menu settings.

accepts your selection or displays the current mode.

6. Q.VIEW

returns to the previously viewed programme.

7. TELETEXT BUTTONS (option)

These buttons are used for teletext.

For further details, see the ‘Teletext’ section.

8. PSM (Picture Status Memory)

recalls your preferred picture setting.

9. FAVOURITE

selects a favorite programme.

10. TURBO PICTURE / SOUND BUTTON (option)

selects Turbo picture and sound.

Location and function of controls

( )

POWER MUTE

123

456

789

MENU/INDEX

TV/AV

TEXT/MIX/ SIZE/ HOLD/

EYE/

Q.VIEW

LIST

I / II /

( )

OK VOLVOL

UPDATE/

PSM SSM/ SLEEP/ M

TIME/ REVEAL/

PICTURE SOUND

TURBO/

FAVOURITE

(With TELETEXT)

POWER MUTE

1 2 3

4 5 6

7 8 9

MENU/INDEX

TV/AV

EYE/

Q.VIEW

LIST

I / II /

( )

OK VOLVOL

PSM SSM/ SLEEP

PICTURE SOUND

TURBO/

FAVOURITE

Location and function of controls

11. MUTE

switches the sound on or off.

12. TV/AV

selects TV or AV mode.

switches the set on from standby.

13. I/II/*(option)

selects the language during dual language broadcast. (option)

selects the sound output.

14. LIST

displays the programme table.

15. SLEEP

sets the sleep timer.

16. SSM/*(Sound Status Memory) (option)

recalls your preferred sound setting.

17. SURROUND (ºº/*) (option)

selects surround sound.

*: No function

COLOURED BUTTONS : These buttons are used for teletext (only

TELETEXT models) or programme edit.

Battery installation

The remote control handset is powered by two AAA type batteries.

To load the batteries, turn the remote control handset over and

open the battery compartment. Install two batteries as indicated by

the polarity symbols ( and ) marked inside the compartment.

Note : To avoid damage from possible battery leakage, remove the

batteries if you do not plan to use the remote control handset for an

extended period of time.

(Without TELETEXT)

Location and function of controls

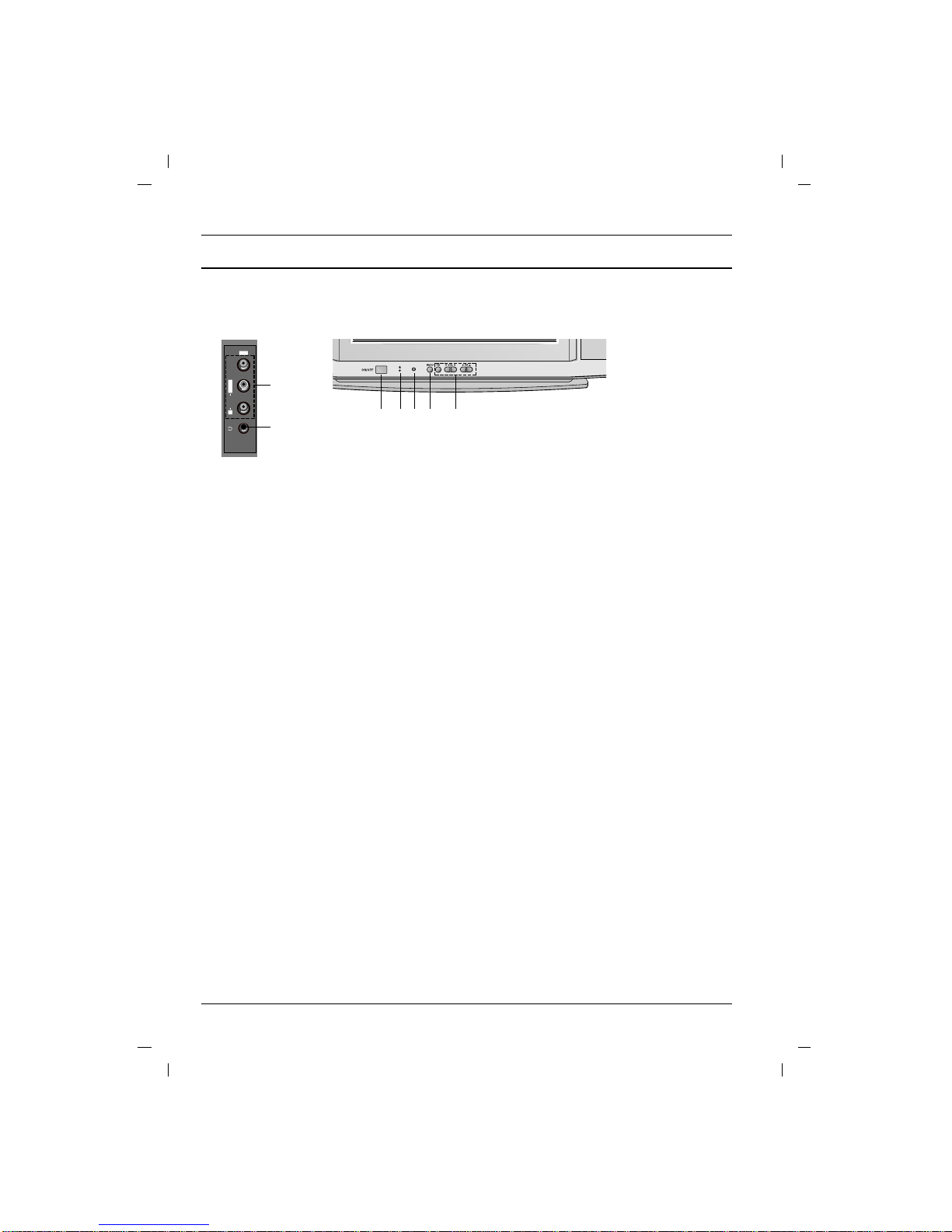

Front panel

Side panel

1. MAIN POWER (ON/OFF)

switches the set on or off.

2. POWER/STANDBY INDICATOR

illuminates brightly when the set is in standby mode.

dims when the set is switched on.

3. REMOTE CONTROL SENSOR

Note : Only use the supplied remote control handset. (When you use others, they’ll be not able to

function.)

4. MENU

selects a menu.

5. OK

accepts your selection or displays the current mode.

FF/ GG(Volume Up/Down)

adjusts the volume.

adjusts menu settings.

DD/ EE(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

6. AUDIO/VIDEO IN SOCKETS (AV2) (option)

Connect the audio/video out sockets of external equipment to these sockets.

7. HEADPHONE SOCKET (option)

Connect the headphone plug to this socket.

Note : Shown is a simplified representation of front or side panel. Here shown may be somewhat dif-

ferent from your set.

VIDEO

L/MONO

AUDIO

AV2

21FS2 series

1 2 3 4 5

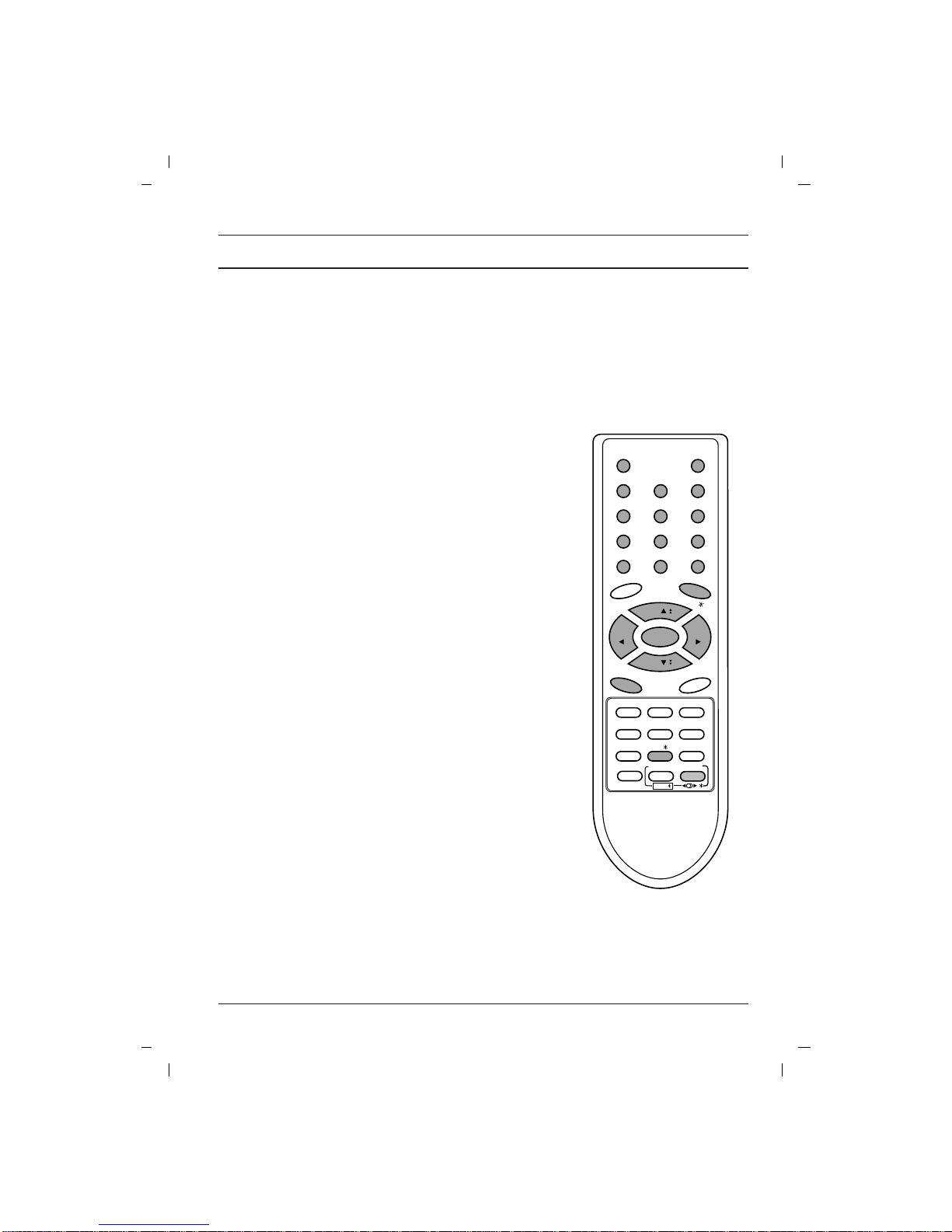

Basic operation

On and off

1. Press the main power button to switch the set on.

2. If the set is in standby mode, press the POWER, DD/ EE, TV/AV

or NUMBER buttons on the remote control handset to switch it

on fully.

3. Press the POWER button on the remote control handset.

The set reverts to standby mode.

4. Press the main power button again to switch the set off.

Note : If, while the set is switched on, the mains plug is discon-

nected the set will switch to standby or power on when the mains

plug is replaced in the mains power socket.

Programme selection

You can select a programme number with the DD/ EEor NUMBER

buttons.

Volume adjustment

Press the FF/ GGbutton to adjust the volume.

Quick view

Press the Q.VIEW button to view the last programme you were

watching.

Mute function

Press the MUTE button. The sound is switched off and the display

appears.

You can cancel it by pressing the MUTE, FF/ GG,SSM/*, I/II/*,

TURBO SOUND button.

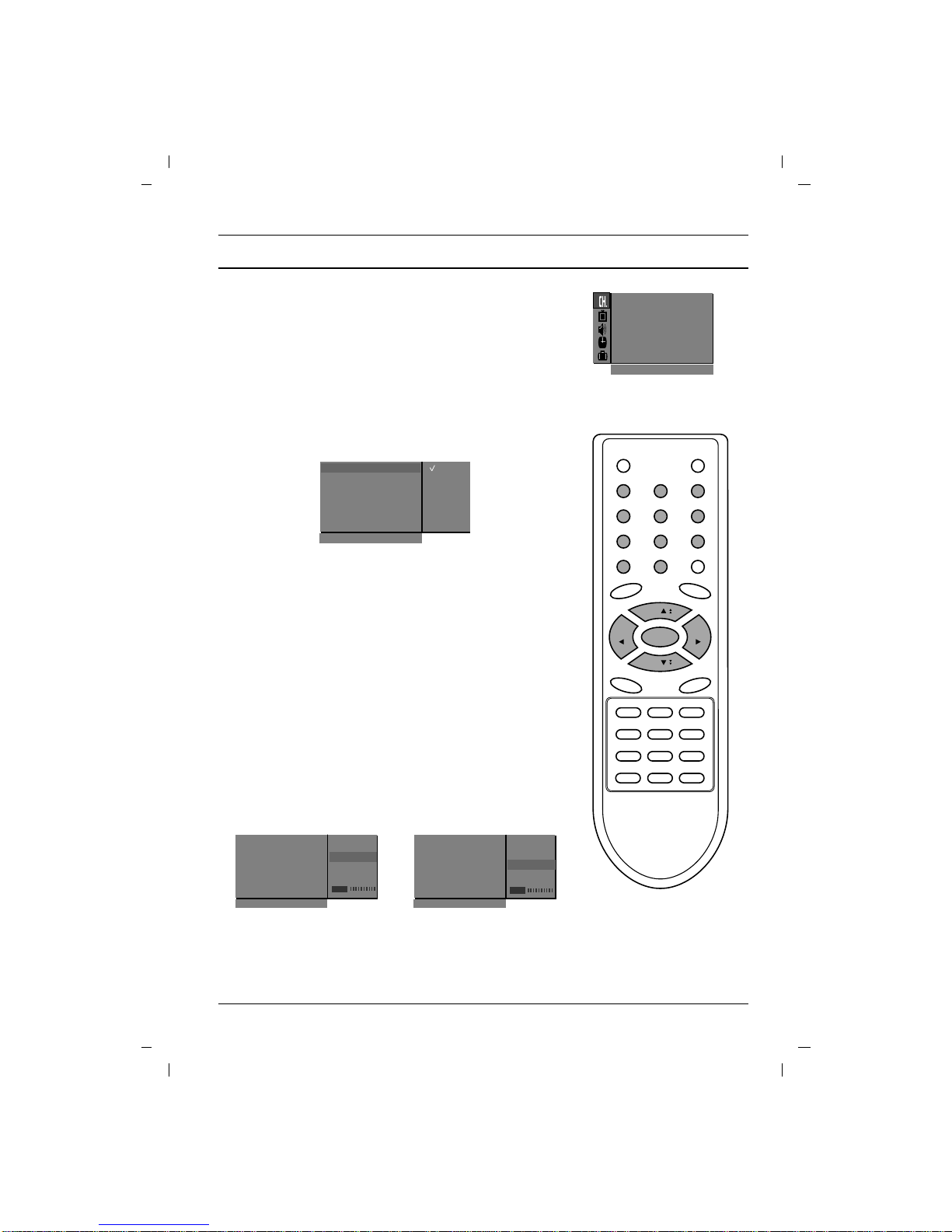

On screen language selection (option)

The menu can be displayed on the screen in desired language.

First select your language.

1. Press the MENU button and then DD/ EEbutton to select the

Special menu.

2. Press the GGbutton to select Language.

3. Press the GGbutton and then DD/ EEbutton to select your desired

language.

All the on screen displays will appear in the selected language.

Press the OK or FFbutton to select the Special menu.

4. Repeatedly press the MENU button to return to normal TV

viewing.

POWER MUTE

1 2 3

4 5 6

7 8 9

TV/AV

Q.VIEW

I / II /

( )

OK VOLVOL

SSM/

PICTURE SOUND

TURBO/

FAVOURITE

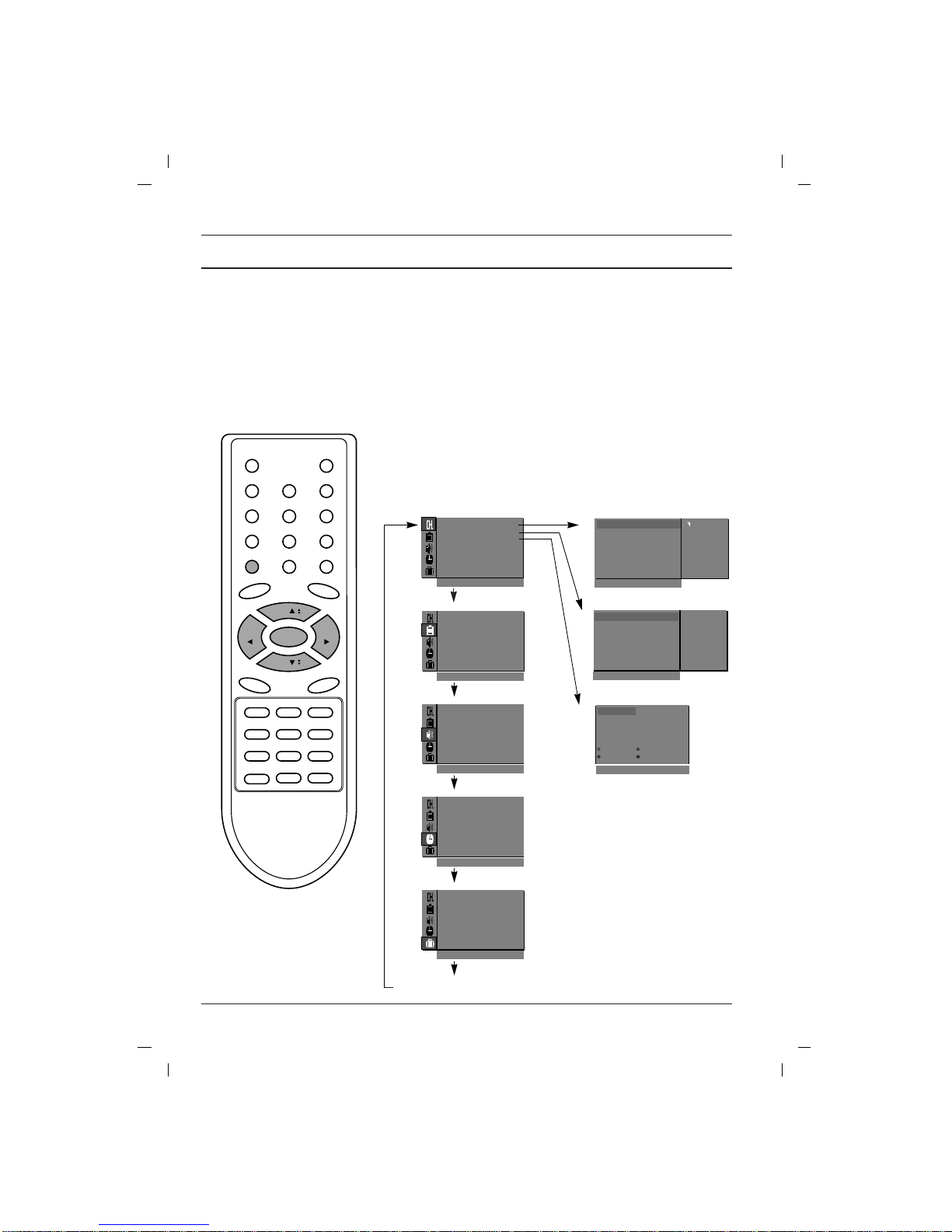

The dialogue between you and your set takes place on screen with

an operator menu. The buttons required for the operating steps are

also displayed.

Menu selection

1. Press the MENU button and then DD/ EEbutton to display each

menu.

2. Press the GGbutton and then DD/ EEbutton to select a menu item.

3. Press the GGbutton to display the sub menu or the pull-down

menu.

4. Change the setting of an item in the sub or pull-down menu with

FF/ GGor DD/ EE.

You can move to the higher level menu with OK or FFbutton and

to move to the lower level menu press the GGbutton.

Note :

a. In the teletext mode, menus are not displayed.

b. In some models, the

Normal

Turbo search

will not display,

only the

Start

will display in the

Auto programme

menu.

c. In mono models, the Sound menu does not appear.

d. In some models,

Tilt

Degauss

Game

Booster

will not dis-

play.

e. On some models, the

Language

will not display.

On screen menus

( )

OK VOLVOL

TV programme

Auto

programme {

Manual

programme {

Programme

edit {

FavouriteOprogramme

{

()O}{OOKOMENU

System {

StorageOfrom {

NormalOsearch {

TurboOsearch {

0OOARO1DOOO5OOSO69

O1OOCO03OOO6OOSO17

O2OOCO12OOO7OOSO22

O3OOSO66OOO8OOCO09

O4OOSO67OOO9OOCO11

DeleteOOOCopy

MoveOOOOOSkip

O0OOCO03

Picture menu

Station menu

PSM {

Contrast {

Brightness {

Colour {

Sharpness {

()O}{OOKOMENU

Sound menu

()O}{OOKOMENU

Special menu

()O}{OOKOMENU

Time menu

()O}{OOKOMENU

Storage {

System {

Channel {

Search {

Name {

Booster {

()O}{OOKOMENU

()}{OOKOMENU

System {

Storage {

Station


Sound

Time

Special

Auto programme

Manual programme

Programme edit

SSM {

AVL {

DBS {

Balance {

Clock {

Offotime {

Onotime {

Autoosleep {

Language {

Input {

Childolock {

Blueoback {

Tilt {

Degauss {

Game {

Setting up TV stations

Up to 100 TV stations can be stored by programme numbers (0 to

99). Once you have preset the stations, you will be able to use the

DD/ EEor NUMBER buttons to scan the stations you programmed.

Stations can be tuned using automatic or manual modes.

Note : In some models up to 200 TV stations can be stored.

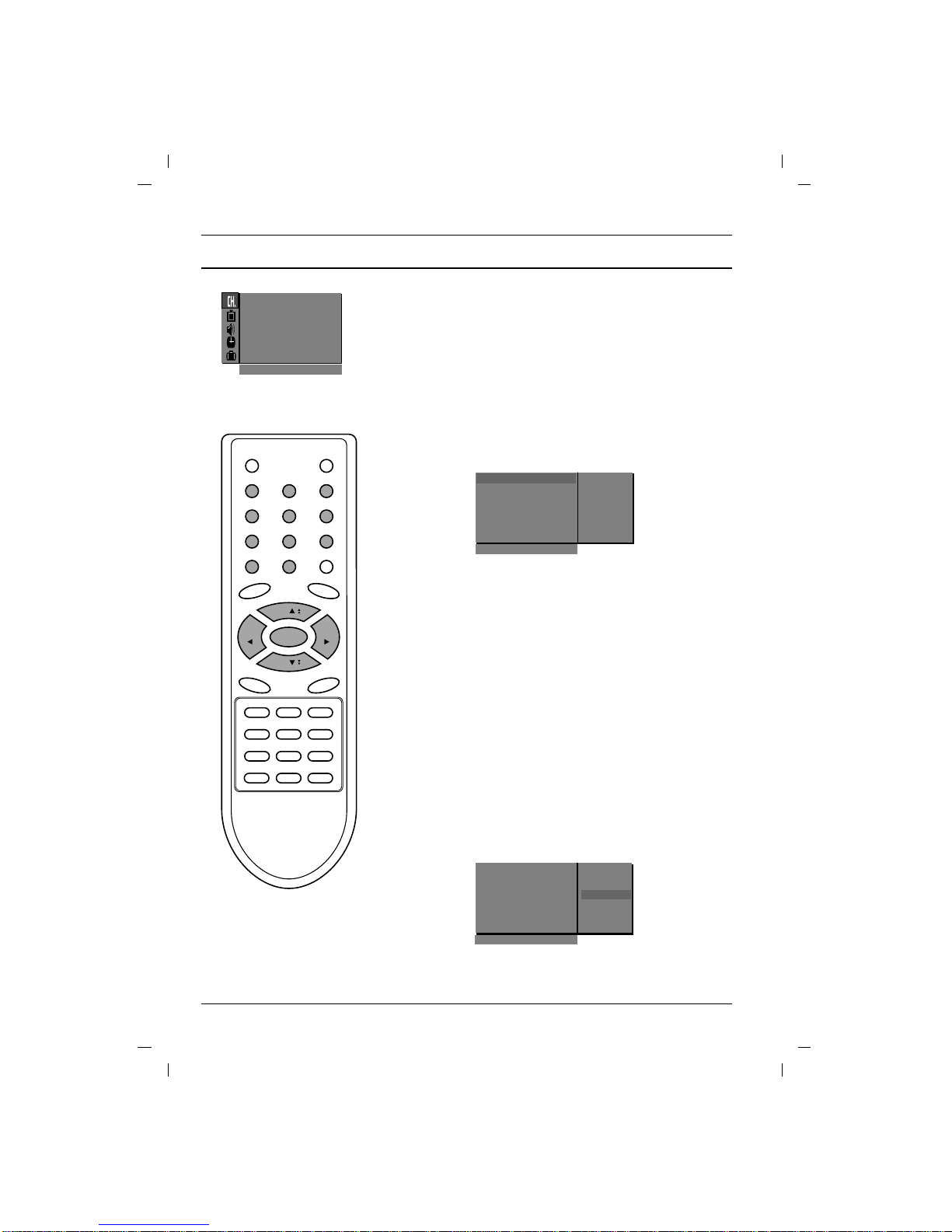

Auto programme tuning

All stations that can be received are stored by this method. It is rec-

ommended that you use auto programme during installation of this set.

1. Press the MENU button to select the Station menu.

2. Press the GGbutton and then DD/ EEbutton to select Auto pro-

gramme.

3. Press the GGbutton to display the Auto programme menu.

4. Press the GGbutton. Select a TV system with the DD/ EEbutton

on the System pull-down menu;

BG : (Asia/New Zealand/M.East/Africa/Australia)

I: (Hong Kong/South Africa)

DK : (East Europe/China/Africa/CIS)

M : (USA/Korea/Philippines) (option)

5. Press the OK or FFbutton.

6. Press the DD/ EEbutton to select Storage from.

7. Press the GGbutton. Select the beginning programme number

with the FF/ GGbutton or NUMBER buttons on the Storage

from pull-down menu. Any number under 10 is entered with a

numeric ‘0’in front of it, i.e. ‘05’for 5.

8. Press the OK button.

9. Press the DD/ EEbutton to select Normal or Turbo search.

Option: In some models, you can only select Start.

Note :

Turbo search

is faster than

Normal search

and in some mod-

els, these searches will automatically store all receivable stations.

b. If the programmed station has poor quality sound, select the

system again in the

Manual programme

menu.

10. Press the GGbutton to begin auto programming.

All receivable stations are stored.

To stop auto programming, press the MENU button.

When auto programming is completed, the Programme edit

menu appears on the screen. See the ‘Programme edit’ section

to edit the stored programme.

11. Repeatedly press the MENU button to return to normal TV

viewing.

1 2 3

4 5 6

7 8 9

TV/AV

( )

OK VOLVOL

Auto

programme {

Manual

programme {

Programme

edit {

FavouriteOprogramme {

()O}{OOKOMENU

System

{

StorageOfrom

{

NormalOsearch

{

TurboOsearch

{

()O}{OOKOMENU

OOCO01O(BG)

736%

(Normal search) (Turbo search)

Station

Auto programme

System

{

StorageOfrom

{

NormalOsearch

{

TurboOsearch

{

System

{

StorageOfrom

{

NormalOsearch

{

TurboOsearch

{

MENU MENU

736%

OOCO01O(BG)

Auto programme Auto programme

System {

Setting up TV stations

Auto programme scan

To automatically scan the pictures of stored programmes, press

theDD( ) or EE( ) button for about 3 seconds. The picture of stored

programmes appears on the screen one by one.

Tostopautoprogrammescanning, press anybutton except VCRbuttons.

Manual programme tuning

Manual programme lets you manually tune and arrange the sta-

tions in whatever order you desire. Also you can assign a station

name with five characters to each programme number.

1. Press the MENU button to select the Station menu.

2. Press the GGbutton and then DD/ EEbutton to select Manual

programme.

3. Press the GGbutton to display the Manual programme menu.

4. Press the DD/ EEbutton to select Storage.

5. Press the GGbutton to select the programme number. Select the

desired programme number (0 to 99) with the FF/ GGbutton or

NUMBER buttons on the Storage pull-down menu.Any number

under 10 is entered with a numeric ‘0’in front of it, i.e. ‘05’for 5.

6. Press the OK button.

7. Press the DD/ EEbutton to select System.

8. Press the GGbutton. Select a TV system with the DD/ EEbutton

on the System pull-down menu;

BG : (Asia/New Zealand/M.East/Africa/Australia)

I: (Hong Kong/South Africa)

DK : (East Europe/China/Africa/CIS)

M : (USA/Korea/Philippines) (option)

9. Press the OK or FFbutton.

10. Press the DD/ EEbutton to select Channel.

11. Press the GGbutton. Press the DD/ EEbutton to select V/UHF

or Cable on the Channel pull-down menu.

If possible, select the channel number directly with the number

buttons. Any number under 10 is entered with a numeric ‘0’in

front of it, i.e. ‘05’for 5.

12. Press the OK or FFbutton.

13. Press the DD/ EEbutton to select Search.

14. Press the GGbutton. Press the FF/ GGbutton to commence

searching on the Search pull-down menu. If a station is found

the search will stop.

15. Press the OK button to store it. The display Stored will appear.

16. To store another station, repeat steps 4 to 15.

17. Repeatedly press the MENU button to return to normal TV

viewing.

1 2 3

4 5 6

7 8 9

TV/AV

( )

OK VOLVOL

Auto

programme {

Manual

programme {

Programme

edit {

FavouriteOprogramme {

()O}{OOKOMENU

Station

Storage {

System {

Channel {

Search {

Name {

Booster {

Storage {

()O}{OOKOMENU

Manual programme

Storage {

System {

Channel {

Search {

Name {

Booster {

Stored

Manual programme

{{{

Autres manuels pour LCD Colour Television

Table des matières

Autres manuels LG TV

LG LCD Colour Television Manuel utilisateur

LG 26LC2R Series Manuel utilisateur

LG 60PC1D - - 60" Plasma TV Manuel utilisateur

LG 21FU6RLX Manuel utilisateur

LG 29FU1RS Manuel utilisateur

LG 26LV2500UG Manuel utilisateur

LG LCD Colour Television Manuel utilisateur

LG Pro:Centric 22LS660V Manuel utilisateur

LG Lafinion 82W Manuel utilisateur

LG CHAMELEON V 32LD320H Manuel utilisateur

LG 43LF630V Manuel utilisateur

LG 55SK9500PUA Guide de démarrage rapide

LG 60PH670V Manuel utilisateur

LG PF-43A10 Manuel utilisateur

LG 22LY560M Manuel utilisateur

LG RT-29FB55R Manuel utilisateur

LG LCD Colour Television Manuel utilisateur

LG CF-14 Manuel utilisateur

LG RT-29CC25R Manuel utilisateur

LG HECTO2 Manuel utilisateur

LG UB85 Series Manuel utilisateur

LG CP-079C Manuel utilisateur

LG 47LB1DA Manuel utilisateur

LG Flatron L3200TF Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
