FRONT PANEL CONTROLS

• This is a simplified representation of the front panel. The image shown may be somewhat different from your

set.

INPUT

Button

-- VOLUME

Buttons

-- PROGRAMME

Buttons

Power

Button

Headphone

Button

PREPARATION <M197WD/M227WD>

BACK PANELINFORMATION

This is a simplified representation of the back panel. The image shown may be somewhat different from your

set.

O PCMCIA (Personal Computer Memory Card @

International Association) Card Slot

(This feature is not available in all countries.)

Audio/Video Input

Connect audio/video output from an external device

to these jacks.

Power Cord Socket O SERVICEONLY PORT

This set operates on AC power. The voltage is indicat-

ed on the Specifications page. Never attempt to @

operate the set on DC power.

HDMI Input

Connect a HDMI signal to HDMI IN.

Or DVl (VIDEO) signal to HDMI IN with DVl to HDMI

cable.

RGBiDVmAudio mnput

Connect the audio from a PC.

Optical Digital Audio Out

Connect digital audio from various types of eguip-

ment

RGBmNPUT(PC)

Connectthe output from a PC.

DVhD Input

Connect the output from a PC.

RS-232C IN (CONTROL& SERVmCE)PORT

Connect to the RS-232Cport on a PC.

Component Input

Connect a component video/audio device to these

jacks.

S-Video Input

Connect S-Video out from an S-VIDEO device.

Euro Scart Socket (AVl iAV2)

Connect scart socket input or output from an exter-

nal device to these jacks.

Antenna Input

Connect over-the-air signals to this jack.

PREPARATION <M257WD>

BACK PANELINFORMATION

,,,_This is a simplified representation of the back panel. The image shown may be somewhat different from your set.

0 PCMCIA (Personal Computer Memory Card @

International Association) Card Slot

(This feature is not available in all countries.)

@ Power Cord Socket O

This set operates on AC power. The voltage is indicat-

ed on the Specifications page. Never attempt to

operate the set on DC power.

HDMI Input

Connect a HDMI signal to HDMI IN.

Or DVl (VIDEO) signal to HDMI IN with DVl to HDMI

cable.

RGBiDVmAudio mnput

Connect the audio from a PC.

Optical Digital Audio Out

Connect digital audio from various types of eguip-

ment

O RGBmNPUT(PC)

Connect the output from a PC.

Audio/Video Input

Connect audio/video output from an external device

to these jacks.

SERVICEONLYPORT

DVhD mnput

Connect the output from a PC.

RS-232CIN (CONTROL& SERVmCE)PORT

Connect to the RS-232Cport on a PC.

Component Input

Connect a component video/audio device to these

jacks.

S-Video Input

Connect S-Video out from an S-VIDEO device.

Euro Scart Socket (AVl iAV2)

Connect scarf socket input or output from an exter-

nal device to these jacks.

Antenna Input

Connect over-the-air signals to this jack.

<M]97WD/M227WD>

STAND INSTALLATION

,,,IThe image shown may be somewhat different from your set.

Carefully place the product screen side down on a

cushioned surface that will protect product and

screen from damage.

Insert the stand base into the product

Attach the monitor to the Stand Base by turning

the screw to the right.

* Turn the screw by using the screw handle

Screw

PREPARATION <M237WD>

STAND INSTALLATION

,,,IThe image shown may be somewhat different from your set.

Carefully place the product screen side down on a

cushioned surface that will protect product and

screen from damage.

Insert the stand base into the product

Attach the monitor to the Stand Base by turning

the screw to the right.

* Turn the screw by using the screw handle

_- Screw

PREPARATION <M197WD/M227WD>

DETACHING STAND

The image shown may be somewhat different from your set.

Place the set screen side down on a cushion or

soft cloth. Detach the monitor to the Stand Base by turn-

ing the screw to the left.

Turn the screw by using the screw handle Pull the stand base.

PREPARATION <M237WD>

DETACHING STAND

,,,IThe image shown may be somewhat different from your set.

Place the set screen side down on a cushion or

soft cloth. Detach the monitor to the Stand Base by turn-

ing the screw to the left.

Turn the screw by using the screw handle Pull the stand base.

PREPARATION

WALL MOUNT: HORIZONTAL INSTALLATION

For proper ventilation, allow a clearance of 4 inches on each side and from the wall. Detailed installation

instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

DESKTOP PEDESTALINSTALLATION

For proper ventilation, allow a clearance of 4 inches on each side and from the wall.

4inches

///Jff/J

PREPARATION

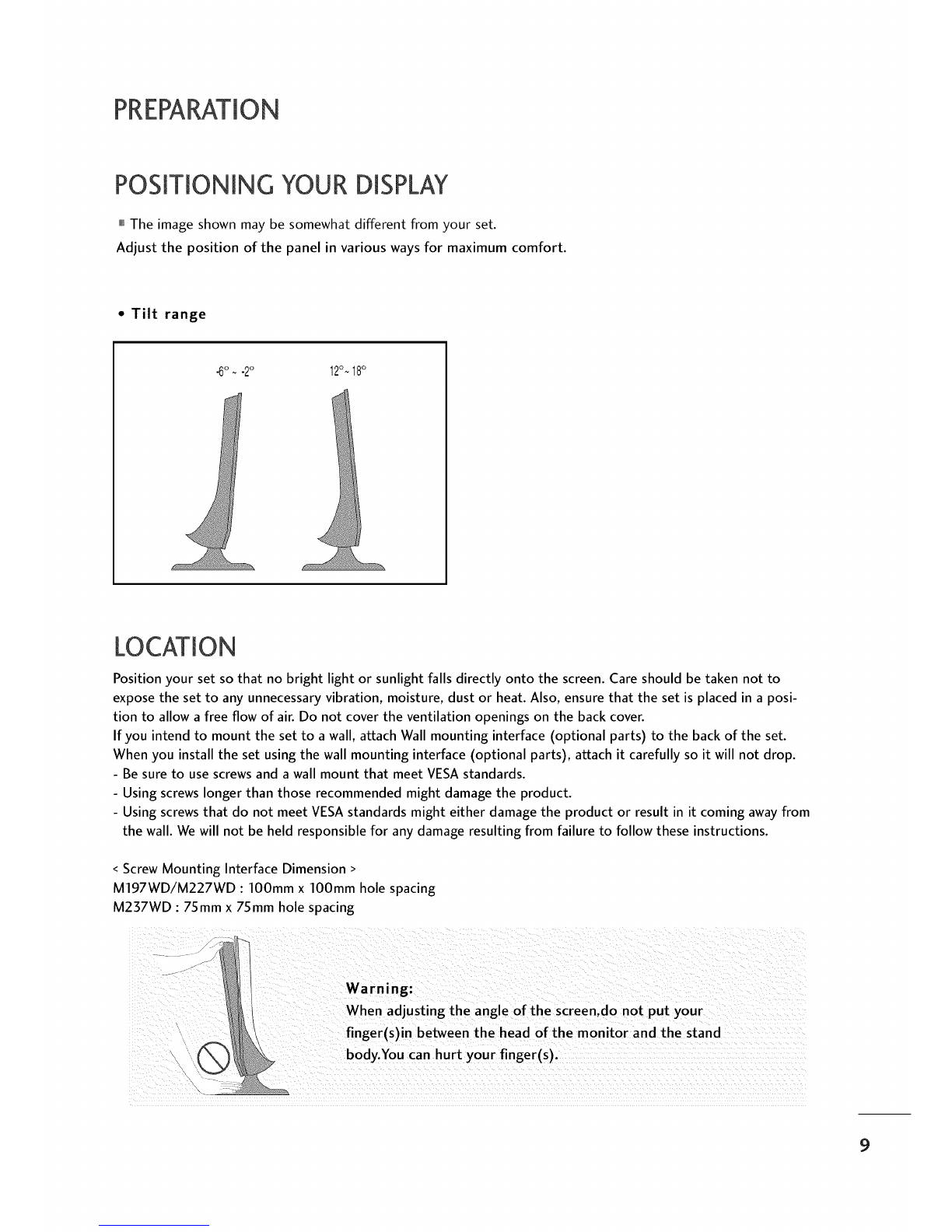

POSITIONING YOUR DISPLAY

,,,IThe image shown may be somewhat different from your set.

Adjust the position of the panel in various ways for maximum comfort.

•Tilt range

.6° ~.2° 12o.18°

LOCATION

Position your set so that no bright light or sunlight falls directly onto the screen. Care should be taken not to

expose the set to any unnecessary vibration, moisture, dust or heat. Also, ensure that the set is placed in a posi-

tion to allow a free flow of air. Do not cover the ventilation openings on the back cover.

If you intend to mount the set to a wall, attach Wall mounting interface (optional parts) to the back of the set.

When you install the set using the wall mounting interface (optional parts), attach it carefully so it will not drop.

-Be sure to use screws and a wall mount that meet VESA standards.

-Using screws longer than those recommended might damage the product.

-Using screws that do not meet VESA standards might either damage the product or result in it coming away from

the wall. We will not be held responsible for any damage resulting from failure to follow these instructions.

< Screw Mounting Interface Dimension >

M197WD/M227WD :100mm x 100mm hole spacing

M237WD : 75mm x 75mm hole spacing

Warning:

When adjusting the angle of the screen,do not put your

finger(s)in between the head of the monitor and the stand

body.You can hurt your finger(s).
