OWNER’S MANUAL

LCD TV / LED LCD TV /

PLASMA TV

Please read this manual carefully before operating the

set and retain it for future reference.

Downloaded From TV-Manual.com Manuals

ENG

ENGLISH

LICENSES

ENG

ENGLISH

LICENSES

Supported licenses may differ by model. For more information about licenses, visit

www.lg.com.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D

symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing LLC.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This

is an official DivX Certified® device that plays DivX video. Visit www.divx.com for

more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered

in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your

registration code, locate the DivX VOD section in your device setup menu. Go to

vod.divx.com for more information on how to complete your registration.

“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”

DivX®, DivX Certified® and associated logos are trademarks of DivX, Inc. and are

used under license.

Covered by one or more of the following U.S. patents :

7,295,673; 7,460,668; 7,515,710; 7,519,274

Downloaded From TV-Manual.com Manuals

ENGENGLISH

LICENSES

Downloaded From TV-Manual.com Manuals

ENG

ENGLISH

TABLE OF CONTENTS

2LICENSES

6 ASSEMBLING AND PREPAR-

ING

6 Unpacking

9 Separate purchase

9 Parts and buttons

16 Lifting and moving the TV

16 Setting up the TV

16 - Attaching the stand

19 - Not using the Desk Type Stand

20 - Mounting on a table

21 - Mounting on a wall

23 - Tidying cables

24 - Positioning your display

24 - Connection of TV

25 REMOTE CONTROL

29 WATCHING TV

29 Connecting an antenna

29 Turning the TV on for the first time

30 Watching TV

30 Managing programmes

30 - Automatically setting up programme

32 - Cable DTV Setting (In Cable mode

only)

33 - Manually setting up programme (In

digital mode)

34 - Manually setting up programme (In

analogue mode)

35 - Booster

35 - Editing your programme list

37 - CI [Common interface] Information

38 - Selecting the programme list

39 EPG (Electronic Programme Guide) (In

digital mode)

39 - Switch on/off EPG

39 - Select a programme

40 - NOW/NEXT Guide Mode

40 - 8 Day Guide Mode

40 - Date Change Mode

40 - Extended Description Box

40 - Record/Remind Setting Mode

40 - Remind Setting Mode

41 - Schedule List Mode

41 Using additional options

41 - Adjusting aspect ratio

43 - Changing AV modes

43 - Using the input list

44 - Locking the buttons on the TV (Child

Lock)

45 Using the quick menu

46 Using the customer supprot

46 - Testing Software Update

47 - Testing the Picture / Sound

47 - Using Signal Test

47 - Using the product or service information

48 3D IMAGING

48 3D Technology

49 - When Using 3D Glasses

49 - 3D Imaging Viewing Range

50 Watching 3D images

52 ENTERTAINMENT

52 - Connecting to a wired network

53 - Network Status

54 - Connecting USB storage devices

55 - Browsing files

56 - Viewing movies

59 - Viewing photos

61 - Listening to music

63 - DivX registration code

Downloaded From TV-Manual.com Manuals

ENGENGLISH

TABLE OF CONTENTS

64 CUSTOMIZING TV SETTINGS

64 Accessing main menus

65 Customizing settings

65 - SETUP settings

66 - PICTURE settings

72 - AUDIO settings

75 - TIME settings

76 - LOCK settings

77 - OPTION settings

80 - NETWORK Settings

81 MAKING CONNECTIONS

82 Connection overview

83 Connecting to a HD receiver, DVD, or

VCR player

83 - HDMI connection

83 - DVI to HDMI connection

83 - Component connection

84 - Euro Scart connection

84 - Composite connection

85 Connecting to a PC

85 - HDMI connection

85 - DVI to HDMI connection

85 - RGB Connection

86 Connecting to an audio system

86 - Digital optical audio connection

87 - Headphone connection

87 Connecting to a USB

87 Connecting to a CI Module

88 SIMPLINK connection

88 - Activating the SIMPLINK feature

89 TELETEXT

89 Switch On/Off

89 Simple Text

89 - Page selection

89 Top Text

89 - Block / Group / Page Selection

89 - Direct Page Selection

90 Fastext

90 - Page selection

90 Special Teletext Function

91 DIGITAL TELETEXT

91 Teletext within digital service

91 Teletext in digital service

92 MAINTENANCE

92 Cleaning your TV

92 - Screen and frame

92 - Cabinet and stand

92 - Power cord

93 Preventing “Image burn” or “Burn-in” on

your TV screen

94 TROUBLESHOOTING

96 SPECIFICATIONS

107IR CODES

108EXTERNAL CONTROL DEVICE

SETUP

108 RS-232C Setup

108 Type of connector;

D-Sub 9-Pin Male

108 RS-232C Configurations

109 Communication Parameters

109 Command reference list

110 Transmission / Receiving Protocol

115OPEN SOURCE LICENSE

115 Open source software notice

Downloaded From TV-Manual.com Manuals

ENG

ENGLISH

ASSEMBLING AND PREPARING

Remote control and batteries(AAA) Owner’s Manual

Polishing cloth1(This item is not

included for all models.)

Ferrite core

(Depending on model)

Power Cord (This item is not

included for all models.)

ASSEMBLING AND PREPARING

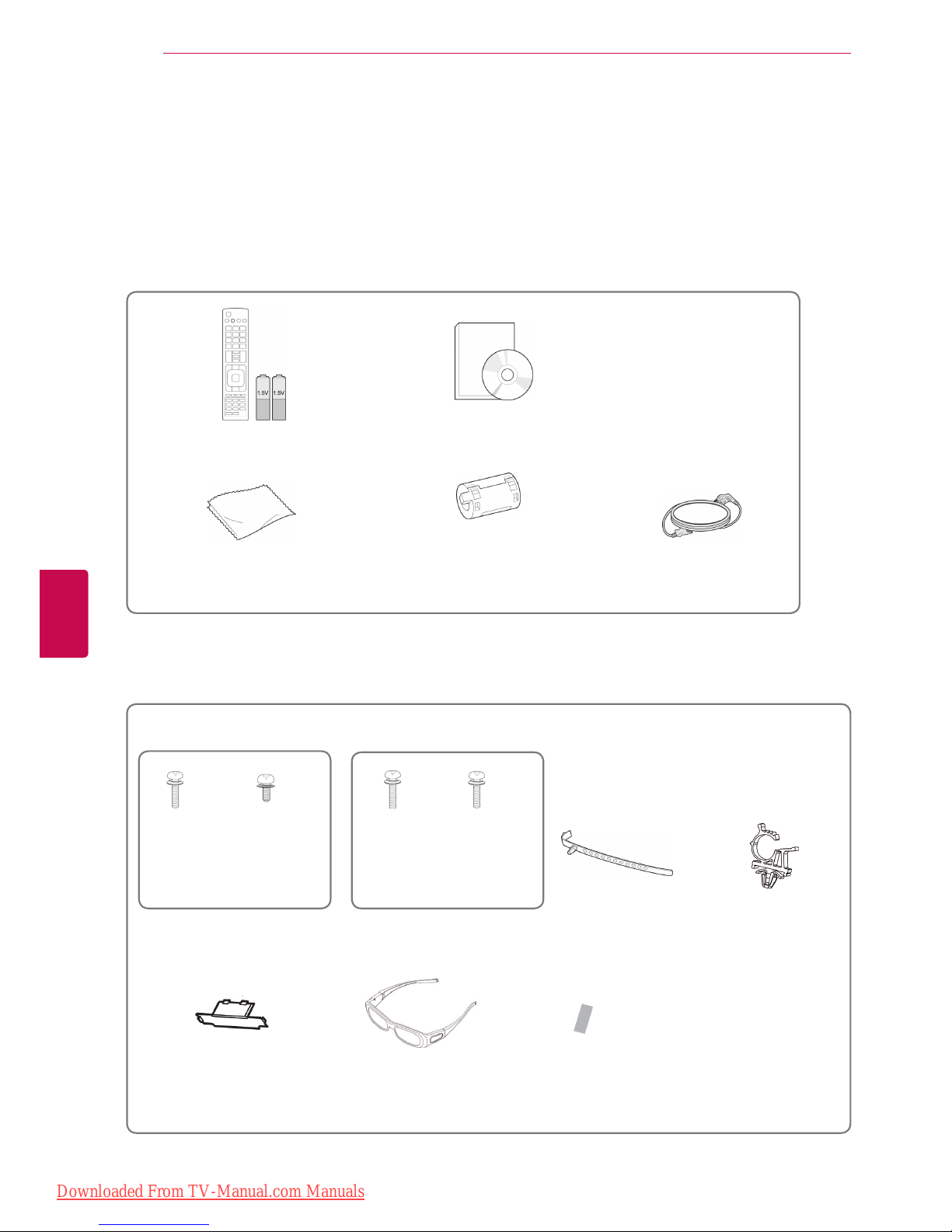

Unpacking

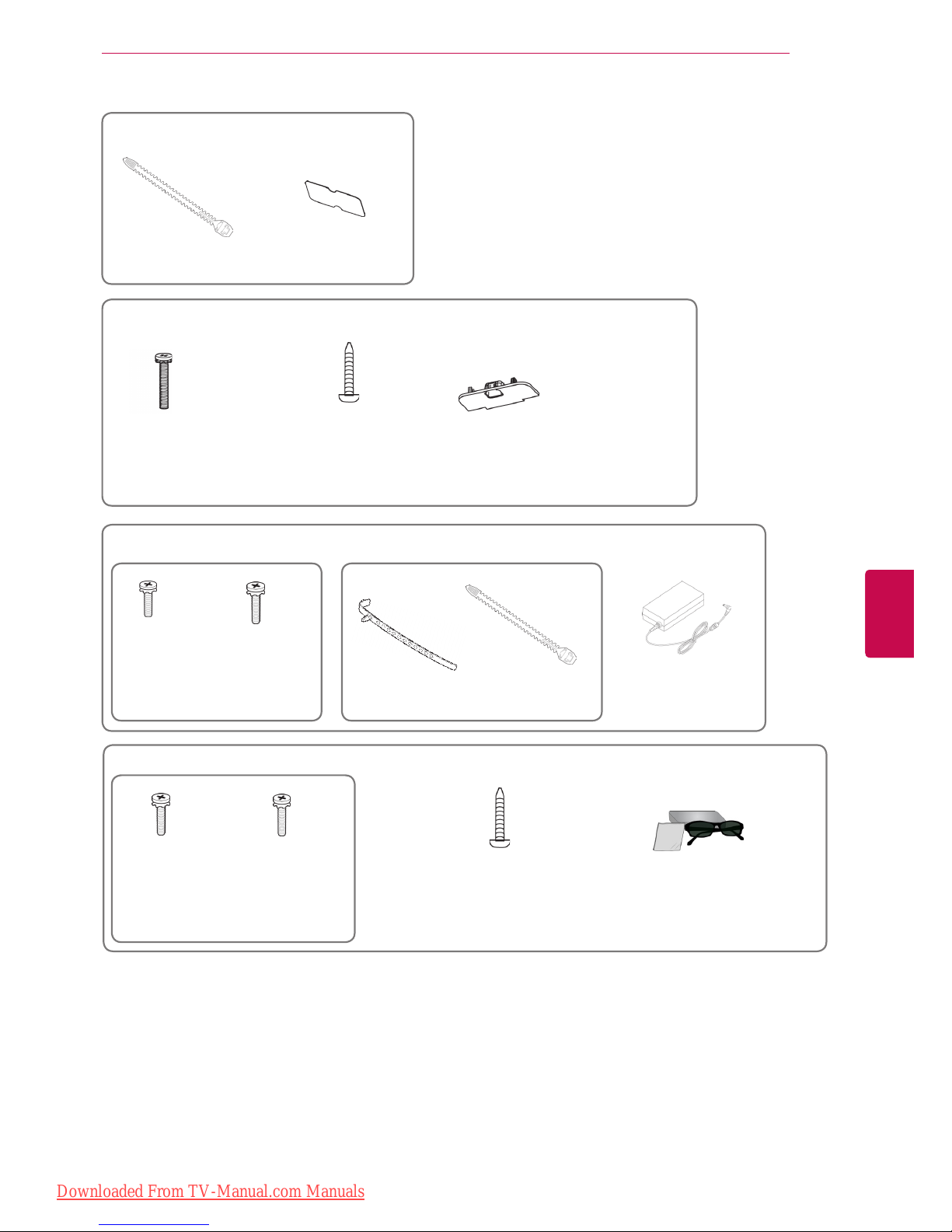

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and item.

1 Gently wipe the spots on the cabinet with the polishing cloth.

Only 42PT25**, 60PV25**, 42/50PT35**, 50PV35**, 50/60PZ25**, 42/50PW45**, 50/60PZ55**,

42/50PT45**

(Except for 60PV25**,

60PZ25**, 60PZ55**)

(Only 60PV25**,

60PZ25**, 60PZ55**)

x 4 x 3

M4 x 26 M5 x 14.5

x 4 x 3

M4 x 28 M5 x 24

Screw for assembly Cable Holder

Protection cover 3D Glasses

(AG-S250 : Depending

on model)

Power Cord holder

Protection cover

tape

Downloaded From TV-Manual.com Manuals

ENGENGLISH

ASSEMBLING AND PREPARING

Only 22LK33**

Cable Holder Protection cover

(M4x20)

x 8

Only 26/32LK33**, 32/37/42LK43**, 32/42/47LK53**, 32/37/42LK45**, 32/42LK55**

Screw for assembly Screw for fixing Protection cover

(Except for 47LK53**)

Only 19/22/26LV25**, 22/26LV55**, 19/22LV23**

Screw for assembly Cable Holder DC Adapter

(M4x6)

x 2

(M4x16)

x 2

Only 32LV25**, 32/37/40/42/47LV35**, 32/42/47/55LW45**, 32/37/42/47LV45**, 32/42LV34**

Screw for assembly

(M4x12)

(Except for 32LV25**)

x 8

Screw for fixing

(Only 32LV25**,

32/37LV35**, 32LW45**,

32/37LV45**, 32LV34**)

3D Glasses1

(AG-P110, AG-F110)

(Only 32/

42/47/55LW45**)

x 2

(M4x14)

(Only 32LV25**)

x 8

1 The number of 3D glasses may differ depending on the country.

Downloaded From TV-Manual.com Manuals

ENG

ENGLISH

ASSEMBLING AND PREPARING

yDo not use any pirated items to ensure the safety and product life span.

yAny damages or injuries by using pirated items are not covered by the warranty.

CAUTION

yThe items supplied with your product may vary depending on the model.

yProduct specifications or contents of this manual may be changed without prior notice due to

upgrade of product functions.

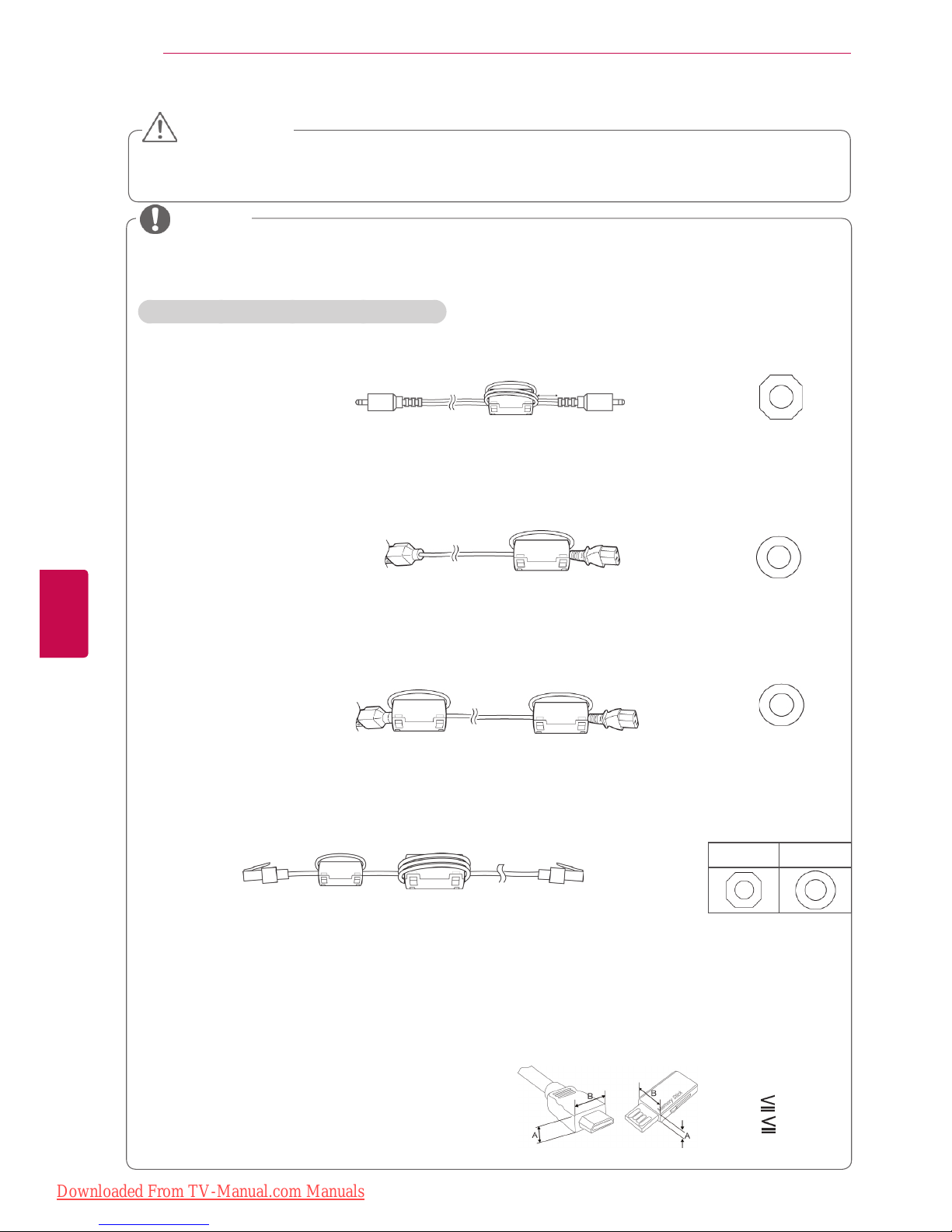

How to use the ferrite core(Only Plasma TV)

1 Use the ferrite core to reduce the electromagnetic interference in the PC audio cable.

Wind the PC audio cable on the ferrite core thrice. Place the ferrite core close to the TV.

NOTE

yFor an optimal connection, HDMI cables and

USB devices should have bezels less than 10

mm thick and 18 mm width.(Except for 42PT25**,

60PV25**, 42/50PT35**, 50PV35**, 50/60PZ25**,

42/50PW45**, 50/60PZ55**, 22/26/32LK33**,

32/37/42LK43**, 32/42/47LK53**, 42/50PT45**)

[to an External device]

[Figure 1]

[to the TV]

[Cross Section of

Ferrite Core]

2 Use the ferrite core to reduce the electromagnetic interference in the power cable.

Wind the power cable on the ferrite core once. Place the ferrite core close to the TV.

[to a wall plug] [to the TV]

[Cross Section of

Ferrite Core]

3 Use the ferrite core to reduce the electromagnetic interference in the power cable.

Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall plug.

[Figure 2]

[to a wall plug] [to the TV]

[Cross Section of

Ferrite Core]

- If there is one ferrite core, follow as shown in Figure 1.

- If there are two ferrite cores, follow as shown in Figures 1 and 2.

- If there are three ferrite cores, follow as shown in Figures 1 and 3.

- If there are four ferrite cores, follow as shown in Figures 1, 2 and 4.

- If there are five ferrite cores, follow as shown in Figures 1, 3 and 4.

[Figure 3]

10 mm(+ / - 5 mm)

*A 10 mm

*B 18 mm

4 Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the

LAN cable once on the small ferrite core and thrice on the big ferrite core. Place the

ferrite core close to the TV.

[to the TV] [to an External

device]

A B

[Cross Section of

Ferrite Core]

[Figure 4]

Downloaded From TV-Manual.com Manuals

ENGENGLISH

ASSEMBLING AND PREPARING

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification.

Contact your dealer for buying these items.

This device only works with compatible LG Plasma TV, LED LCD TV or LCD TV.

Parts and buttons

yTV can be placed in standby mode in order to reduce the power consumption. And TV should be

turned off if it will not be watched for some time, as this will reduce energy consumption.

yThe energy consumed during use can be significantly reduced if the level of brightness of the

picture is reduced, and this will reduce the overall running cost.

NOTE

yDo not step on the glass stand or subject it to any impact. It may break, causing possible injury

from fragments of glass, or the TV may fall.

yDo not drag the TV. The floor or the product may be damaged.

CAUTION

Only Plasma TV Only LCD / LED LCD TV

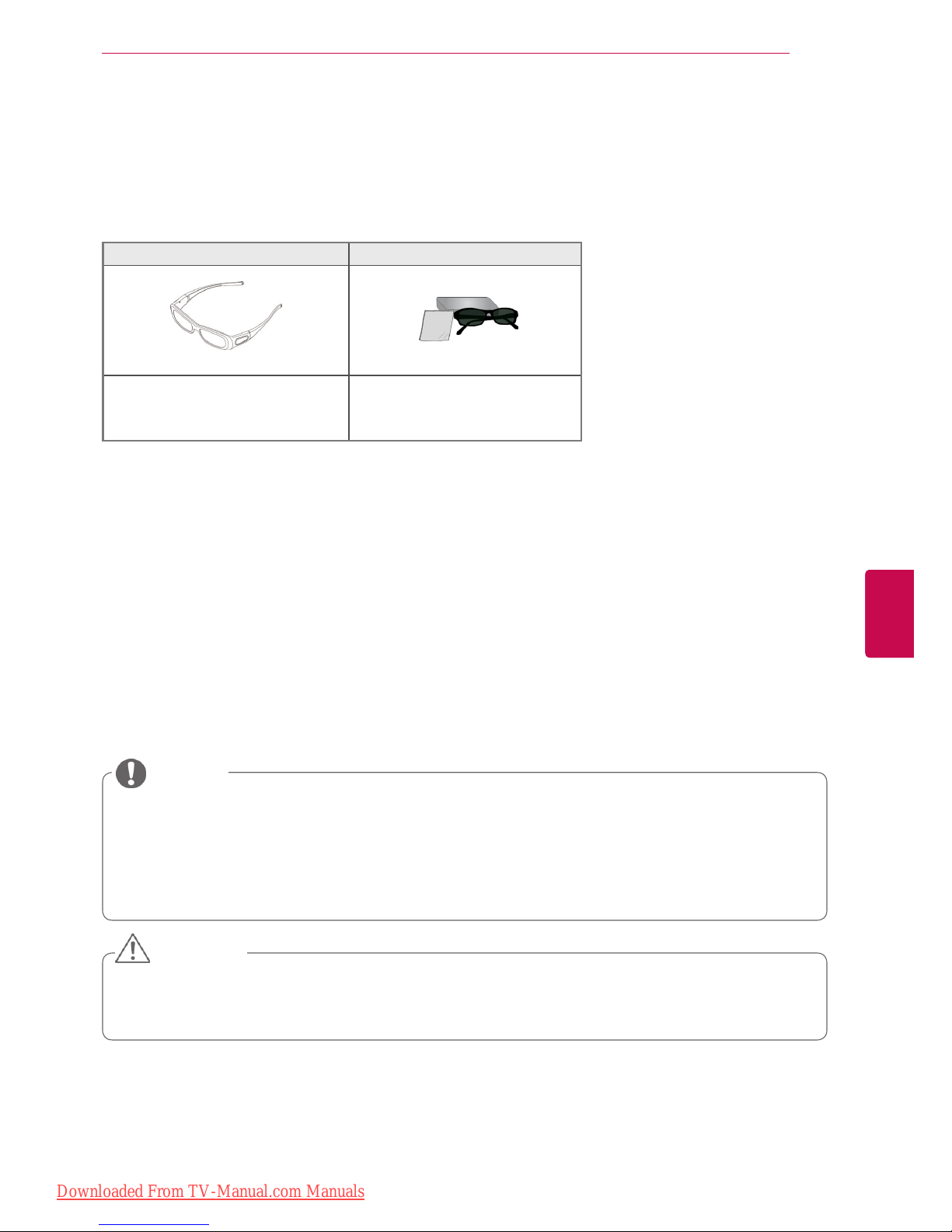

3D Glasses

(AG-S230, AG-S250, AG-S270 :

Only 3D Models)

3D Glasses

(AG-P110, AG-F110 : Only 3D

Models)

Downloaded From TV-Manual.com Manuals

ENG

ENGLISH

ASSEMBLING AND PREPARING

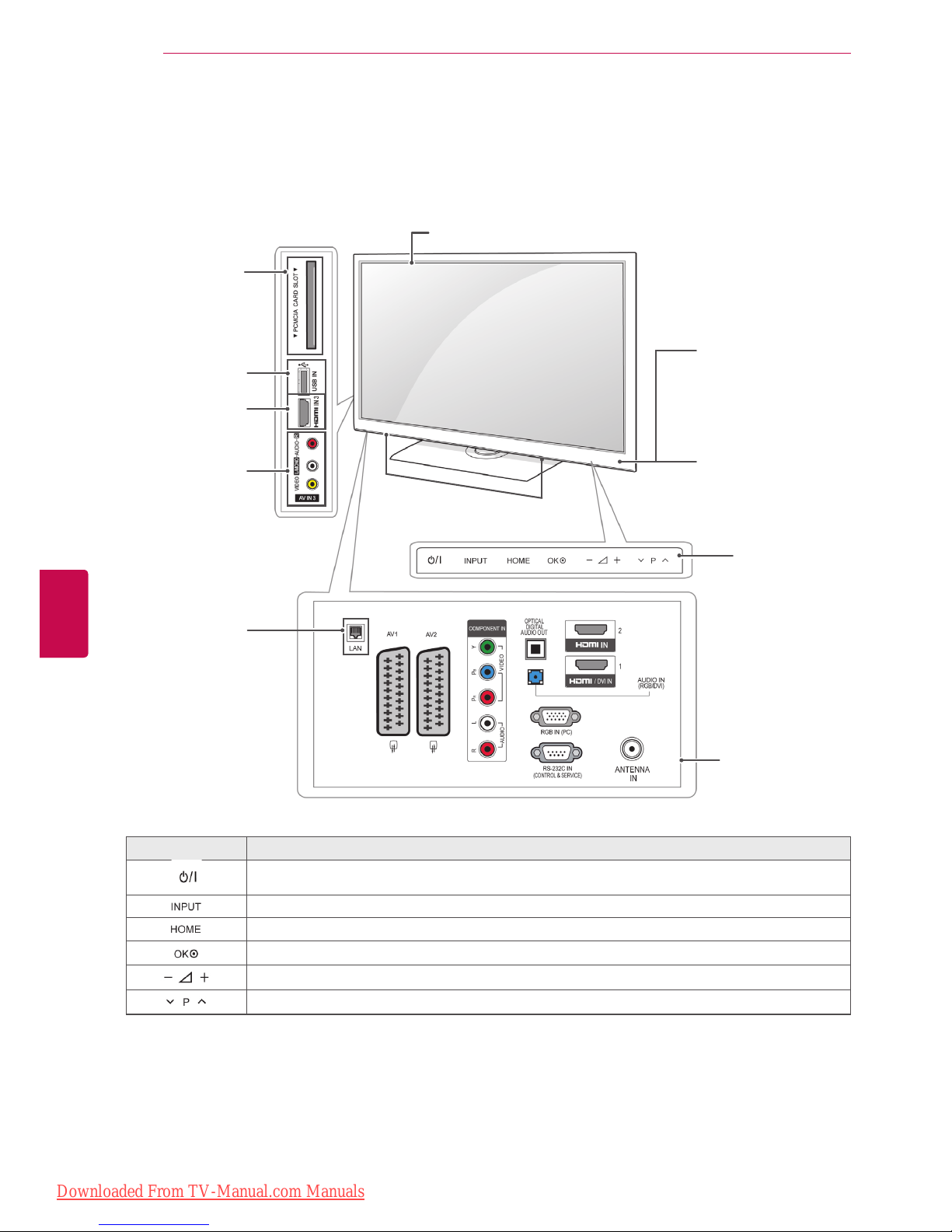

Only 50/60PZ25**, 42/50PW45**, 50/60PZ55**, 42/50PT45**

Screen

Connection panel

(See p.81)

Speakers

PCMCIA Card

Slot

AV (Audio and

Video) IN

HDMI IN

USB input

Touch buttons2

1 Intelligent sensor - Adjusts the image quality corresponding to the surrounding environment.

2 Touch Button - You can use the desired button function by touching.

Button Description

Turns the power on or off

Changes the input source

Accesses the main menus, or saves your input and exits the menus

Selects the highlighted menu option or confirms an input

Adjusts the volume level

Scrolls through the saved programmes

Remote control and

intelligent1sensors

Power Indicator

Red – In Standby

mode

Off – TV turns on

yImage shown may differ from your TV.

(Only

50/60PZ250T,

42/50PW450T,

42/50PW451T,

50/60PZ550T)

Downloaded From TV-Manual.com Manuals

Ce manuel convient aux modèles suivants

Table des matières

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
