LG PH4B Manuel utilisateur
Please read this manual carefully before operating
your set and retain it for future reference.
MODELS
PH4 PH4B PH4R
OWNER’S MANUAL
Portable
Bluetooth
Speaker
Copyright © 2017 LG Electronics. All Rights Reserved
www.lg.com
*MFL69725107*
1 Getting Started
Getting Started 3
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sufcient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the
product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION: The apparatus should not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, should be placed on the
apparatus.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not use high voltage products around
this product. (ex. Electrical swatter) This product may
malfunction due to electrical shock.
CAUTION: No naked ame sources, such as lighted
candles, should be placed on the apparatus.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of
the product and to protect it from over heating.
The openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an exact
replacement part by an authorized service centre.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord exits
the appliance. The Power Plug is the disconnecting
device. In case of an emergency, the Power Plug must
remain readily accessible.
NOTICE: For safety marking information including
product identication and supply ratings, please refer
to the main label on the bottom or the other surface
of the product.
CAUTION when using this product in environments
of low humidity
yIt may cause static electricity in environments of
low humidity.
yIt is recommended to use this product after
touching any metal object which conducts
electricity.
Getting Started4
Getting Started
1
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the battery
from the equipment: Remove the old battery or
battery pack, follow the steps in reverse order than
the assembly. To prevent contamination of the
environment and bring on possible threat to human
and animal health, the old battery or the battery
put it in the appropriate container at designated
collection points. Do not dispose of batteries or
battery together with other waste. It is recommended
that you use local, free reimbursement systems
batteries and accumulators. The battery shall not be
exposed to excessive heat such as sunshine, re or
the like.
Symbols
~Refers to alternating current (AC).
0Refers to direct current (DC).
Refers to class II equipment.
1Refers to stand-by.
!Refers to “ON” (power).
Refers to dangerous voltage.
Table of Contents 5
1
2
3
4
1 Getting Started
3 Safety Information
6 Introduction
6 Accessories
7 Main Unit
8 Charging the Unit
8 – Connecting the AC adapter
8 – Checking the charging status
8 – Checking Battery status
2 Operating
9 Basic Operations
9 – Using power button
9 – Bluetooth Connection
9 – Simple Operation Guide
10 – Bluetooth LED (White) status
10 Handsfree Function
11 Mood LED light
11 Equalizer Mode Change
12 Listening to Music from Your External Device
12 Using BLUETOOTH® technology
13 – Listening to music stored on the
BLUETOOTH devices
15 Multipoint Connection
16 Other Operation
16 – Resetting
16 – Notice for Auto Power Off
3 Troubleshooting
17 Troubleshooting
4 Appendix
18 Trademarks and Licenses
18 Handling the Unit
19 Specifications
Table of Contents
Getting Started6
Getting Started
1
Introduction
Symbol used in this manual
, Note
Indicates special notes and operating features.
> Caution
Indicates cautions for preventing possible damages
from abuse.
Splash-proof (IPX4)
This unit is splash-proof according to IPX4.
IPX4 is a splash-proof for rain or splashing water.
This unit is splash-proof wireless speaker but it
can be damaged when you used under water.
yDo not use unit under water or other liquid.
yDo not spray water on the unit purposely.
yWhen you use unit, close the port cover
securely.
yWhen battery is charging, do not expose the
unit to water.
yWhen exposed to water, wipe off it with a
soft dry cloth.
> Caution
Accessories
Please check and identify the supplied accessories.
USB cable (1) Simple Manual (1)
Getting Started 7
Getting Started
1
Main Unit
a
b
h
c
j
i
m
d
l
k
n
o
e
f
g
Top Bottom
a
T
- Starts or pauses playback on the Bluetooth
mode.
- Receives on the Bluetooth device.
(Refer to the page 10.)
- Mutes the sound on the portable.
bp : Turn down the volume.
c
Turns On / Off : Press and hold it.
d
j
- Adds a Bluetooth device for multi pairing.
(Press and hold j)
- Changes to Bluetooth mode in portable mode.
(Press j)
* When you connect the portable cable, the
function is changed to portable in mode
automatically.
eo : Turn up the volume.
f Mood LED light
g Microphone
h
Battery LED
i
Hanging strap
jBASS
Changes equalizer mode.
(Refer to the page 11.)
k
Port cover
l
Changes mood LED light mode.
(Refer to the page 11.)
m
PORT.IN (Portable In connector)
Listens to music from your portable device.
n
RESET hole
o
USB port for charging
Getting Started8
Getting Started
1
Charging the Unit
Connecting the AC adapter
This device uses built-in battery. Before using it,
charge the battery by connecting the AC Adapter.
1. Connect the supplied USB cable to the AC
adapter.
2. Connect the USB cable to USB port of the unit.
3. Plug the AC adapter into an AC outlet.
(Not supplied)
If the battery is fully charged in charging mode,
LED is changed from red to white.
AC adapter is not supplied.
It is recommended that you use the 5 V AC
adapter approved by LG Electronics Inc. (more
than 1.8 A) with this unit because of danger of
explosion. If you do not use the recommended
adapter, charging is unavailable or charging time
may differ.
> Caution
Checking the charging status
When AC Adapter is connected, battery charging is
started. You can check the charging status by
LED .
LED Description
White
Red
Battery is fully charged.
White
RedBattery is charging.
yOperating time is approx. 10 hours. (Based
on fully charged the battery and continuous
playback using 50 % volume level.)
It may vary depending on the battery status
and operational conditions.
yIf you listen to the music while charging, it will
take longer to charge.
, Note
Checking Battery status
If the power turned on, you can check the charging
status by pressing
1/!
button. Then LED light
will change depending on battery charging status.
LED Condition Status
White
Amber
Amber
Battery LED turns
on white.
60 %
15 %
15 %
White
Amber
Amber
Battery LED turns
on amber.
60 %
15 %
15 %
White
Amber
Amber
Battery LED blinks
amber with the
sound.
60 %
15 %
15 %
2 Operating
Operating 9
Operating
2
Basic Operations
Using power button
Power On / Off
Press and hold the
button for more than
1 second.
Bluetooth Connection
LG PH4(XX)
Play the desired music on the Bluetooth device. After
pairing, you can control playback using the buttons
on the unit.
Simple Operation Guide
Function How to Status
Power On Press and hold the button. Mood LED light blinks slowly with the
sound.
Power Off Press and hold the button. Mood LED light turns off with the
sound.
Bluetooth pairing
When Bluetooth LED blinks, select
LG PH4 (XX) from device list on your
smart device.
Bluetooth LED turns on with the
sound.
Play / Pause Press T. -
Forward skip Press T twice. -
Backward skip Press Tthree times. -
Volume control Press p or o.
When this unit reaches minimum
volume or maximum volume, you can
hear beep sound.
Multi pairing Press and hold j for 2 seconds to add
another Bluetooth device.
During the search for another device,
the Bluetooth LED blinks. After pairing,
Bluetooth LED stays in white with the
sound.
Bluetooth Initialization Press and hold j for 10 seconds. Bluetooth and charging LED blinks
with the sound.
Operating10
Operating
2

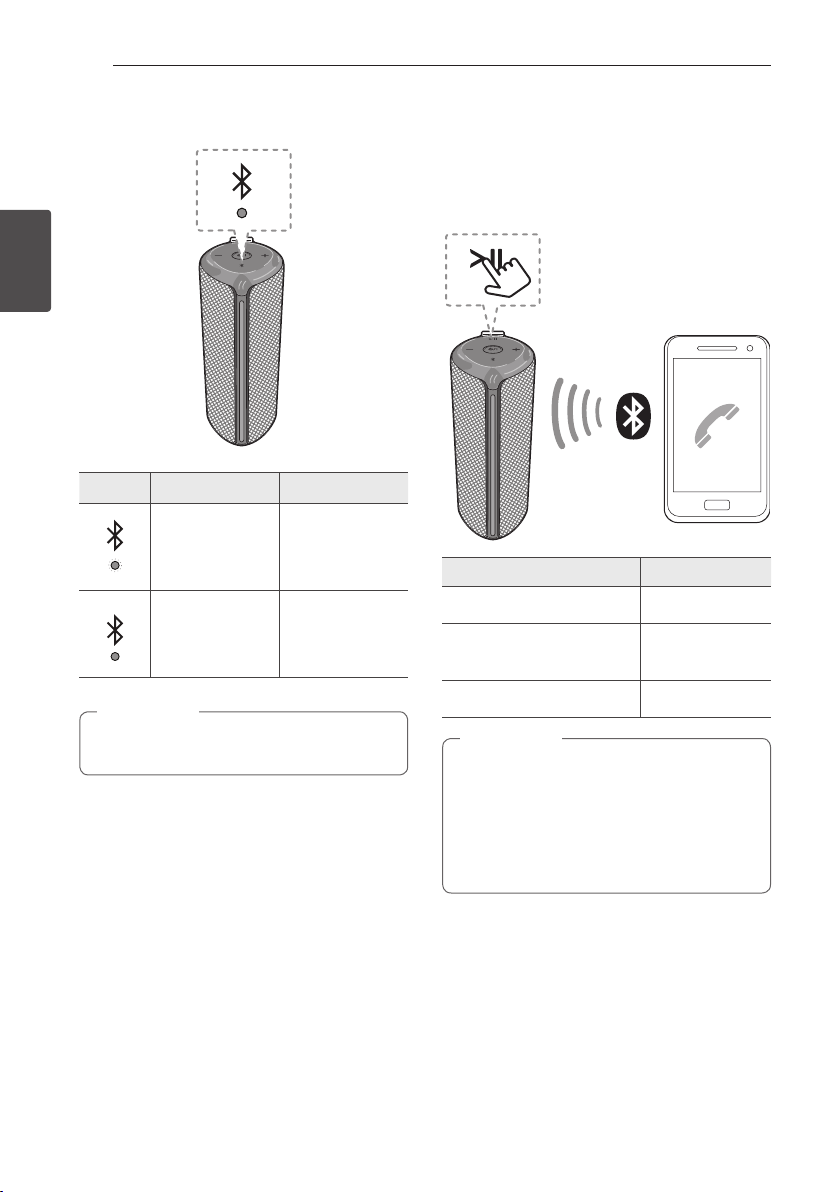

Bluetooth LED (White) status
LED Status Description
Bluetooth LED
blinks with the
sound.
Searching for
Bluetooth device.
Bluetooth LED
turns on with the
sound.
Bluetooth device
is connected.
Once pairing is performed, it does not need to
be done again even if you turn off this unit.
, Note
Handsfree Function
You can receive incoming call on your Bluetooth
device to this unit. Connect the unit to a Bluetooth
device.
Function How to
Receive a call. Press T.
Reject a call. Press and hold T
button.
End the call. Press T.
yOnly smartphone is available to use this
function.
yThis function is supported on Bluetooth
mode.
yTo adjust the call volume, press p, obuttons
on the unit.
, Note
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels LG Intervenants
LG
LG music flow p5 NP5550W Fiche technique
LG
LG NA8860W Fiche technique
LG
LG XG9QBK Manuel utilisateur
LG
LG XL7S Manuel utilisateur
LG
LG PJ2 Manuel utilisateur
LG
LG OCF100 Manuel utilisateur
LG
LG S55A3-D Manuel utilisateur
LG
LG FH2 Manuel utilisateur
LG
LG DXO3QBK Fiche technique
LG
LG NP7550 Music flow P7 Manuel utilisateur
Manuels Intervenants populaires d'autres marques
Bowers & Wilkins
Bowers & Wilkins 4 Manuel utilisateur
Sonance
Sonance SONOS OUTDOOR Series Manuel utilisateur
Electro-Voice
Electro-Voice EVID FM4.2 Manuel utilisateur
Pioneer
Pioneer XW-HTD630 Manuel utilisateur
Onn
Onn BWA16AA002 Manuel utilisateur
HP
HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
