LG LSXS26336V Manuel utilisateur

MODELS:

CAUTION

PLEASE READ CAREFULLY THE SAFETY PRECAUTIONS OF THIS MANUAL

BEFORE CHECKING OR OPERATING THE REFRIGERATOR.

REFRIGERATOR

SERVICE MANUAL

LSXS26336V

LSXS26336D

CONTENTSCONTENTS

SAFETY PRECAUTIONS ................................................................................................ ............................ 3

1. SPECIFICATIONS .......................................................................................... .......................................... 4

2. PARTS IDENTIFICATION ......................................................................... ............................................... 5

3. DISASSEMBLY ................................................................................................. ....................................... 6

1. Door Alignment.......................................................................................................................................... 6

2. Install Water Filter...................................................................................................................................... 7

3. Refrigerator Shelves.................................................................................................................................. 7

4. Icemaker.................................................................................................................................................... 8

4. HOW TO DISASSEMBLY AND ASSEMBLY................................................ ............................................ 9

1. Removing and Replacing Refrigerator door.............................................................................................. 9

2. Handle Removal........................................................................................................................................ 10

3. Redd S/W.................................................................................................................................................. 11

4. Removing and Replacing Refrigerator and Freezer Led’s........................................................................ 11

5. Fan Shroud Grille....................................................................................................................................... 12

6. Water Valve Tubes Assembly Method....................................................................................................... 13

7. Way Valve Service..................................................................................................................................... 14

8. Dispenser .................................................................................................................................................. 15

9. Disassembly of Fan Motor ………………………………………………………………………………………. 17

5. MICOM FUNCTION ................................................................................................ ................................. 18

6. ICEMAKER AND DISPENSER WORKING PRINCIPLES AND REPAIR................................................ 26

1. Working Principles..................................................................................................................................... 26

2. Function on Icemaker................................................................................................................................ 27

3. Ice maker Troubleshooting........................................................................................................................ 30

4. Icemaker Circuit........................................................................................................................................ 31

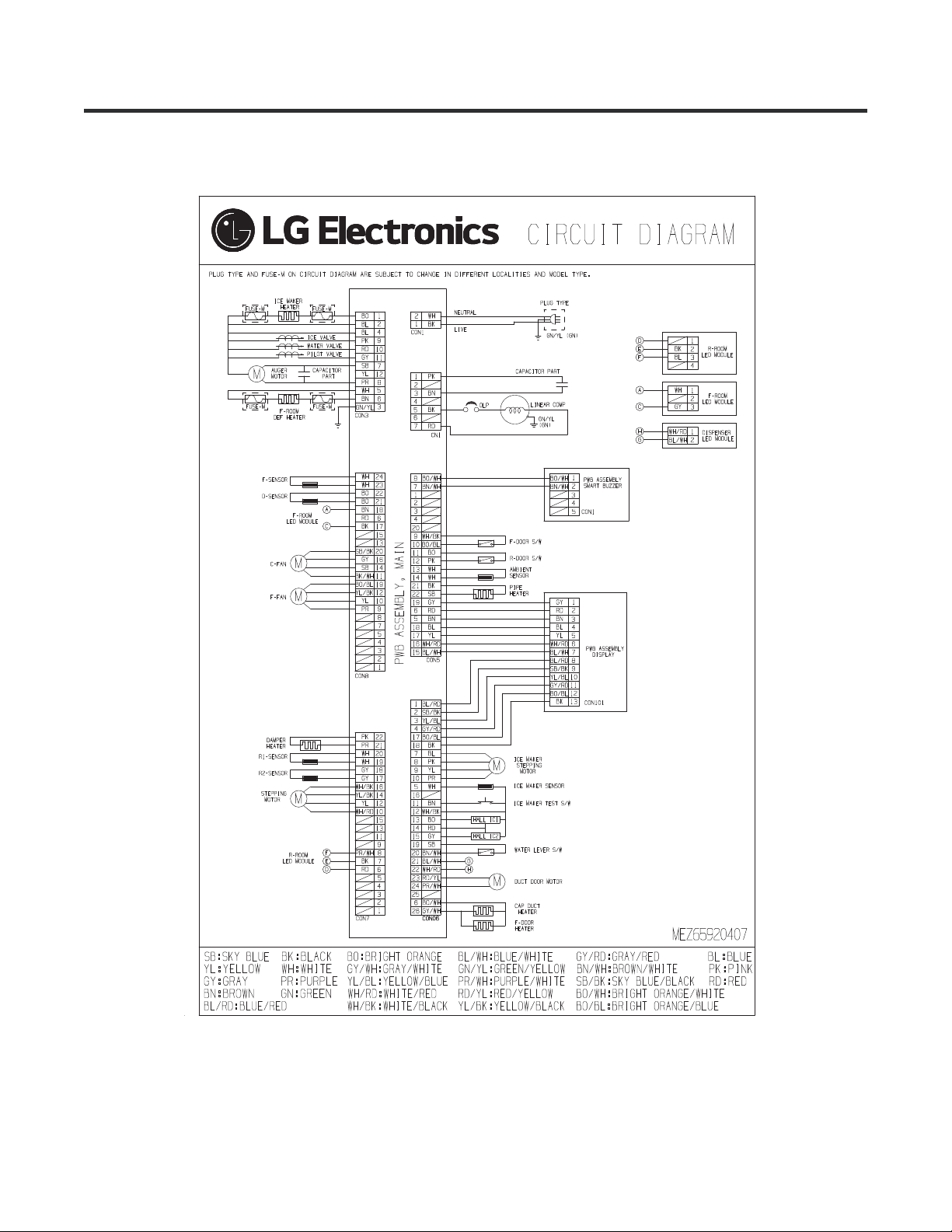

7. CIRCUIT DIAGRAM................................................................................... ............................................... 32

8. TROUBLE DIAGNOSIS.......................................................... .................................................................. 33

9. PCB ………………………………………………………………………………………………………….......... 55

10. TROUBLESHOOTING WITH ERROR DISPLAY ……………………………………………………....…… 56

11. TROUBLESHOOTING WITHOUT ERROR DISPLAY ……………………………………………………… 74

12. EXPLODED VIEW .................................................................................................................................106

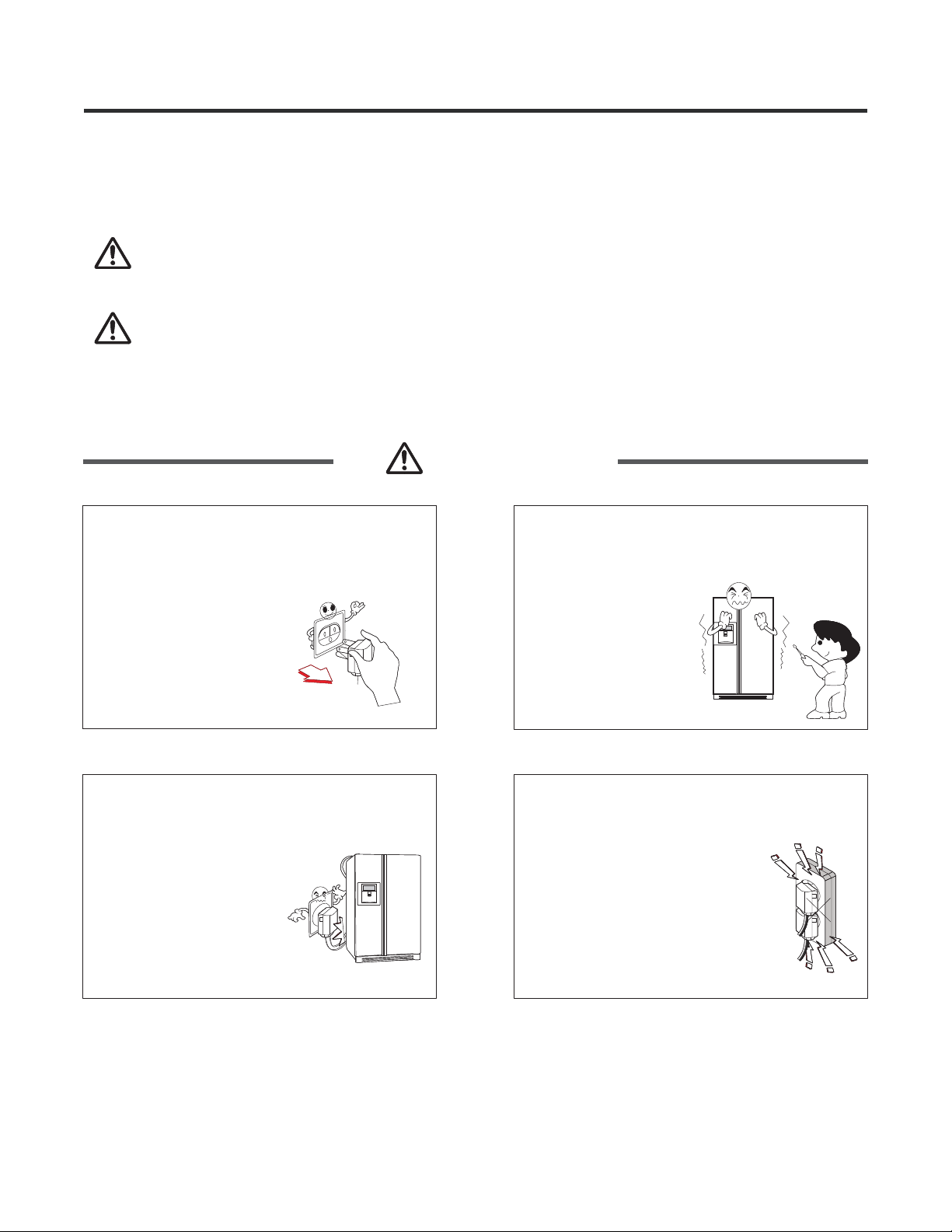

Safety Warning and Cautions

Chapter 1 Safety Warning and Cautions

► Observing cautions for safety can prevent accidents and dangers.

► Cautions are classified into Warning and Caution and the meanings are as follows

WARNING indicates the possibility of serious injury or death if the

instructions are not followed.

Caution indicates a hazardous situation with the possibility of product

damage or personal injury if the instructions are not followed

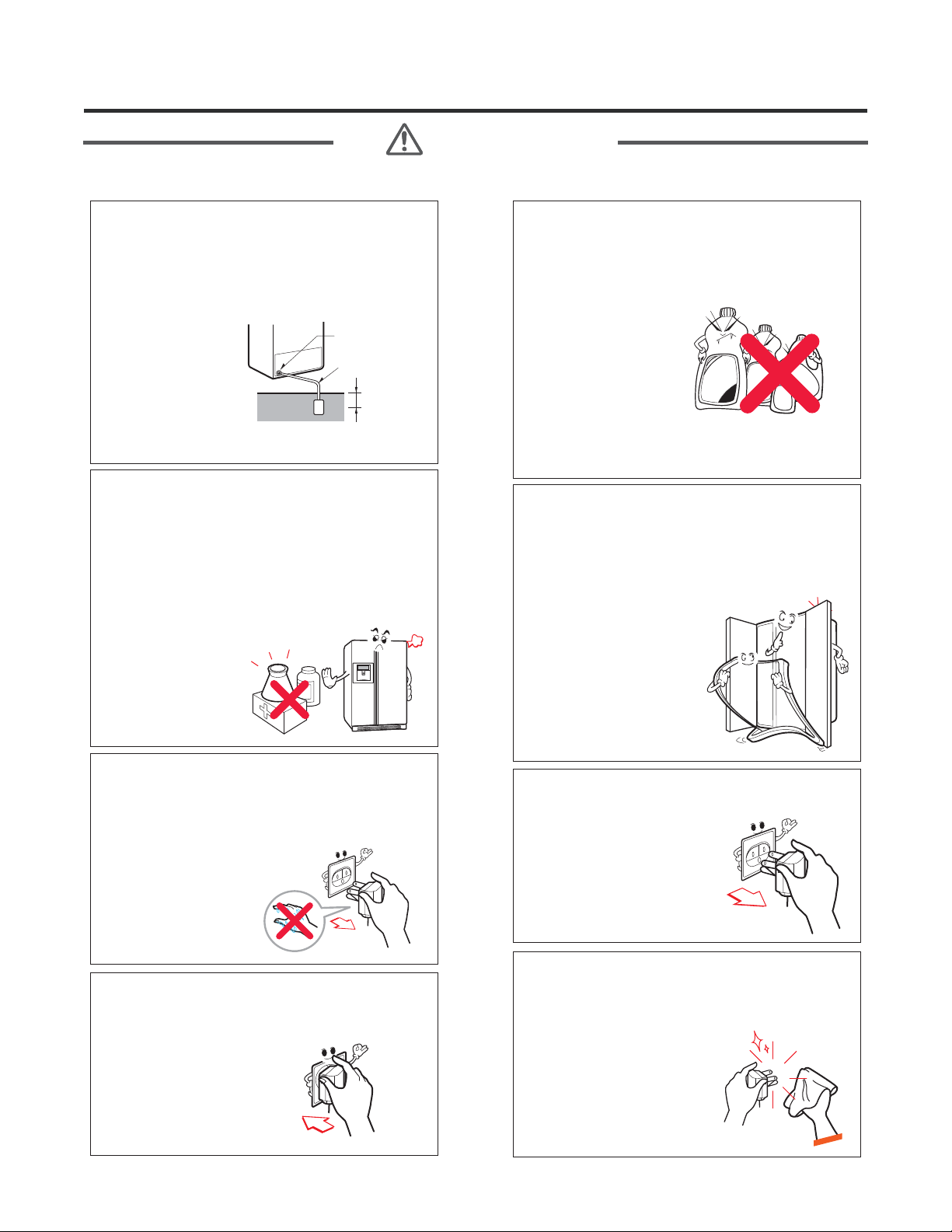

WARNING

CAUTION

WARNING

Be cautious of electric shock.

Control board (PWB Main and Sub)

uses power supply of about 120 VAC.

Do not allow consumers to directly

repair, disassemble, or modify the

refrigerator.

Harm, electric shock,

or fire could occur.

Be sure the plug and cord are not

pressed by the rear side of the

refrigerator.

Damage to power plugs

could result in fire or

electric shock.

Plug the refrigerator into a

dedicated circuit.

Plugging in too many appliances

can result in fire or problems with

the operation of your refrigerator.

If grounding is required, be sure to

consult an electrician.

The refrigerator

must be plugged in

to a properly rated

and grounded

outlet. If you are

not sure of your

voltage or ground,

consult a qualified

and licensed

electrician.

Do not store poisonous,

flammable, or explosive chemicals

in the refrigerator.

There is danger of

explosion and fire.

Do not store medications or

biohazardous products requiring

precise temperature control.

Do not use the refrigerator to store

papers, electronic storage media,

or similar items.

The refrigerator is

for storing food.

This is a consumer

household

appliance and not a

precision device.

If storing or disposing of the

refrigerator, remove the doors

to eliminate the possibility of

children playing in it.

Children may

become entrapped in

the refrigerator.

Unplug the refrigerator for

cleaning or repair. Be sure your

hands are dry when handling the

power cord or plug.

Electric shock or

harm may occur.

Be sure the plug and socket are

clean and the connection is tight.

Dust or incomplete

connection may

result in fire.

Grounding nut

Grounding wire

More than

75cm

Copper

plate

Firstly take power socket out for

Electric shock may occur.

When dusts etc are stained to the

pin part of the power socket,

cleanly wipe out them.

Fire may occur.

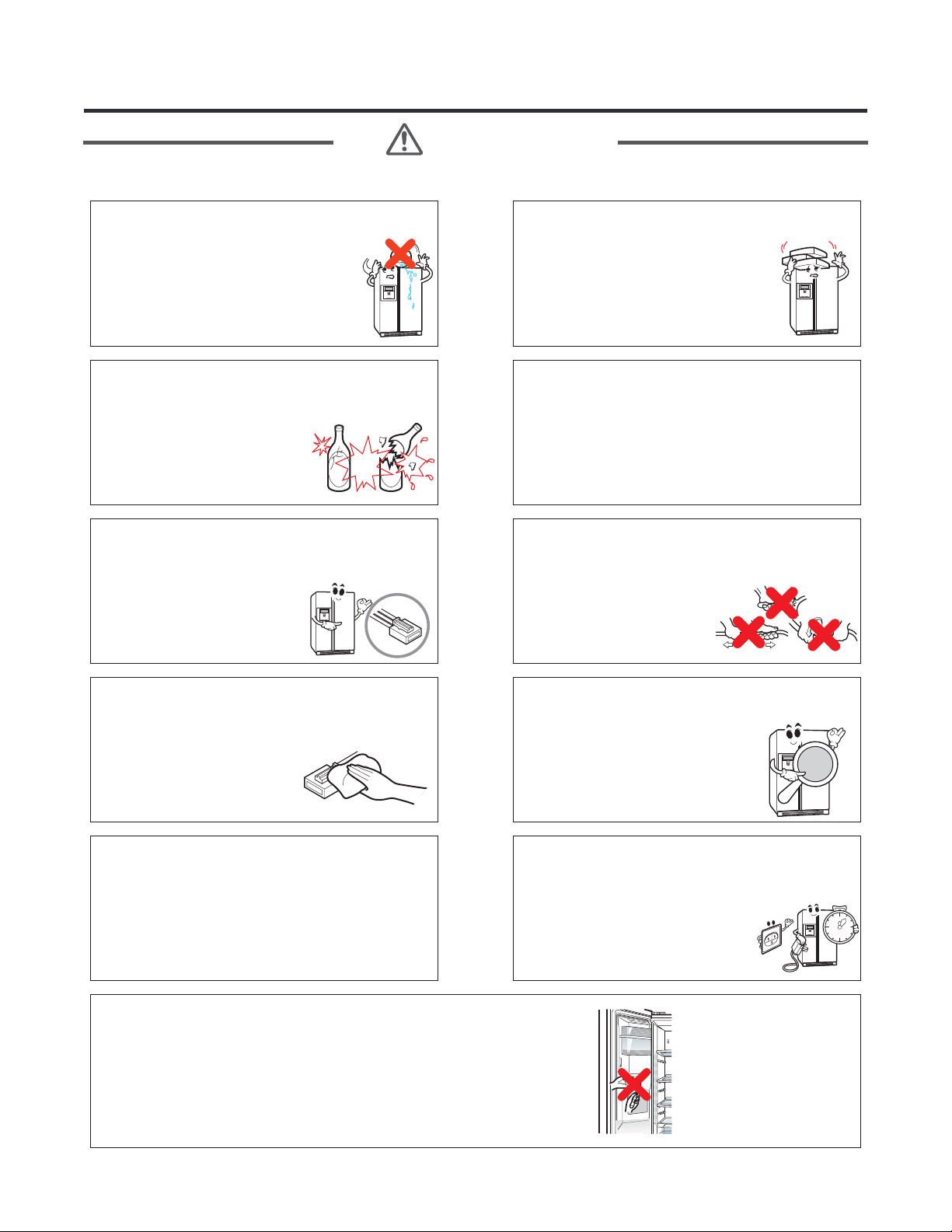

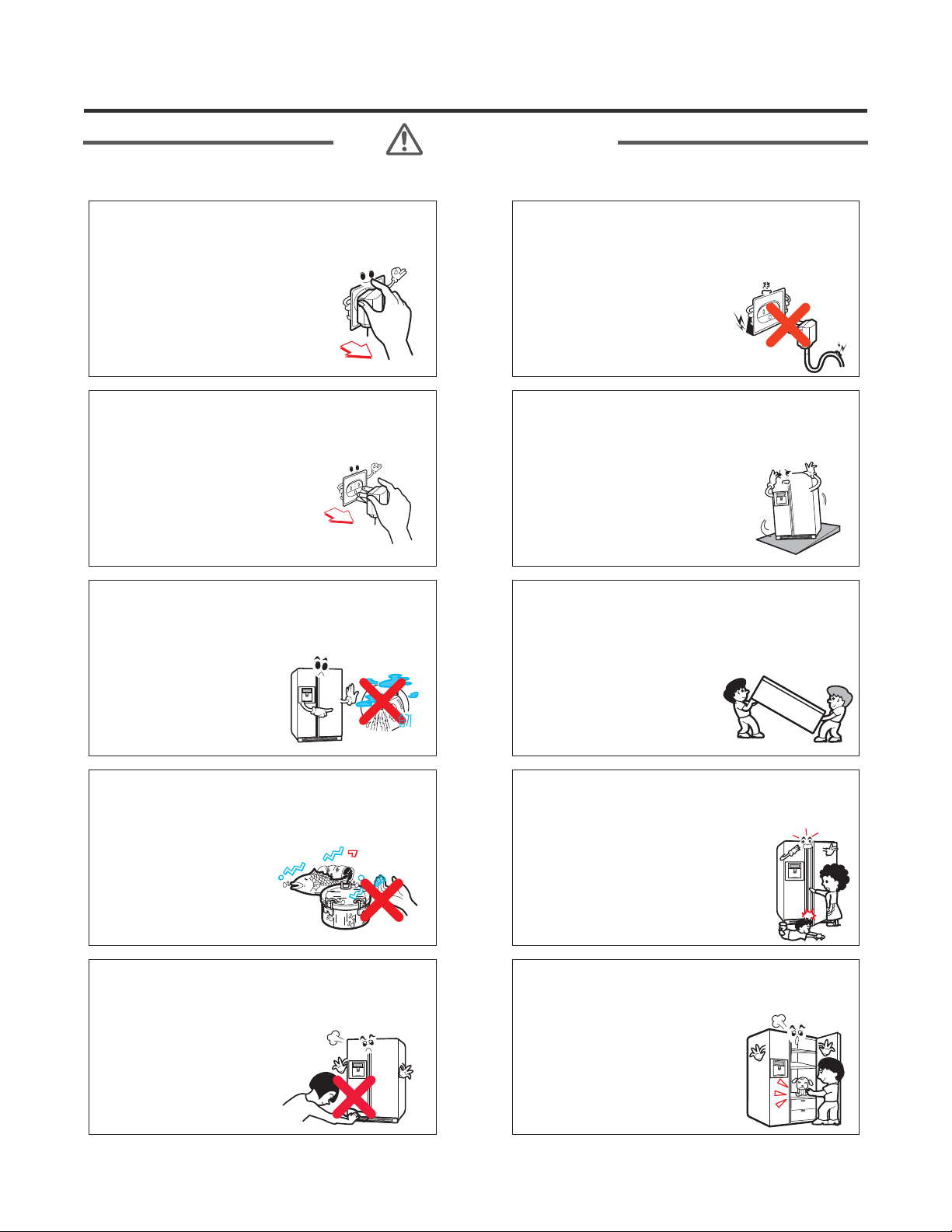

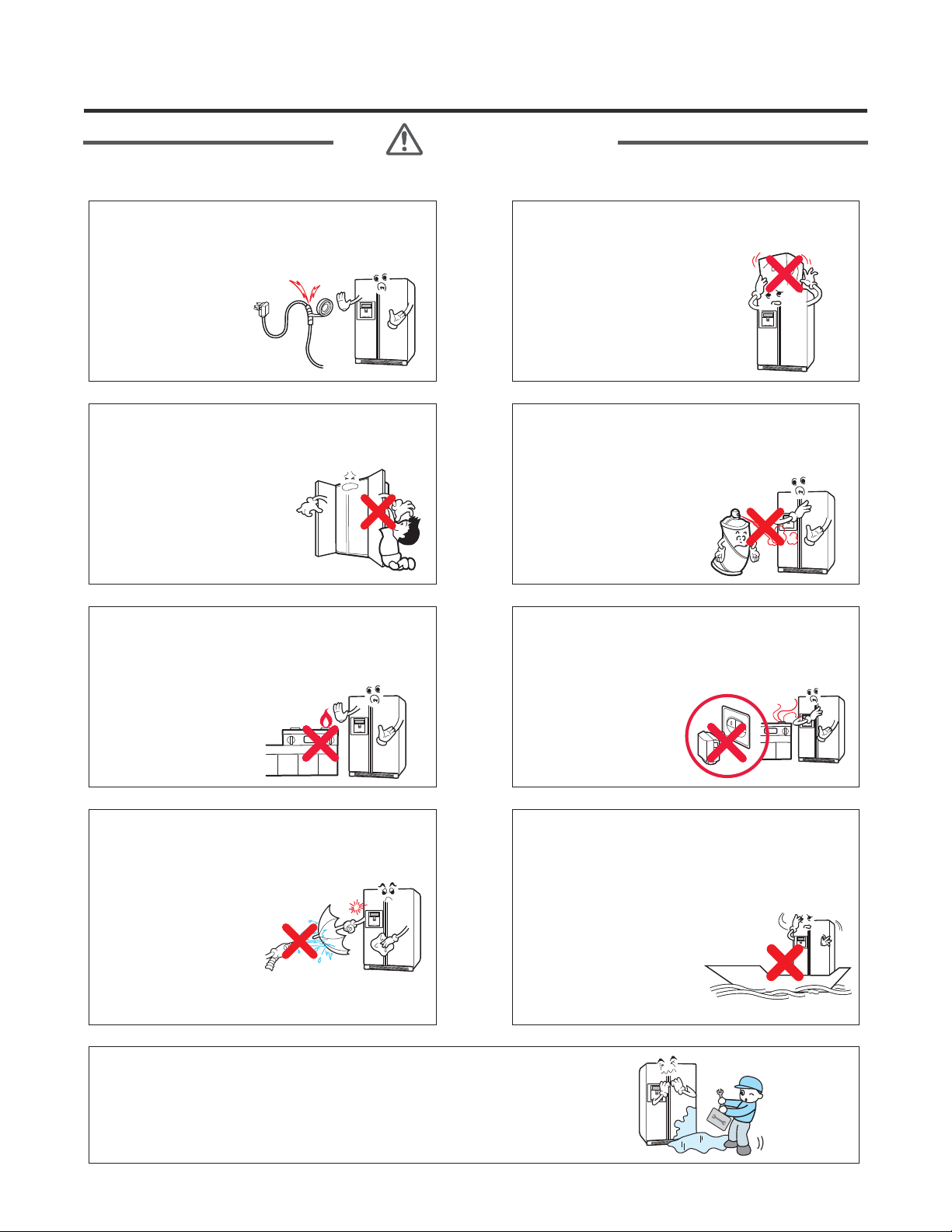

Safety Warning and Cautions

WARNING

Do not alter the power cord.

Replace it only with an exact factory

replacement part.

Electric shock or

fire may occur

due to electrical

damage of power

cables.

Do not place heavy objects on the

refrigerator.

Falling objects when

opening or closing doors

may cause injury.

Do not hang or swing from the

refrigerator doors.

Do not allow children to

play with the refrigerator.

The refrigerator may turn

over. Hands and fingers

may be pinched.

Do not use flammables near a

refrigerator.

There is danger of fire.

Do not install the refrigerator next

to a stove or other sources of heat.

There is danger of fire.

When a gas leak occurs, do not

unplug the refrigerator. Open the

doors for ventilation.

There is danger of

burning due to

explosion and

sparking.

Do not clean the refrigerator by

spraying water inside or outside.

It may result in

product damage,

fire, or electric

shock.

This refrigerator is designed for

use as a consumer home

appliance only.

It is not a precision

device for storing

medication or valuables.

Do not install the

refrigerator in a vehicle,

aircraft, maritime vessel,

or other than in a home

environment.

If the refrigerator is submerged or otherwise inundated

with water, have it checked by an authorized servicer.

Electric shock or fire may occur.

Safety Warning and Cautions

WARNING

Do not put glass bottles or other

sealed containers in the freezer.

They may burst, leaving

glass fragments in the food

and possibly causing injury.

Be sure to use rated parts for

replacement of electric parts.

Use factory replacement parts.

Secure the cord behind the

refrigerator.

Do not allow the cord to

hang where it can be

pinched, damaged, or rolled

over by the refrigerator.

Pull the plug out by the plug body;

do not pull the wire to disconnect

the cord.

Damage to power cords

may cause fire or electric

shock.

Keep electrical parts and

connections free from dust and

contamination.

There is danger of fire

from shorting or arcing.

Be sure replacement parts are an

exact fit.

Replacement parts should look

and fit exactly like the original

parts and have the same electric

rating.

Do not let moisture drop onto

electrical parts.

If there is a problem in this area, replace the

parts or tape the wires to prevent

contamination and degradation.

If you unplug the refrigerator or

turn off the power, wait 5 minutes

before plugging it back in

or turning the power on.

Rapid cycling of the compressor

could cause failure.

Do not put your hands, fingers, tools, or other

objects into the icemaker, crusher, or discharge

outlet. Do not check the operation of the ice

dispenser or crusher in this manner.

You may damage your product, fingers, or tools.

Do put the vessel that flower base,

cup, cosmetics or drugs, etc

are contained on the

refrigerator.

Fire or electric shock may occur, or

injury due to dropping may occur.

Do not accumulate objects on a

refrigerator or do not keep

foods in random method.

Dropping of objects when opening

or closing the door may cause

physical injury.

Safety Warning and Cautions

WARNING

Unplug the refrigerator if it is

going to be unused for an

extended period.

Remove all food items,

wipe down the inside of

the refrigerator, dry it

thoroughly, and prop the

doors open to allow air

circulation.

Be sure the floor will support the

weight of the refrigerator.

If the refrigerator is not installed

at a firm, level location, the

doors and icemaker may not

operate properly.

Do not install the refrigerator in a

place where it is subject to

splashing and excess moisture.

Deterioration of insulation

may cause electrical

leakage.

To carry the refrigerator, use the

handles at the top of the back, and

beneath the edge of the front.

Using these handles will

ensure safety and reduce

the possibility of injury.

Do not touch foods, containers, or

the inside of the freezer

compartment with wet hands.

Your hands may stick

to the cold items. It

could cause frost bite.

Be careful to avoid pinching hands

or feet when opening the doors.

Do not stick your hands or fingers

under the bottom of the

refrigerator.

Watch out for sharp

edges.

Do not put live animals in the

refrigerator.

power plugs catching with the end

of plugs without catching cords.

Fire may occur due to electric

shock or short-circuit.

Do not use power cords or power

plugs when they are damaged or

holes of power plugs are loose.

Fire may occur due to

electric shock or

short-circuit.

Safety Warning and Cautions

WARNING

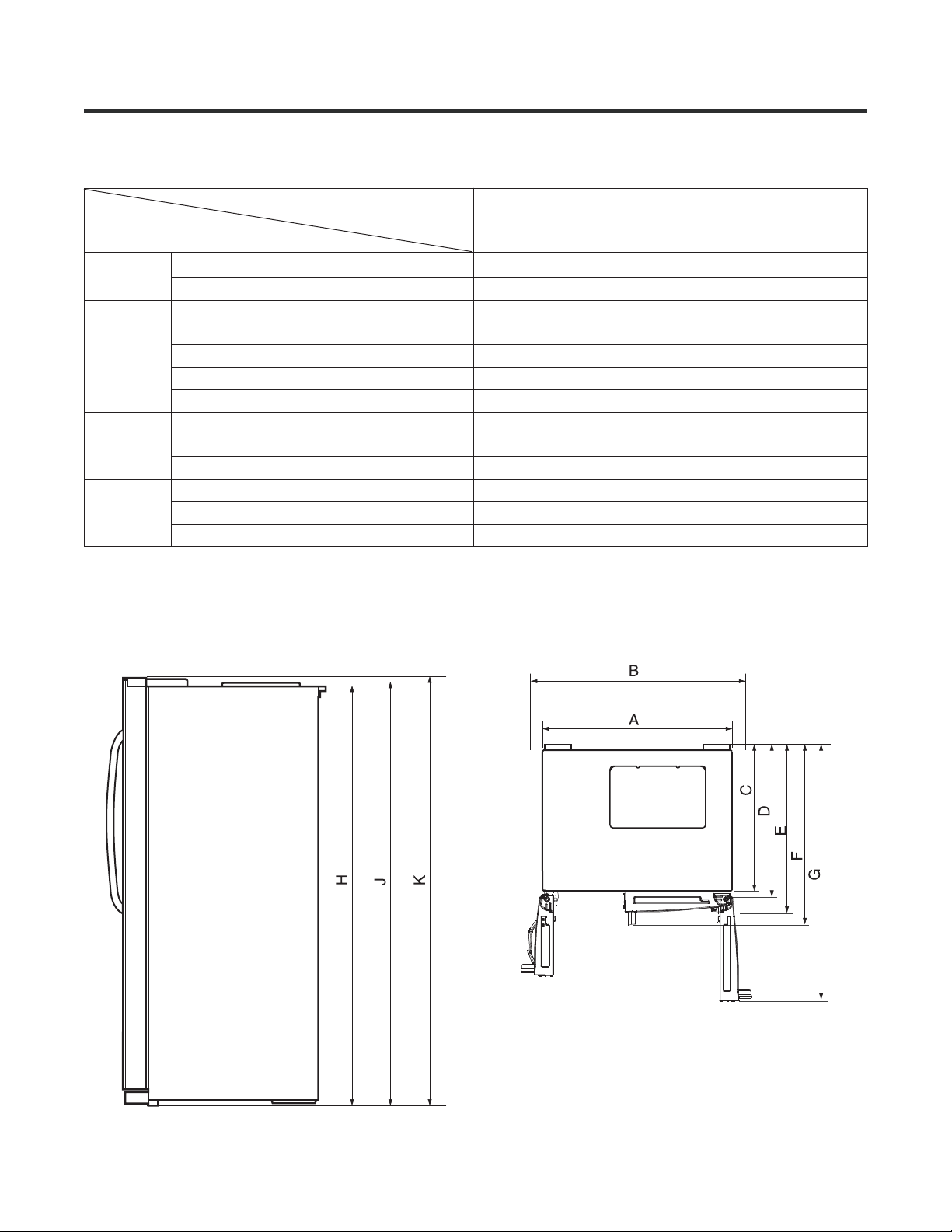

Product Standards

LSXS26336V / LSXS26336D

742.49L (26.22 Cu.)

260.59L (9.20 Cu.)

481.90L (17.02 Cu.)

35 7/8" x 35 7/8" x 70 3/8"

298

105 ± 15%(W)

Heater 260 ± 10%(W)

Indirect cooling(F-Control)

Temperature

control MICOM(Outside)

Forced method

Auto

Forced method

Cyclo-Pentane

A Logic Inverter operaon

Pin tube type

Forced convecon method

Freol Alpha5 oil(175cc)

R134a(175g)

Φ0.75

MOLECULAR SIEVE XH-9

Inial defrost 4~5 hours (vary depending on condion)

Defrost cycle 9~11 hours (vary depending on condion)

niM3emittseR

Defrost sensor Returend to defrost funcon when reaching to 5

Temp.fuse (rated/

C°27/V052)erutarepmetnoitarepo

W062/V511CAhtaehSretaeH

-retaehroodtcudresnepsiD

-retaehrabemohmooR-R

-retaehrabemohmooR-F

W5.2/V21CDretaehresnepsiD

Fµ02/V054CAgninnuR’pmoC

I/maker geared motor

Fµ41/V054CAg

ninnuR

Magic room Damper Heater -

R-Room Damper Heater DC 12V / 1W

-retaeHknaTretaW

W8.0/V21CDretaeHylppusretaW

MRA12325

DC 13V

DC 12V / 5W (1EA)

250 V / 0.5 A

250 V / 10 A

AC 125 V / 10 A

Main Fuse

Power cord

Inside lamp at R-Room

Door switch (F-Room/R-Room)

Home bar door switch

F-Room fan motor

Fan motor for cooling condenser

Inside lamp at F-Room

For prevenng ice

making

Overload protecve device

Capacitor

Electrical Standard

parts

Parts related with

dewing prevenon

Capillary tube

Dryer (drying tube)

Freezing cycle

Compressor driving method

Evaporaon

Condenser

F-Room oil

Type of refrigerant

R-Room

Fixed Shelf

Shelf(Movable, Folding)

Egg container

Vegetable room

F-Room Fixed Shelf

Drawer

Defrost

Method

Start

End

Evaporaon

Type of heat shield

F-Room

Cooling method

F-Room

Outer dimension ( W X D X H )

Product weight (lb)

Rated consumpon power of motor

Model

Eﬀecve inner

capacity

Total inner capacity(L)

F-Room

R-Room

Circuit Diagram

Specications

1. Specications

ltem

Width

Depth

Height

Minimum air

circulation

space

Model

Width (A)

When opening door by 90° (including handle) (B)

Case (including back handle) (C)

After disassembling door (including hinge, L) (D)

Including door (not including handle) (E)

Including handle (F)

When opening door by 90° (G)

Cabinet (H)

Including cover PWB (J)

Including door (K)

Top part

Side

Rear part

35.9 (912)

39.6 (1005)

28 7 730. ( )

31 5 800. ( )

33 4 848. ( )

35 9 912. ( )

50 6 1285. ( )

68 9 1750. ( )

69 3 1760. ( )

70.3 (1785)

11.8 (300)

0.8 (20)

2.0 (50)

Unit : inch (mm)

Front View

Top View

LSXS26336V / LSXS26336D

Ce manuel convient aux modèles suivants

Autres manuels LG Réfrigérateur

LG LRTN19310 Series Manuel utilisateur

LG SXS Refrigerator Manuel utilisateur

LG GN-B492YLC Manuel utilisateur

LG GR-B392 Manuel utilisateur

LG GRF7848SC Manuel utilisateur

LG GF24BGS Manuel utilisateur

LG GR-C331SLZB Manuel utilisateur

LG LFD21860ST Manuel utilisateur

LG LDC22720 Series Manuel utilisateur

LG GB6140PZQV Manuel utilisateur

LG LMXC23746D Manuel utilisateur

LG HR1367 Manuel utilisateur

LG LBC20514TT - Titanium 19.7 cu. ft. Bottom Freezer Refrigerator... Manuel utilisateur

LG GS-B655PL Manuel utilisateur

LG GL-I292RPOY Manuel utilisateur

LG Refrigerator-freezer Manuel utilisateur

LG GR-V202S Manuel utilisateur

LG LRSC26930 Instructions de montage

LG LRFDS2503 Series Manuel utilisateur

LG LFD2278 Series Manuel utilisateur

LG LBC22518ST Mode d’emploi

LG LM85SXD Manuel utilisateur

LG GR-M403RLHH Manuel utilisateur

LG GBB72MCVBN Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
