LG MR11 Manuel utilisateur

OWNER’S MANUAL

High Power Multimedia

Receiver

Please read this manual carefully before operating your set and retain it for future

reference.

Model

MR11 (MR11, S94P2-F, S94P2-S)

2310_Rev01

www.lg.com

High Power Multimedia Receiver Quick

Guide

Installing and using the Product

a Connecting the receiver with speakers ([See “Connecting the

speakers” on page 7.)

A Receiver

B Remote Control Receiver / Status Display

C External Device - (Blu-ray player, game console, etc.)

D Front speaker with built in subwoofer

E Surround (Rear) speaker

Soundbar Quick Guide

b Connecting the supplied FM antenna ([See “Connecting

Antenna to the receiver” on page 31.)

c Connecting the receiver to your TV via an optical cable or an

HDMI cable. ([See “Connecting with an Optical Cable”,

“Connecting with an HDMI Cable” on page 23, 20.)

A Press the Power button to turn on the receiver.

B Press the Function button repeatedly until “OPT/HDMI ARC” appears on the status display.

C On your TV's settings, set the output speaker to [HDMI ARC], [Optical], or [External Speaker].

D When the TV is properly connected to the product, “OPTICAL”, “ ARC” will appear on the status display.

d If you are using an external device (ex. Blu-ray player, game

console, etc.), connect it to the receiver via an HDMI cable. ([

See “Connecting with an HDMI Cable” on page 25.)

e Playing Music from the USB ([See “Connecting to a USB

Storage Device” on page 45.)

A Press the Power button to turn on the receiver.

B Plug the USB storage device into the USB terminal.

C Press the Function button repeatedly until “USB” appears on the status display.

D Press the Play/Pause button to enjoy the music.

f Connecting a Portable Device ([See “AUX (Portable Input)

Connection” on page 30.)

A Press the Power button to turn on the receiver.

B Connect the external device to the AUX terminal via a 3.5 mm stereo cable. Product will automatically

recognised when connecting a stereo cable. “AUX” will appear on the status display.

C Turn the external device on and start playing.

g Connecting the product to your smartphone via Bluetooth ([

See “Connecting via Bluetooth” on page 42.)

A Press the Power button to turn on the receiver.

B Tap the Settings button on your smartphone and select Bluetooth. Turn on the Bluetooth function.

( Off > On)

C Press the Bluetooth pair button on the remote control. After a moment, you will see “BT READY” on the

status display.

D Find and tap the product on your smartphone. The product appears as “LG-MR11(XX).”

E When the product is connected to your smartphone via Bluetooth, you can see the status display change

from “PAIRED” [“Connected Bluetooth device name” [“BT”.

h Connecting to the LG XBOOM app ([See “Installing app” on

page 53.)

A Find the LG XBOOM app on the Google Play or App Store and install it on your smartphone.

B Run the LG XBOOM app and use more features.

Table of Contents

High Power Multimedia Receiver

Quick Guide

2Installing and using the Product

Installation

6Setting up the speakers

7Connecting the Product

Exploring the Product

12 Front

14 Back

15 Exploring Remote Control

Connecting to the TV

20 Connecting with an HDMI Cable

22 Connecting via Bluetooth

23 Connecting with an Optical Cable

Connecting to an External Device

25 Connecting with an HDMI Cable

29 Connecting with an Optical Cable

30 AUX (Portable Input) Connection

Radio Operations

31 Connecting Antenna to the receiver

32 Listening to the radio

33 Presetting the Radio Stations

SETTINGS menu

35 Settings and adjustments using the

SETTINGS menu

Using the Product as an Audio

System

42 Connecting via Bluetooth

45 Connecting to a USB Storage Device

48 Recording to USB

51 Deleting a file/folder or format

Connecting to the LG XBOOM

App

53 Installing app

Safety Precautions

55 Safety and Regulatory

57 Prevention of product misuse

Before Reporting Product

Malfunction

61 Troubleshooting

Appendix

63 Specifications

65 Registered Trademarks and Licenses

66 Handling the Product

Installation

Setting up the speakers

The following illustration shows an example of positioning the speakers. Note that the illustrations in these

instructions differ from the actual unit for explanation purposes.

For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same

distance from the listening position (a).

Note

• Speaker positions are as follows.

A Front speaker with built in subwoofer (L)

B Front speaker with built in subwoofer (R)

C Receiver

D Surround (Rear) speaker (L)

E Surround (Rear) speaker (R)

• Do not stack the speakers and be careful that the speaker should not fall down. Otherwise it may result in the

speaker malfunction and causing personal injury and/or property damage.

• Make sure to install the speaker with other people in order to prevent it from falling and causing injuries to the

installer.

• Please ensure there are no obstacles between the receiver and the speakers.

Installation

Connecting the Product

Please make sure to disconnect the AC power cord before making any connection between the receiver and any

other device.

Connecting the speakers

To connect the speakers to the receiver, insert the wires in the following order.

a Connect a speaker cable plugs to the receiver. When connecting a speaker cable plugs to the receiver, insert

the connector until it clicks.

b Match each speaker cable plugs to the same coloured connection terminal on the rear of the receiver.

OPTICAL

DIGITAL

AUDIO IN

ANTENNA

REAR

FRONT

WOOFER

FRONT

IN 2

IN 3

IN 1

OUT dTV (ARC)

Colour Speaker

Grey REAR R

Red FRONT R

Orange WOOFER R

Orange WOOFER L

Blue REAR L

White FRONT L

c Plug the power cable into an outlet.

Note

• Do not try to lift the speaker alone. It needs two persons to lift the speaker. Otherwise it may result in the

speaker malfunction and cause personal injury and/or property damage.

• Check the volume level before playing music to prevent infirm, child, and pregnant women from being shocked

by the sudden and loud sound from the unit.

• Do not use the product in a limited space. It may damage a person’s hearing. It is recommended to use it in a

wide space.

• The speakers contain magnet parts, so colour irregularity may occur on the TV screen or PC monitor screen.

Please use the speakers far away from either TV screen or PC monitor.

• Connect the product to the speakers and cables provided at the time of product purchase.

- If you connect the product to speakers or cables other than those provided at the time of product purchase,

there can be a deterioration of sound quality or a speaker malfunction.

• When you connect speakers to the product, connect only one speaker to the output port that fits the speaker.

- If you connect multiple speakers to one output port, it may cause a product or speaker malfunction.

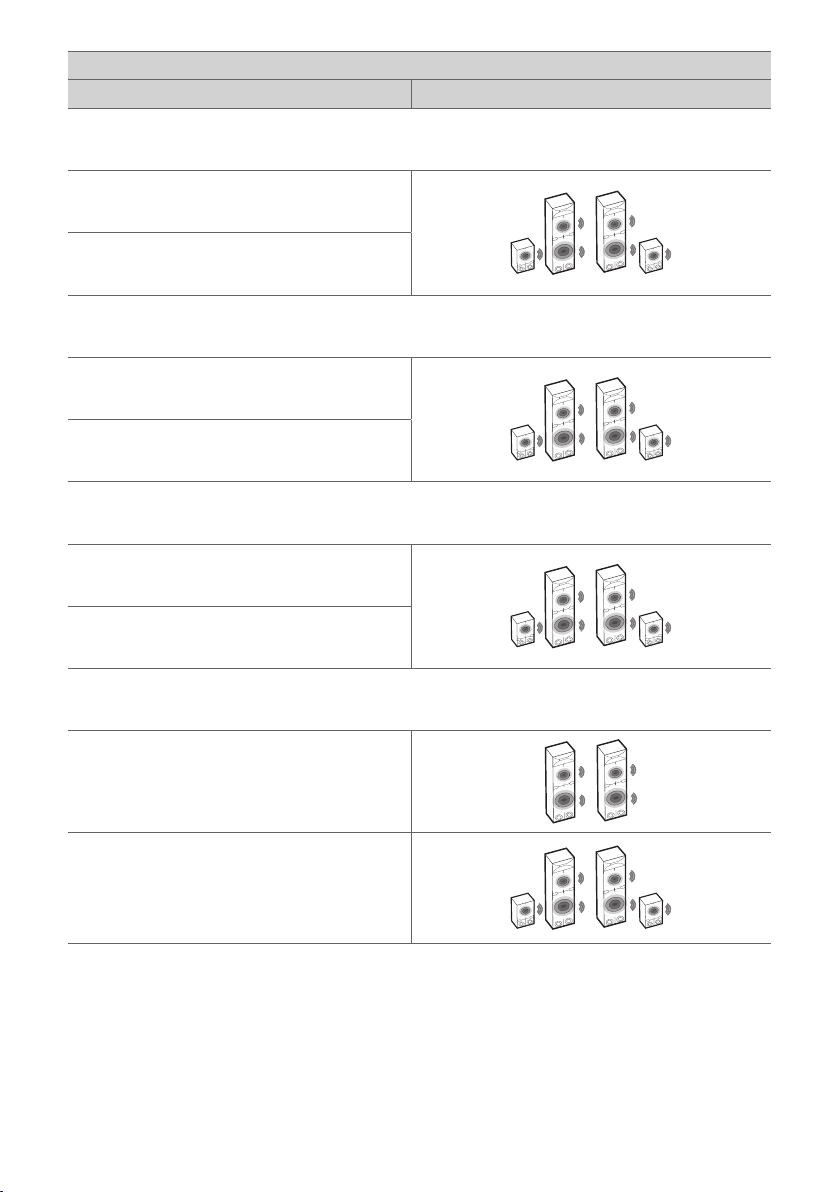

Speaker sound based on input channels

Sound Effects

Input Output

AI SOUND PRO

Sound customised with artificial intelligence

2.0 channels

5.1 channels or more

CLEAR VOICE

Voice sound clear, improving the quality of voice sound

2.0 channels

5.1 channels or more

STANDARD

You can enjoy optimised sound.

2.0 channels

5.1 channels or more

Sound Effects

Input Output

BASS BLAST (BASS BLAST+)

Sound with reinforced bass

2.0 channels

5.1 channels or more

FOOTBALL

Realistic sound like in a stadium

2.0 channels

5.1 channels or more

CINEMA

Cinematic 3D sound

2.0 channels

5.1 channels or more

GAME

Optimised sound for game

2.0 channels

5.1 channels or more
