LG UltraGear 45GR95QE Manuel utilisateur

www.lg.com

Quick Setup Guide

(OLED Monitor)

*MBM67534010*

(2307-REV00)

45GR95QE

1 2 3

4 5

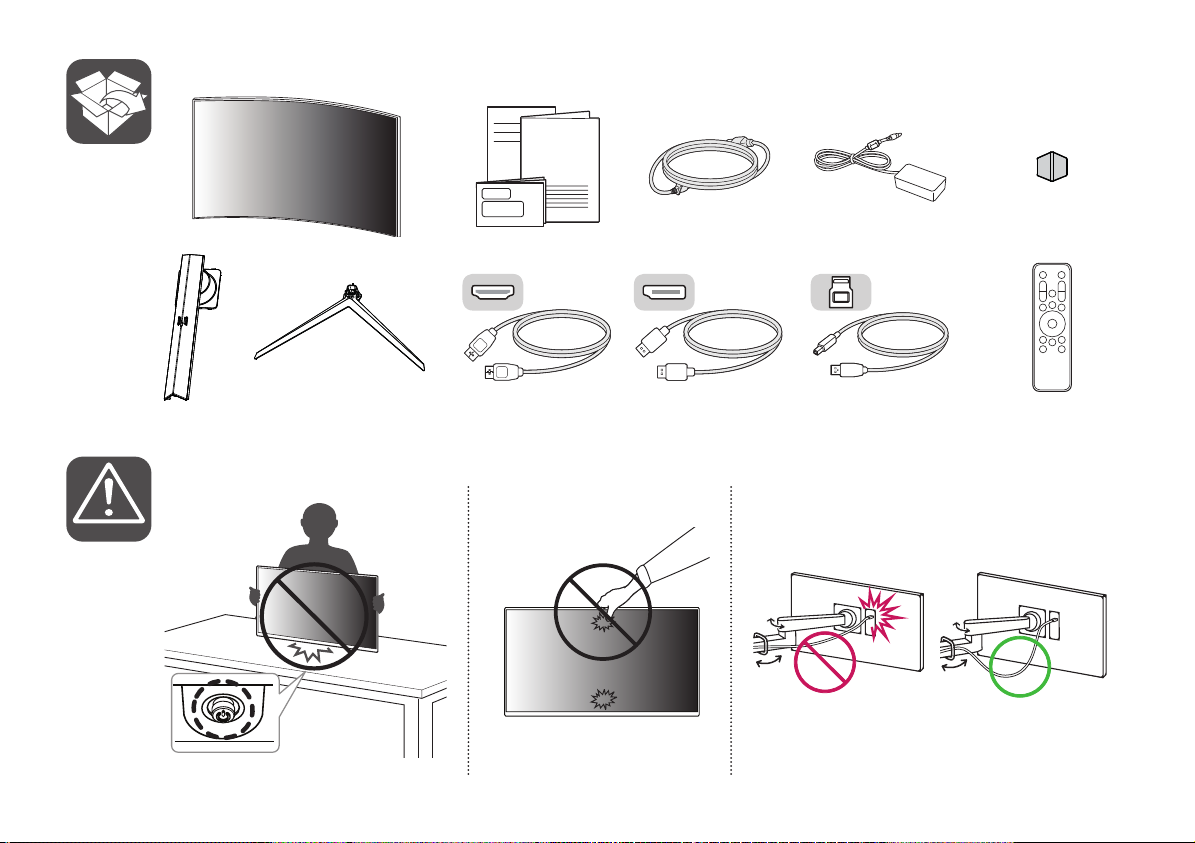

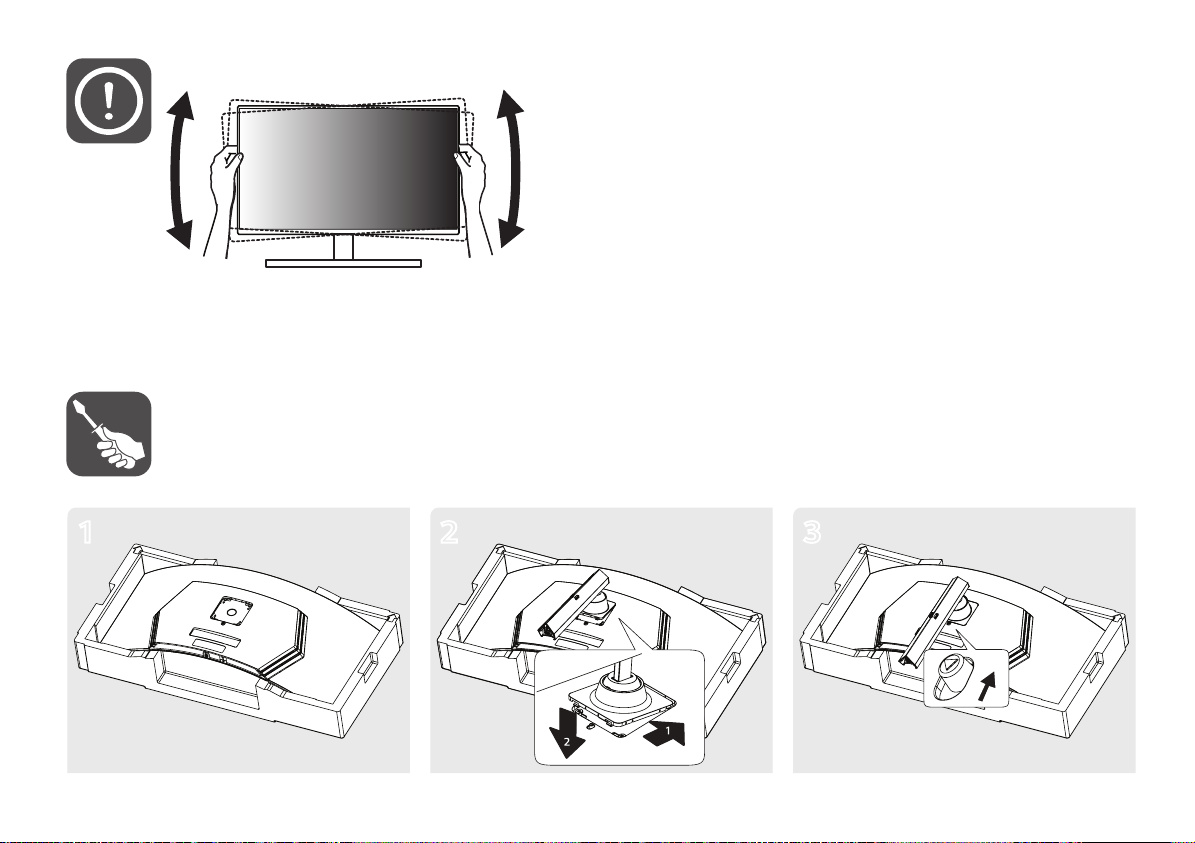

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size.

• Place the monitor in the original box or packing material before attempting to move it.

• Before moving or lifting the monitor, disconnect the power cord and all other cables.

• Hold the bottom and side of the monitor frame rmly. Do not hold the panel itself.

• When holding the monitor, the screen should face away from you to prevent it from being scratched.

• When transporting the monitor, do not expose the monitor to shock or excessive vibration.

• When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.

Installing on a Table

Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm away from

the wall to ensure sucient ventilation.

: 100 mm

Installing on the Wall

This monitor meets the specications for the wall mount plate or other compatible devices.

Install the monitor at least 100 mm away from the wall and leave about 100 mm of space at each side of the

monitor to ensure sucient ventilation. Detailed installation instructions can be obtained from your local retail

store. Alternatively, please refer to the manual for how to install and set up a tilting wall mounting bracket.

: 100 mm

Product and Button Description

A: Remote Control Sensor

B: Power Button

C: Lighting

Using the button

The monitor can be operated by pressing a button.

Basic functions

Power On (Press)

Power O (Press and Hold)

Move Menu (Press1)

Select Menu (Press and Hold2)

1 The desired function can be selected by moving the menu.

2 You can enter the menu to change the function while the monitor is on.

Menu Settings

Power o the monitor.

Changes the external input.

/ Adjusts the volume.

/ Adjusts the brightness.

Using the Remote Control

Replacing the Remote Control Battery

Use 3 V, CR2025 button cell battery. Replace the battery with new one and insert it in the battery tray as shown.

1 To separate the battery tray on the back of the remote control, push the hook to the side and then pull it.

2 Align the side of the replacement battery to the battery tray label and insert them correctly.

3 Push the battery tray in until it clicks.

The illustrations may dier from the actual accessories.

(Power) Turns the monitor on or o.

(Input) Selects the input mode.

/ (Volume) Adjusts the volume level.

(Mute) Mute all sounds.

/ (Brightness) Adjusts the brightness level.

(Previous) Go to the previous step.

(Settings) Makes the main menu screen appear or disappear.

(Reader Mode) Changes to Reader mode.

(Direction buttons and OK) It allows you to move, select, and adjust menus.

/ ( ) Go to the menu specied by the user.

( ) Go to the [ ] menu.

( ) Select the desired sound settings.

( ) Changes the audio output method.

CAUTION

• Be sure to point the remote control toward the remote control sensor on the monitor.

• The product’s internal and external batteries should not be exposed to excessive heat such as direct sunlight, re, or the like.

• Risk of re or explosion if the battery is replaced by an incorrect type.

  

 

  
