Connecting the stand

1. Take the parts for the stand out of the box and assemble them as shown in the

picture.

2. Place a soft cloth on the table and put the product with the screen facing

downward. Connect the stand as shown in the following picture.

3. Use the screws to secure the stand on the rear side of the product as shown

in the diagram.

First, check if the following parts are all present.

Parts

Stand (1)

Screws (6) Cable management (1)

Connecting the Speakers

Mount the product onto the speaker by using a screw as shown in the following

connect the speaker cable.

- Only on some models.

When the speaker is installed.

*Connect the input terminal with a proper color match.

Remove the paper.

Cable holder

After installing your speakers, use holders and cable ties to organize the speaker cables.

* This feature is not available in all model.

Cable tie

* This feature is not available in all model.

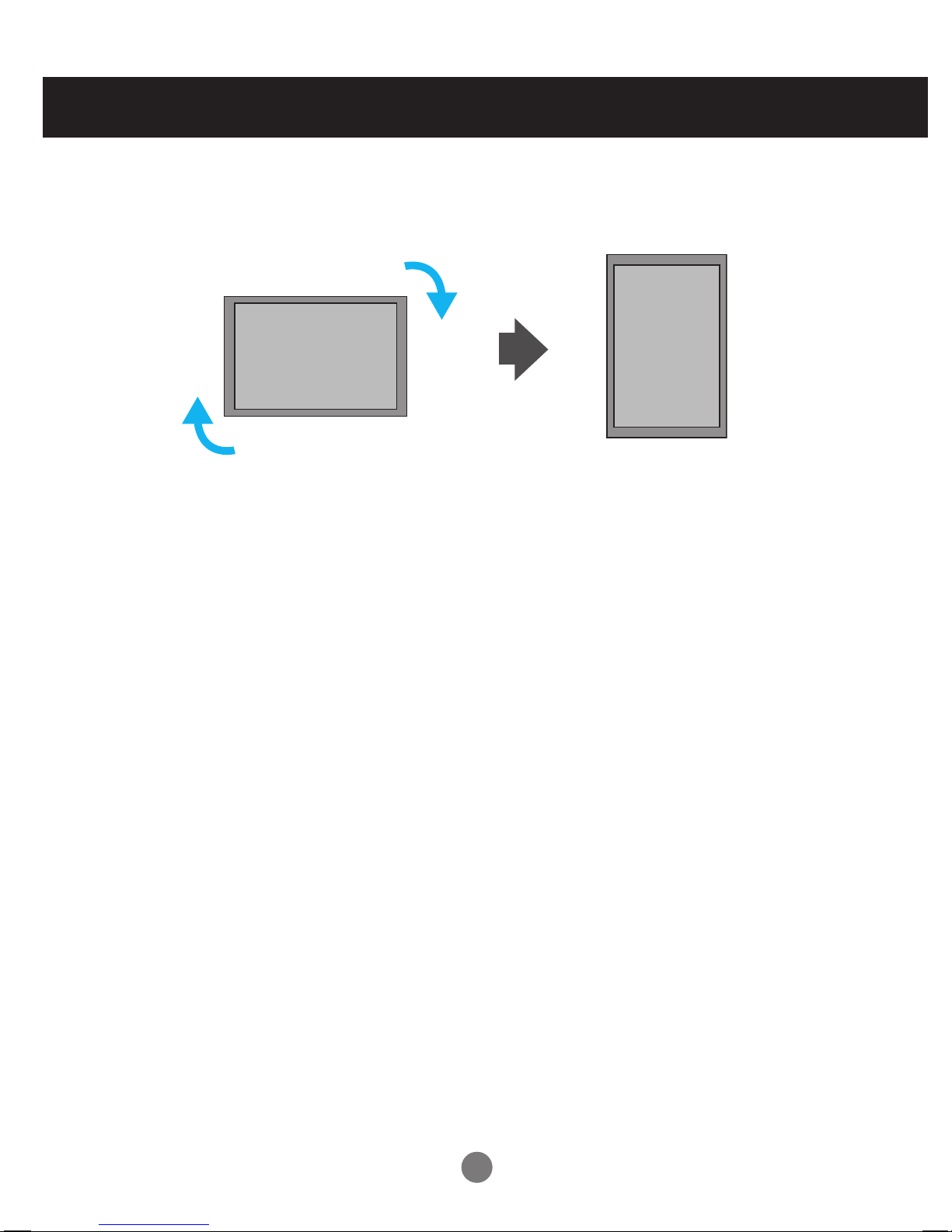

To install Portrait

"When installing Portrait, rotate it clockwise based on its front."

- Only on some models.

Using the Remote Control

Name of the Remote Control Buttons

•

AV Button

•

Sleep Button

When watching AV, RGB PC,HDMI/DVI,

Component

The product will be automatically turned

off after a certain period of time.

Press this button repetitively to

select an appropriate time duration

•

PSM Button

- Toggles through preset video

settings.

•

Menu Button

•

Check Button

•

Volume Button

Volume up and down

•

Mute button

There is not a function

which is supported

•

UP and Down buttons

Bring up and down direction

adjustment.

•

ARC button

Aspect Ratio Correction. Toggles

through aspect ratio options.

•

Auto Button

Automatic adjustment function

(Operational for the analog signal only)

•

Exit Button

There is not a function

which is supported

There is not a function

which is supported

There is not a function

which is supported

•

Power On/Off Button

•

Input Select Button

(See next page)

Using the Remote Control

•

AV Button

If you press the button once,

the following Input Signal

Window will appear. Select

the signal type you want

using the button.

•

Input Select Button

1. Slide off the battery cover.

2. Insert the batteries with correct polarity (+/-).

3. Close the battery cover.

• Dispose of used batteries in the recycle bin to prevent

environmental pollution.

Inserting batteries into remote control.

AAA Type

AV Component

RGB PC HDMI/DVI

Toggles through video

Input

Component

RGB PC

HDMI/DVI

▲▼

Name and Function of the Parts

Rear View

*LINE OUT

A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that

the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of

PC sound card has only Speaker Out, reduce the PC volume.

If the Audio Out of the PC sound card supports both Speaker Out and Line Out, convert to Line Out

using the card jumper of the program (Refer to the Sound Card Manual).

* The product image in the user's guide could be different from the actual image.

Power Connector : Connect the power cord

RS-232C Serial Ports

RGB PC, HDMI/DVI Ports

-HDMI Supports High Denition input and HDCP (High-bandwidth Digital Content

Protection). Some devices require HDCP in order to display HD signals.

PC Sound Jack

: Connect the audio cable to the *LINE OUT jack of the PC sound card.

Wired Remote Control Port

AV Ports

LAN Port

Speaker Ports

First of all, see if the computer, product and the peripherals are turned off.

Then, connect the signal input cable.

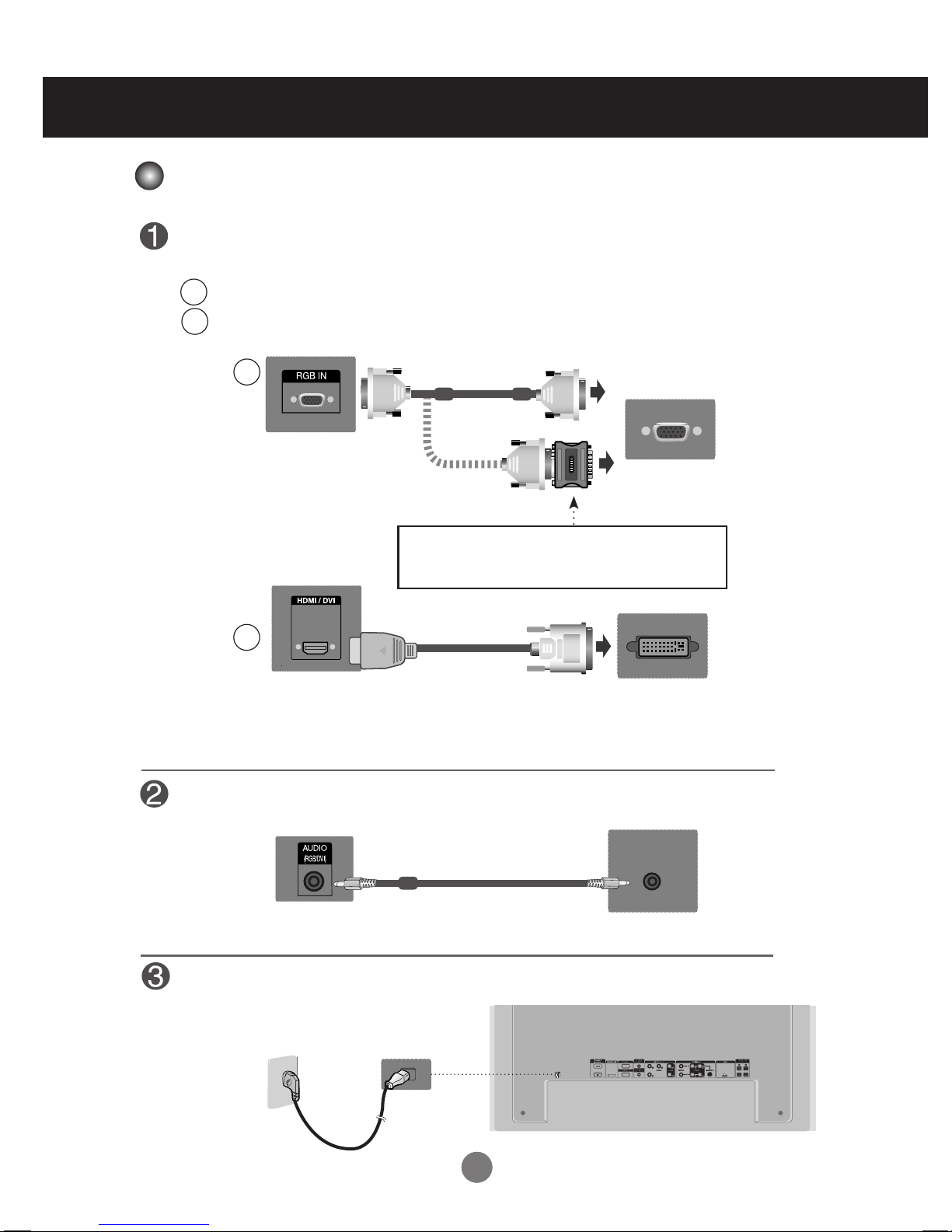

When connecting with the D-Sub signal input cable.

When connecting with the HDMI to DVI signal input cable (not included).

* When HDMI PC is used, a compatiblity problem might occur.

MAC

Macintosh Adapter (not included)

Use the standard Macintosh adapter since an incompatible

adapter is available in the market. (Different signaling system)

Rear side of the product.

Connecting to External Devices

Connect the power cord.

PC/

MAC

Rear side of the product.

Connect the Audio cable.

(not included)

* User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite cores to maintain

standard compliance for the product.

When Connecting to your PC

Select an input signal.

Press the INPUT button on the remote control to select the input signal.

Or, press the SOURCE button on the back of the product.

•

How to connect to two computers.

Connect the signal cables (HDMI to DVI and D-Sub) to each computer.

Press the INPUT button on the remote control to select the computer to use.

•

Directly connect to a grounded power outlet on the wall or a power bar with a ground wire.

Note

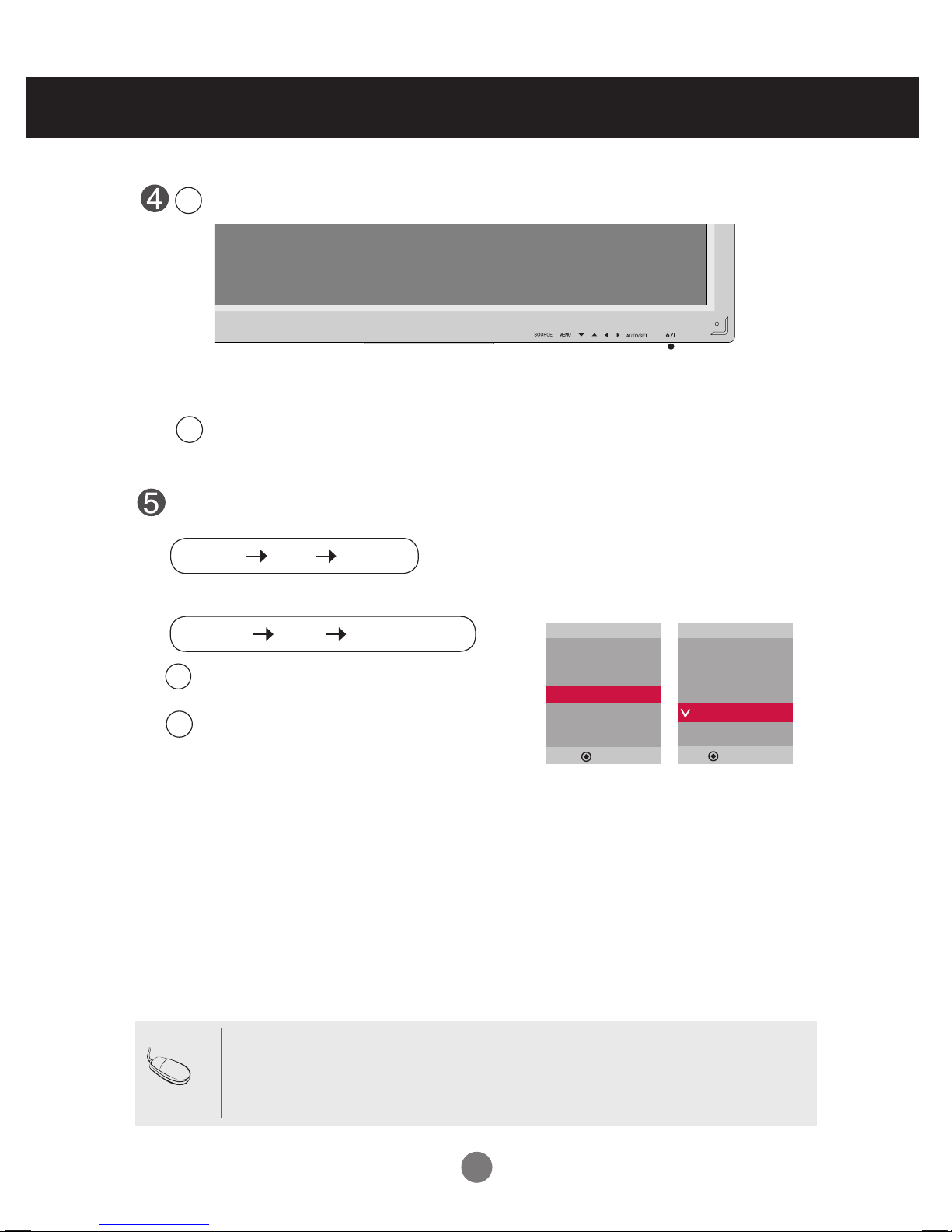

Turn on power by pressing the power button on the product.

Turn on the PC.

When connecting with a D-Sub signal input cable.

• Select RGB PC : 15-pin

D-Sub

analog signal.

When connecting with a HDMI to DVI signal input cable.

• Select HDMI/DVI :

HDMI to DVI

Digital signal.

Connecting to External Devices

Input

Component

RGB PC

HDMI/DVI

Input

Component

RGB PC

HDMI/DVI

▲▼

INPUT SET

▼▲

Power button

SOURCE AUTO/SET

▼▲

• Using LAN establishes communication between your PC and the monitor and enables to

use the OSD menus on the PC as well as on the monitor.

Note

Connecting to External Devices

Connect the LAN cable as shown in the below gure .

Connect the LAN cable and install the eZ-Net Manager program on the CD-ROM.

For more information about the program, please refer to eZ-Net Guide in the

enclosed CD-ROM.

Connect PC to Monitor directly.

AUsing a router(Switch)

Product

Network

Product

LAN

Switch

Using the Internet.

Product

Network

LAN

When using the LAN
