LG M2900S Manuel utilisateur

Make sure to read the

Safety Precautions

before using the product.

Keep the User's Guide(CD) in an accessible place for future reference.

See the label attached on the product and give the information to your dealer when you ask

for service.

M2900S

M3800S

User’s Guide

1. Slide off the battery cover.

2. Insert the batteries with correct polarity (+/-).

3. Close the battery cover.

• Dispose of used batteries in the recycle bin to prevent environmental pollution.

Inserting batteries into remote control.

Using the Remote Control

Name of the Remote Control Buttons

SOURCE

ZOOM

•

Menu Button

OSD On/ Off

Sub OSD Menu out

•

buttons

OSD Menu Navigation

•

buttons

Select OSD Menu Item.

: Decrement Value

: Increment Value

•

Auto Button

Automatic adjustment function

(Operational for the analog signal only)

•

Power On/Off Button

•

Source

Button

Select input source

(RGB, DVI)

CR2025

•

button

Zoom Hot key

(Normal Zoom Full)

* Only OSD menu off

RGB IN

RS-32C IN

REMOTE

CONTROL IN

AC-IN

DVI IN

Name and Function of the Parts

Rear View

DVI, RGB Ports

RS-232C Serial Port

Wired Remote Control Port

Power Connector : Connect the power cord

* The product image in the user’s guide could be different from the actual image.

DVI IN

RGB IN

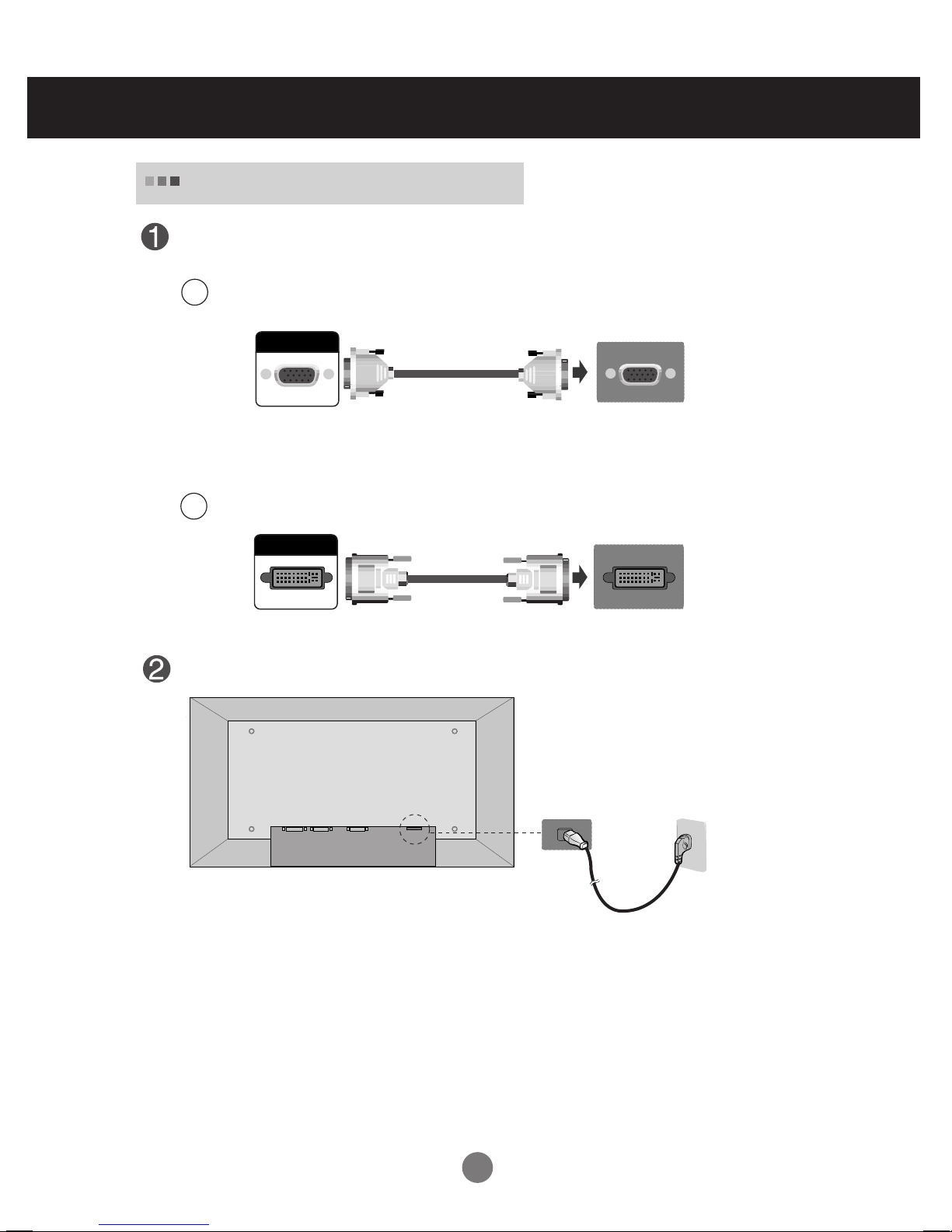

First of all, see if the computer, product and the peripherals are turned off.

Then, connect the signal input cable.

When connecting with the D-Sub signal input cable. (RGB)

Rear side of the product.

Connecting to External Devices

Connect the power cord.

When Connecting to your PC

Rear side of the product.

When connecting with the DVI signal input cable.

To change input source

Press the SOURCE button on the remote control to select the input signal.

Or, press the SOURCE button on the bottom of the product.

•

How to connect to two computers.

Connect the signal cables (DVI and D-Sub) to each computer.

Press the SOURCE button on the remote control to select the computer to use.

•

Directly connect to a grounded power outlet or power strip (three prong connector.)

Note

Turn on power by pressing the power button on the product.

Turn on the PC.

Connecting to External Devices

ON/OFF

SOURCE

Zoom

Power button

DVI signal D-Sub signal

VESA FDMI wall Mounting

This product supports a VESA FDMI compliant mounting interface. These mounts are purchaed

separately and not available from LG. Refer to the instructions included with hte mount for more info.

Connecting to External Devices

ON/OFF

SOURCE

Zoom

User Menus

Screen Adjustment options

• Press this button to turn on the power. Press this button again to

turn it off.

• This Indicator lights up green when the display operates normally(on

mode). If the display is in sleep (Energy Saving) mode, this indicator

color changes to amber.

Power Button

OSD Menu Navigation up and down

• Use this button to show/hide the OSD (On Screen Display) menu

screen.

MENU Button

• Use

this

button to select an icon or adjust the setting in the OSD screen.

OSD Select /

Adjust Button

Power Indicator

: Select Menu Item, Decrement Value

: Select Menu Item, Increment Value

: Zoom Hot key (Normal Zoom Full)

Zoom

• This is where the unit receives signals from the remote control.

Screen Adjustment options

SOURCE Button

IR Receiver

User Menus

To change input source depending on connected signal.

Press the SOURCE button on the remote control to select the

input signal.

Or, press the SOURCE button on the bottom of the product.

DVI signal D-Sub signal

Digital signal

15-pin D-Sub analog signal

User Menus

OSD Menu

Icon Function Description


Adjusts screen brightness, contrast and color that you prefer.

Note

OSD(On Screen Display)

The OSD function enables you to adjust the screen status conveniently since it provides

graphical presentation.

OSD

Adjusts the OSD image.

TIMER

Adjusts the timer options.

ZOOM

Adjusts the screen size.

How to adjust the OSD (On Screen Display) screen

MENU MENUMENU

•

Use the remote control to adjust the OSD screen.

How to adjust the screen automatically

Press the AUTO button on a remote Control in the PC analog signal.

Then optimal screen settings will be selected that fit into the current

mode. If adjustment is not satisfactory, you can adjust the screen

manually.

Press the MENU Button, then the main menu of the OSD appears.

To access a control, use the Buttons.

When the icon you want becomes highlighted, press the Button.

Use the Buttons to adjust the item to the desired level.

Accept the changes by pressing the MENU Button.

Exit the OSD by pressing the MENU Button.

Pops up

the menu

screen

Move where

you want to

adjust

Move where

you want to

adjust

Select a

menu icon

Select a

menu icon Adjust the status Save

adjustment

Exit from the

menu screen.

User Menus

Auto-Adjust
