LG M197WA Manuel utilisateur

Make sure to read the

Safety

Precautions before using the product.

Keep the User's Guide(CD) in an accessible place for furture reference.

See the label attached on the product and give the information to your dealer when you ask for

service.

M197WA

User’s Guide

Before Connecting to the PC

Stand Installation

Before setting up the product, ensure that the power supply, the computer system,

and other attached devices is turned off.

Carefully place the product screen side

down on a cushioned surface that will

protect product and screen from damage.

Insert the stand base into the product

Attach the monitor to the Stand Base

by turning the screw to the right.

* Turn the screw by using the screw

handle

Screw

Before Connecting to the PC

Detaching Stand

Before setting up the product, ensure that the power supply, the computer system,

and other attached devices is turned off.

Place the set screen side down on a

cushion or soft cloth. Detach the monitor to the Stand

Base by turning the screw to the left.

Turn the screw by using the screw handle 4

Pull the stand base.

Before Connecting to the PC

Before setting up the product, ensure that the power supply, the computer system,

and other attached devices is turned off.

Positioning your display

1. Adjust the position of the panel in various ways for maximum comfort.

Tilt Range

Warning:

When adjusting the angle of the screen, do not put

your finger(s) in between the head of the monitor

and the stand body. You can hurt your finger(s).

Locking Device

Use this locking cable

(This has to be purchased

separately if required.

) to prevent theft.

Theft prevention locking device

-6

~ -2

~ 18

Before Connecting to the PC

WALL MOUNT:HORIZONTAL INSTALLATION

For proper ventilation,allow a clearance of 4 inches on each side and from the wall. Detailed installation

instructions are available from your dealer,see the optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

4 inches

Name and Function of the Parts

Name of the Remote Control Buttons

POWER

INPUT

MUTE

LIST Q.VIEW

SSM

PSM

VOL

I/II

TV/PC

1. Take out the battery cap.

2. Insert the batteries with correct polarity (+/-).

3. Close the battery cap.

•Dispose of used batteries in the recycle bin to prevent

environmental pollution.

Inserting batteries into remote control.

AAA Type

TV/PC :

Selects TV or PC mode.

Switches the set on.

POWER

INPUT

NOTE : In case of weak

stereo sound signals, with

stereo or Nicam stereo

transmission, select mono

reception.

Each time you press the Input button it will

change to

TV AV Component

RGB DVI HDMI

If nothing is inputted for several seconds the

screen will automatically move to the

selected menu.

Number buttons

Able to directly select and change channel.

MUTE

Switches the sound on or off.

PSM (Picture Status Memory)

Button

Press repeatedly to select Dynamic, Standard, Mild, Game or User

picture mode.

SSM

(Sound Status Memory)

Button

Use this button to select the sound tone.

Press repeatedly to select Flat, Music, Movie, Sports, User

sound tone.

Input

Component

RGB

DVI

HDMI

I/II : Bilingual choice and sound mode selection

[TV]

To switch from Stereo to Mono sound in case of stereo

transmission,

or from Nicam Stereo to Nicam Mono, in case of digital

transmission.

to switch from Nicam Dual Ito Nicam Dual II or Nicam Dual I+II in

case of Nicam Dual transmission.

to choose between Dual I, Dual II or Dual I+II in case of bilingual

transmission :

Dual I sends the primary broadcast language to the loudspeakers ;

Dual II sends the secondary broadcast language to the loudspeakers ;

Dual I+II sends a separate language to each loudspeakers.

[AV / Component]

In AV/Component mode, you can select output sound for the left and

right loudspeakers. Repeatedly press the I/II button to

select the sound output.

L+R : Audio signal from audio L input is sent to left

loud-speaker and audio signal from audio R input is

sent to right loud-speaker.

L+L : Audio signal from audio L input is sent to left and right

loud-speakers.

R+R : Audio signal from audio R input is sent to left and

right loud-speakers.

POWER

INPUT

MUTE

LIST Q.VIEW

SSM

PSM

VOL

I/II

TV/PC

Name and Function of the Parts

Name of the Remote Control Buttons

LIST : Programme list

To display the programme list (0~ 99).

Q.VIEW : QUICK VIEW Button

To display the previously selected TV channel

Note: TV channels displayed in blue have been setup

to be skipped in the Programme Edit menu.

Programme List

OK MENU

0 C 01 5 C 07

1 C 35 6 C 50

2 C 05 7 C 51

3 C 11 8 C 41

4 C 04 9 C 63

Name and Function of the Parts

Name of the Remote Control Buttons

SLEEP

VOL

ARC/

PR ( ) Buttons

Able to change channel.

VOL ( ) Buttons

Able to adjust sound.

OK Button

Use when functional adjustment is completed.

Double press the OK button, then Auto Config.

(Only RGB input)

Use this button to enter the On Screen Display

menu.

SLEEP : SLEEP Timer

You can set a time period after which the

TV / AV / RGB / Component / DVI / HDMI

should switch itself to standby. Press the key

repeatedly to select the number of minutes.

ARC/*

To select the image size of the screen.

•

When TV / AV mode: Spectacle, Original, 4:3, 16:9, 14:9,

Zoom1, Zoom2

•When RGB/DVI/HDMI/Component mode

: 4:3, 16:9

10 20 30 60

240 180 120 90

_ _ _ (off)

SLEEP

UPDATE

SIZE

HOLD

INDEX

TEXT

TIME

MIX

REVEAL

MODE

VOL

ARC/

(Depends on the country the remote control can be provided different.)

HOLD

Press the button to stop the automatically rotating

of the sub pages. Press the button again to

continue the automatic rotating again.

SIZE

Press the button repeatedly to display the upper

part, the lower part and then to return to the

normal page size.

MIX

Display the teletext pages superimposed on

the TV picture. To switch the TV picture off

press this button again.

TIME

Press this button to select a sub page number.

The sub page number is displayed at the

bottom of the screen. To hold or change the

sub page, press the RED/GREEN, or

NUMBER buttons. Press again to exit this

function.

Remote Control - Using the Teletext function

If you don't, the teletext may not appear correctly on the screen.

LIST

Q.VIEW

SLEEP

UPDATE

SIZE

HOLD

INDEX

TEXT

TIME

MIX

REVEAL

MODE

VOL

ARC/*

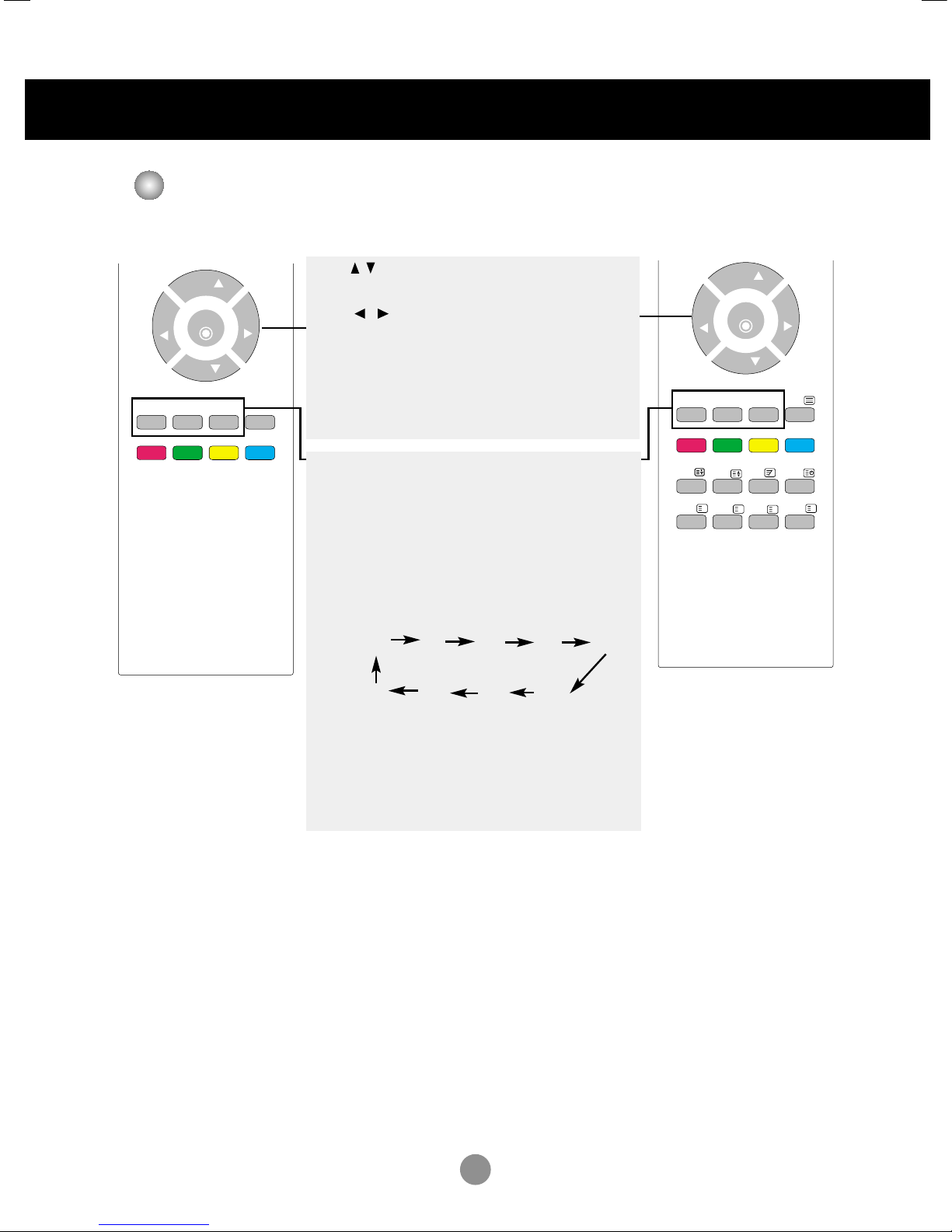

Name and Function of the Parts

Yellow key

Favourite Program On : Rotate favourite channel

Favourite Program Off : To display the previously

selected TV channel.

TEXT

To select the teletext on or off. The main index

page or the last selected page appears on the

screen together with an information headline and

an option line at the bottom of the screen.

REVEAL

Press the button to reveal/conceal the hidden

information, such as solutions to riddles and

puzzles. Press this button again to remove the

information from the display.

INDEX

To display the main index.

MODE

The mode will be switched in the Teletext mode.

UPDATE

Press the button to appear the TV programme.

At the top of screen indicates that you are still in the

teletext mode. Before interrupting teletext, you may

select a page number. When the page has been

found, the information line appears briefly on your

screen. Press the button again to reappear teletext.

Remote Control - Using the Teletext function

Name and Function of the Parts

SLEEP

UPDATE

SIZE

HOLD

INDEX

TEXT

TIME

MIX

REVEAL

MODE

ARC/*
