LG IPS237L Manuel utilisateur

www.lge.co.kr

IPS LED Monitor (LED LCD Monitor)

IPS237L

IPS277L

Use read accurately the safety precautions before using.

IPS LED Monitor (LED LCD Monitor) A list of models

Instruction Manual

Press button you want on the bottom of the monitor.

Use the button to adjust the option you want.

Press button ( ) to select top menu or other items.

Select EXIT to exit from OSD menu.

Reference

All buttons are touch-type, and lightly touching the button below the monitor can activate it.

User Setting

ENG

Monitor Button

MENU( )

AUTO/▼

(Power Button)

Button

OSD lock / unlock feature

MY KEY/◀

Explanation

Use OSD screen adjustment while lock / unlock is on.

● When locking, press the Menu button for few seconds. / When ‘OSD Lock’ message

appears, then OSD is locked.

● When unlocking, press the Menu button for few seconds. When ‘OSD Unlock’ message

appears, then OSD is unlocked.

Power Light If the display is working properly, the power light will be on red (if the power light function

is active). If the display is on sleep mode, the red power light will flash.

Can select input signal.

● When there are more than two input signals, you can select the input signal (D-SUB/HDMI1/HDMI2) you want.

● When there is only one, it will be recognized automatically. The initial setting input signal is analog (D-SUB).

Optimal Resolution 1920 x 1080

EXIT

Close OSD menu.

Turn on or off the power.

Use this button to go to MY KEY menu.

FUNC./▶ Use this button to go to SUPER ENERGY SAVING, Dual Monitor, Dual Web, TRUE COLOR FINDER, and MY KEY menu.

Press AUTO button when adjusting monitor setting. (Only support Analog signals.)

INPUT/EXIT

Activate the main menu.

User Setting

ENG

User Setting

Show all regardless of the video signal input.

Adjust brightness and color contrast of the screen.

Screen contrast adjustment.

Press menu button on the bottom of monitor

for menu OSD to appear.

Press ◀, ▶, or ▼ button to set the desired

options.

Press ‘See More’ button to select other

options.

Select EXIT to exit from OSD menu.

Press button( ) to select top menu or other

items.

Directions to set following options are explained below.

● HDMI : HDMI (Digital Input) Input

Setting the menu

User Setting

Menu Analog HDMI Explanation

Menu > See More Analog HDMI Explanation

Brightness

Video

Color

Screen

Volume

Other

Sharpness

Offset level setting.

Black level

Reset

Contrast

Full Screen

Show video as signal ratio entered.

This function only work if the resolution ratio entered is lower than screen resolution ratio

(16:9).

The setting for screen will return to as it was first purchased.

Press button ◀ or ▶ to initialize the screen.

Automatic aspect ratio

Aspect Ratio

Screen clarity and stability improvement

Screen magnification

Output video response speed setting.

Color control

Screen location control

Screen clarity and stability improvement

Volume Control

The user adjust the setting of screen as desired.

Response time

Gamma

Color temperature

6 color control

Color Reset

Movement to left and right

Movement to up and down

Horizontal size adjustment

Fine tuning

Language

Power light

Auto off setting

Button sound

ENG

Directions to set following options are explained below.

Video

Press menu button on the bottom of monitor for

menu OSD to appear.

Press ‘See More’ button to select other options.

Press button ▼ to move to the video.

Select EXIT to exit from OSD menu.

Press ◀, ▶, or ▼ button to set the desired options.

Press button( ) to select top menu or other items.

Set your own Gamma: If the Gamma 0, Gamma 1, Gamma 2 monitor has higher level of Gamma, then

there are more whiter images and more darker image when level of Gamma is lower.

Menu > See More > Video Explanation

Gamma

Satisfy user’s need for color by adjusting and saving 6 colors (Red / green / blue / blue green /

magenta / yellow) and saturation.

Adjust the screen color.

Reset the color of monitor as when it was first purchased.

6 Colors Control

Reset Color

User

Select factory custom color.

Warm feeling : Present reddish color on the screen.

Standard : Select between red and blue.

Cool feeling : Present bluish color on the screen.

Red

Green

Blue

Color

Adjust the sharpness of the screen. The lower the level is, the sharpness will be

weak; but higher the level is, the sharpness is stronger and darker.

Saturation

The user adjust red, green and blue to make the desired screen color.

Color Temperature

User Setting

Press menu button on the bottom of monitor for

menu OSD to appear.

Press ‘See More’ button to select other options.

Press button ▲ to move to the color.

Press button ▼ to move to the color.

Press ◀, ▶, or ▼ button to set the desired

options.

Select EXIT to exit from OSD menu.

Press button( ) to select top menu or other items.

ENG

User Setting

Directions to set following options are explained below.

Screen sharpness adjustment

Menu > See More > Color Explanation

Sharpness

Can set the offset level.

Select 'High' to brighten up the screen and ‘Low’ to darken the screen. (For HDMI only)

●Off-set: This is the darkest screen possible from the monitor based on the video signal.

Black level

Select range of output image from HDMI for DTV timing (For HDMI only). Recommend turning on

the over-scan function when it is connected with AV device.

Screen extension

Can set response speed of output video based on the movement of the screen.

Recommend normal setting for normal use and fast setting for video with many movements.

Response Time

Color

ENG

Directions to set following options are explained below.

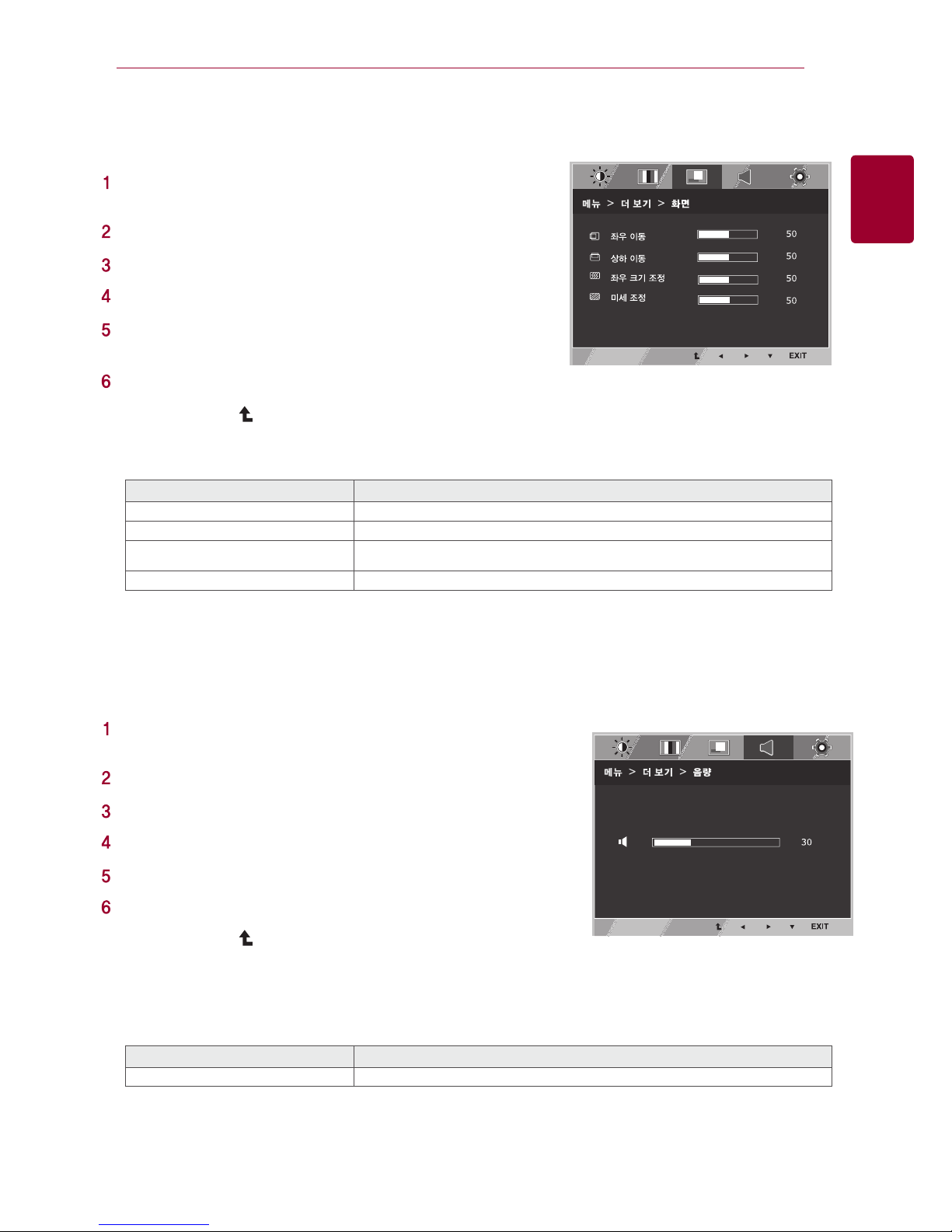

Move the image to left and right.

Menu > See More > Screen Explanation

Explanation

Move Left and Right

Move the image to up and down.

Move Up and Down

Minimize the vertical line appear on the background. The horizontal length of the screen can be

changed as well.

Horizontal Adjustment

Adjust the angle of the screen. This option removes horizontal noise or sharpens the portrait.

Fine Adjustment

Press menu button on the bottom of monitor for

menu OSD to appear.

Press ‘See More’ button to select other options.

Press button ▲ to move to the screen.

Press button ▼ to move to the screen.

Press ◀, ▶, or ▼ button to set the desired

options.

Select EXIT to exit from OSD menu.

Press button( ) to select top menu or other items.

Screen

Directions to set following options are explained below.

Select the desired language on the menu screen.

Menu > See More > Volume

Volume

Press menu button on the bottom of monitor for

menu OSD to appear.

Press ‘See More’ button to select other options.

Press button ▲ to move to the volume.

Press button ▼ to move to the volume.

Press button ◀ or ▶ to set the option.

Select EXIT to exit from OSD menu.

Press button( ) to select top menu or other items.

Volume

User Setting

ENG

User Setting

Press menu button on the bottom of monitor for

menu OSD to appear.

Press ‘See More’ button to select other options.

Press button ▲ to move to the others.

Press button ▼ to move to the others.

Press ◀, ▶, or ▼ button to set the desired

options.

Select EXIT to exit from OSD menu.

Press button( ) to select top menu or other items.

Others

Directions to set following options are explained below.

Select the desired language on the menu screen.

Menu > See More > Others Explanation

Language

Select on/off of power light on the front of the monitor. When selecting power light off, the power

light will turn off but if power light on is selected, the power light will automatically be on.

Power light

The monitor automatically switches to standby mode based on the selected waiting time. If you

press a button or change the resolution, the waiting time will be reset.

Auto Power Off

Select Buzzer off

Buzzer will go on in following situations.

DC Power On/Off

MENU OSD On

Func. OSD On

MY KEY OSD On

AUTO run

Input Switching

Button Sound

ENG

User Setting

Directions to set following options are explained below.

MY KEY is a shortcut. Select among FUNC. ( SUPER ENERGY SAVING, Dual Monitor, Dual Web,

TRUE COLOR FINDER ) based on what you want.

MY KEY Explanation

MY KEY Set

Press Previous Screen to return to MY KEY menu.

Previous Screen

Press MY KEY button on the bottom for MY KEY

OSD to appear.

Press ◀, ▶, or ▼ button to set the desired

options.

Select EXIT to exit from OSD menu.

MY KEY Set

Reference

ENG

User Setting

SUPER ENERGY SAVING

Directions to set following options are explained below.

Activate SUPER ENERGY SAVING function and effectively save energy.

SUPER ENERGY SAVING Explanation

Inactivate SUPER ENERGY SAVING function.

Off

● Total power consumption reduction amount : Total amount of saved power consumption.

● Total CO2 reduction amount : Total amount of saved CO2.

● Energy-saving data (W/h)

● The energy-saving data may vary based on the panel or vendor of panel.

● LG uses "Broadcast Video Signal" to measure the data. (Including broadcast video: IEC 62087)

● SUPER SAVING data tells you how much power you can save when using SUPER ENERGY SAVING function.

Initialize the total power consumption reduction and total CO2 reduction amount.

Reset

Press FUNC. button on the bottom of monitor for

FUNC. OSD to appear.

Select button ▼ to move to SUPER ENERGY SAVING.

Press ◀, ▶, or ▼ button to set the desired options.

Select EXIT to exit from OSD menu.

Press button( ) to select top menu or other items.

FUNC. Set

Dual Monitor

Press FUNC. button on the bottom of monitor for

FUNC. OSD to appear.

Press button ▶ to move to the dual Monitor.

Press button ▼ to move to the dual Monitor.

Press ◀ or ▶ button to set the desired options.

Select EXIT to exit from OSD menu.

Press button( ) to select top menu or other items.

ENG

User Setting

* Install DUAL PACKAGE program before using following features.

Directions to set following options are explained below.

* Install DUAL PACKAGE program before using following features.

Select Copy to use the bottom of monitor with Complete Mode of the monitor.

Dual Monitor Explanation

Explanation

Copy

Select Extend to use the bottom of the monitor with Extension Mode of the monitor.

Extend

Select Off to turn off Dual Monitor.

Off

Dual Web

Press FUNC. button on the bottom of monitor for

FUNC. OSD to appear.

Press button ▶ to move to the dual Dual Web.

Press button ▼ to move to the dual Dual Web.

Press ◀ or ▶ button to set the desired options.

Select EXIT to exit from OSD menu.

Press button( ) to select top menu or other items.

Directions to set following options are explained below.

Split the screen into half to help web browsing. You can organize or move the screens and the

user can control the split ratio of the window.

Dual Web

Select Off to turn off Dual Web.

Off

Reference

If the monitor is in sleep mode due to PC power saving option, press any button. ->

When OSD appear, press Dual button. -> Return to the normal mode.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels LG Moniteur

LG 32MU89 Manuel utilisateur

LG 34UM61 Manuel utilisateur

LG UltraGear 27GL830-B Manuel utilisateur

LG 34GK950G-B Manuel utilisateur

LG 38WK95C-WF Manuel utilisateur

LG Flatron L192WS-BN Manuel utilisateur

LG FLATRON L1721B Manuel utilisateur

LG 42LF650V Manuel utilisateur

LG W2452T Manuel utilisateur

LG M6503C Manuel utilisateur

LG 49UH5C Manuel utilisateur

LG 55WS50MW Manuel utilisateur

LG M4224FCBAP Manuel utilisateur

LG 27EN43V-B Manuel utilisateur

LG W2340V-PN Manuel utilisateur

LG L1734S-BN - - 17" LCD Monitor Guide de démarrage rapide

LG 38WQ88C Manuel utilisateur

LG ColorPrime 27EA83-D Manuel utilisateur

LG MW-60SZ12 Manuel utilisateur

LG 24BK55WY Manuel utilisateur

LG 32QK500-W.AUSQ Manuel utilisateur

LG 27UN880UB Manuel utilisateur

LG AUSSRPM Manuel utilisateur

LG Flatron L1770HQ Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation

Sceptre

Sceptre D40 Manuel utilisateur
