Genesis G-Probe

How to use the program

Quick Reference guide

Gprobe.exe

Quick Reference guide Gprobe.exe

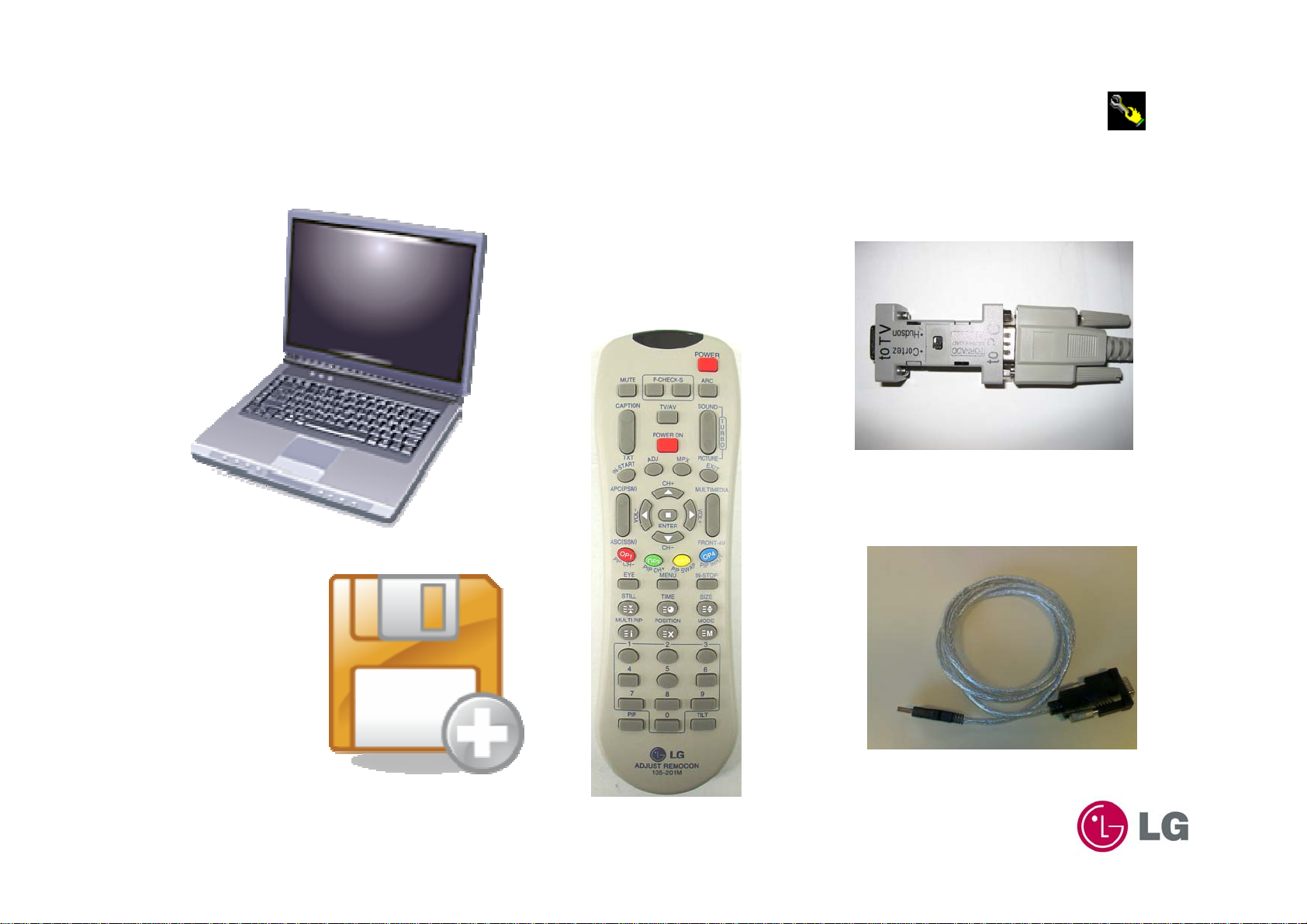

What Do I Need

Part no 105-201M

Part no 39119T1051A

Quick Reference guide Gprobe.exe

1. Select the options button

2. Select the serial Tab

3. Confirm the settings & if

necessary change the COM

port number to match the

serial port on the computer

you are using.

(check the hardware tab

\device manager from the

properties of My Computer)

4. Confirm the Baud Rate is

115200

Setting up the serial port

Quick Reference guide Gprobe.exe

Getting the TV Ready

1. Press ADJ key on the service

commander.

2. Using the navigation keys select

System control.

3. Press enter. (The System Control

Menu is displayed)

4. Using the navigation keys change

RS-232 Host to G-Probe

5. Set the Baud Rate to 115200

6. Set the download to Hudson or

Cortez (depending on the device

you wish to update)

7. Make sure the switch position is

correct on the Tornado jig.

1

2

3

4

56

7

Pressing this (TILT) KEY once is a shortcut for steps 1 to 4

Quick Reference guide Gprobe.exe

What the screen looks like

Quick Reference guide Gprobe.exe

Testing the communication

1. Click in this field.

2. Type TEST

3. Click Execute

4. Confirm “Test Passed” is

displayed several times in

the window below.

TEST PASSED

TEST PASSED

TEST PASSED

TEST PASSED

TEST PASSED

TEST PASSED

Quick Reference guide Gprobe.exe

When using G-Probe all relevant files must be in the same folder

Data Files, Core Files & Batch Files

Core files Data files

Batch files

Quick Reference guide Gprobe.exe

How to edit the Cortez Batch File

1. Right click on the file name of the file you need.

2. Select rename so the file name is highlighted and use the

keyboard shortcut to copy the text (control +c).

e.g.. 42PX5D-EB_IC900_X2_V3.07_3C4C_060329_Download.hex

3. Switch to the batch file and paste it over the original text.

4. Save as xxxx and save in the correct folder.

Quick Reference guide Gprobe.exe

How to edit the Cortez Batch File

This is the line you need to edit for each file you wish to upload

You must use the following format: fastflashwrite (space) exact name of file as it is displayed in windows explorer

(see next page)

I recommend you save this file (each time you edit it), in the folder for each model giving it an appropriate name

Make sure this file name is specified for cortez upgrade

Make sure this file name is specified for Cortez upgrade

Quick Reference guide Gprobe.exe

How to edit the Hudson Batch File

1. Right click on the file name of the file you need.

2. Select rename so the file name is highlighted and use the

keyboard shortcut to copy the text (control +c).

e.g.. 42PX5D-EB_X3_Hudson_V3.02_(BOAA)_060120.hex

3. Switch to the batch file and paste it over the original text.

4. Save as xxxx and save in the correct folder.
