Introduction
Thank you for purchasing a high resolution monitor. It will give you high
resolution performance and convenient reliable operation in a variety of
video operating modes.
Features
The monitor is a 19 inches (18.0 inches viewable ) intelligent, microprocessor
based monitor compatible with most analog RGB (Red, Green, Blue) display
standards, including IBM PC®, PS/2®, Apple®, Macintosh®, Centris®, Quadra®, and
Macintosh II family.
The monitor provides crisp text and vivid color graphics with VGA, SVGA, XGA,
and VESA Ergonomic modes (non-interlaced), and most Macintosh compatible
color video cards when used with the appropriate adaptor. The monitor's wide
compatibility makes it possible to upgrade video cards or software without
purchasing a new monitor.
Digitally controlled auto-scanning is done with the micro-processor for horizontal
scan frequencies between 30 and 96kHz, and vertical scan frequencies
between 50-160Hz.
This monitor is capable of producing a maximum horizontal resolution of 1600
dots and a maximum vertical resolution of 1200 lines.
The microprocessor-based digital controls allow you to adjust conveniently a
variety of image controls by using the OSD (On Screen Display).
USB (Universal Serial Bus) ports at the back of the monitor are prepared for the
USB cable and hub. You can easily and flexibly connect USB-designed devices-
such as a mouse, keyboard or printer- to the monitor for true Plug and Play
function.
Plug and play capability if supported by your system
This monitor has DDC 1 and DDC 2B function.*
Compliant with the following regulated specifications :*
-FCC Compliance Statement
-
CE Conformity Notice
-
EPA ENERGY STAR
-
Swedish MPR II
-
Swedish TCO’99
*
For detailed information, please refer to the Reference Guide provided .
ENGLISH
Connecting the Monitor
A2
On the back of the monitor are two plug-in connections; one for the AC
power cord, and the other for the signal cable from the video card.
Power off both the monitor and PC.
Connect the 15 pin VGA connector of the supplied signal cable to the output
VGA video connector on the PC. The connectors will mate only one way. If
you cannot attach the cable easily, turn the connector upside down and try
again. When mated, tighten the thumbscrews to secure the connection.
Locate the appropriate MAC to VGA adapter block at your local computer
store. This adapter changes the high density 3 row 15 pin VGA connector to
the correct 15 pin 2 row connection to mate with your MAC. Attach the other
end of the signal cable to the side of the adapter block with 3 rows.
Connect the attached adapter block/signal cable to the video output on your
MAC.
One end of the AC power cord is connected into the AC power connector on
the back of the monitor. The other end is plugged into a properly grounded
three-prong AC outlet.
Power ON the PC, then the monitor.
If you see the NO SINGNAL message, check the signal cable and
connectors.
After using the system, power OFF the monitor, then the PC.
MAC6MAC6
Power Cord
Signal Cable
D-15P
IBM PC MACINTOSH
D-15P
Mac Adapter
*NOTE : For Apple Macintosh use, a
separate plug adapter is needed to
change the 15 pin high density (3 row)
D-sub VGA connector on the supplied
cable to a 15 pin 2 row connector.
1
2
3
3
4
5
6
2'
2
2'
A3
Making use of USB (Universal Serial Bus)
USB (Universal Serial Bus) is an innovation in connecting your different
desktop peripherals conveniently to your computer. By using the USB, you will
be able to connect your mouse, keyboard, printer, and other peripherals to your
monitor instead of having to connect them to your computer. This will give you
greater flexibility in setting up your system. USB allows you to connect chain up
to 120 devices on a single USB port, and you can “hot” plug (attach them while
the computer is running) or unplug them while maintaining Plug and Plug auto
detection and configuration. This monitor has an integrated self-powered USB
hub, allowing up to 4 other USB devices to be attached it.
USB connection
1. Connect the upstream port of the monitor to the downstream port of the USB
compliant PC or another hub using the USB cable (Computer must have a
USB port).
2. Connect the USB compliant peripherals to the downstream ports of the
monitor.
USB upstream Port
USB downstream Ports
connect the cables from USB
compliant peripherals-such as
keyboard, mouse, printer,
scanner, etc
To USB downstream port of
the USB compliant PC or
another hub cable
keyboard
printer
mouse
etc.
NOTE
To activate the USB hub function, the monitor must be connected to a USB compliant
PC(OS) or another hub with the USB cable(enclosed).
When connecting the USB cable, check that the shape of the connector at the cable
side matches the shape at the connecting side.
When the monitor is not plugged into an electric socket, the peripherals connected to
the downstream ports will not operate.
Even if the monitor is in a power saving mode, USB compliant devices will function
when they are connected the USB ports(both the upstream and downstream) of the
monitor.
A4

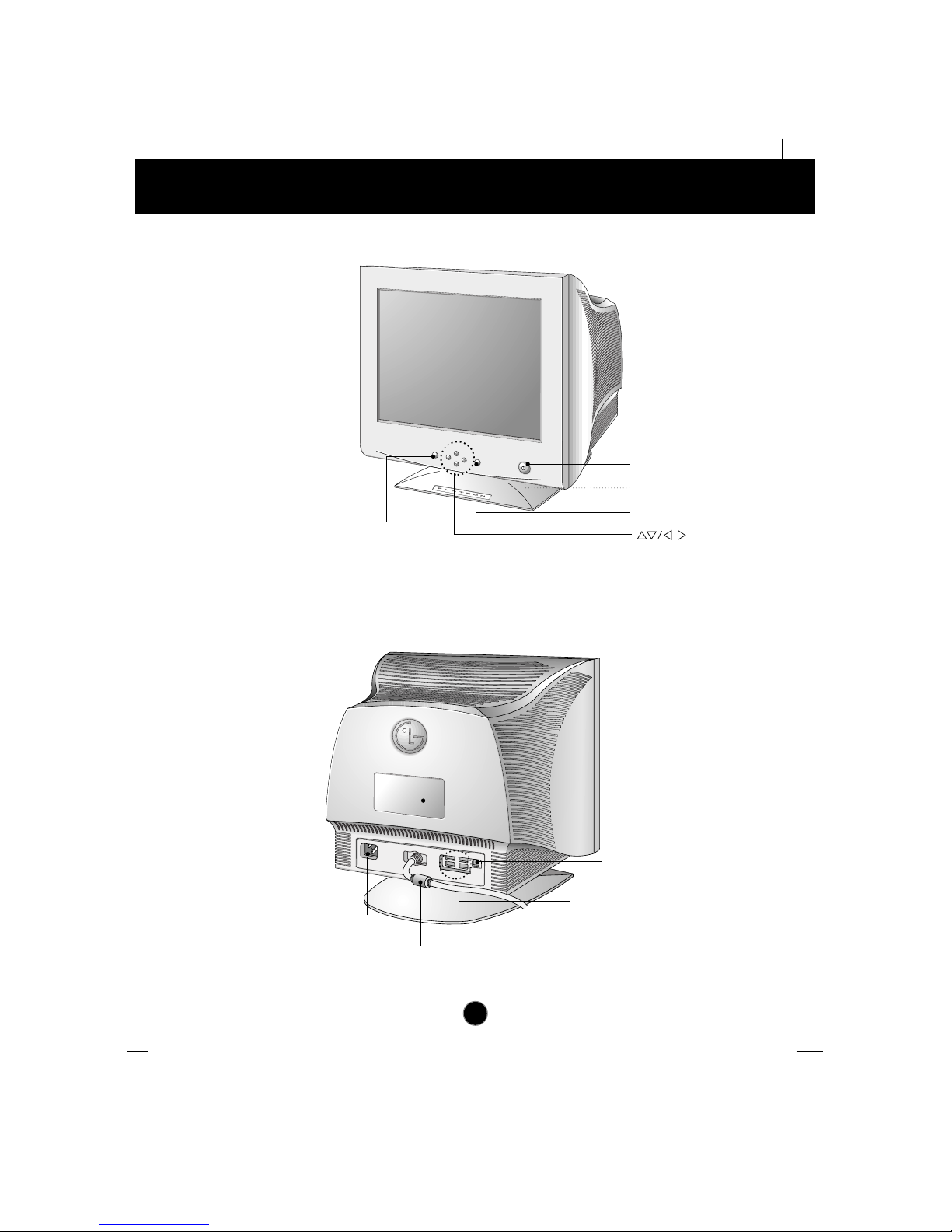

Location and Function of Controls
Rear View
Front View
ID Label
D-Sub Signal Cable
AC Power Socket
OSD SET
Power Button
Power Indicator
OSD Button
Buttons
SET Button
USB upstream port
USB downstream ports
OSD SET
A5
Control Panel Function
Front Panel Controls
Buttons Use these buttons to choose or adjust items in
the on screen display.
OSD Button Use this button to enter or exit the on screen
display.
OSD
SET
This Indicator lights up green when the monitor
operates normally. If the monitor is in DPM
(Energy Saving) mode (stand-by/suspend/off),
this indicator color changes to amber.
Power (DPMS)
Indicator
Use this button to turn the monitor on or off.Power Button
Use this button to enter a selection in the on
screen display.
SET Button
Control Function
Buttons
OSD Button
Power Button
Power (DPMS) Indicator
<Shortcut Keys>
• Brightness and Contrast can be adjusted directly without
entering the On Screen Display (OSD) system.
Press the buttons to adjust the settings and
then the OSD button to save all changes. The Brightness
and Contrast functions are also available in the On Screen
Display (OSD) menu.
100
100
SET Button
A6
On Screen Display (OSD) Control Adjustment
Making adjustments to the image size, position and operating parameters of
the monitor are quick and easy with the On Screen Display Control system. A
quick example is given below to familiarize you with the use of the controls.
Following section is an outline of the available adjustments and selections you
can make using the OSD.
To make adjustments in the On Screen Display, follow these steps:
Press the OSD Button, then the main menu of the OSD appears.
To acces a control, use the or Buttons. When the icon you want
becomes highlighted, press the SET Button.
Use the Buttons to adjust the item to the desired level.
Accept the changes by pressing the SET Button.
Exit the OSD by Pressing the OSD Button.
NOTE
Allow the monitor to stabilize for at least 30 minutes before making image adjustment.
SET
OSD
OSD
SET
1
1
2
3
4
5
6
7
1
2
2
3
4
5
6
7
1
2
3
3
4
5
6
7
1
2
3
4
4
5
6
7
1
2
3
4
5
5
6
7
A7
On Screen Display(OSD) Selection and Adjustment
You were introduced to the procedure of selection and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the items that are shown on the Menu.
OSD Adjust Description
BRIGHTNESS CONTRAST
66
92
COLOR
PRESET
TEMP
RED
GREEN
BLUE
6500K 9300K
POSITION
66
45
Brightness
Used to adjust the brightness of the screen.
Contrast
Adjust the display to the contrast desired.
PRESET
TEMP
RED
GREEN
BLUE
6500K/ 9300K
To appear the displays color temperature.
•6500K:Slightly reddish white.
•9300K:Slightly bluish white.
User easily color set without adjustment Red,
Green and Blue (R/G/B).
To set your own color levels.
Vertical Position
To move image up and down.
Horizontal Position
To move picture image left and right.
SIZE
49
64
Vertical Size
To adjust image height.
Horizontal Size
To adjust image width.
A8
On Screen Display(OSD) Selection and Adjustment
OSD Adjust Description
SHAPE
Side Pincushion
To correct the bowing in and out of the
image.
Side pincushion balance
To correct the balance of both sides
bowing.
Trapezoid
To correct geometric distortion.
Parallelogram
This control adjusts for a skewing of
the screen image.
Tilt
To correct image rotation.
Top Corner
To correct the irregular distortion of
the displayed image.
Bottom Corner
To correct the irregular distortion of
the displayed image.
VIDEO LEVEL 0.7V
LANGUAGE ENGLISH
CLAMP SEP
OSD POSITION
SETUP
This item is used to select the
monitor's input signal level. The
normal level used for most PC's is
0.7V.
When the screen suddenly gets
brightened or blurry, please select
1.0V and try again.
To choose the language in which the
control names are displayed.
OSD Menus are available in 8
language: English, Deutsch, Français,
Español, Italiano, Svenska, Suomi
and Português.
To adjust position of the OSD window
on the screen.
In case of input SOG(Sync On Green)
Video Signal, the back raster will
appear the green. Then, to select the
SOG(Sync On Green) in the clamp,
will take you back to the original back
raster.
VIDEO LEVEL
LANGUAGE
OSD POSITION
CLAMP
You can use this function when you want
to go back to the screen display of the
time you purchased the product after
adjusting to modify it in the Preset Mode.
When you are in the User mode, you can
recall only , , , , , ,
convergence items. After using Recall,
adjust the screen display again if
necessary. If you want more information
on the Preset Mode, refer to A10 page.
A9
On Screen Display(OSD) Selection and Adjustment
OSD Adjust Description
To manually demagnetize the screen
which may show some image or color
incorrectly.
SPECIAL
DEGAUSS ON
RECALL ON
MOIRE H: 0/V: 0
CONVERGENCE H:50/V:50
PURITY :50
54.4kHz/60.0Hz
USER MODE
DEGAUSS
RECALL
This item allows you to reduce the
moire (Moire is caused by
interference Horizontal Scan Line with
the periodical dot screen). It is
normally OFF(H:0/V:0).
The moire adjustments may affect the
focus of the screen.
The screen image may shake slightly
while the moire reduction function is
on.
MOIRE
Use to adjust the alignment of red
and blue fields.
CONVERGENCE
Use to adjust the purity on the screen
if the color appears uneven.
(1) Adjust the purity of the upper left
corner of the screen.
(2) Adjust the purity of the upper right
corner of the screen.
(3) Adjust the purity of the lower left
corner of the screen.
(4) Adjust the purity of the lower right
corner of the screen.
PURITY
A10
Video Memory Modes
The monitor has 31 memory locations for display modes, 5 of which are
factory preset to popular video modes.
Preset Modes (Resolution)
User Modes
Modes 6-31 are empty and can accept new video data. If the monitor detects a
new video mode that has not been present before or is not one of the preset
modes, it stores the new mode automatically in one of the empty modes
starting with mode 6.
If you use up the 26 blank modes and still have more new video modes, the
monitor replaces the information in the user modes starting with mode 6.
Recalling Display Modes
When your monitor detects a mode it has seen before, it automatically recalls
the image settings you may have made the last time you used that mode.
You may, however, manually force a recall of each of the 5 preset modes by
pressing the Recall button. All preset modes are automatically recalled as the
monitor senses the incoming signal.
The ability to recall the preset modes is dependent on the signal coming from
your PC’s video card or system. If this signal does not match any of the factory
modes, the monitor automatically sets itself to display the image.
Display Modes (Resolution) Horizontal Freq.(kHz) Vertical Freq.(Hz)
1
2
3
4
5
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
43.269
53.674
68.677
91.146
93.750
85
85
85
85
75
VESA
VESA
VESA
VESA
VESA
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels LG Moniteur
LG
LG EW224T-PN Manuel utilisateur
LG
LG UltraGear 27GN800-B.AED Manuel utilisateur
LG
LG FLATRON W2243C V Series Manuel utilisateur
LG
LG Flatron M228WD Manuel utilisateur
LG
LG UltraGear 45GR95QE Manuel utilisateur
LG
LG L196WTQ-WF.ATC Manuel utilisateur
LG
LG Flatron L226WTQ Manuel utilisateur
LG
LG 20MP38A Manuel utilisateur
LG
LG 42PQ20 Series Guide d'installation
LG
LG 19CNV42K-B Manuel utilisateur
LG
LG 60PX4DR Guide d'installation
LG
LG Flatron T710BHJ-AL**E Manuel utilisateur
LG
LG E2260S Manuel utilisateur
LG
LG Flatron L1810B Manuel utilisateur
LG
LG W2453 Q Series Manuel utilisateur
LG
LG 32SQ730S Manuel utilisateur
LG
LG 24UD58 Manuel utilisateur
LG
LG UltraGear 27GQ50F-B.ATSQ Manuel utilisateur
LG
LG W2220P-BF Manuel utilisateur
LG
LG W2452T - - 24" LCD Monitor Manuel utilisateur
