LG 38WK95C-W.AUS Manuel utilisateur

* LG LED Monitor applies LCD screen with LED

backlights.

Please read this manual carefully before operating

your set and retain it for future reference.

www.lg.com

38WK95C

38BK95C

OWNER’S MANUAL

IPS LED Monitor

(LED Monitor*)

ENGLISH

TABLE OF CONTENTS

LICENSE.......................................3

ASSEMBLING AND PREPARING 4

- Product Composition.................................................. 4

- Supported Drivers and Software .........................5

- Product and Button Description...........................6

How to Use the Joystick Button

Input Connector

- Moving and Lifting the Monitor............................8

- Installing the Monitor ............................................10

Assembling the Stand

Installing on a Table

Adjusting the Stand Height

Adjusting the Angle

Tidying up Cables

Using the Kensington Lock

Detaching the Stand Body

Installing the Wall Mount Plate

Installing on the Wall

USING THE MONITOR.............. 20

- Connecting to a PC...................................................20

HDMI Connection

DisplayPort Connection

USB-C connection

- Connecting AV Devices...........................................23

HDMI Connection

- Connecting Peripherals...........................................23

USB Cable connection

Connecting Headphones

USER SETTINGS ....................... 25

- Activating the Main Menu....................................25

Main Menu Features

- User Settings ...............................................................27

Menu Settings

TROUBLESHOOTING................ 39

PRODUCT SPECIFICATION ...... 42

- Factory Support Mode............................................44

- HDMI Timing (Video)................................................45

- Power LED.....................................................................45

- Wireless module (WB1NP6) Specifications.... 45

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of

HDMI Licensing Administrator, Inc. in the United States and other countries.

The SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.

The

Bluetooth

® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by

LG Electronics Inc. is under license. Other trademarks and trade names are those of their respective owners.

USB Type-CTM and USB-C TM are trademarks of USB Implementers Forum.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP

Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENGLISH

ASSEMBLING AND PREPARING

Product Composition

Please check whether all the components are included in the box before using the product. If there are any missing components, contact the retailer where you purchased the

product. Note that the product and related components may look different from those shown here.

CD / Cards Power Cord AC/DC Adapter

HDMI Cable

(Depending on the

country)

DisplayPort Cable

(Depending on the country)

Stand Base Cable Holder Stand Body

USB C-C Cable

(Depending on the

country)

USB C-A Gender

(Depending on the country)

ENGLISH

CAUTION

Always use genuine LG components to ensure safety and product performance.

The product warranty will not cover damage or injury caused by the use of

unauthorized components.

It is recommend that use the supplied components.

If you use generic cables not certified by LG, the screen may not display or there

may be image noises.

NOTE

The components may look different from those illustrated here.

Without prior notice, all product information and specifications contained in this

manual are subject to change to improve the performance of the product.

To purchase optional accessories, visit an electronics store or an online shopping

site, or contact the retailer from which you purchased the product.

The power cord provided may differ depending upon the region.

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Drivers and Software Installation Priority 38WK95C

38BK95C

Monitor Driver Recommended O

ASM Driver Required X

OnScreen Control Recommended O

Dual Controller Optional O

True Color Pro Optional X

ENGLISH

Product and Button Description

Joystick Button / Power LED

On: Power on

Off: Power off

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or

moving it left/right with your finger.

Basic Functions

Power on Press the joystick button once with

your finger to turn on the monitor.

Power off

Press and hold the joystick button

once with your finger to turn off the

monitor.

/ Volume

Control

You can control the volume by moving

the joystick button left/right.

NOTE

The joystick button is located at the bottom of the monitor.

ENGLISH

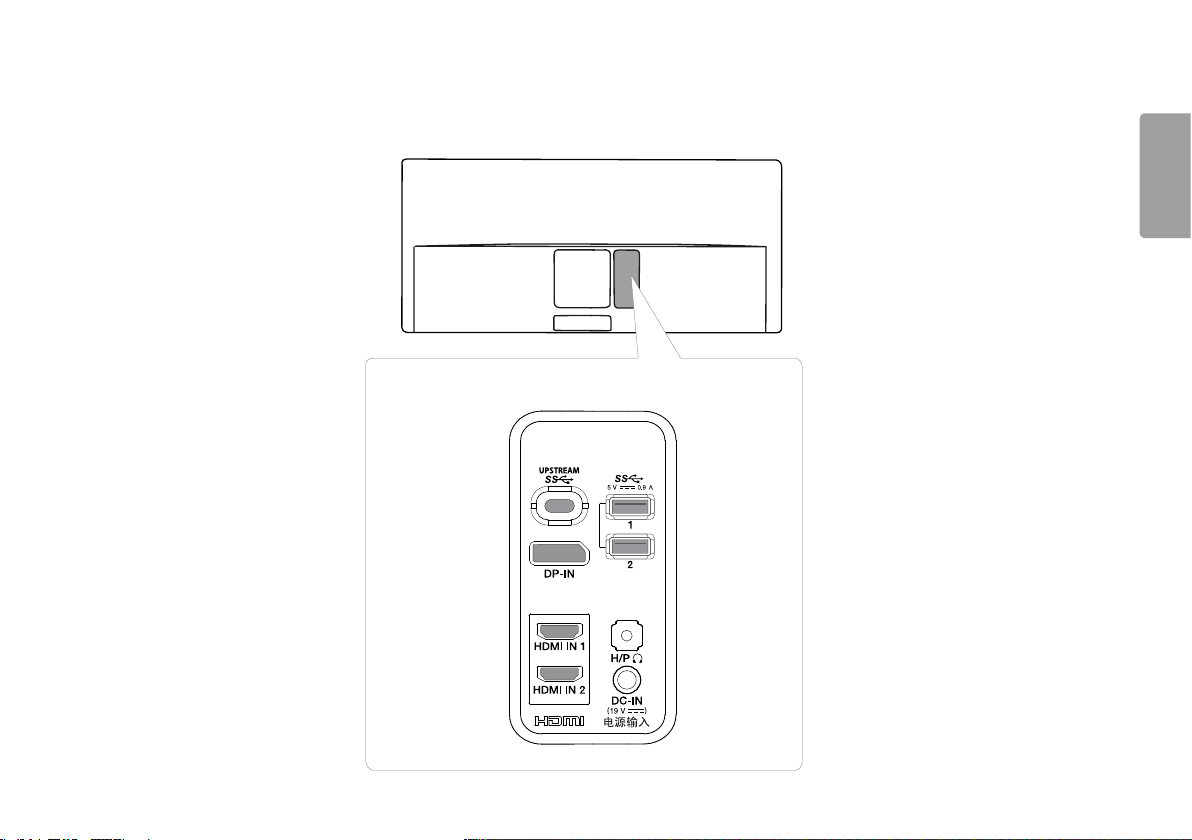

Input Connector

ENGLISH

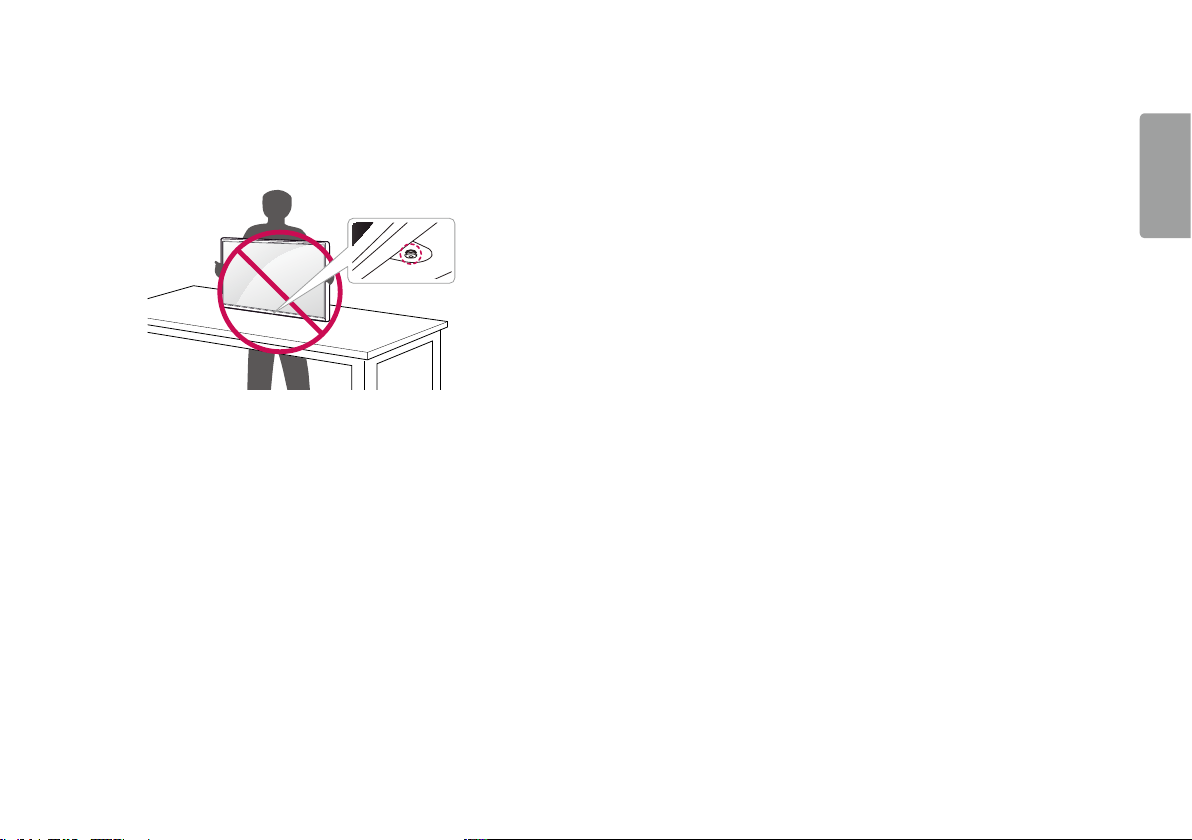

When holding the monitor, the screen should face away from you to prevent it

from being scratched.

When transporting the monitor, do not expose the monitor to shock or excessive

vibration.

When moving the monitor, keep it upright and never turn the monitor on its side or

tilt it sideways.

CAUTION

Avoid touching the monitor screen as much as possible.

- This may result in damage to the screen or some of the pixels used to create

images.

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these instructions to prevent the monitor

from being scratched or damaged and to ensure safe transportation, regardless of

its shape or size.

Place the monitor in the original box or packing material before attempting to

move it.

Before moving or lifting the monitor, disconnect the power cord and all other

cables.

Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.

ENGLISH

If you use the monitor panel without the stand base, its joystick button may cause

the monitor to become unstable and fall, resulting in damage to the monitor or

human injury. In addition, this may cause the joystick button to malfunction.

ENGLISH

Installing the Monitor

Assembling the Stand

CAUTION

To protect the screen, place the screen face down on the screen pad which is inside

the box.
