LG 34UC80-B Manuel utilisateur

www.lg.com

* LG LED Monitor applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future

reference.

OWNER’S MANUAL

34UC80

IPS LED

MONITOR

(LED Monitor*)

ENGLISH

TABLE OF CONTENTS

LICENSE ---------------------------------3

ASSEMBLING AND PREPARING ------4

-Product Composition --------------------------------4

-Supported Drivers and Software --------------------5

-Product and Button Description --------------------6

How to Use the Joystick Button

Input Connector

-Moving and Lifting the Monitor ---------------------8

Assembling the Stand

Installing on a Table

Adjusting the Stand Height

Adjusting the Angle

Tidying up Cables

Using the Kensington Lock

Detaching the Stand Body

Installing the Wall Mount Plate

Installing on the Wall

USING THE MONITOR---------------- 16

-Connecting to a PC-------------------------------- 16

HDMI Connection

DisplayPort Connection

-Connecting AV Devices ---------------------------- 17

HDMI Connection

-Connecting Peripherals ---------------------------- 18

USB Cable connection - PC

Connecting Headphones

USER SETTINGS ---------------------- 19

-Activating the Main Menu------------------------- 19

Main Menu Features

-User Settings -------------------------------------- 20

Menu Settings

Quick Settings

PBP


General

Reset

TROUBLESHOOTING ----------------- 29

PRODUCT SPECIFICATION ---------- 31

-Factory Support Mode ---------------------------- 32

-HDMI Timing (Video) ------------------------------ 32

-Power LED ----------------------------------------- 32

ENGLISH

LICENSE

Each model has different licenses. Visit

www.lg.com

for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are

trademarks or registered trademarks of HDMI Licensing LLC in the United States and other

countries.

VESA, VESA logo, DisplayPort compliance logo and DisplayPort compliance logo for dual-mode

source devices are all registered trademarks of the Video Electronics Standards Association.

The SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.

ENGLISH

ASSEMBLING AND PREPARING

Product Composition

Please check whether all the components are included in the box before using the product. If there are any missing components,

contact the retailer where you purchased the product. Note that the product and related components may look different from

those shown here.

CD (Owner’s Manual / Software

/ Guides) / Cards Power cord AC/DC Adapter HDMI cable

DisplayPort Cable Stand Base Cable Holder Stand Body

CAUTION

•Always use genuine LG components to ensure safety and product performance.

•The product warranty will not cover damage or injury caused by the use of unauthorized components.

•It is recommend that use the supplied components.

•If you use generic cables not certified by LG, the screen may not display or there may be image noises.

NOTE

•The components may look different from those illustrated here.

•Without prior notice, all product information and specifications contained in this manual are subject to change to improve the

performance of the product.

•To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer from which you

purchased the product.

•The power cord provided may differ depending upon the region.

ENGLISH

Supported Drivers and Software

Check the drivers and software supported by your product and refer to the manuals on the CD enclosed in the product package.

Drivers and Software Installation Priority 34UC80

Monitor Driver Recommended O

ASM Driver Required X

OnScreen Control Recommended O

Dual Controller Optional O

True Color Pro Optional X

•Required and Recommended: You can download and install the latest version from the enclosed CD or from the LGE website

(

www.lg.com

•Optional: You can download and install the latest version from the LGE website (

www.lg.com

ENGLISH

Product and Button Description

Joystick Button / Power LED

•On : Power on

•Off : Power off

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the monitor.

Power off Press and hold the joystick button once with your finger to turn off the

monitor.

Volume

Control You can control the volume by moving the joystick button left/right.

NOTE

•The joystick button is located at the bottom of the monitor.

ENGLISH

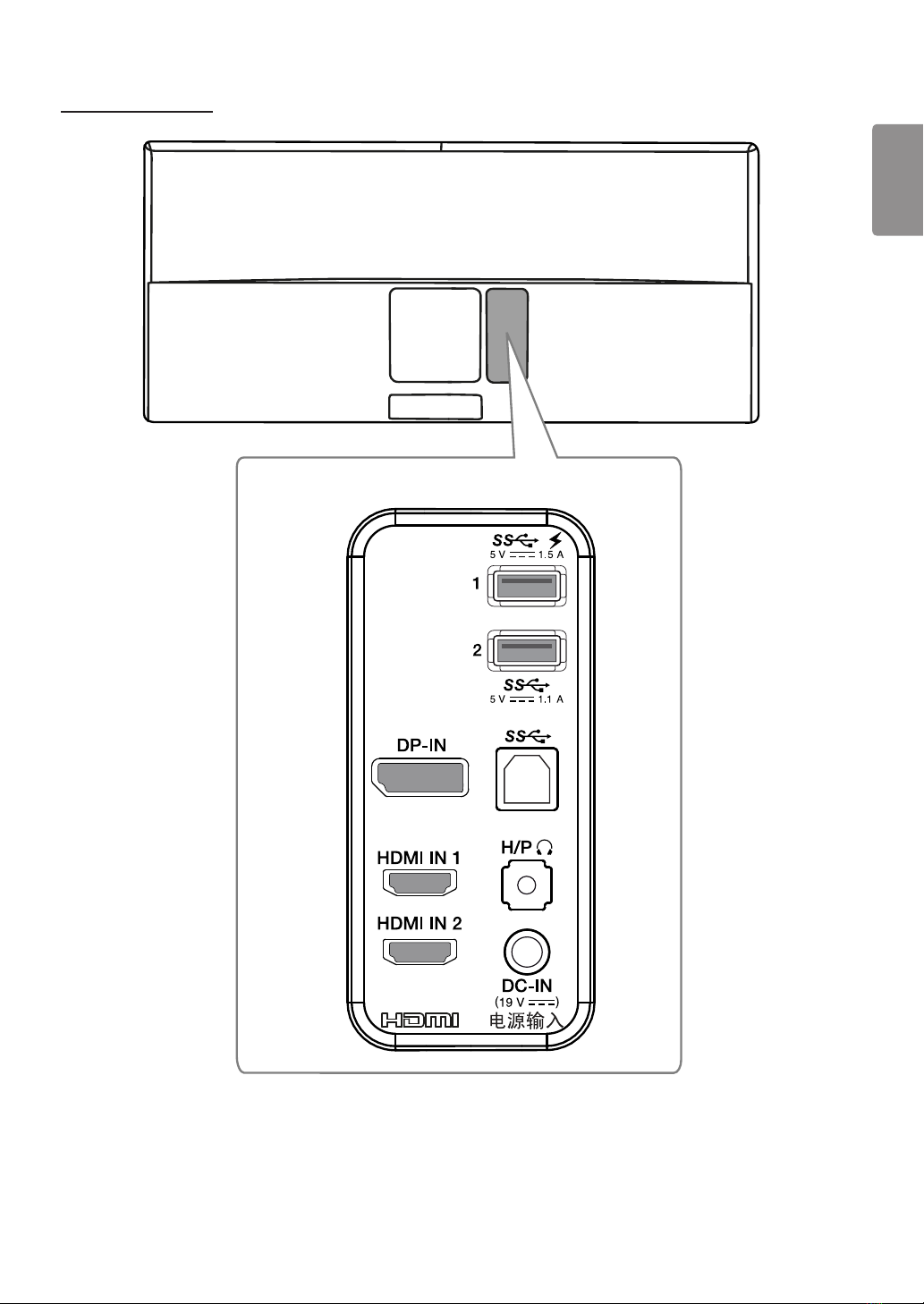

Input Connector

ENGLISH

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being scratched or

damaged and to ensure safe transportation, regardless of its

shape or size.

•Place the monitor in the original box or packing material

before attempting to move it.

•Before moving or lifting the monitor, disconnect the power

cord and all other cables.

•Hold the bottom and side of the monitor frame firmly. Do

not hold the panel itself.

•When holding the monitor, the screen should face away

from you to prevent it from being scratched.

•When transporting the monitor, do not expose the

monitor to shock or excessive vibration.

•When moving the monitor, keep it upright and never turn

the monitor on its side or tilt it sideways.

CAUTION

•Avoid touching the monitor screen as much as possible.

-This may result in damage to the screen or some of the

pixels used to create images.

•If you use the monitor panel without the stand base, its

joystick button may cause the monitor to become unstable

and fall, resulting in damage to the monitor or human

injury. In addition, this may cause the joystick button to

malfunction.

ENGLISH

Assembling the Stand

CAUTION

•To protect the screen, place the screen face down on the

screen pad which is inside the box.

Stand Attachment Area

Stand Body

Cable Holder

* Assemble the

Cable Holder.

Stand Base

ENGLISH

NOTE

•Press the stand until the button reaches the top.

CAUTION

•Illustrations in this document represent typical procedures,

so they may look different from the actual product.

•Do not apply foreign substances (oils, lubricants, etc.) to

the screw parts when assembling the product. (Doing so

may damage the product.)

•Applying excessive force when tightening screws may

cause damage to the monitor. Damage caused in this way

will not be covered by the product warranty.

•Do not carry the monitor upside down by just holding the

base. This may cause the monitor to fall off the stand and

could result in personal injury.

•When lifting or moving the monitor, do not touch the

monitor screen. The force applied to the monitor screen

may cause damage to it.
