LG 34GK950F Manuel utilisateur

* Disclaimer : LG LED Monitor applies LCD screen with LED backlights.

This product is a computer monitor and not for television purpose.

Please read this manual carefully before operating your set and retain it

for future reference.

www.lg.com

34GK950F

OWNER’S MANUAL

LG Gaming Computer Monitor

(LED COMPUTER MONITOR*)

ENGLISH

TABLE OF CONTENTS

LICENSE.......................................3

ASSEMBLING AND PREPARING 4

- Supported Drivers and Software .........................4

- Product and Button Description...........................5

How to Use the Joystick Button

- Moving and Lifting the Monitor............................6

Installing on a Table

Adjusting the Stand Height

Adjusting the Angle

Tidying up Cables

Using the Kensington Lock

Installing the Wall Mount Plate

Installing on the Wall

USING THE MONITOR.............. 15

- Connecting to a PC...................................................15

HDMI Connection

DisplayPort Connection

- Connecting Peripherals...........................................17

USB Cable connection

Connecting Headphones

USER SETTINGS ....................... 19

- Activating the Main Menu....................................19

Main Menu Features

- User Settings ...............................................................21

Menu Settings

TROUBLESHOOTING................ 32

PRODUCT SPECIFICATION ...... 35

- Factory Support Mode............................................37

- HDMI Timing (Video)................................................38

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of

HDMI Licensing Administrator, Inc.

ENGLISH

ASSEMBLING AND PREPARING

CAUTION

•Always use genuine LG components to ensure safety and product performance.

•The product warranty will not cover damage or injury caused by the use of

unauthorized components.

•It is recommend that use the supplied components.

•If you use generic cables not certified by LG, the screen may not display or there

may be image noises.

NOTE

•The components may look different from those illustrated here.

•Without prior notice, all product information and specifications contained in this

manual are subject to change to improve the performance of the product.

•To purchase optional accessories, visit an electronics store or an online shopping

site, or contact the retailer from which you purchased the product.

•The power cord provided may differ depending upon the region.

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.

lg.com).

Drivers and Software Installation Priority 34GK950F

Monitor Driver Recommended O

OnScreen Control Recommended O

ENGLISH

Product and Button Description

Joystick Button / Power LED

•On: Power on

•Off: Power off

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button

or moving it left/right with your finger.

Basic Functions

Power on Press the joystick button once with

your finger to turn on the monitor.

Power off

Press and hold the joystick button

once with your finger to turn off the

monitor.

/ Volume

control

You can control the volume by moving

the joystick button left/right.

Controls

screen

brightness

You can control the screen’s

brightness by moving the joystick

button up/down.

NOTE

•The joystick button is located at the bottom of the monitor.

ENGLISH

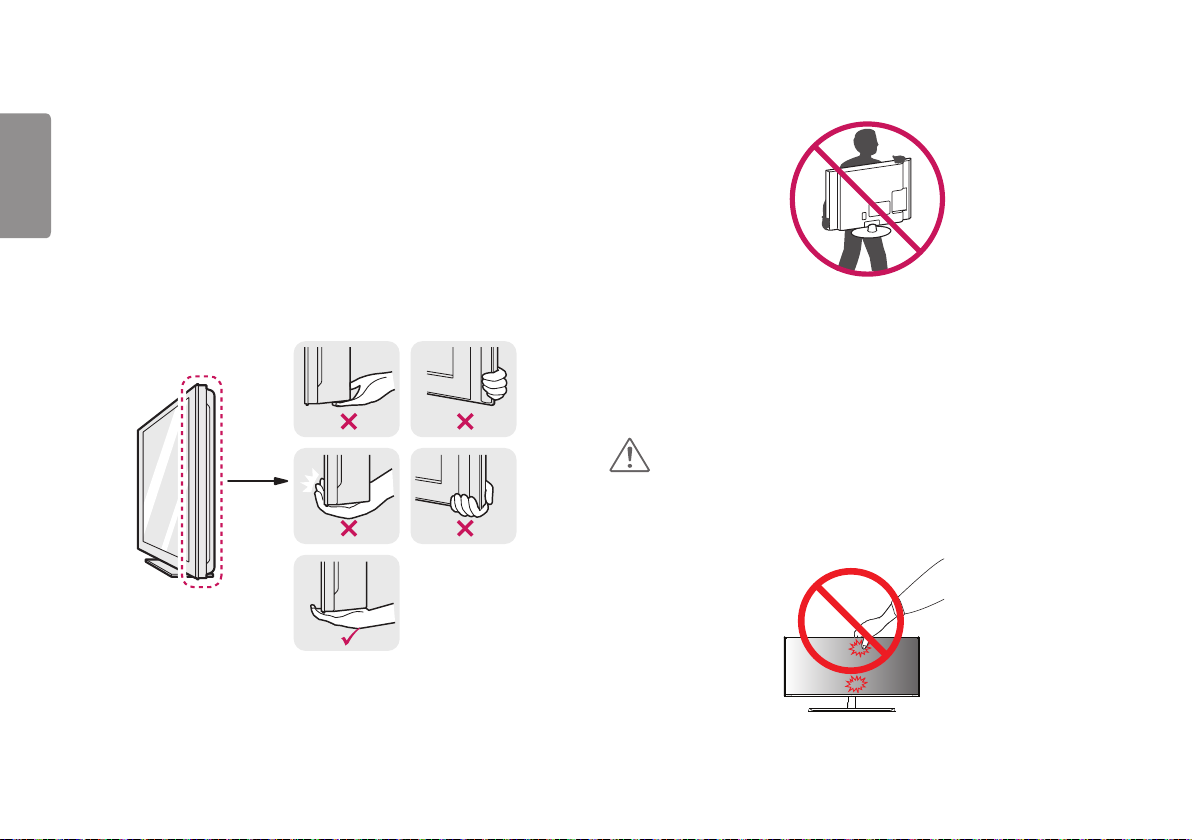

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these instructions to prevent the

monitor from being scratched or damaged and to ensure safe transportation,

regardless of its shape or size.

•Place the monitor in the original box or packing material before attempting to

move it.

•Before moving or lifting the monitor, disconnect the power cord and all other

cables.

•Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself. •When holding the monitor, the screen should face away from you to prevent it

from being scratched.

•When transporting the monitor, do not expose the monitor to shock or excessive

vibration.

•When moving the monitor, keep it upright and never turn the monitor on its side

or tilt it sideways.

CAUTION

•Avoid touching the monitor screen as much as possible.

- This may result in damage to the screen or some of the pixels used to create

images.

ENGLISH

•If you use the monitor panel without the stand base, its joystick button may

cause the monitor to become unstable and fall, resulting in damage to the

monitor or human injury. In addition, this may cause the joystick button to

malfunction.

Installing on a Table

1 Lift the monitor and place it on the table in an upright position. Place the

monitor at least 100mm away from the wall to ensure sufficient ventilation.

100 mm

ENGLISH

CAUTION

•Unplug the power cord before moving or installing the monitor. There is risk of

electric shock.

Cautions When Connecting Power Cord

100-240 V ~

•Make sure to use the power cord that is provided in the product package and

connect it to a grounded power outlet.

•If you need another power cord, please contact your local dealer or the nearest

retail store.

2 Connect the power adapter to the monitor and then plug the power cord into

the wall outlet.

3 Press the joystick button on the bottom of the monitor to turn on the monitor.

ENGLISH

Adjusting the Stand Height

1 Place the monitor mounted on the stand base in an upright position.

2 Handle the monitor with both hands for safety.

Max. 110.0 mm

WARNING

•When adjusting the screen height, do not place your hand

on the stand body to avoid injury to your fingers.

Adjusting the Angle

1 Place the monitor mounted on the stand base in an upright position.

2 Adjust the angle of the screen.

The angle of the screen can be adjusted forward or backward from -5° to 15° for a

comfortable viewing experience.

Front

Rear

ENGLISH

WARNING

•To avoid injury to the fingers when adjusting the screen, do not hold the lower

part of the monitor’s frame as illustrated below.

•Be careful not to touch or press the screen area when adjusting the angle of the

monitor.

NOTE

Swivel (clockwise 20°)

Swivel (counter clockwise 20°)
