LG 27MP68VQ-P Manuel utilisateur

www.lg.com

LED LCD Monitor (LED Monitor) Model List

Please read the safety information carefully before using the product.

*Disclaimer: LG LED Monitor applies LCD screen with LED backlights.

This product is a computer monitor and not for television purpose.

OWNER’S MANUAL

LED LCD COMPUTER

MONITOR

(LED COMPUTER

MONITOR*)

22MP68VQ

23MP68VQ

24MP68VQ

27MP68VQ

ENGLISH

CONTENTS

LICENSE ---------------------------- 3

ASSEMBLING AND PREPARING - 4

- Unpacking-------------------------------------- 4

- Supported Drivers and Software -------------- 5

- Parts and buttons ----------------------------- 6

- Moving and Lifting the Monitor --------------- 8

- Setting up the Monitor set ------------------- 9

USING THE MONITOR SET------ 14

- Connecting to a PC ---------------------------14

- Connecting to External Devices -------------- 16

CUSTOMIZING SETTINGS ------ 17

- Customizing settings -------------------------18

Menu Settings

-Quick Settings

-Picture

-General

-Auto Configuration

-Reset

TROUBLESHOOTING ------------ 25

SPECIFICATIONS ---------------- 27

- Preset Modes (Resolution) -------------------31

- Indicator---------------------------------------31

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-

ministrator, Inc.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

27MP67VQ24MP67VQ22MP67VQ 23MP67VQ

22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ

27MP67VQ24MP67VQ22MP67VQ 23MP67VQ

22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ

ASSEMBLING AND PREPARING

Unpacking

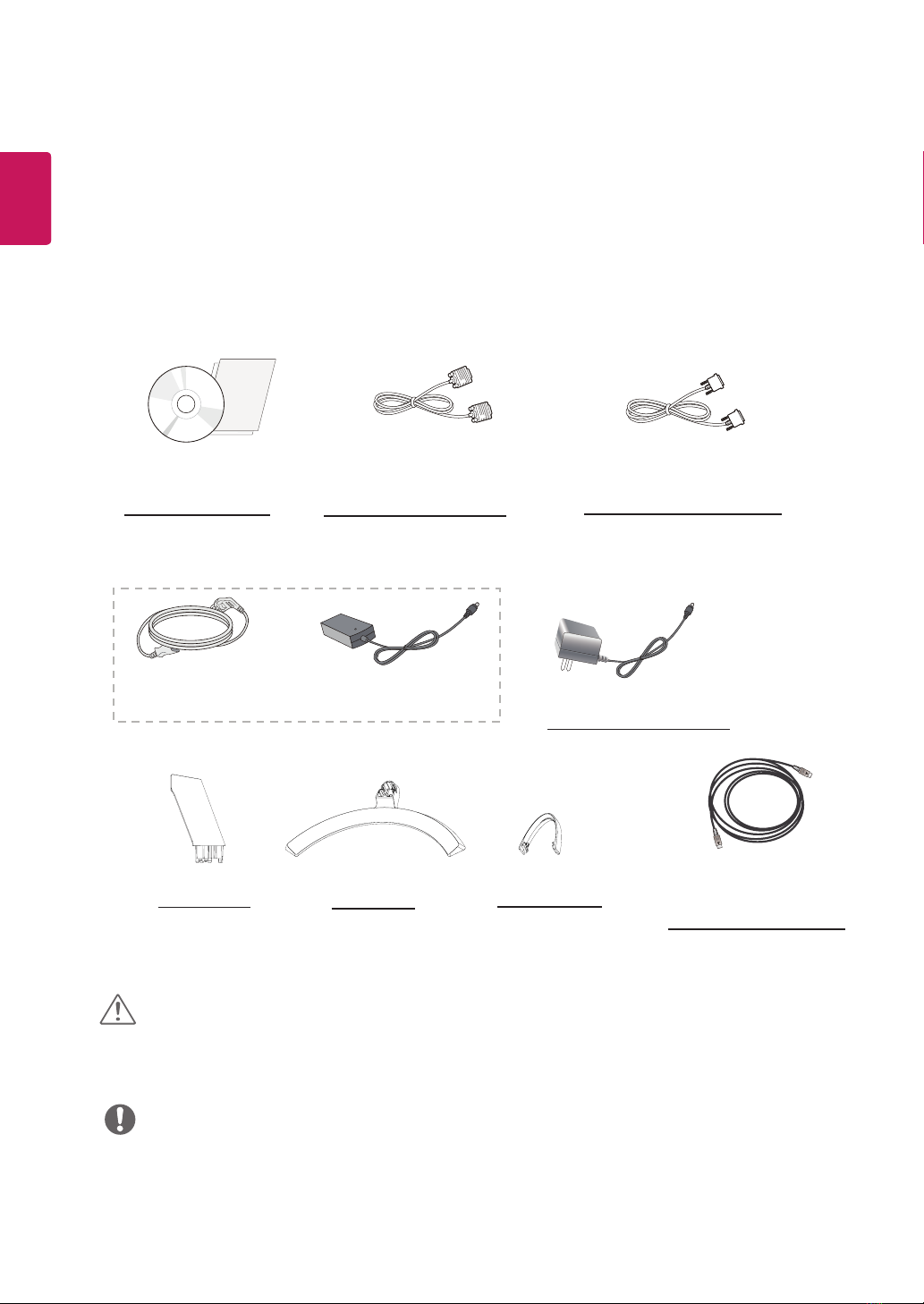

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade of product

functions.

CAUTION

NOTE

CD / Card

( Depending on the country ) ( Depending on the country )

Power Cord AC-DC Adapter

AC-DC Adapter

D-SUB Cable

( This cable is not included in all

countries. )

DVI-D Cable

( This cable is not included in all

countries. )

Stand Body Stand Base

HDMI Cable

( This cable is not

included in all countries. )

Cable Holder

ENG

ENGLISH

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Drivers and Software Installation Priority 22MP68VQ , 23MP68VQ

24MP68VQ , 27MP68VQ

Monitor Driver Recommended O

OnScreen Control Recommended O

ENG

ENGLISH

Parts and buttons

Joystick Button/

Power Indicator

yOn : power is on

yOff : power is off

yThe joystick button is located at the bottom of the monitor.

NOTE

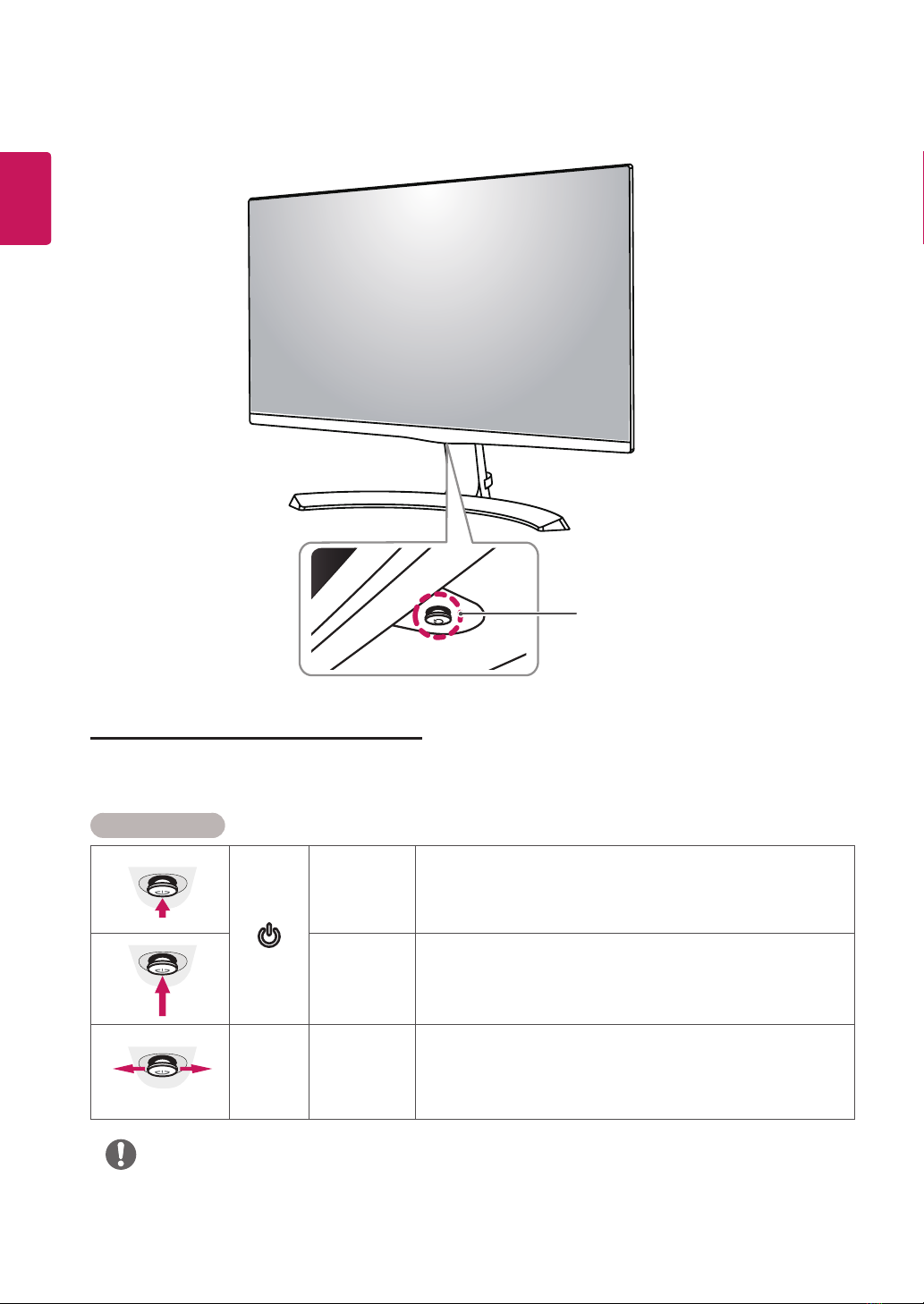

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with

your finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

ENG

ENGLISH

Parts and buttons

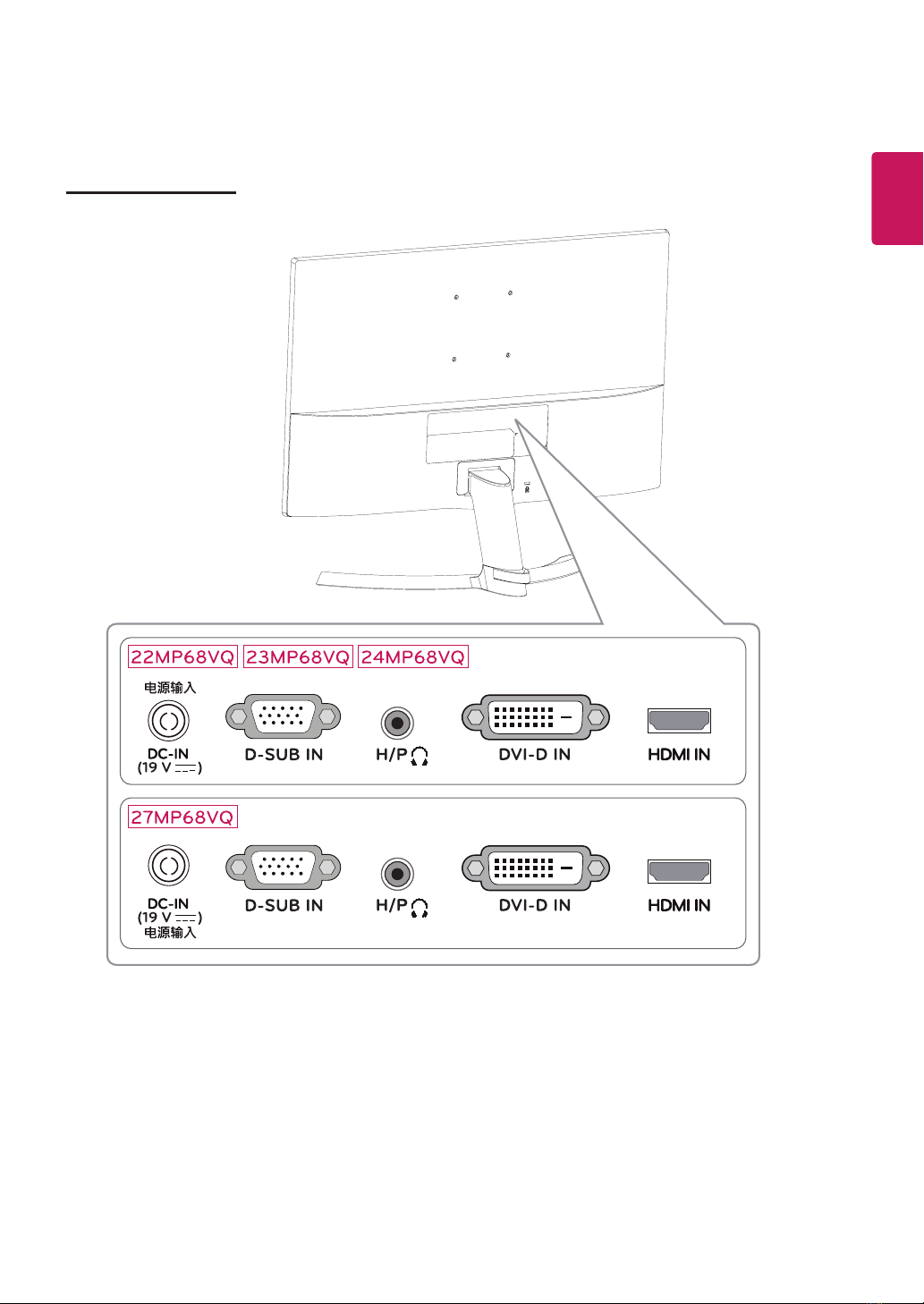

Input Connector

ENG

ENGLISH

Moving and Lifting the Monitor

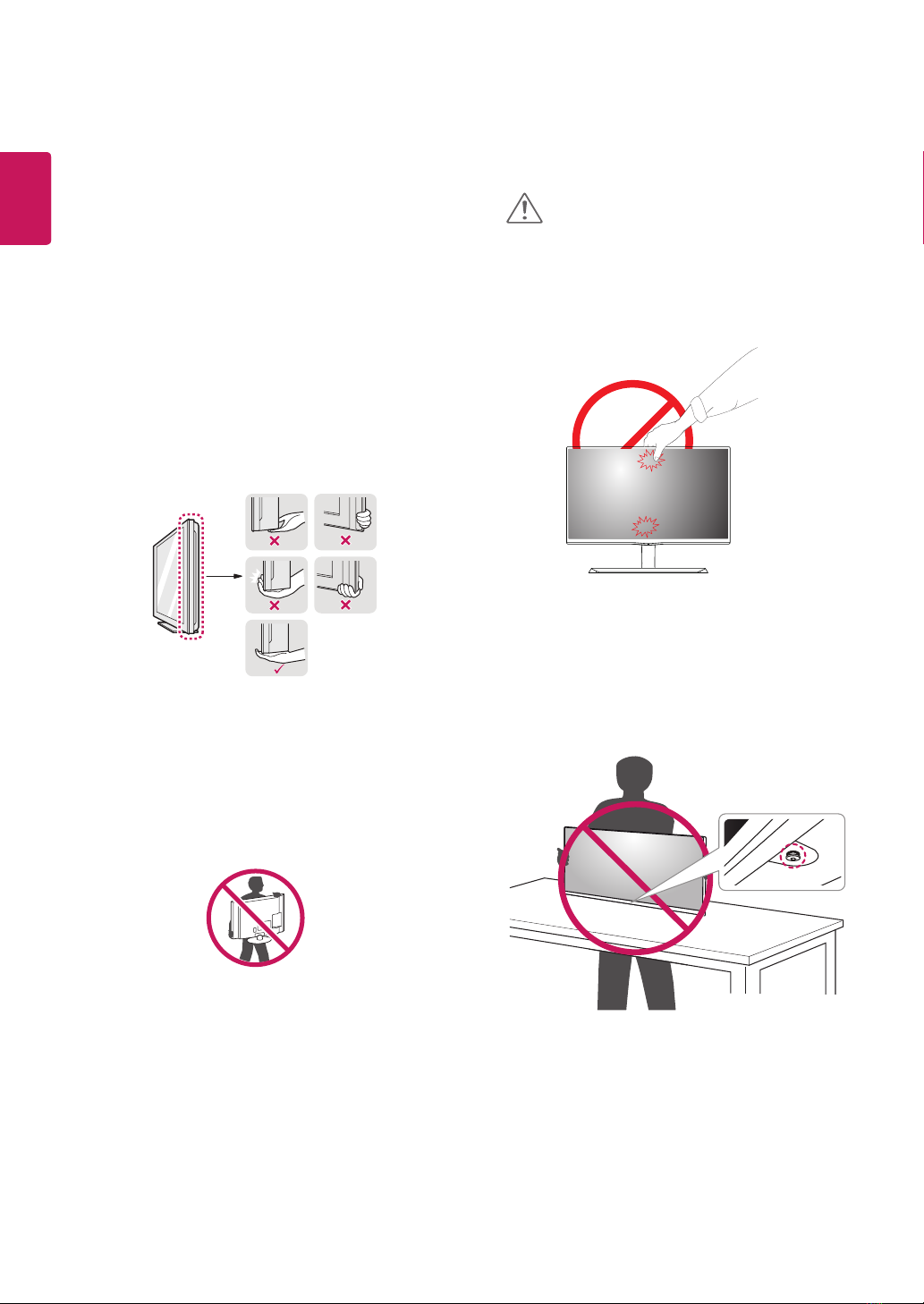

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size. yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

yIf you use the monitor panel without the stand base,

its joystick button may cause the monitor to become

unstable and fall, resulting in damage to the monitor

or human injury. In addition, this may cause the joystick

button to malfunction.

ENG

ENGLISH

Setting up the Monitor set

Attaching the Stand Base Detaching the Stand Base

Stand Body

Stand Base

Stand Body

Stand Base

Stand Body

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

* If it is difficult to remove, you can push the

Latch with a small flat-head screw driver or a

flat-headed tool and disassemble as shown

below.



Stand Base

ENG

ENGLISH

yIllustrations in this document represent typical

procedures, so they may look different from

the actual product.

yDo not carry the monitor upside down by just

holding the stand base. This may cause the

monitor to fall off the stand and could result in

personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied

to the monitor screen may cause damage to

it.

yIf you use the monitor panel without the stand

base, its joystick button may cause the moni-

tor to become unstable and fall, resulting in

damage to the monitor or human injury. In

addition, this may cause the joystick button to

malfunction.

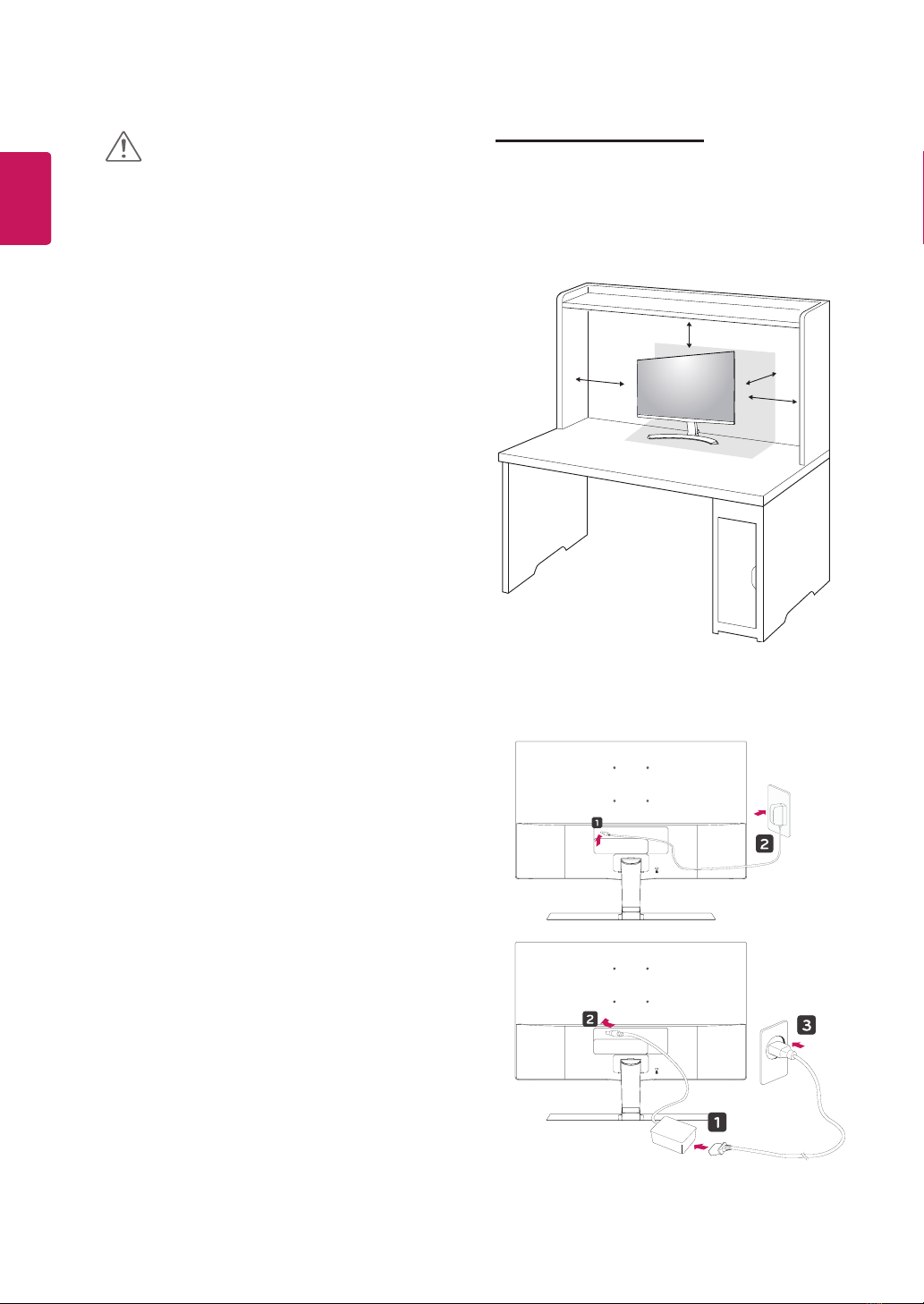

Mounting on a table

1Lift and tilt the Monitor set into its upright

position on a table.

Leave a 100 mm (minimum) space from the

wall for proper ventilation.

2Connect the AC-DC Adapter and Power Cord

to a wall outlet.

100 mm

CAUTION
