LG 27MP48HQ Manuel utilisateur

www.lg.com

IPS LED MONITOR MODEL

Please read this manual carefully before operating

your set and retain it for future reference.

Owner's Manual

IPS LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

22MP48A

22MP48D

22MP48HQ

23MP48D

23MP48HQ

20MP48A 24MP48HQ 27MP48HQ

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3LICENSE

4ASSEMBLING AND PREPAR-

ING

4 Unpacking

6 Parts and buttons

7 Parts and buttons

8 Moving and Lifting the Monitor

9 Setting up the Monitor set

9 - Attaching the Stand Base

10 - Mounting on a table

11 - Using the cable holder

13 - Mounting on a wall

14 USING THE MONITOR SET

14 Connecting to a PC

14 - D-SUB connection

14 - DVI-D connection

15 - HDMI connection

15 Connecting to AV Devices

15 - HDMI connection

16 Connecting to External Devices

16 - Peripheral device connection

17 CUSTOMIZING SETTINGS

19 Customizing Settings

19 - Menu Settings

21 -Picture

22 -Color

23 -Display

23 -Audio

24 -Others

25 READER Setting

26 FUNC. Setting

26 -SMART ENERGY SAVING

27 -Picture Mode

28 -Color Weakness

29 TROUBLESHOOTING

31 SPECIFICATIONS

41 Factory Support Mode

(Preset Mode, D-SUB/DVI/HDMI PC)

42 HDMI Timing(Video)

42 Indicator

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-

ministrator, Inc. in the United States and other countries.

22MP48HQ 23MP48HQ

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

*This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjust-

ment to display.

*To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

24MP48HQ 27MP48HQ

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

CD(Owner's Manual) /

Card

( Depending on the country ) ( Depending on the country )

Power Cord AC-DC Adapter

AC-DC Adapter

D-SUB Cable

( This cable is not included in all

countries. )

HDMI Cable

Stand Body Stand Base

( This cable is not included in all

countries. )

DVI-D Cable

( This cable is not included in all

countries. )

Stand Body Stand Base Cable holder

ENG

ENGLISH

ASSEMBLING AND PREPARING

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

HDMI IN

READER

Parts and buttons

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Connection panel (See p.14~16)

(Power Button)

yThe button is located at the bottom of the monitor.

NOTE

22MP48A

22MP48D

22MP48HQ

23MP48D

23MP48HQ

Button (See p.17~18)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Connection panel (See p.14~16)

(Power Button)

yThe button is located at the bottom of the monitor.

NOTE

20MP48A 24MP48HQ 27MP48HQ

Button (See p.17~18)

ENG

ENGLISH

ASSEMBLING AND PREPARING

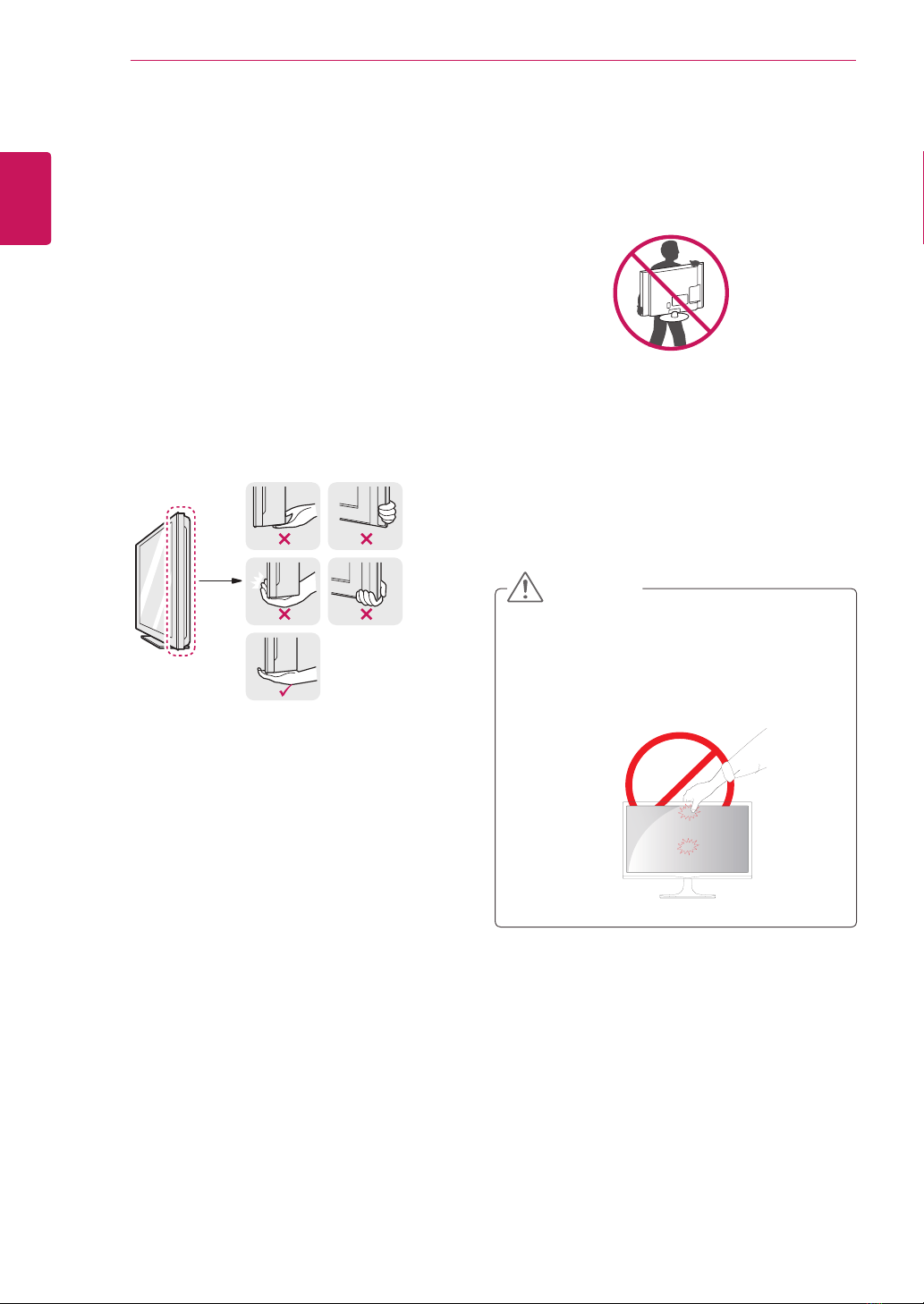

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Attach the Stand Body to the monitor set.

Attach the Stand Base.

Tighten the screw to the right with a coin.

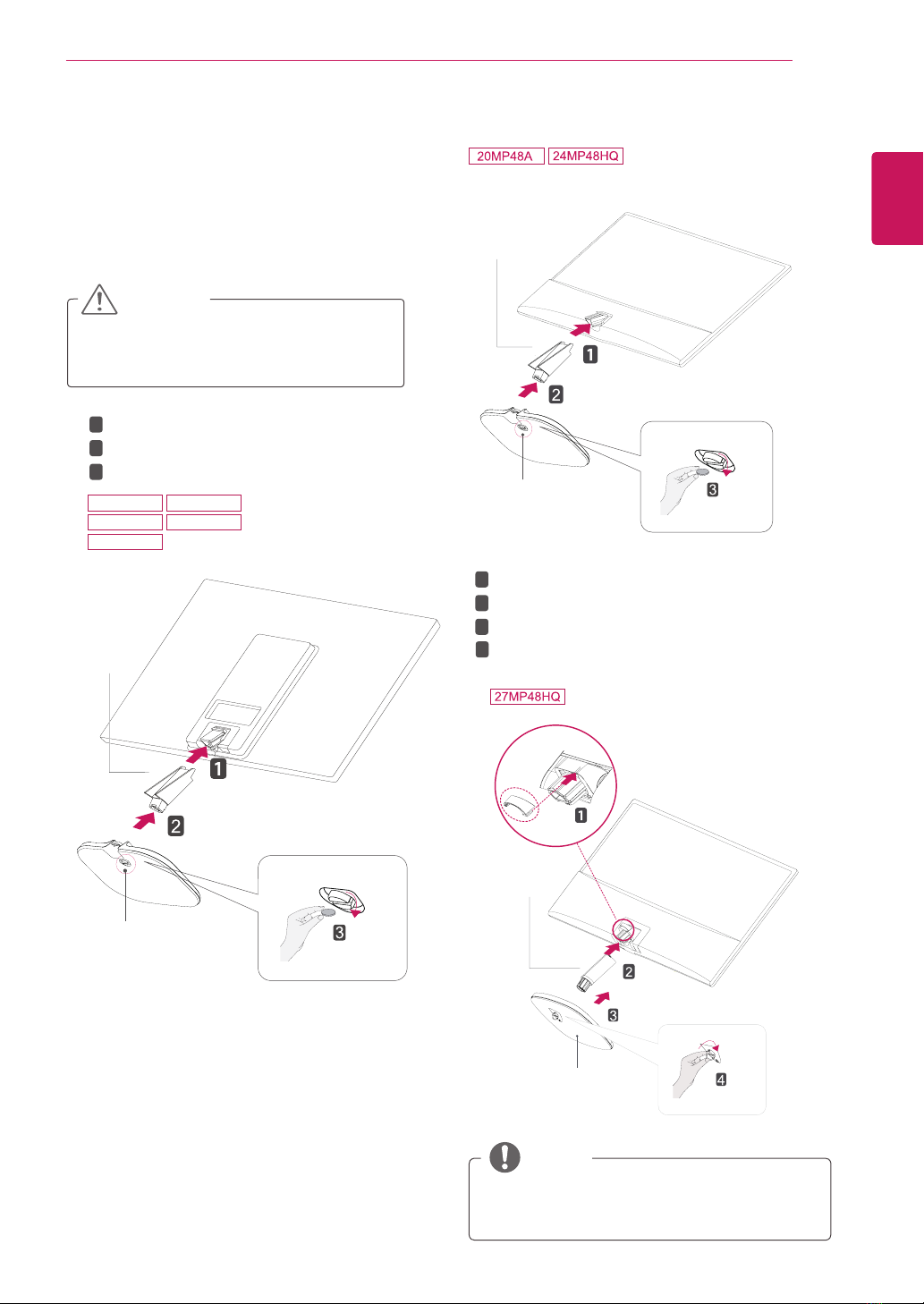

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

CAUTION

Stand Base

Stand Body

22MP48A

22MP48D

22MP48HQ

23MP48D

23MP48HQ

Stand Base

Stand Body

Stand Base

Stand Body

Insert the Cable Holder.

Attach the Stand Body to the monitor set.

Attach the Stand Base to Stand Body.

Tighten the screw to the right.

yYou can disassemble the stand in the

reverse order of the assembly.

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

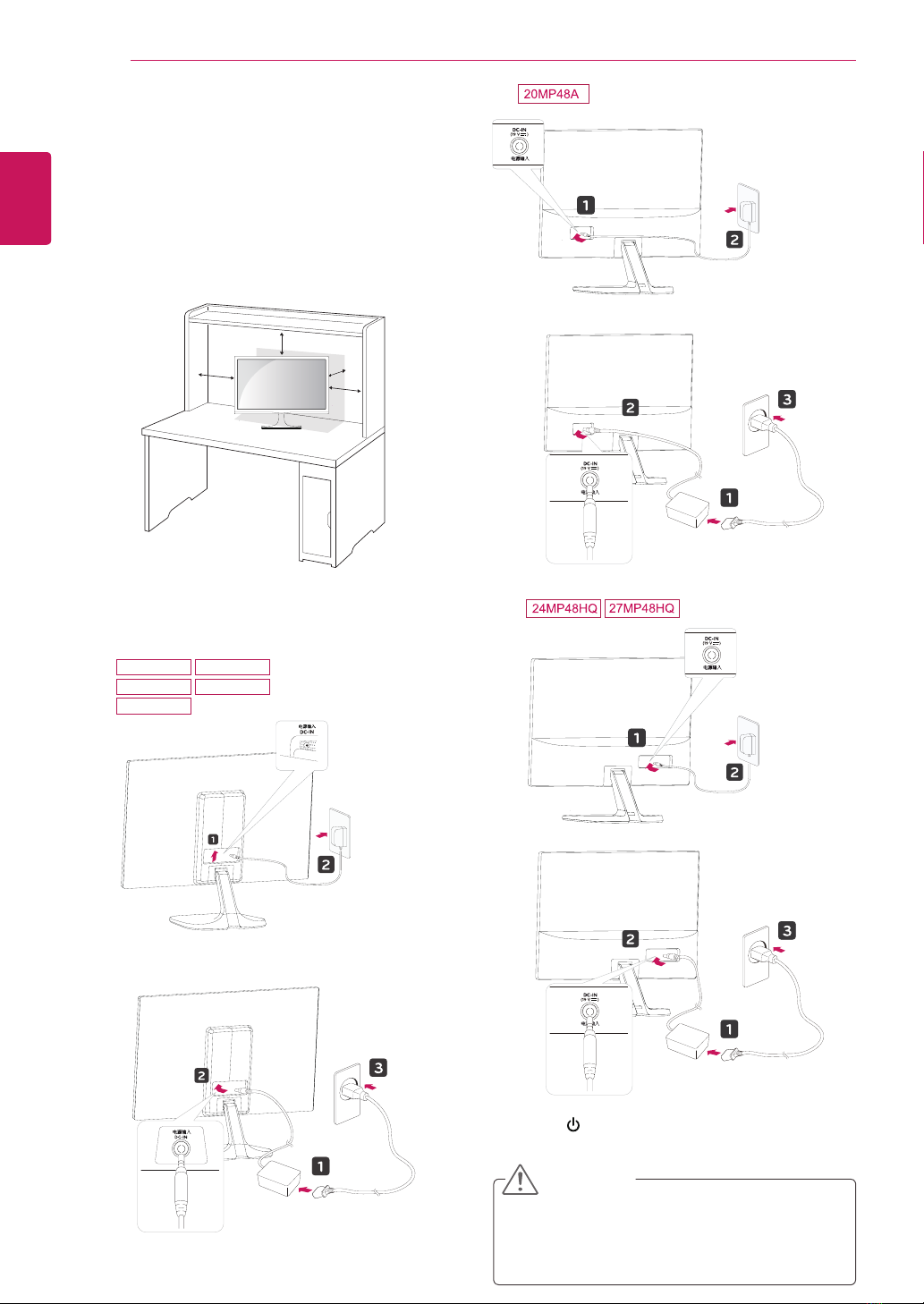

Mounting on a table

1Lift and tilt the Monitor set into its upright

position on a table.

Leave a 100 mm (minimum) space from the

wall for proper ventilation.

2Connect the AC-DC Adapter and Power Cord

to a wall outlet.

3Press (Power) button on the bottom switch

panel to turn the power on.

100 mm

Unplug the power cord before moving the

Monitor to another location. Otherwise electric

shock may occur.

CAUTION

22MP48A

22MP48D

22MP48HQ

23MP48D

23MP48HQ
