LG 27MB85R Manuel utilisateur

www.lg.com

OWNER'S MANUAL

IPS LED COMPUTER

MONITOR

(LED COMPUTER

MONITOR*)

*Disclaimer: LG LED Monitor applies LCD screen with LED backlights.

This product is a computer monitor and not for television purpose.

Please read the safety information carefully before using the product.

27MB85Z

27MB85R

IPS LED Monitor (LED Monitor) Model List

ENG

ENGLISH

Contents

CONTENTS

3LICENSE

4ASSEMBLING AND

PREPARING

4 Product Composition

5 Component and Button Description

6 Moving and Lifting the Monitor

7 Installing the Monitor

7 - Assembling the Stand Base

8 - Detaching the Stand Base

8 - Installing on to a Table

9 - Adjusting the Stand Height

10 - Adjusting the Angle

10 - Tidying Cables

11 - Pivot Feature

12 - Using the Kensington Lock

12 - Detaching the Stand Body

13 - Installing the Wall Mount Plate

13 - Installing on the Wall

15 USING THE MONITOR

15 Connecting to a PC

15 - HDMI Connection

16 - DVI Connection

16 - DisplayPort Connection

17 - Thunderbolt ( ) Connection

17 Connecting Peripherals

17 - USB Cable Connection - PC

18 - Headphone Port Connection

19 INSTALLING LG MONITOR

SOFTWARE

22 CUSTOMIZING SETTINGS

22 Activating the Main Menu

23 Customizing Settings

23 - Menu Settings

24 - Ratio Settings

25 - Super Energy Saving (SES) Settings

26 - Mode Settings

27 - PIP settings

29 - Picture

30 - Color

31 - Settings

32 TROUBLESHOOTING

34 SPECIFICATIONS

36 Factory Support Mode (Preset Mode PC)

36 HDMI Timing (Video)

36 Power Indicator

37 PROPER POSTURE

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

VESA, VESA logo, Display Port Compliance Logo and Display Port

Compliance Logo for dual-mode source are all registered trademarks of the

Video Electronics Standards Association.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in

the United States and other countries.

ENG

ENGLISH

ASSEMBLING AND PREPARING

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve

the performance of the product.

ySeparate purchase are not included for all models. To purchase optional accessories, visit an elec-

tronics store or online shopping site or contact the retail store where you purchased the product.

NOTE

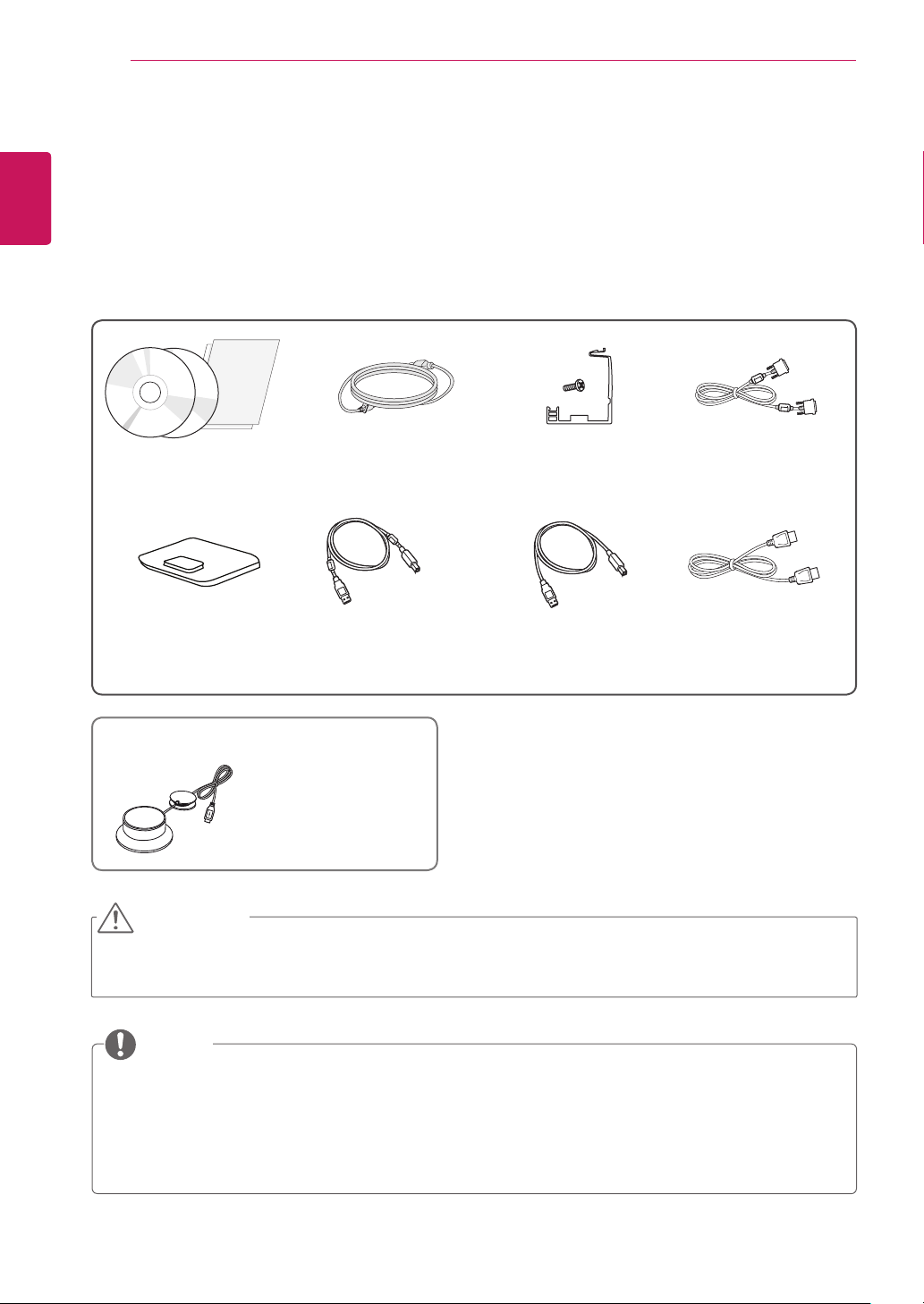

Product Composition

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of unauthorized components.

CAUTION

Separate Purchase

Calibrator

(ACB8300)

(Depending upon

Country)

CD(Owner's Manual/

SW) / Guides / Card Power Cord Cable Holder /

Screw DVI-D Dual Cable

Stand Base A-B Type USB 3.0 Cable

Display Port Cable

(Depending upon

Country)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Component and Button Description

yBefore turning on the monitor, please make sure that the switch on the rear side of product is On.

NOTE

5 V 0.9 A

DVI-D IN

DP IN

HDMI IN

H/P

USB IN 1 USB IN 2 USB IN 3 USB UP

AC-IN

5 V 0.9 A

DVI-D IN

DP IN

HDMI IN

USB IN 1 USB IN 2 USB IN 3 USB UP

Mini DP IN

H/P

27MB85Z

Touch buttons

Input Connector

(Power Button)

27MB85R

Switch

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs much as possible, avoid touching the

monitor screen. This may result in damage

to the screen or some of the pixels used to

create images.

CAUTION

yIt is advisable to place the monitor in the

original box or packing material before

attempting to move it.

yBefore moving or lifting the monitor,

disconnect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen transporting the monitor, do not ex-

pose the monitor to jolts or excessive vibra-

tion.

yWhen moving the monitor, keep it upright;

never turn the monitor on its side or tilt it

sideways.

yAvoid touching the monitor screen as much

as possible.

- This may result in damage to the screen or

some of the pixels used to create images.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the Stand Base

1Place the screen face down.

2Rotate the Stand Body 90˚ counter clockwise.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

yTo avoid scratching the head, make sure that

when rotating the Stand Body, the stand

body does not make contact with the head.

yApplying excessive force when tightening

screws may cause damage to the monitor.

Damage caused in this way will not be cov-

ered by the product warranty.

CAUTION CAUTION

3Align the hole on the Stand Base with the

Stand Body and push it all the way up.Turn

the screws on the Stand Base to the right.

Stand Body

Head

Stand Base

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the Stand Base

1Place the screen face down.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

Installing on to a Table

1Lift the monitor and place it on the table in an

upright position.

Place at least 10 cm away from the wall to

ensure sufficient ventilation.

2Connect the Power Cord to a wall outlet.

3Press the (Power) button on the bottom of

the monitor to turn it on.

yDisconnect the power cord first, and then

move or install the monitor. There is risk of

electric shock.

CAUTION

yThe components in the illustrations may differ

from the actual product.

yDo not carry the monitor upside down, as this

may cause it to fall off its stand and result in

damage or injury.

yTo avoid damaging the screen when lifting

or moving the monitor, only hold the stand

or the plastic cover. This avoids putting

unnecessary pressure on the screen.

CAUTION

2BodyTurn the screws on the Stand Base to the

left to detach the Stand Base from the Stand

Body. 10 cm

10 cm

ENG

ENGLISH

ASSEMBLING AND PREPARING

yOnce the pin is removed, it is not necessary

to re-insert it to adjust the height.

Adjusting the Stand Height

1Place the monitor mounted on the stand base

in an upright position.

2Push the Head downward and pull out the

Locking Pin.

3Handle the monitor with both hands for safety.

4The height can be adjusted up to 130.0 mm.

yDo not put your fingers or

hand between the screen

and the base (chassis) when

adjusting the screen's height.

CAUTION

WARNING

Head

Locking pin

130.0 mm

ENG

ENGLISH

ASSEMBLING AND PREPARING

Adjusting the Angle

1Place the monitor in an upright position, mount-

ed on the stand base.

2Adjust the angle of the screen. The angle of

the screen can be adjusted forwards or back-

wards from -5° to 35° for a comfortable viewing

experience.

Front SideRear Side

-535

yDo not put your fingers or hand between the

screen and the base (chassis) when adjust-

ing the screen's height.

yBe careful not to touch or press the screen

area when adjusting the angle of the moni-

tor.

WARNING

-535

Tidying Cables

1Use the screw provided to attach the cable

holder to the stand body as illustrated.

2Gather and bind the cables with the supplied

cable holder.
