LG 27BK85UW Manuel utilisateur

www.lg.com

Please read the safety information carefully before using the product.

IPS LED Monitor (LED Monitor) Model List

OWNER'S MANUAL

IPS LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

27UK850

27BK85U

ENG

ENGLISH

Contents

CONTENTS

20 USER SETTINGS

20 Activating the Main Menu

20 - Main Menu Features

21 User Settings

21 - Menu Settings

26 TROUBLESHOOTING

28 SPECIFICATIONS

28 27UK850/27BK85U

29 Factory Support Mode (Preset Mode, PC)

29 HDMI

29 DisplayPort / USB-C

30 HDMI Timing (Video)

30 Power LED

3LICENSE

4ASSEMBLING AND PREPARING

4 Product Components

5 Supported Drivers and Software

6 Component and Button Description

6 - How to Use the Joystick Button

7 Input Connector

8 Moving and Lifting the Monitor

9 Installing the Monitor

9 - Assembling the stand base

10 - Using the cable holder

11 - Installing onto a table

12 - Adjusting the angle

12 - Adjusting the Stand Height

13 - Pivot Feature

14 - Using the Kensington lock

15 - Detaching the Stand Body

15 - Installing the wall mount plate

15 - Installing to a wall

17 USING THE MONITOR

17 Connecting to a PC

17 - HDMI connection

17 - DisplayPort connection

18 - USB-C connection

18 Connecting to AV Devices

18 - HDMI connection

19 Connecting Peripherals

19 - USB Cable connection - PC

19 Connecting to External Devices

19 - Connecting Headphones

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP

Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to

display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

VESA, VESA logo, DisplayPort compliance logo and DisplayPort compliance logo for

dual-mode source devices are all registered trademarks of the Video Electronics Stan-

dards Association.

The SuperSpeed USB Trident logo is a registered trademark of USB Implementers

Forum, Inc.

MaxxAudio and additional MAXX trademarks are trademarks and/or registered trade-

marks of Waves Audio Ltd.

USB Type-CTM and USB-CTM are trademarks of USB Implementers Forum.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are missing com-

ponents, contact the retail store where you purchased the product. Note that the product and components may look

different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yIt is recommend that use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve the

performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store

where you purchased the product.

CAUTION

NOTE

CD / Card

DisplayPort Cable USB C-C cable

Stand Body Stand Base Cable Holder

HDMI Cable

( Depending on the coun-

try )

( Depending on the country )

Power Cord AC-DC Adapter

ENG

ENGLISH

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Drivers and Software Installation Priority 27UK850/27BK85U

Monitor Driver Recommended O

OnScreen Control Recommended O

Dual Controller Optional O

True Color Pro Optional O

ENG

ENGLISH

Component and Button Description

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your

finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off the

monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

yThe joystick button is located at the bottom of the monitor.

NOTE

Power LED

yOn: power is on

yOff: power is off

Joystick Button

ENG

ENGLISH

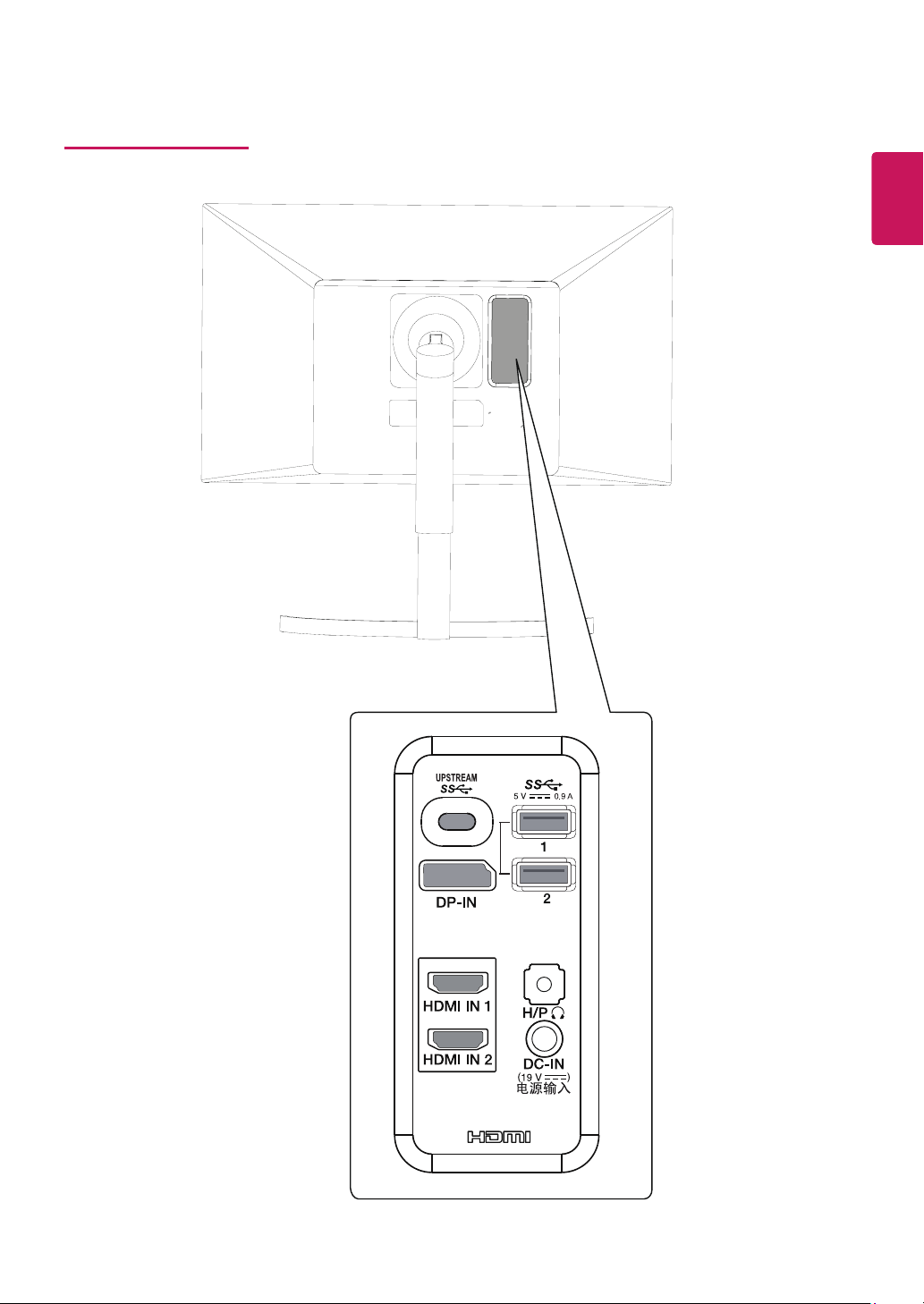

Input Connector

ENG

ENGLISH

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these in-

structions to prevent the monitor from being scratched

or damaged and to ensure safe transportation regard-

less of its shape or size.

yAs far as possible, avoid touching the monitor

screen. This may result in damage to the screen or

some of the pixels used to create images.

yIt is advisable to place the monitor in the original

box or packing material before attempting to

move it.

yBefore moving or lifting the monitor, disconnect

the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the screen itself.

yWhen holding the monitor, the screen should face

away from you to prevent it being scratched.

yWhen moving the monitor, avoid any strong shock

or vibrations to the product.

yWhen moving the monitor, keep it upright, never

turn the monitor on its side or tilt it sideways.

CAUTION

yIf you use the monitor panel without the stand

base, its joystick button may cause the monitor to

become unstable and fall, resulting in damage to

the monitor or human injury. In addition, this may

cause the joystick button to malfunction.

ENG

ENGLISH

Installing the Monitor

Assembling the stand base

yTo avoid injury to your fingers or feet when you

Assembly the Stand Body and Base, you should

hold the Stand Base firmly.

yPress the stand until the button reaches the top.

1Please put a soft cloth on a low table or box to

protect the screen of the monitor.

2Please put the monitor on the soft cloth with the

screen facing down.

4Turn the screw clockwise to secure the stand base.

Assemble the Head and Stand body.

1 2

Assemble the Stand body and Stand base .

CAUTION

NOTE

Stand Body

Stand Base

Stand Body

Cable Holder

ENG

ENGLISH

Using the cable holder

Arrange the cables using the cable holder as shown in

the illustration.

yIllustrations in this document represent typical

procedures, so they may look different from the

actual product.

yDo not carry the monitor upside down by just

holding the stand base. This may cause the

monitor to fall off the stand and could result in

personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied to

the monitor screen may cause damage to it.

yDo not apply foreign substances (oils, lubricants,

etc.) to the screw parts when assembling the

product. (Doing so may damage the product.)

yApplying excessive force when tightening screws

may cause damage to the monitor. Damage

caused in this way will not be covered by the

product warranty.

CAUTION

yYou can disassemble the stand in the reverse

order of the assembly.

NOTE

Cable Holder
