OWNER’S MANUAL

IPS LED COMPUTER

MONITOR

(LED COMPUTER

MONITOR*)

24BK550Y

27BK550Y

ENGLISH

CONTENTS

LICENSE ---------------------------- 3

ASSEMBLING AND PREPARING - 4

- Product Components -------------------------- 4

- Supported Drivers and Software -------------- 5

- Component and Button Description ---------- 6

- Moving and Lifting the Monitor --------------- 7

- Setting up the Monitor set ------------------- 8

Attaching the Stand Base

Mounting on a table

Using the cable holder

Adjusting the Stand Height

Adjusting the angle

Swivel stand

Pivot Feature

Detaching the Stand Body

Installing the wall mount plate

Installing to a wall

USING THE MONITOR SET------ 16

- Connecting to a PC ---------------------------16

- Connecting Peripherals -----------------------18

CUSTOMIZING SETTINGS ------ 19

TROUBLESHOOTING ------------ 23

SPECIFICATIONS ---------------- 24

- Preset Modes (Resolution) -------------------26

- Indicator---------------------------------------26

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-

ministrator, Inc.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

CAUTION

NOTE

CD / Card

( Depending on the country )

Power Cord

USB Cable

( This cable is

not included in all

countries. )

DVI-D Cable

( This cable is

not included in all

countries. )

( This cable is

not included in all

countries. )

( This cable is

not included in all

countries. )

Stand Body Stand Base

HDMI CableD-SUB Cable

Cable Holder

Product Components

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yIt is recommend that use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve

the performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail

store where you purchased the product.

( This cable is not included in all

countries. )

( This cable is not included in all

countries. )

Audio Cable DisplayPort Cable

ENG

ENGLISH

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Drivers and Software Installation Priority 24BK550Y

27BK550Y

Monitor Driver Recommended O

OnScreen Control Recommended O

Dual Controller Optional O

ENG

ENGLISH

H/P USB IN 1 USB IN 2

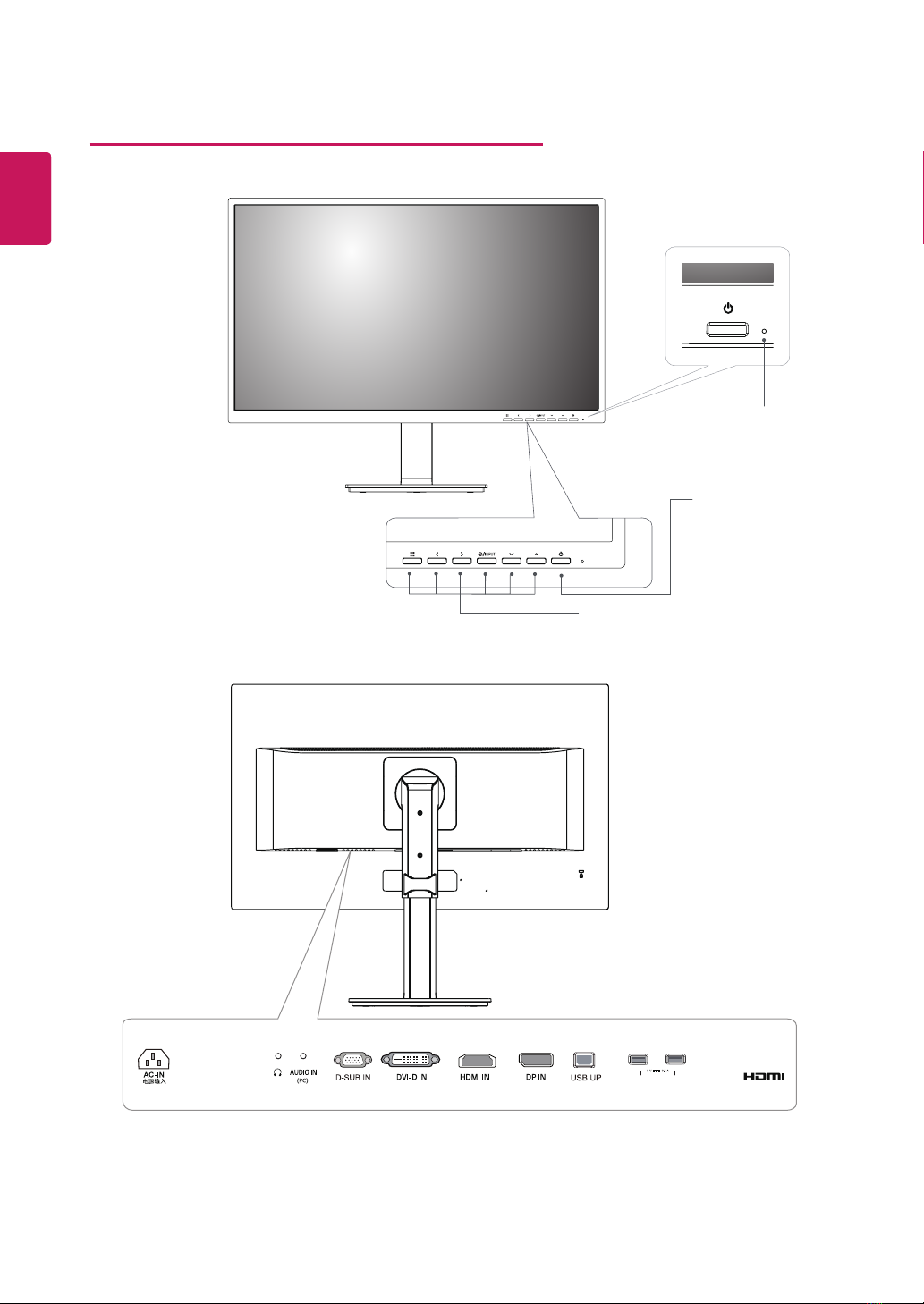

Component and Button Description

Input Connector

Power Indicator

yLighting On : Turned on

yLighting Off : Turned off

(Power Button)

Button

ENG

ENGLISH

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size. yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

ENG

ENGLISH

Setting up the Monitor set

Attaching the Stand Base

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

NOTE

WARNING

yPress the stand until the button reaches the

top.

yTo avoid injury to the fingers and foot when

Assembly Stand Body and Base, should hold

Base when assembly stand body and base.

yTo avoid injuring the fingers and foot, when

assembling the Stand Body and Base, you

should hold the Stand Base.

ENG

ENGLISH

yIllustrations in this document represent typical

procedures, so they may look different from the

actual product.

yDo not carry the monitor upside down by just

holding the stand base. This may cause the

monitor to fall off the stand and could result in

personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied to

the monitor screen may cause damage to it.

yDo not apply foreign substances (oils,

lubricants, etc.) to the screw parts when

assembling the product. (Doing so may

damage the product.)

yApplying excessive force when tightening

screws may cause damage to the monitor.

Damage caused in this way will not be covered

by the product warranty.

Mounting on a table

1Lift and tilt the Monitor set into its upright

position on a table.

Leave a 100 mm (minimum) space from the

wall for proper ventilation.

100 mm

CAUTION

NOTE

yYou can disassemble the stand in the re-

verse order of the assembly.

yUnplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

2Connect the Power cord to the monitor, then

plug the power cord into the wall outlet.

3Press the Power button on the front of the

monitor to turn on the monitor.

ENG

ENGLISH

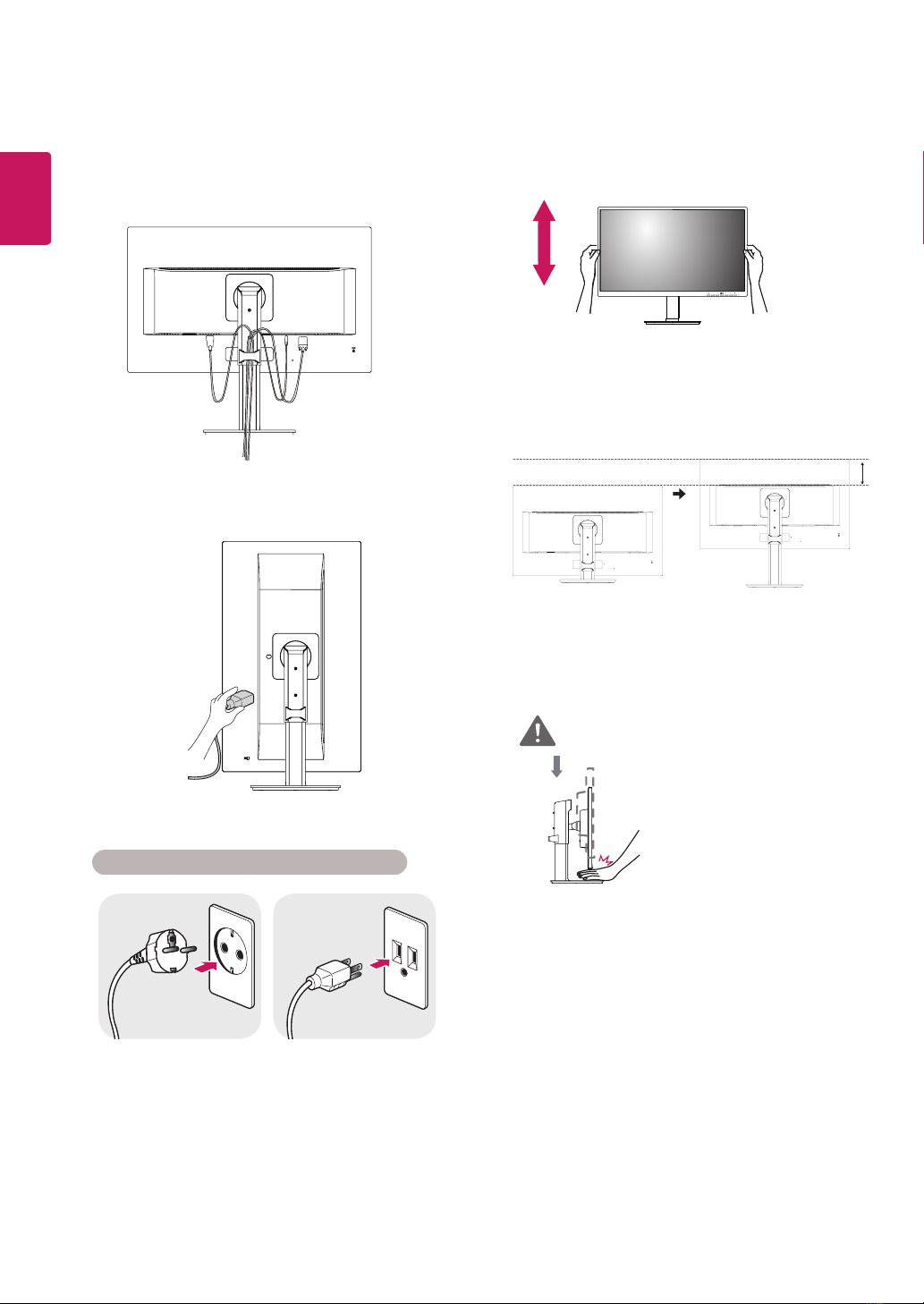

Using the cable holder

Arrange the cables using the cable holder as

shown in the illustration.

Cautions When Connecting Power Cord

yMake sure to use the power cord that is pro-

vided in the product package and connect it

to a grounded power outlet.

yIf you need another power cord, please

contact your local dealer or the nearest retail

store.

100-240 V ~

Adjusting the Stand Height

1 Handle the monitor with both hands for safety.

2 The height can be adjusted up to 130.0 mm.

130.0 mm

yDo not put your fingers or

hand between the screen

and the base (chas-

sis) when adjusting the

screen's height.

WARNING

Rotate Set(Pivot) and put connectors. It is easy

to put connectors and manage cables using

cable holder.
