25UM55

25UB55

29UM55

29UB55

IPS LED Monitor (LED Monitor) Model List

Please read this manual carefully before operating

your set and retain it for future reference.

Owner's Manual

IPS LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

ENG

ENGLISH

Contents

CONTENTS

32 CUSTOMIZING SETTINGS

32 Activating the Main Menu

33 Customizing settings

33 - Menu Settings

33 - -Easy control

34 - -Function

35 - -PBP

36 - -Screen

37 - -Settings

38 - -Reset

39 - Reader Settings

40 TROUBLESHOOTING

42 SPECIFICATIONS

42 25UM55

43 25UB55

44 29UM55

45 29UB55

46 Factory support mode

(Preset Mode, DVI-D/HDMI/PC

DisplayPort)

46 HDMI Timing (Video)

46 Power Indicator

47 PROPER POSTURE

47 Proper Posture for Using the Monitor

3LICENSE

4ASSEMBLING AND

PREPARING

4Product Components

5Component and Button Description

9Moving and Lifting the Monitor

10 Installing the Monitor

10 - Assembling the stand base

13 - Using the cable holder

14 - Detaching the stand base

17 - Detaching the stand body

18 - Installing onto a table

19 - Adjusting the stand height

20 - Adjusting the angle

22 - Pivot feature

23 - Using the Kensington lock

23 - Installing the wall mount plate

24 - Installing to a wall

25 USING THE MONITOR

25 Connecting to a PC

25 - DVI connection

26 - DisplayPort connection

27 - HDMI connection

28 Connecting to AV Devices

28 - HDMI connection

29 Connecting to External Devices

29 - Headphone port connection

30 INSTALLING LG MONITOR

SOFTWARE

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-

ministrator, Inc.

VESA, VESA logo, DisplayPort Compliance Logo and DisplayPort

Compliance Logo for dual-mode source are all registered trademarks of the

Video Electronics Standards Association.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet

the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to im-

prove the performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the

retail store where you purchased the product.

yThe DisplayPort cable may not be available in some areas.

CAUTION

NOTE

User Manual/Card

OPTIONAL ACCESSORIES

yThe DisplayPort cable may not

be available in some areas.

DisplayPort Cable

Stand Base

Stand Body Screw Cover Screws

HDMI Cable

One Screw Cable Holder

29UB5525UB55

Stand Base Stand Body Screw Cover Screws

( Depending on the country ) ( Depending on

the country )

Power Cord AC-DC Adapter AC-DC Adapter

ENG

ENGLISH

ASSEMBLING AND PREPARING

Component and Button Description

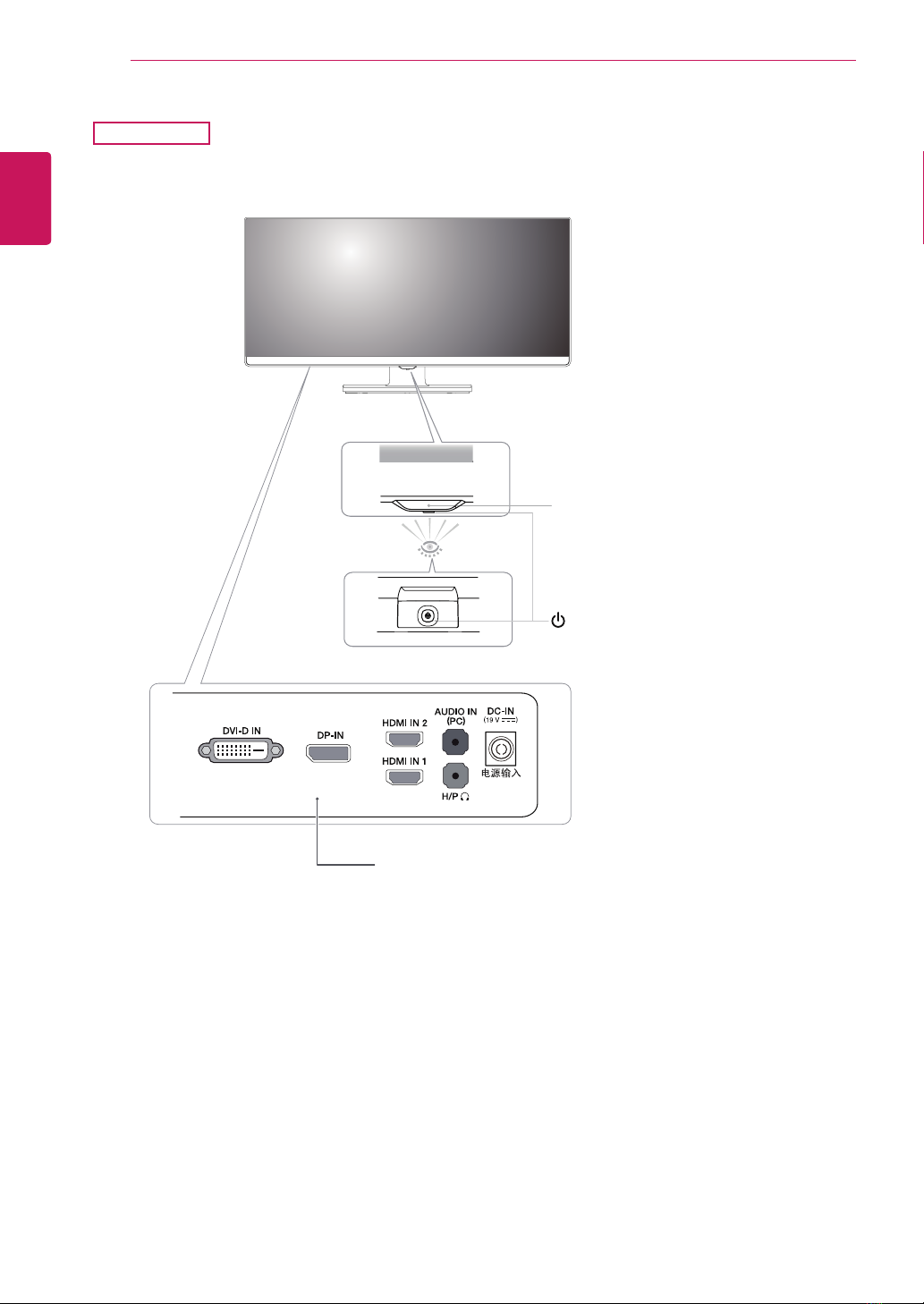

Power Indicator

yOn: power is on

yOff: power is off

Ports

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

29UM55

Power Indicator

yOn: power is on

yOff: power is off

Ports

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

5 5

Power Indicator

yOn: power is on

yOff: power is off

Ports

(Power Button)

Ports

ENG

ENGLISH

ASSEMBLING AND PREPARING

29UB55

Power Indicator

yOn: power is on

yOff: power is off

Ports

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

29UM5525UM55

25UB55 29UB55

yIf you use the monitor panel without the

stand base, its joystick button may cause

the monitor to become unstable and fall,

resulting in damage to the monitor or human

injury. In addition, this may cause the joystick

button to malfunction.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the stand base

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

2Check the direction of the stand body

(front, back) and then mount the stand body

onto the stand hinge.

Tighten two screws into the back of the stand

body .

1Place the screen face down.

25UM55

4Attach the screw cover.

Stand Body

Stand Base

Stand Hinge

Attach the Stand Base to Stand Body.

Tighten the screw to the right.

Screws

Screw Cover
