OWNER’S MANUAL

LED LCD Monitor

23MB35PH

24MB35PH

Please read this manual carefully before operating

your set and retain it for future reference.

LED LCD MONITOR MODEL

ENGLISH

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3LICENSE

4ASSEMBLING AND PREPAR-

ING

4 Unpacking

5 Parts and buttons

6 Moving and Lifting the Monitor

7 Setting up the Monitor set

7 - Attaching the Stand Base

8 - Detaching the stand base

8 - Detaching the stand body

9 - Mounting on a table

9 - Adjusting the angle

10 - Adjusting the stand height

10 - Using the Kensington locking device

11 - Using the Pivot function

12 - Mounting on a wall

13 USING THE MONITOR SET

13 Connecting to a PC

13 - D-SUB connection

13 - DVI-D connection

13 - HDMI connection

14 Connecting to AV Devices

14 - HDMI connection

14 Connecting to External Devices

14 - Peripheral device connection

16 CUSTOMIZING SETTINGS

17 Customizing Settings

17 - Menu Settings

18 -Picture

19 -Color

20 -Display

20 -Audio

21 -Others

22 READER Setting

23 -SMART ENERGY SAVING

24 TROUBLESHOOTING

26 SPECIFICATIONS

26 23MB35PH

27 24MB35PH

28 Preset Modes (Resolution)

28 Indicator

29 PROPER POSTURE

29 Proper posture for using the Monitor set.

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-

ministrator, Inc.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

CD(Owner's Manual) /

Card

D-SUB Cable

(This cable is not

included in all

countries.)

HDMI Cable

(This cable is not included in all

countries.)

DVI-D Cable

(This cable is not

included in all

countries.)

Stand Base

Power Cord

ENG

ENGLISH

ASSEMBLING AND PREPARING

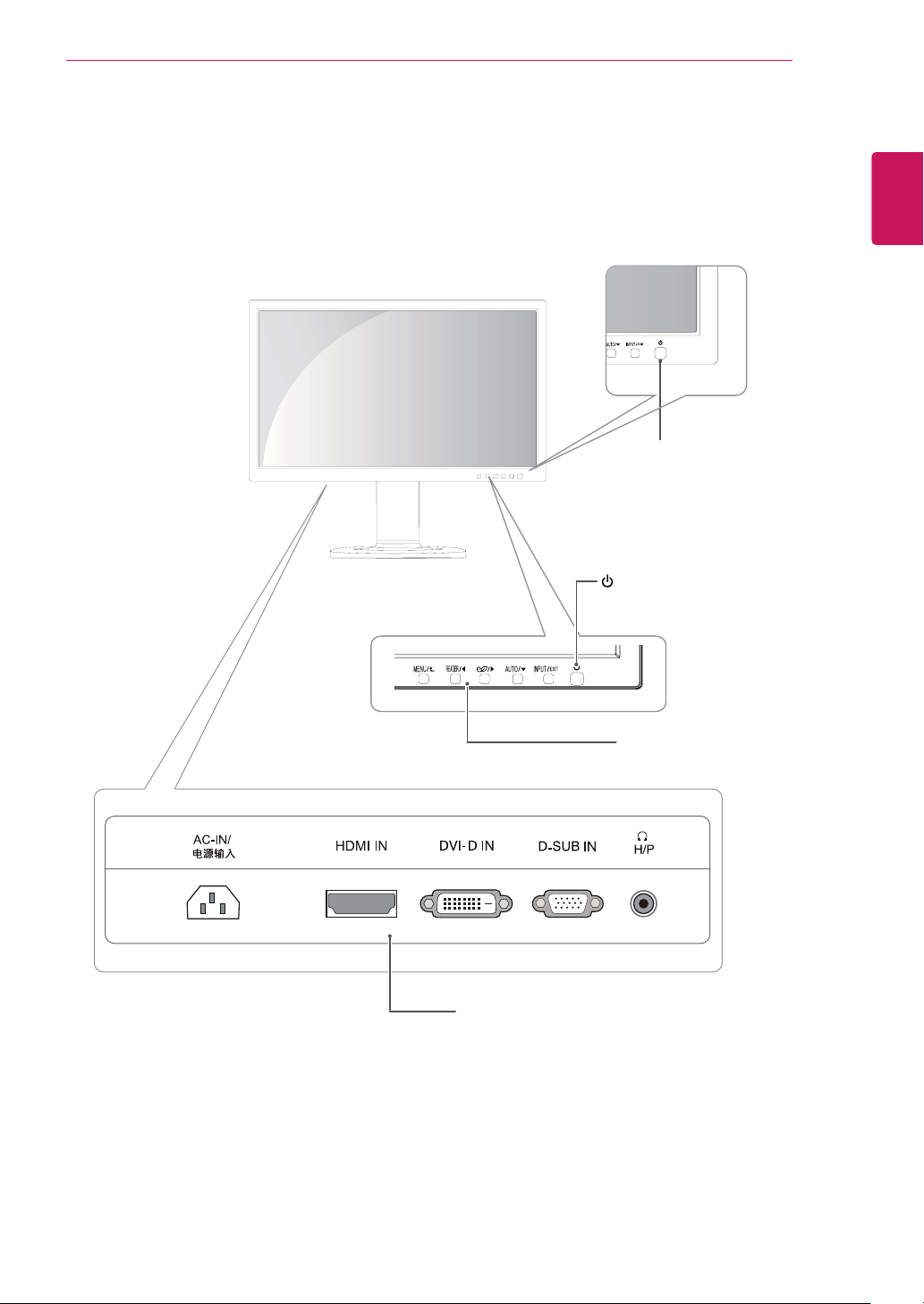

Parts and buttons

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Connection panel (See p.13~14)

Front Side Buttons

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Stand Base

Stand Body

yTo protect the screen from scratches, cover

the surface with a soft cloth.

3Using a coin, turn the screw clockwise to se-

cure the stand base.

2Check the position (at the front and rear) of

the stand body, then mount the stand base on

the stand body as shown in the figure.

CAUTION

Stand Base

23MB35PH

24MB35PH

Stand Base

Stand Body

2Check the position (at the front and rear) of

the stand body, then mount the stand base on

the stand body as shown in the figure.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the stand body

1Place the monitor's screen face down. To

protect the screen from scratches, cover the

surface with a soft cloth.

2Using a screwdriver, remove the four screws

and detach the stand from the monitor.

Stand Base

Stand Body

yThe components appearing in the illustra-

tions may look different from the actual prod-

uct.

yDo not carry the monitor upside-down as this

may cause it to fall off its stand, resulting in

damage or injury.

yTo avoid damaging the screen when lifting

or moving the monitor, only hold the stand or

the plastic cover. This avoids putting unnec-

essary pressure on the screen.

yOnly remove the tape and the locking pin

when the monitor is mounted on the stand

base and is in an upright position. Otherwise,

the stand body may protrude, which may

lead to injury.

Detaching the stand base

1Place the monitor's screen face down.

To protect the screen from scratches, cover the

surface with a soft cloth.

2Using a coin, turn the screw in the stand base

counterclockwise. Detach the stand base from

the stand body.

CAUTION

23MB35PH

24MB35PH

2Detach the stand base from the stand body.

ENG

ENGLISH

ASSEMBLING AND PREPARING

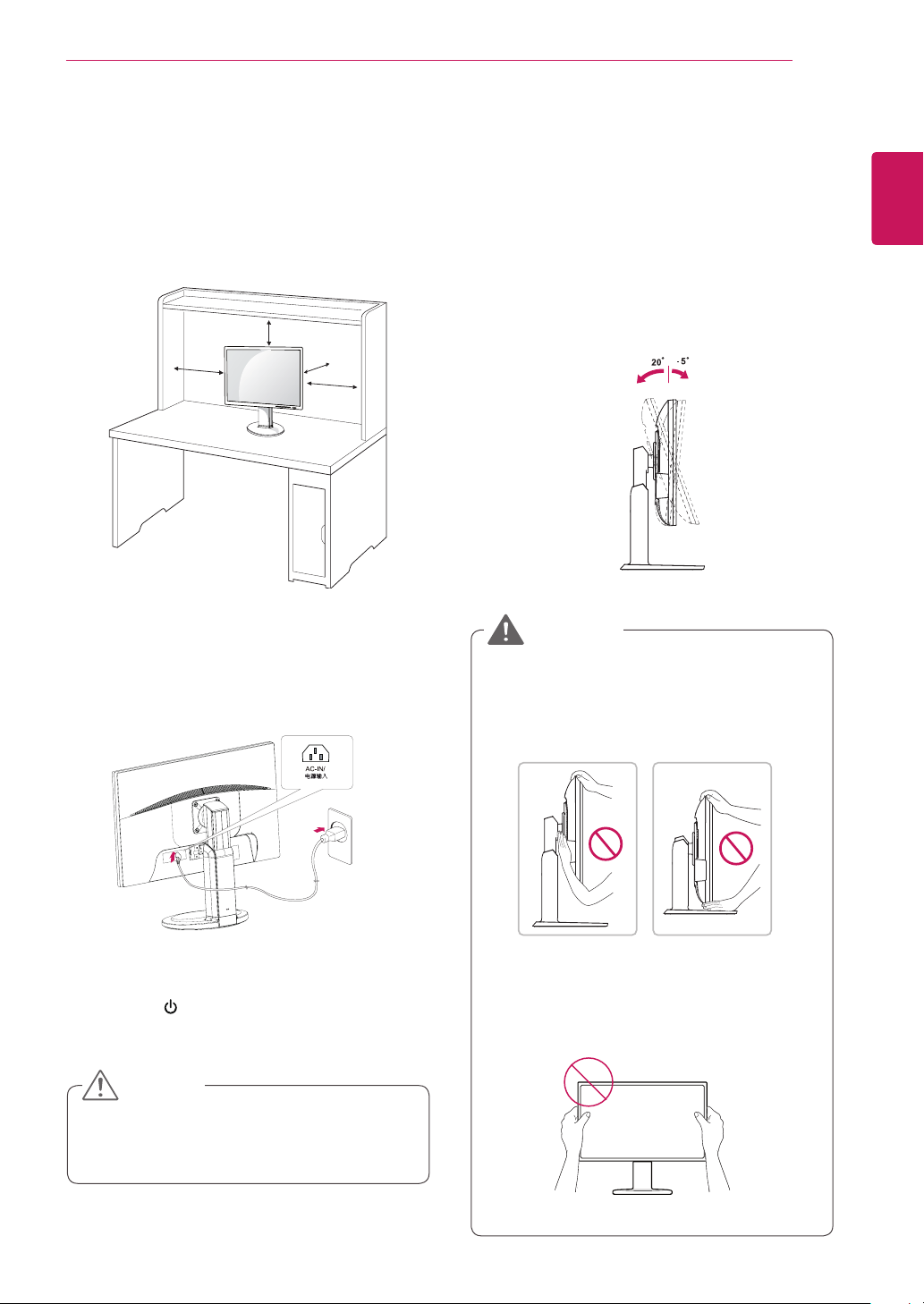

Adjusting the angle

1Place the monitor mounted on the stand base

in an upright position.

2Adjust the angle of the screen. The angle of

the screen can be adjusted up to 5° forwards

and 20° backwards for a comfortable viewing

experience.

yTo avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the

monitor's frame as illustrated below.

yBe careful not to touch or press the screen

area when adjusting the angle of the monitor.

WARNING

Mounting on a table

1Lift the monitor and place it on the table in an

upright position.

Install at least 100 mm away from the wall to

ensure sufficient ventilation.

3Press the (Power) button on the front of the

monitor to turn on the monitor.

100 mm

yUnplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

CAUTION

Front SideRear Side

Connect the Power cord to the monitor, then

plug the power cord into the wall outlet.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Using the Kensington locking

device

The connector for the Kensington lock is located

on the rear of the monitor.

For more information on installation and usage,

refer to the Kensington lock user manual or visit

the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

yUsing the Kensington lock is optional. The

accessories can be purchased at your local

electronics store.

NOTE

yOnce the pin is removed, it is not necessary

to re-insert it to adjust the height.

Adjusting the stand height

1Place the monitor mounted on the stand base

in an upright position.

2Remove the tape attached at the bottom rear

of the stand body, then pull out the locking

pin.

3The height can be adjusted up to 110 mm.

yDo not put your finger be-

tween the screen and the

base (chassis) when adjust-

ing the screen's height.

Tape

Locking Pin

Stand Body

CAUTION

WARNING

110.0mm
