LG 24M49 Manuel utilisateur

www.lg.com

LED LCD MONITOR MODEL

Please read this manual carefully before operating

your set and retain it for future reference.

OWNER'S MANUAL

LED LCD Monitor

(LED Monitor*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

24M49

ENGLISH

TABLE OF CONTENTS

CONTENTS

3LICENSE

4ASSEMBLING AND PREPAR-

ING

4 Unpacking

5 Supported Drivers and Software

6 Parts and buttons

6 - How to Use the Joystick Button

7 Moving and Lifting the Monitor

8 Setting up the Monitor set

8 - Attaching the Stand Base

8 - Detaching the Stand Base

9 - Mounting on a table

10 - Using the cable holder

12 - Mounting on a wall

13 USING THE MONITOR SET

13 Connecting to a PC

13 - D-SUB connection

13 - DVI-D connection

13 - HDMI connection

14 Connecting to AV Devices

14 - HDMI connection

15 Connecting to External Devices

15 - Peripheral device connection

16 CUSTOMIZING SETTINGS

21 TROUBLESHOOTING

23 SPECIFICATIONS

24 Preset Modes (Resolution)

24 Indicator

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-

ministrator, Inc. in the United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

27MP67VQ24MP67VQ22MP67VQ 23MP67VQ

22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ

27MP67VQ24MP67VQ22MP67VQ 23MP67VQ

22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ

CD(Owner's Manual) / Card

( Depending on the country )

Power Cord AC-DC Adapter

AC-DC Adapter

D-SUB Cable

( Depending on the country )

DVI-D Cable

( Depending on the country )

Stand Body Stand Base

HDMI Cable

( Depending on the country )

Cable Holder

( Depending on the country )

ENG

ENGLISH

ASSEMBLING AND PREPARING

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Drivers and Software Installation Priority 24M49

Monitor Driver Recommended O

OnScreen Control Recommended O

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

Power Indicator

yOn: power is on

yOff: power is off

yThe joystick button is located at the bottom of the monitor.

NOTE

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with

your finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

(Joystick Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Insert the Cable Holder.

Attach the Stand Body to the monitor set.

Attach the Stand Base to Stand Body.

Tighten the screw to the right.

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Lay a foam mat or soft protective cloth on the

surface to protect the screen from damage.

CAUTION

Stand Base

Stand Body

Detaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Stand Base

Stand Body

Turn the screw to the left.

Pull out the Stand Base.

Pull out the Stand Body from the monitor

set.

Separate the Cable Holder.

ENG

ENGLISH

ASSEMBLING AND PREPARING

(19 V )

Mounting on a table

1Lift and tilt the Monitor set into its upright

position on a table.

Leave a 100 mm (3.94 inches) (minimum)

space from the wall for proper ventilation.

2Connect the AC-DC Adapter and Power Cord

to a wall outlet.

100 mm

(3.94 inches)

yIllustrations in this document represent

typical procedures, so they may look

different from the actual product.

yDo not carry the monitor upside down by

just holding the stand base. This may cause

the monitor to fall off the stand and could

result in personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied

to the monitor screen may cause damage

to it.

yDo not apply foreign substances (oils,

lubricants, etc.) to the screw parts when

assembling the product. (Doing so may

damage the product.)

yApplying excessive force when tightening

screws may cause damage to the monitor.

Damage caused in this way will not be

covered by the product warranty.

CAUTION

100 mm

(3.94 inches)

100 mm

(3.94 inches)

100 mm

(3.94 inches)

ENG

ENGLISH

ASSEMBLING AND PREPARING

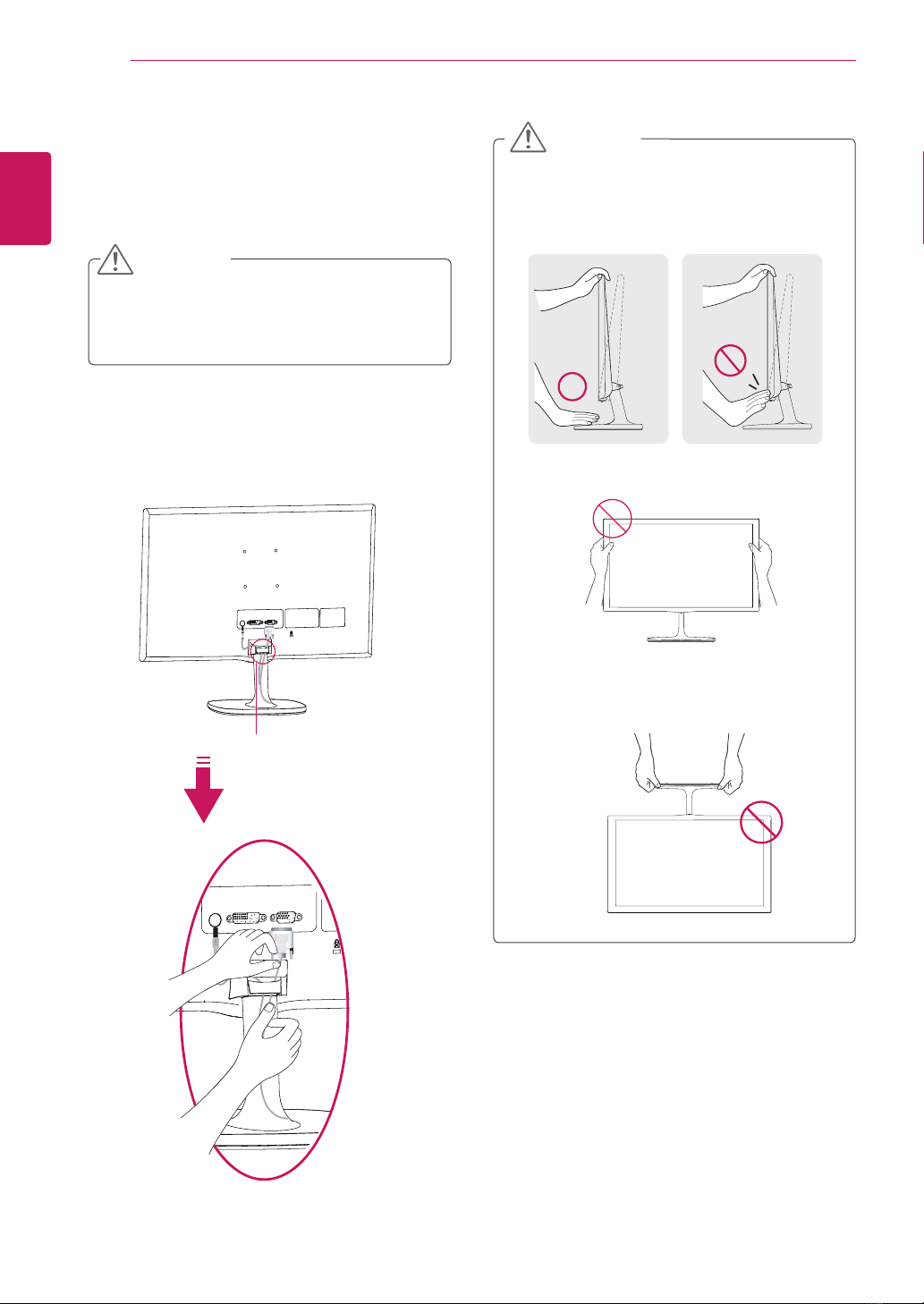

Using the cable holder

3Press the joystick button on the bottom of the

monitor to turn on the monitor.

Unplug the power cord before moving the

Monitor to another location. Otherwise electric

shock may occur.

CAUTION

Cable holder

When you adjust the angle, do not hold the

bottom of the Monitor set frame as shown on

the following illustration, as may injure your

fingers.

Do not touch or press the screen when

adjusting the angle of the monitor.

Do not hold this set like below picture.Monitor

screen can detach from stand base and injure

your body.

WARNING
